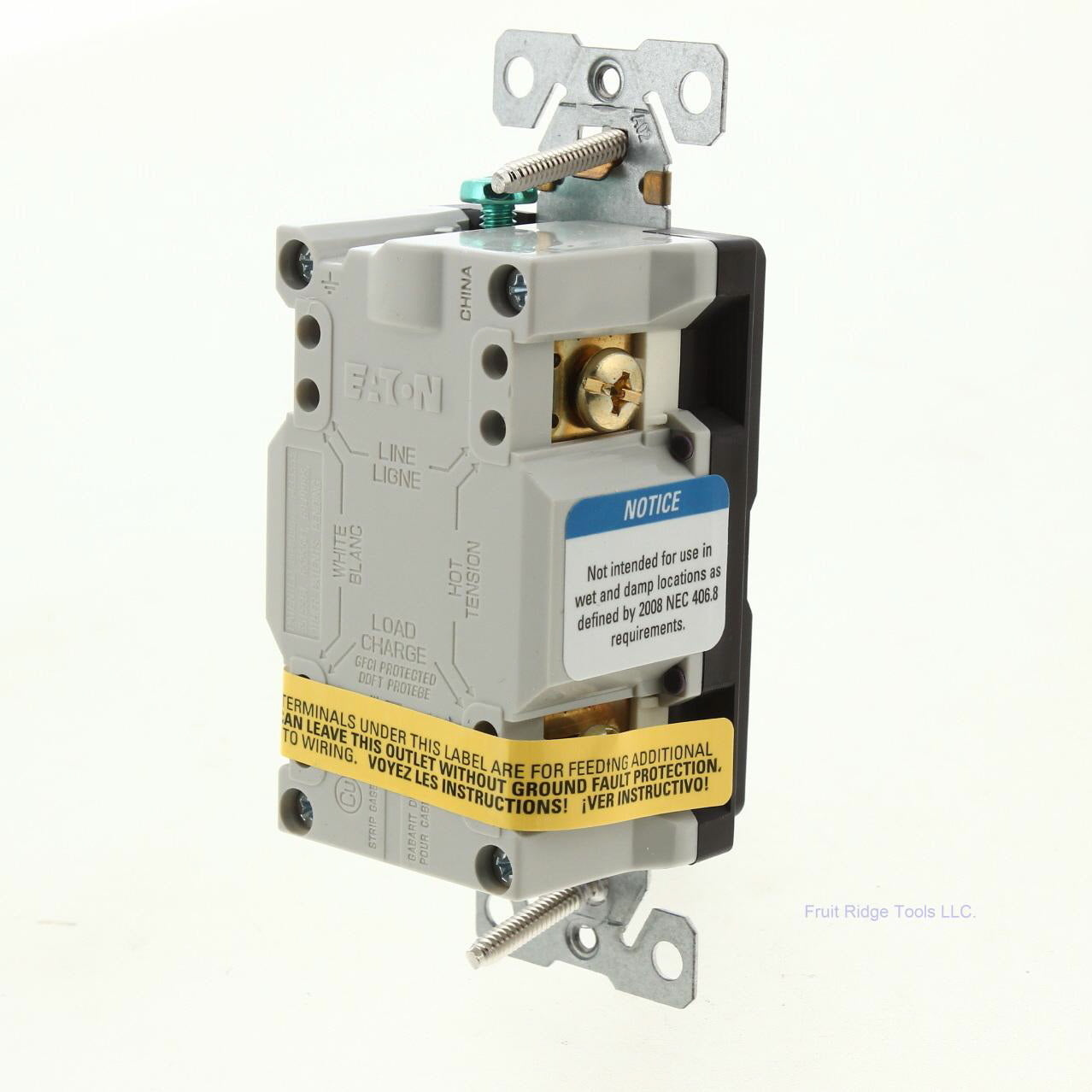

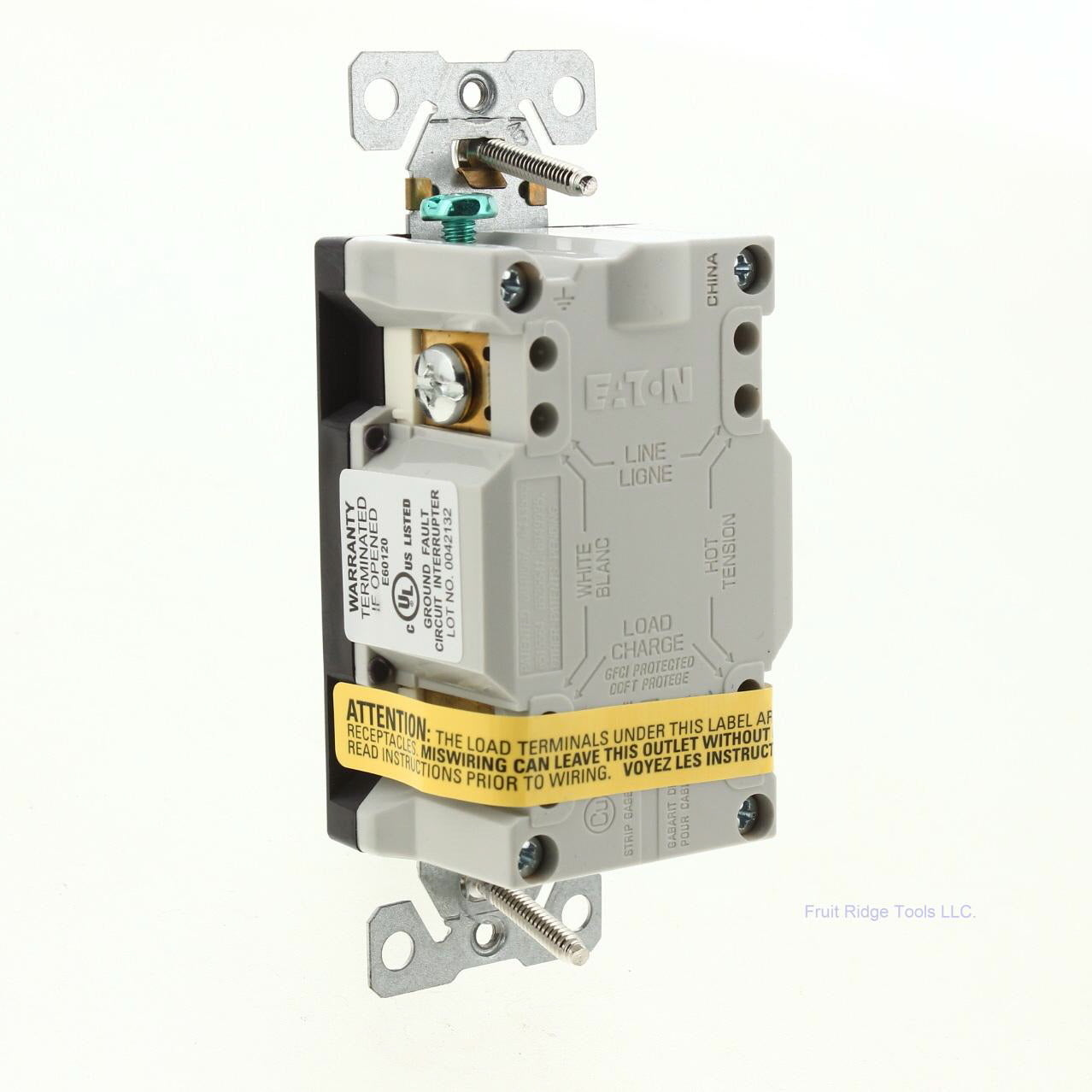

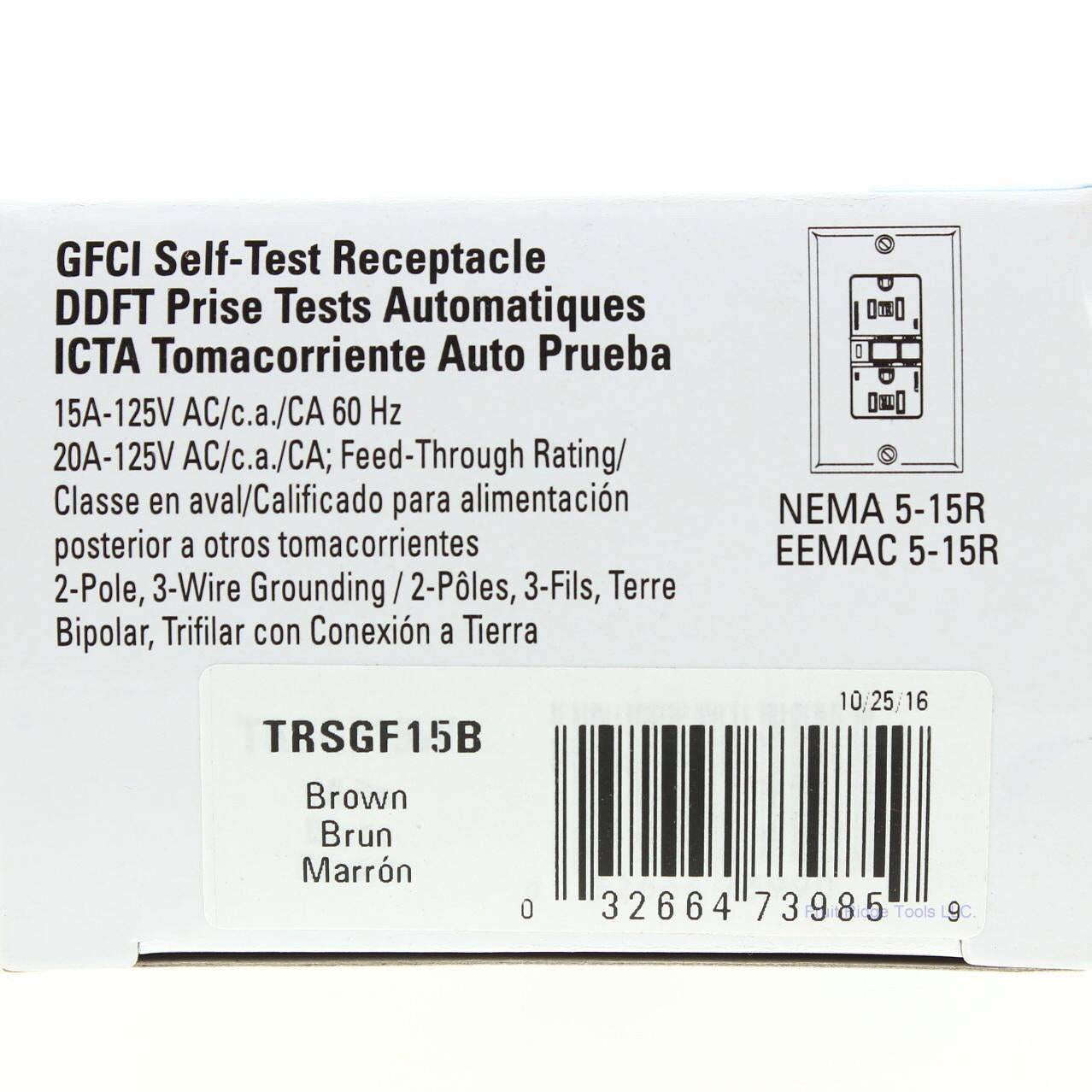

Eaton TRSGF15B brown tamper resistant ground fault circuit interrupter (GFCI) receptacle. The self-testing receptacle is NEMA 5-15R, 2-pole, 3-wire, ground fault, rated 15A 125V at receptacle with a 20A feed thru. Features include:
Performs periodic self-tests to ensure integrity of GFCI protection
Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
Longer, wider "bridged" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
20 amp feed-through allows full protection of downstream receptacles when wired from load side
8 separate backwiring holes accept up to #10AWG stranded wire, for maximum flexibility
Durable, impact-resistant thermoplastic construction
Line terminal screws are backed out, staked, and ready to wire; load side terminals are torqued down for increased prevention of miswiring
Device and wallplate mounting screws are captive, speeding installation time
Low overall dimensions makes for more room to wire in "crowded box" situations
Color-matched and recessed Test & Reset buttons provide uniform appearance
Exclusive built-in wire stripper, provides backup for misplaced tools

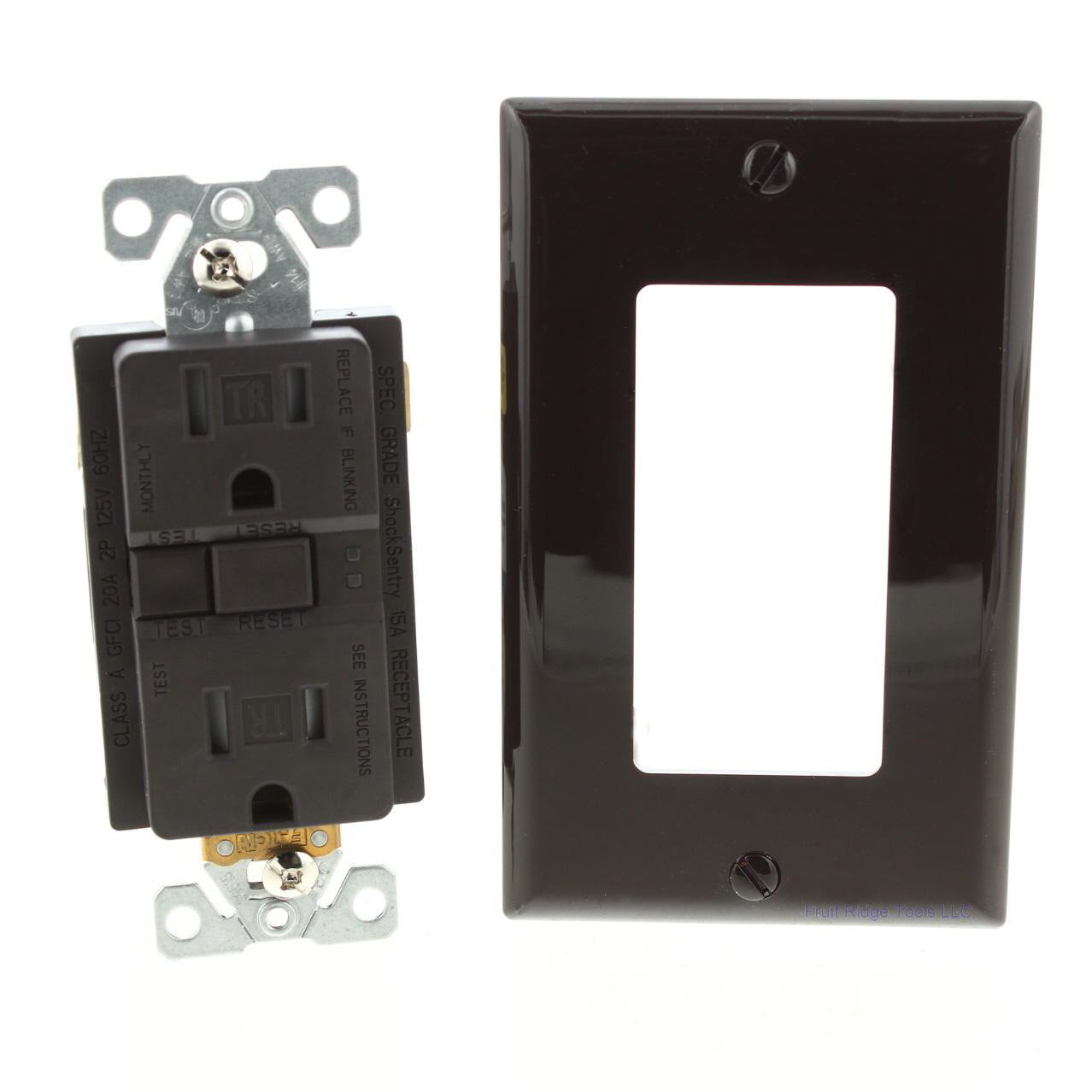

Includes matching Mid-size wallplate, measuring 3-3/16"x4-15/16". This is an oversize plate for use with larger volume outlet boxes or to hide surface irregularities
