Eaton SGFH20W White GFCI Hospital Grade Self-Testing Outlet Duplex Receptacle

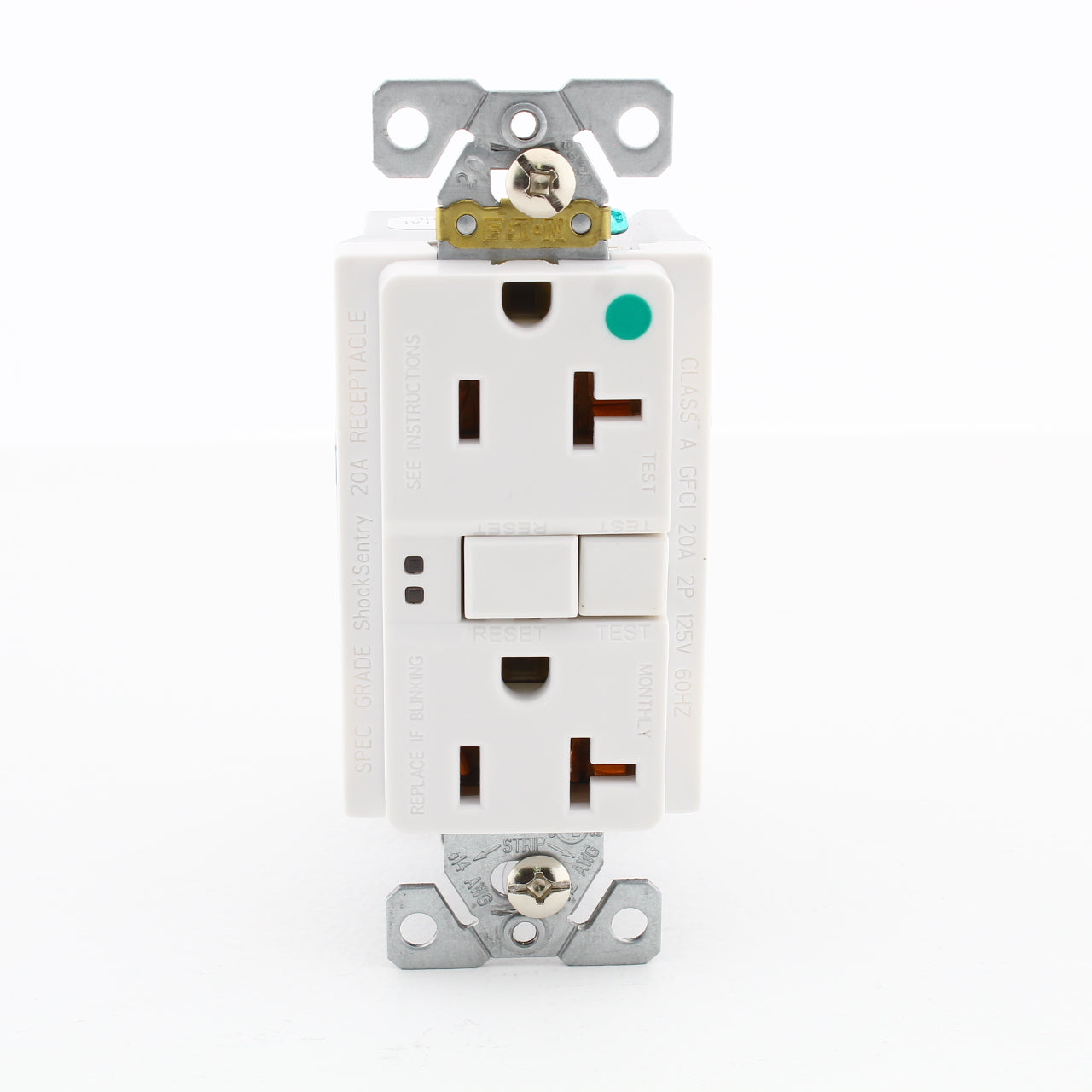

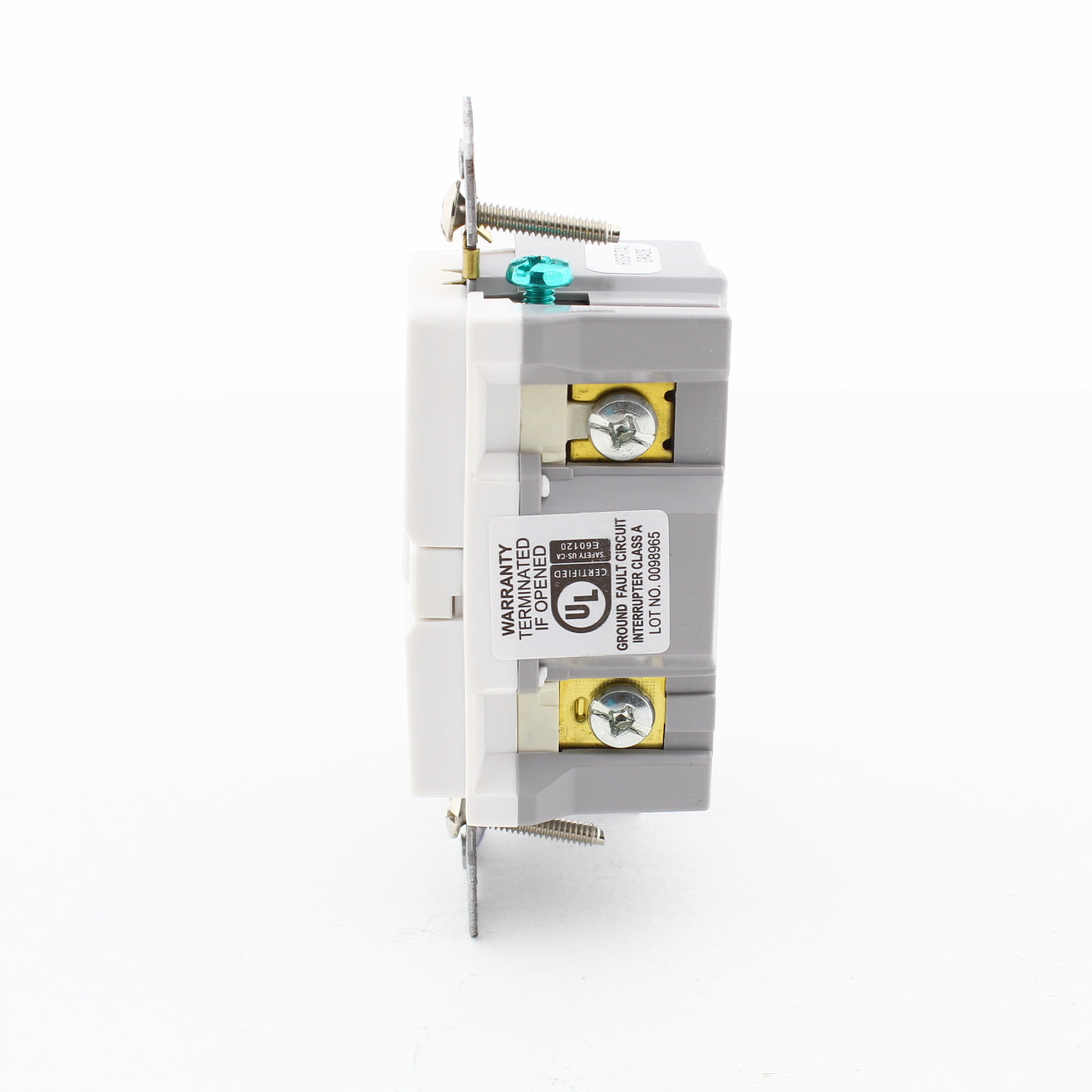

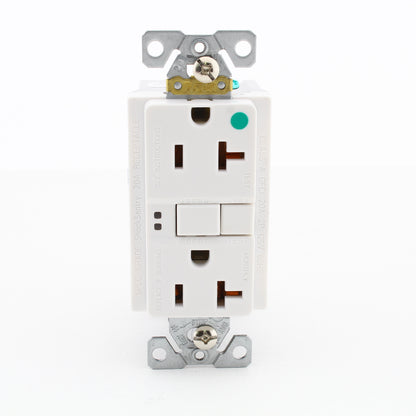

Eaton SGFH20W white self-testing hospital grade GFCI receptacle with color matching standard size wallplate and LED indicators on the face. Hospital Grade, NEMA 5-20R, back and side wired, rated 20A-125V at receptacle and 20A-125V feed-through. Hospital grade devices are top of the line in their category, designed for high-abuse environments such as those found in healthcare facilities. Each is individually packaged; packaging may differ from photo. Features include:

• Performs periodic self tests to ensure integrity of GFCI protection: if no ground-fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
• Two visual indicator LED lights on face give quick notification of a tripped or �end of life� condition
• Line-load miswiring protection: GFCIs will not provide power downstream when wired incorrectly
• When downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection
• Test and reset buttons are color matched to provide superior aesthetics; horizontal test/reset button alignment provides larger unobstructed area
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
• Longer, wider "bridge" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
• Exclusive built-in wire stripper provides fast stripping of wire without tools
• Rugged construction provides unsurpassed chemical and impact resistance

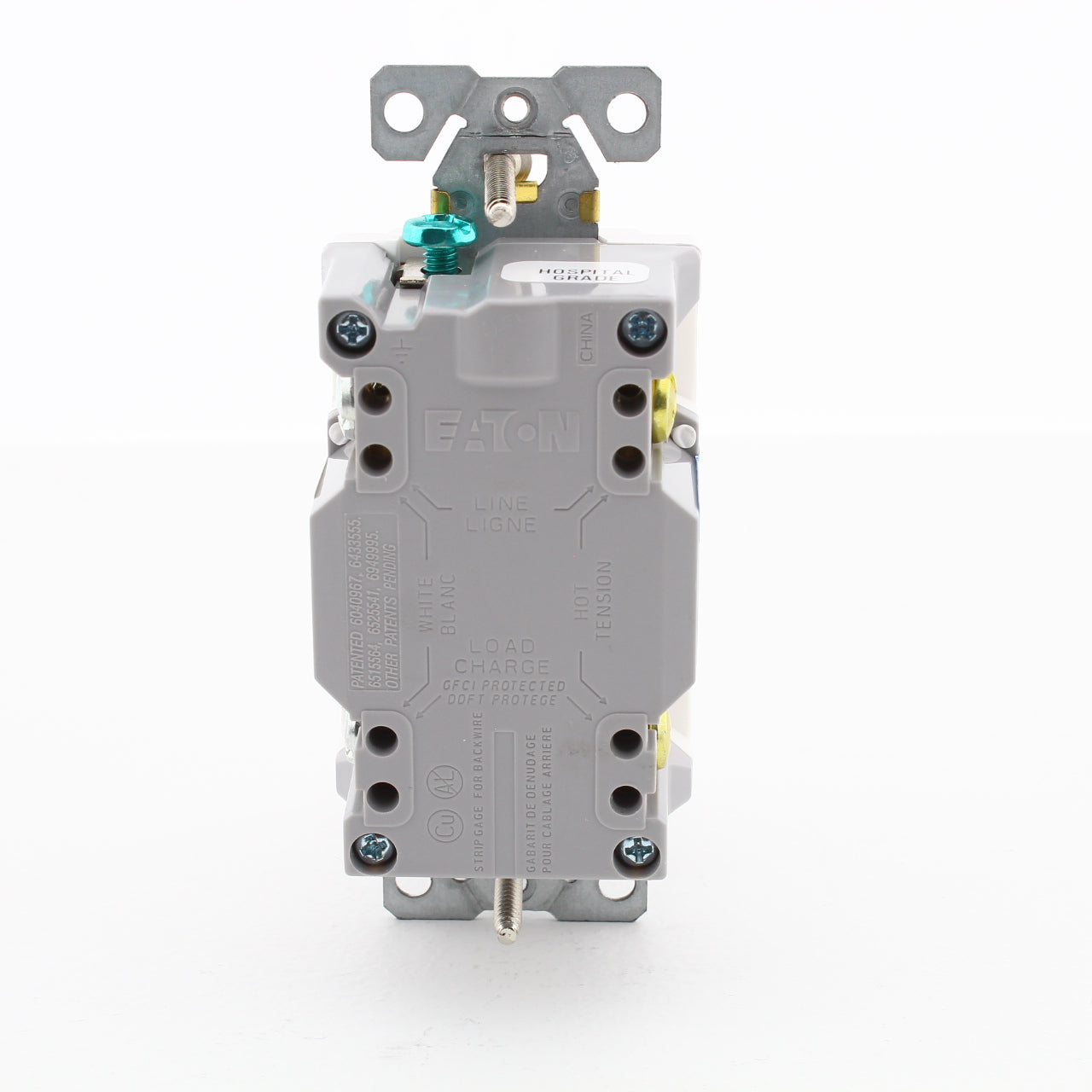

• Ground termination with back wire clamp provides secure wiring and reduces installation time
• Line side terminals are backed out and staked for fast installation
• Tri-combo head terminal and mounting screws
• Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
• Meets and exceeds 10 kA short circuit testing and Underwriters Laboratories (UL) 2006 UL943 safety standards

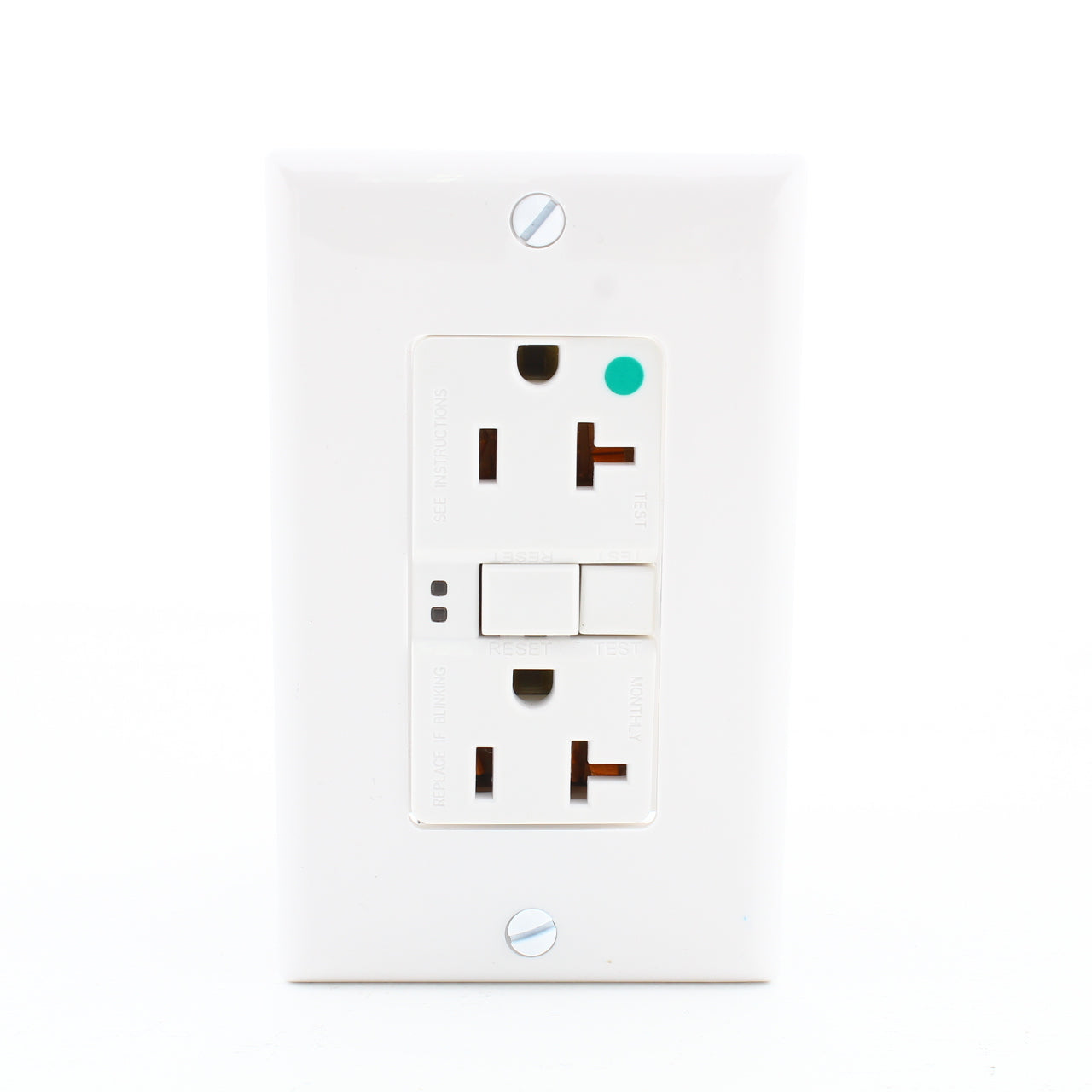

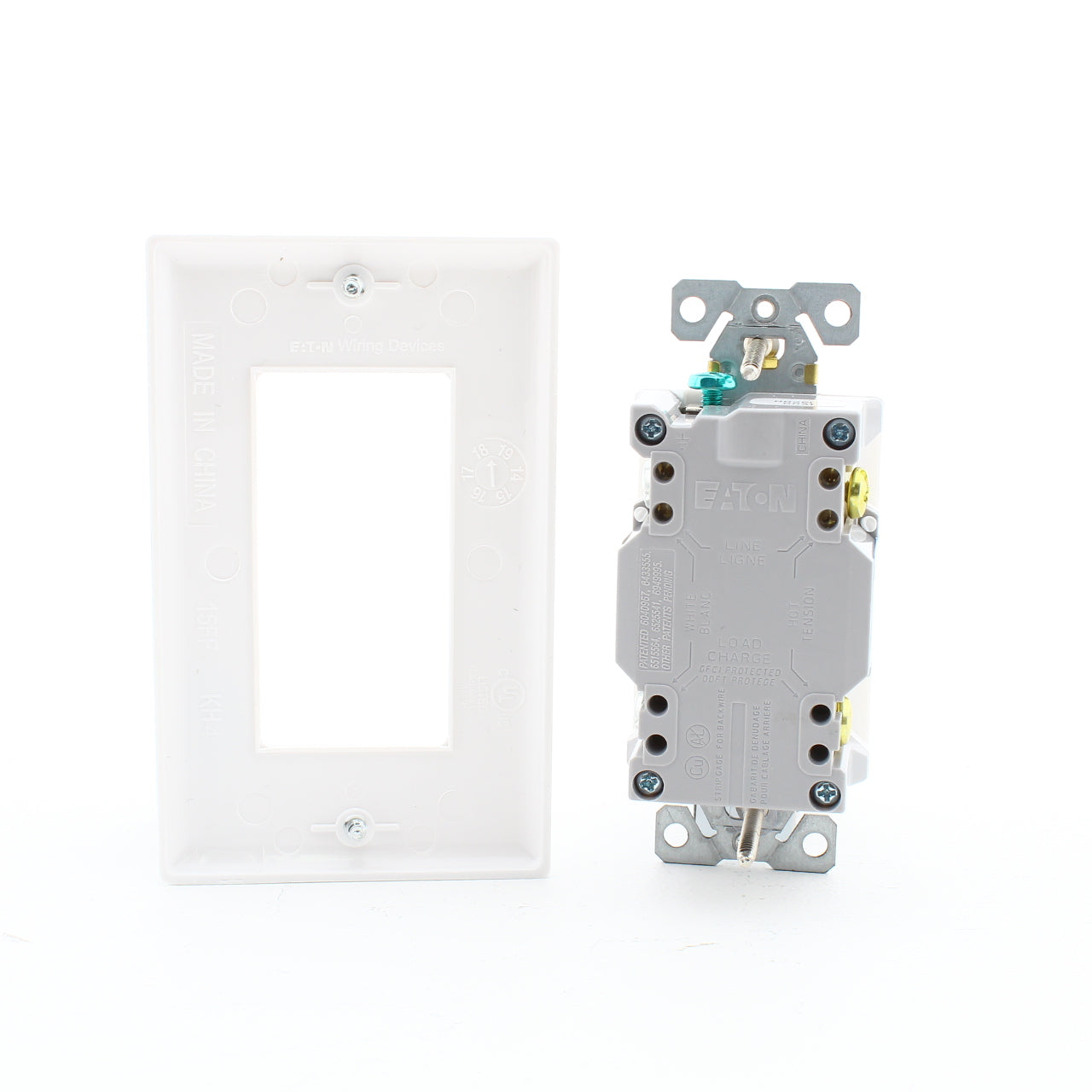

• Includes color matching standard size wallplate, measuring 2.75"w X 4.50"h
