Eaton RFASAPMDW White Anyplace Switch w/Lamp Module Z-Wave RF Battery Operated

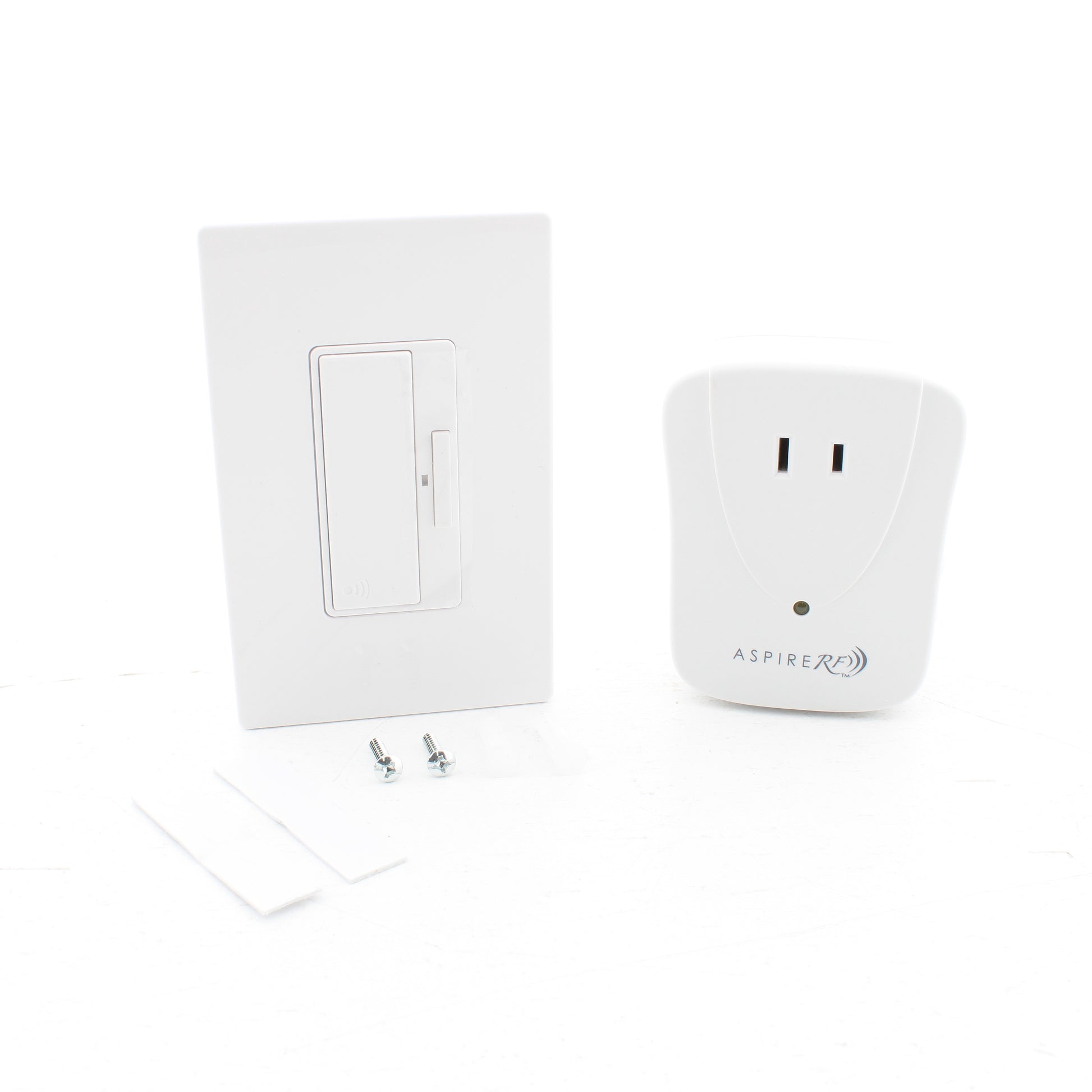

Eaton RFASAPMDW designer white Z-Wave battery operated switch combination kit. Kit includes: (1) RF9575DW designer white Anyplace battery-operated switch and (1) RFAPM white RF lamp switching module. Features include:

• Conveniently add a switch wherever you need it - no need for additional wiring
• Can be used in combination with RF switches, dimmers and receptacles
• Can be used in existing Z-Wave network or as a stand-alone controller
• Controls up to 5 RF devices
• Eliminates the need for a separate controller
• Mounts on any flat surface

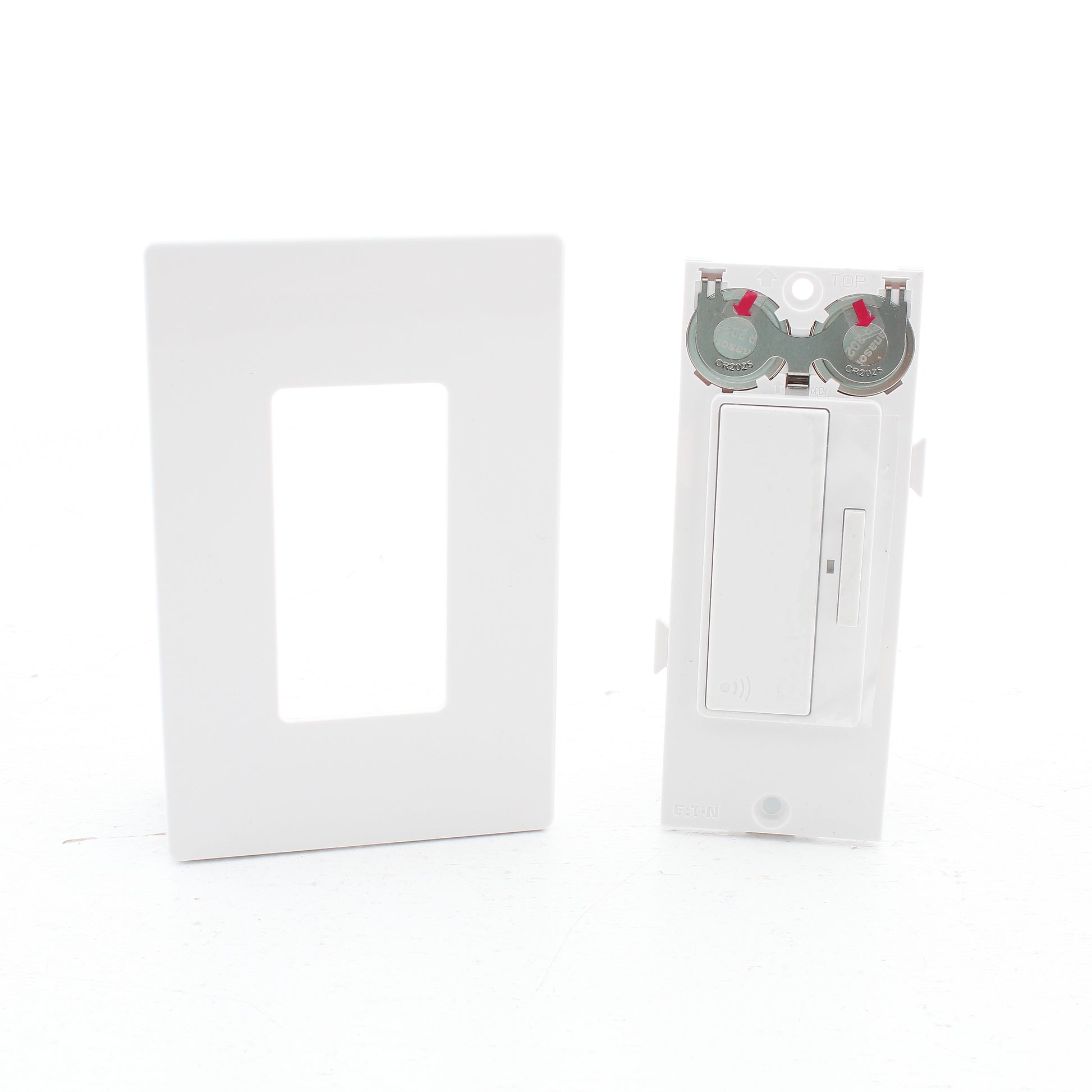

• Includes 2 CR2025 batteries
• Includes 2 pieces of double-sided tape as well as mounting screws and anchors for maximum installation flexibility
• ON/OFF switch will turn associated Z-Wave wireless switch, receptacle or dimmer ON/OFF
• The UP/DOWN dimmer buttons will control the light level when associated with a Z-Wave master dimmer
• Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
• Can be used in existing or new multi-gang installations with use of inner wallplate (RFBS22)
• Compatible with Z-Wave devices for wireless 3-way control, eliminating the need for traditional 3-way wiring or for a dedicated traveler wire
• Single button programming
• Child Lockout feature
• Goes into Sleep Mode to reduce power consumption & extend battery life (LED indicator is OFF)
• Blue LED indicator: normally OFF; blink once when turning a device OFF; ON for 2 seconds and then OFF when turning a device ON; blinking when device is not readable; blinking rapidly during install/uninstall process when RF9575 is used as a controller

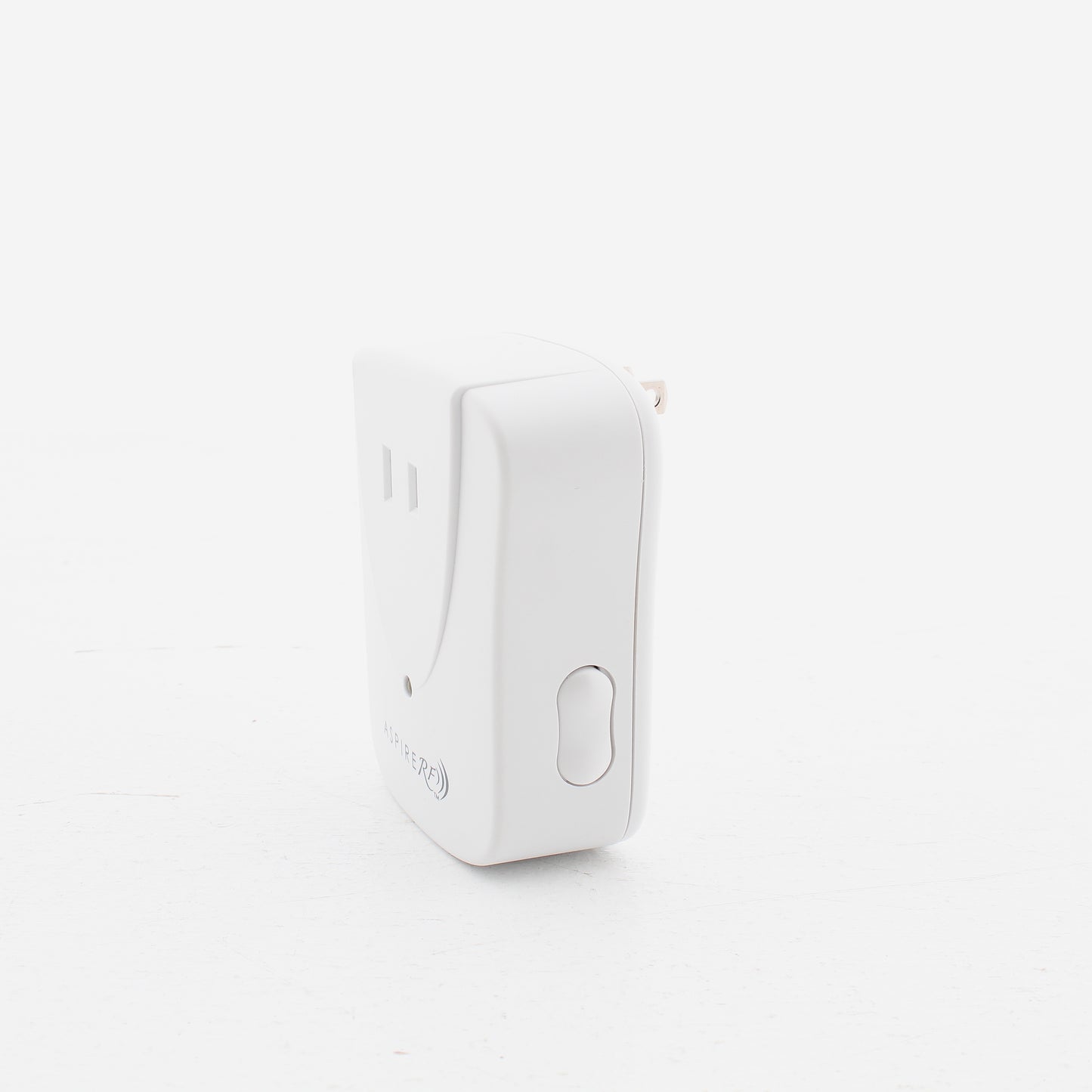

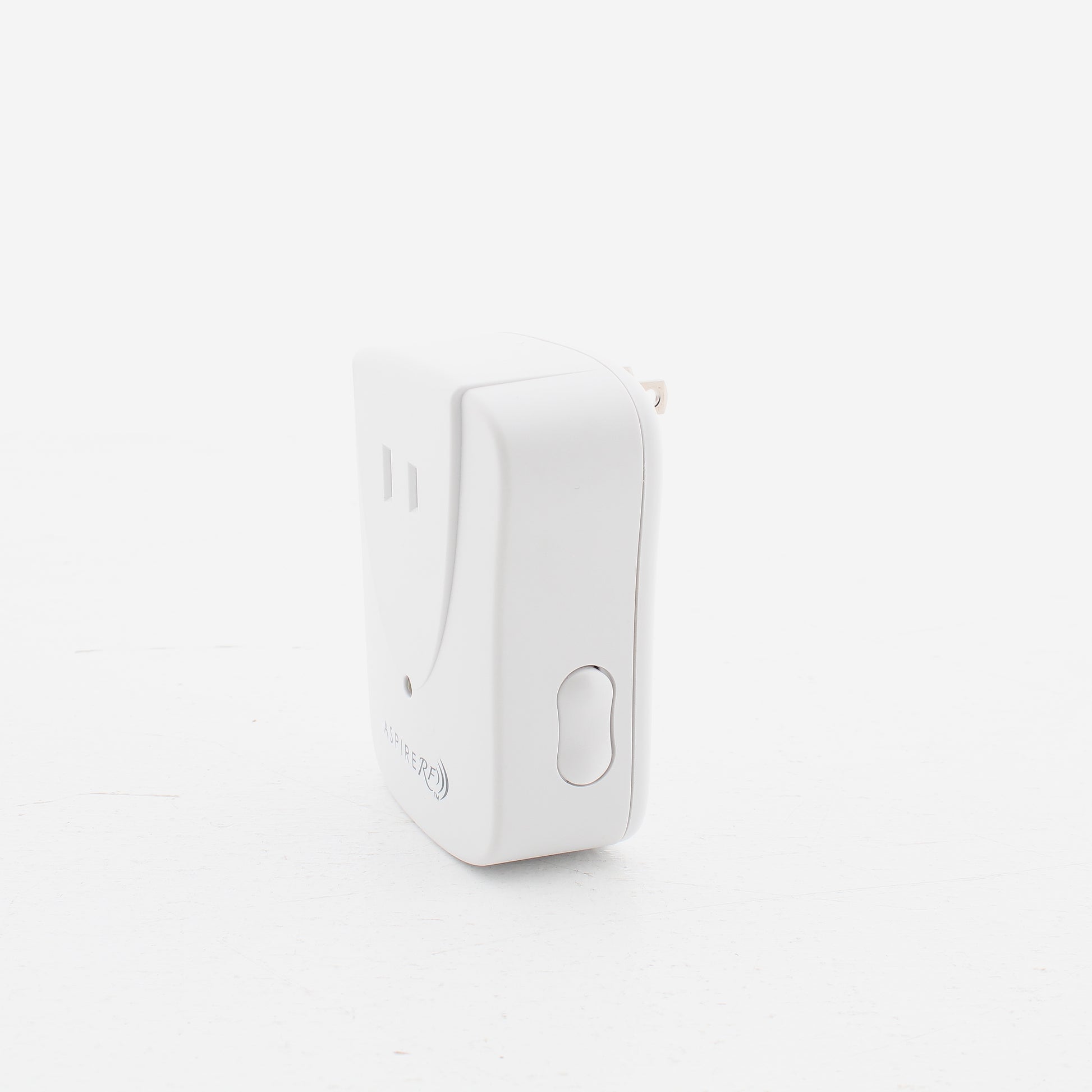

Features of the lamp switching module include:

• Rated 600W 120VAC
• Switch module provides 120V/AC NEMA 1-15R receptacle for use with a wide variety of lamps
• Appliance Switch Module�s electro-mechanical push button located on side of device for inclusion and ON/OFF operation
• Modules can be controlled remotely by other Z-Wave devices through association of up to 5 devices
• Quiet relay switching
• Amber LED indicates ON/OFF load status
• Single button programming
• Can be included in Scenes
• Child lockout feature
• All-ON/All-OFF inclusion
• Panic mode capability
• Patented indicator system alerts if module is not set up in the network
• Configurable �Power ON Status� (ON/OFF/last level)
• Power failure memory
