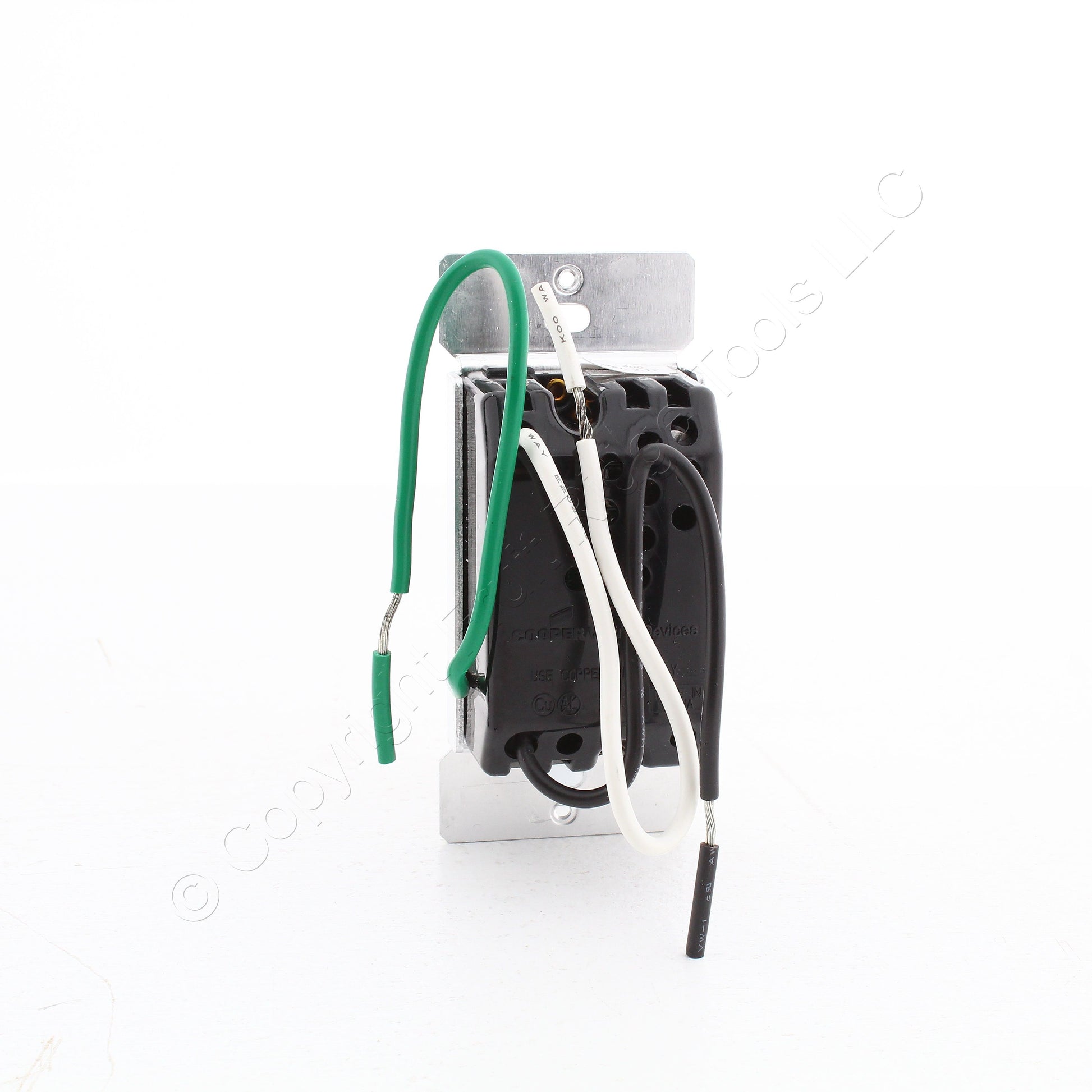

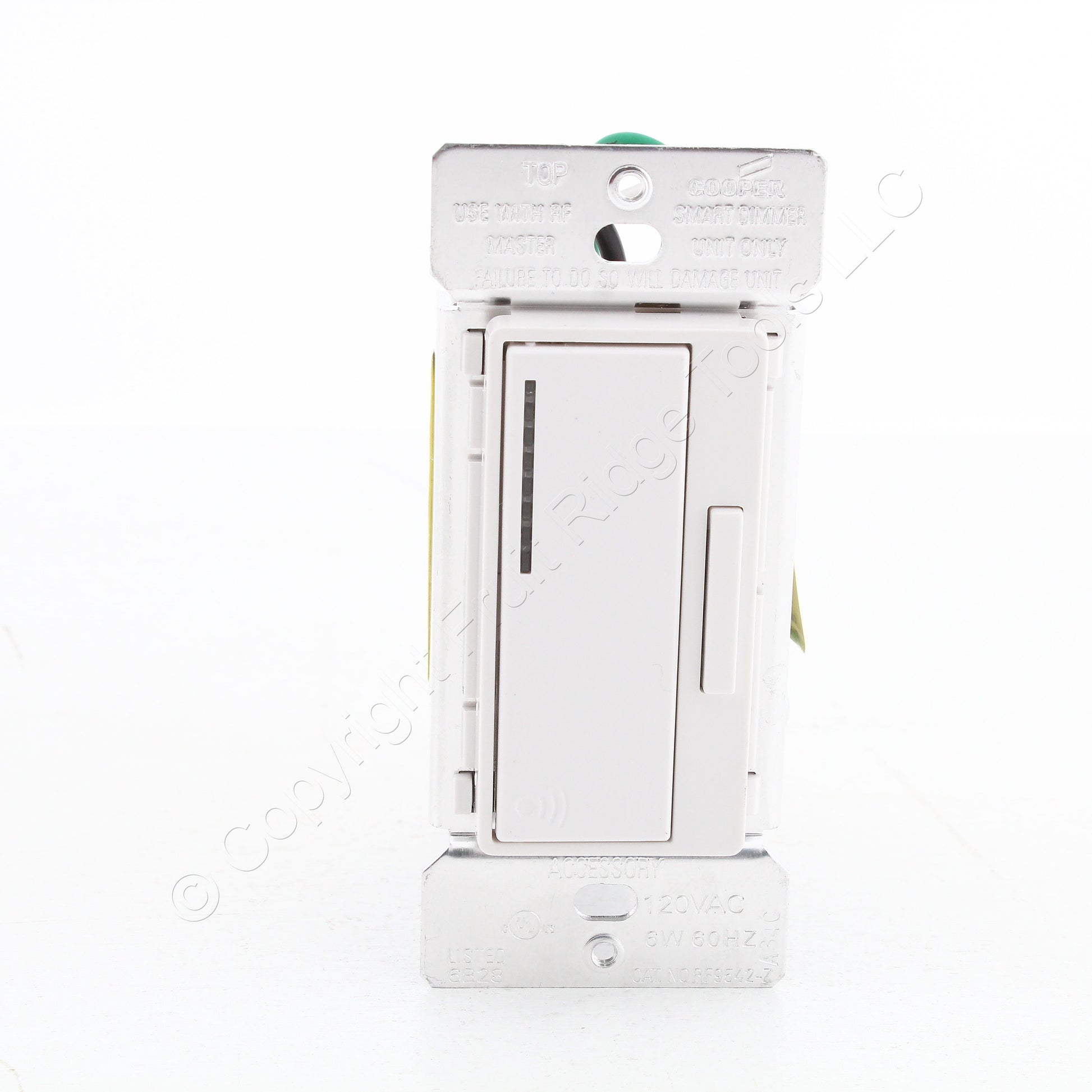

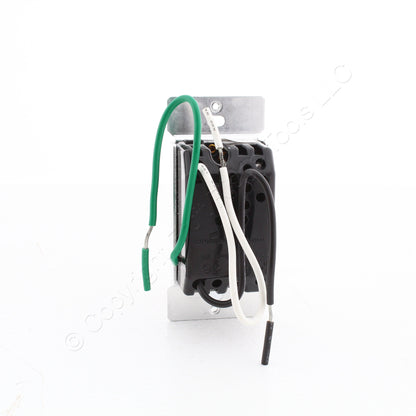

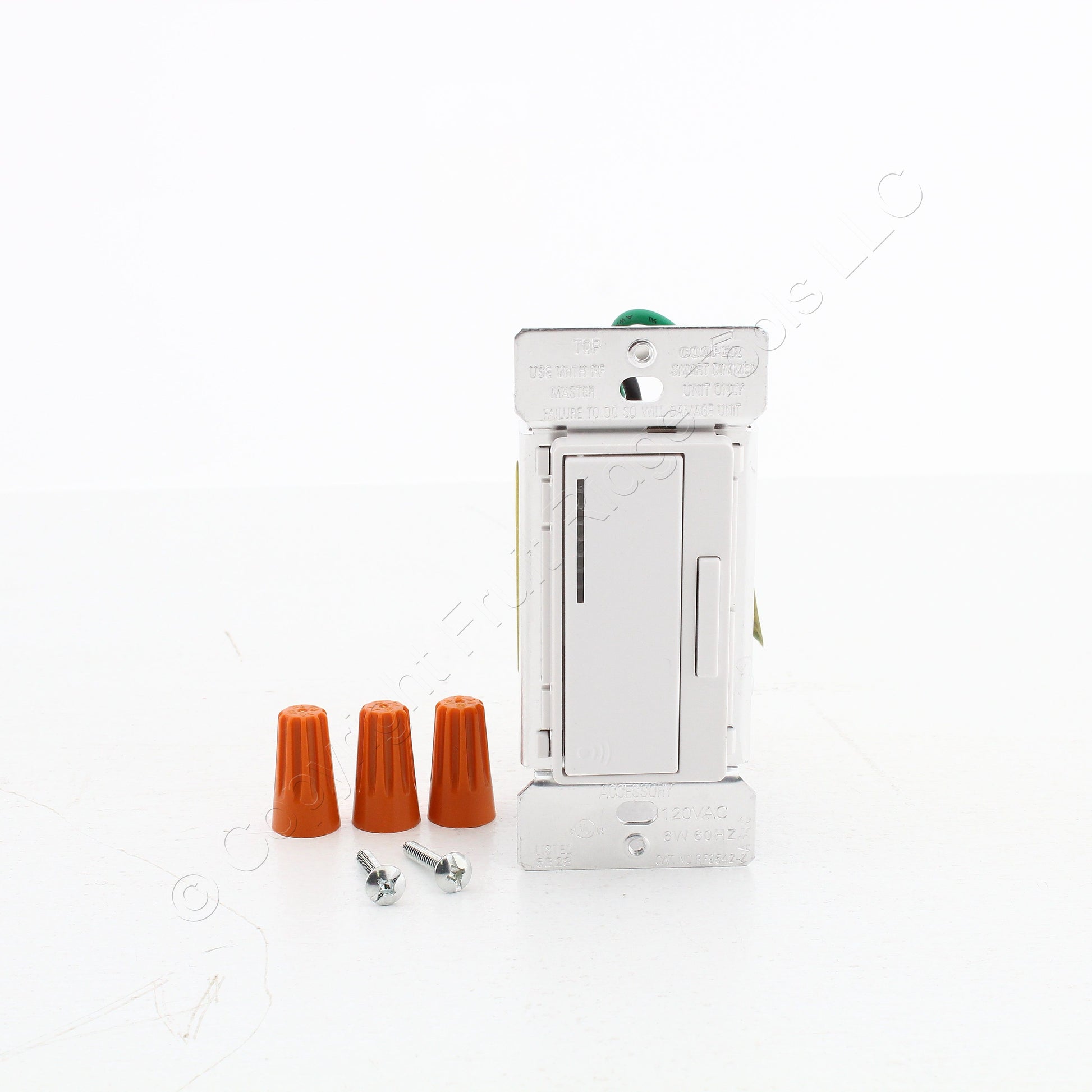

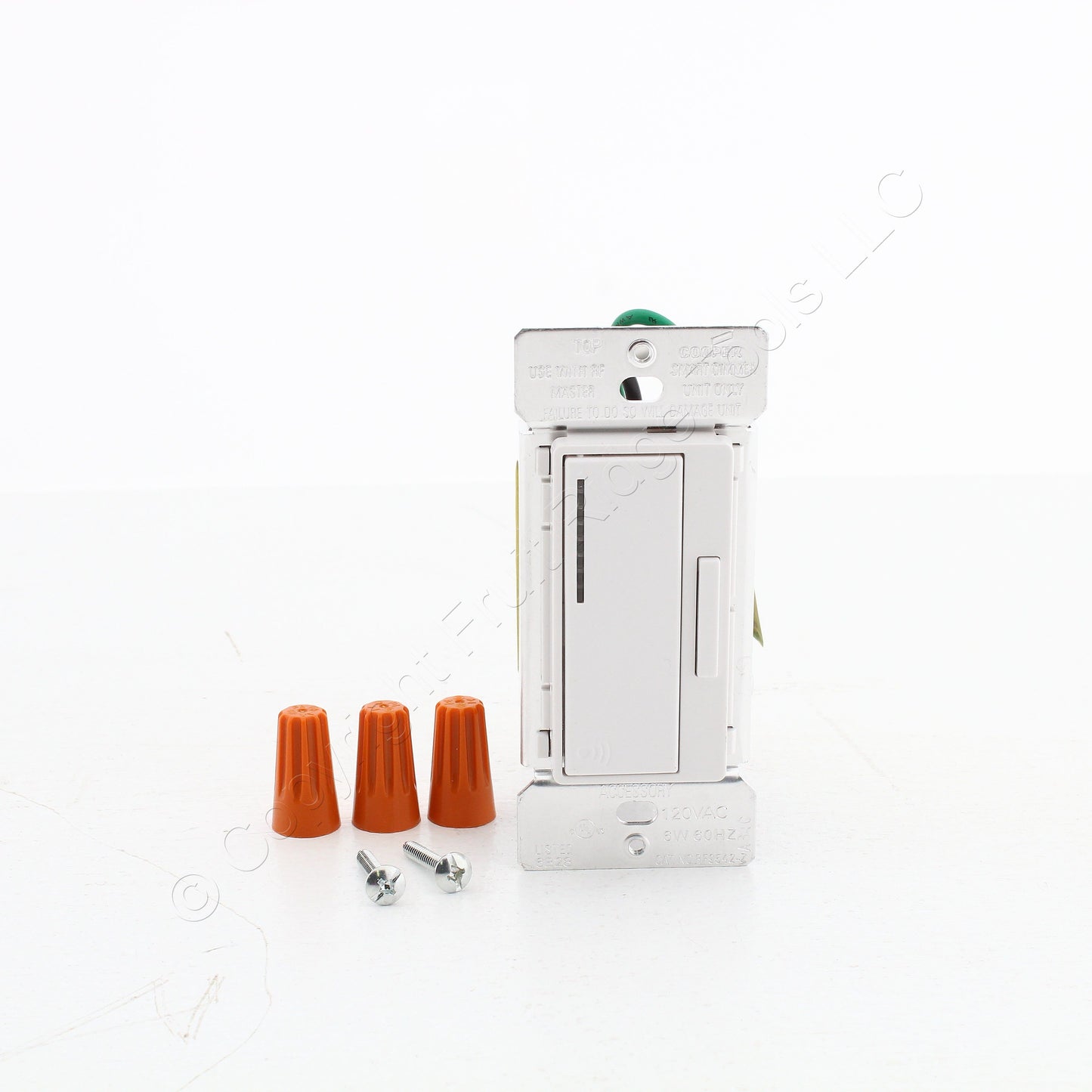

Eaton RF9542-ZDW white RF smart dimmer accessory dimmer. Residential Grade, multi-way, grounding, 3 pre-stripped 6" wire leads for line, ground and neutral, rated 120VAC. Each is individually packaged; packaging may differ from photo. Features include:
Electro-mechanical push button for ON/OFF operation
Seven step blue LED display alongside push pad indicates selected light level - even in full daylight (coordinates light level status with associated master dimmer)
Compatible with Aspire RF master dimmer (RF9540-N, RF9534, RF9536, RF9536-N, RF9537-N) for wireless 3-way control, eliminating the need for traditional 3-way wiring or dedicated traveller wires
Requires neutral wire for installation
Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
LED reduces brightness when in the OFF state (nightlight feature)
Adjustable ramp rate
Pressing and holding push pad for 2 seconds brings light to full brightness without affecting preset levels
Single button programming
Patented indicator system alerts if switch is not set up in the network
Can be associated with up to 5 other devices
Programmable rapid and delayed fading (up to 4 minutes) (default is 10 seconds)
