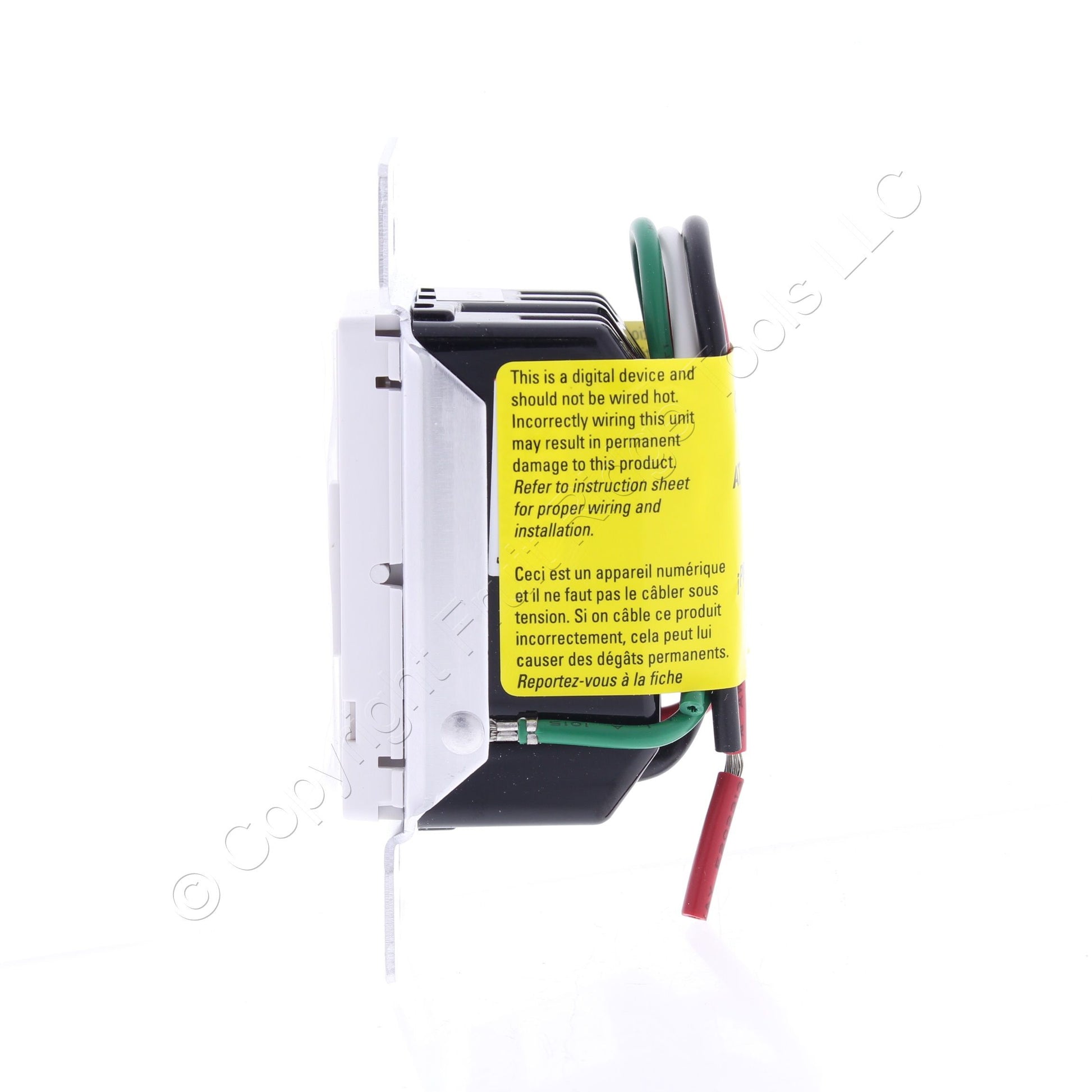

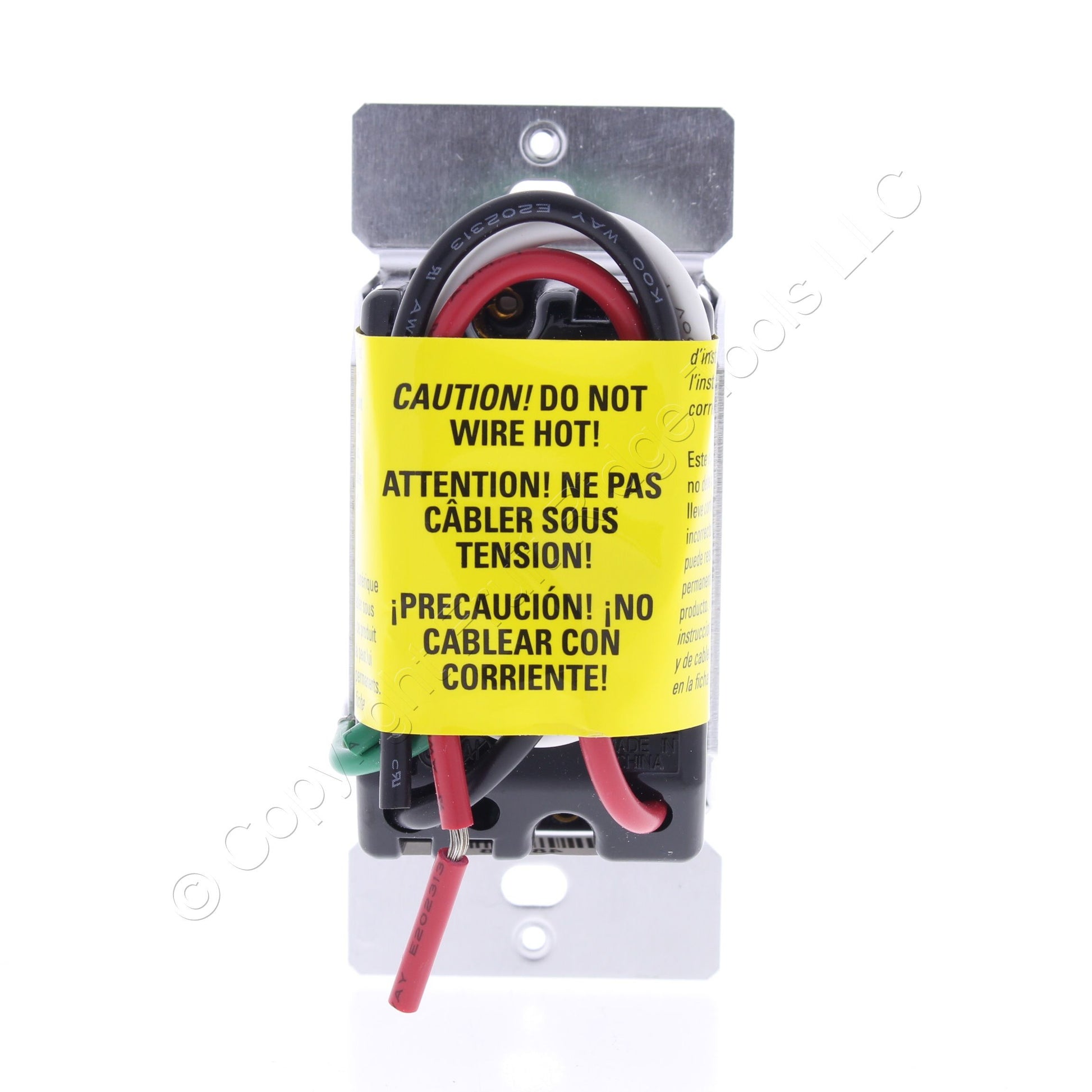

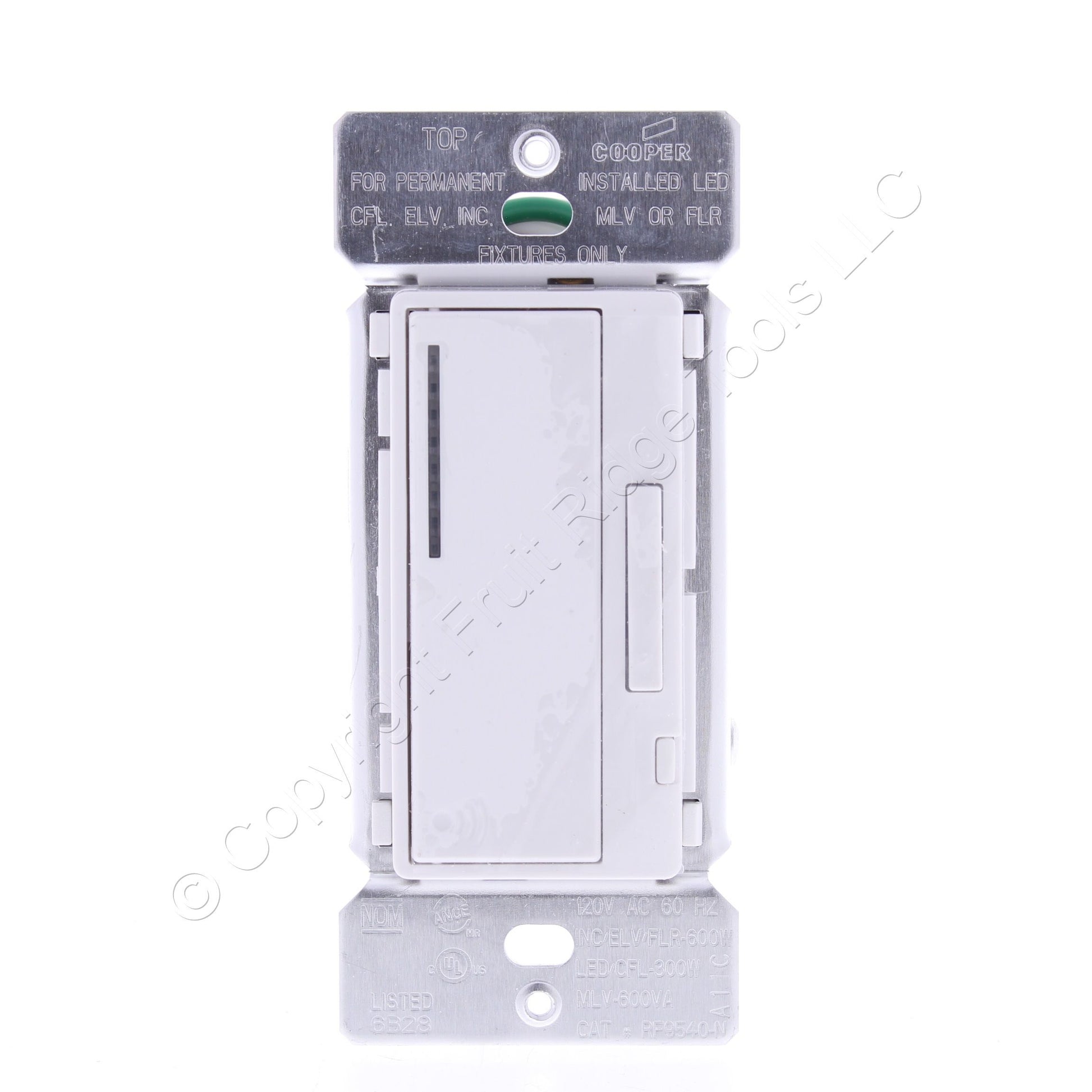

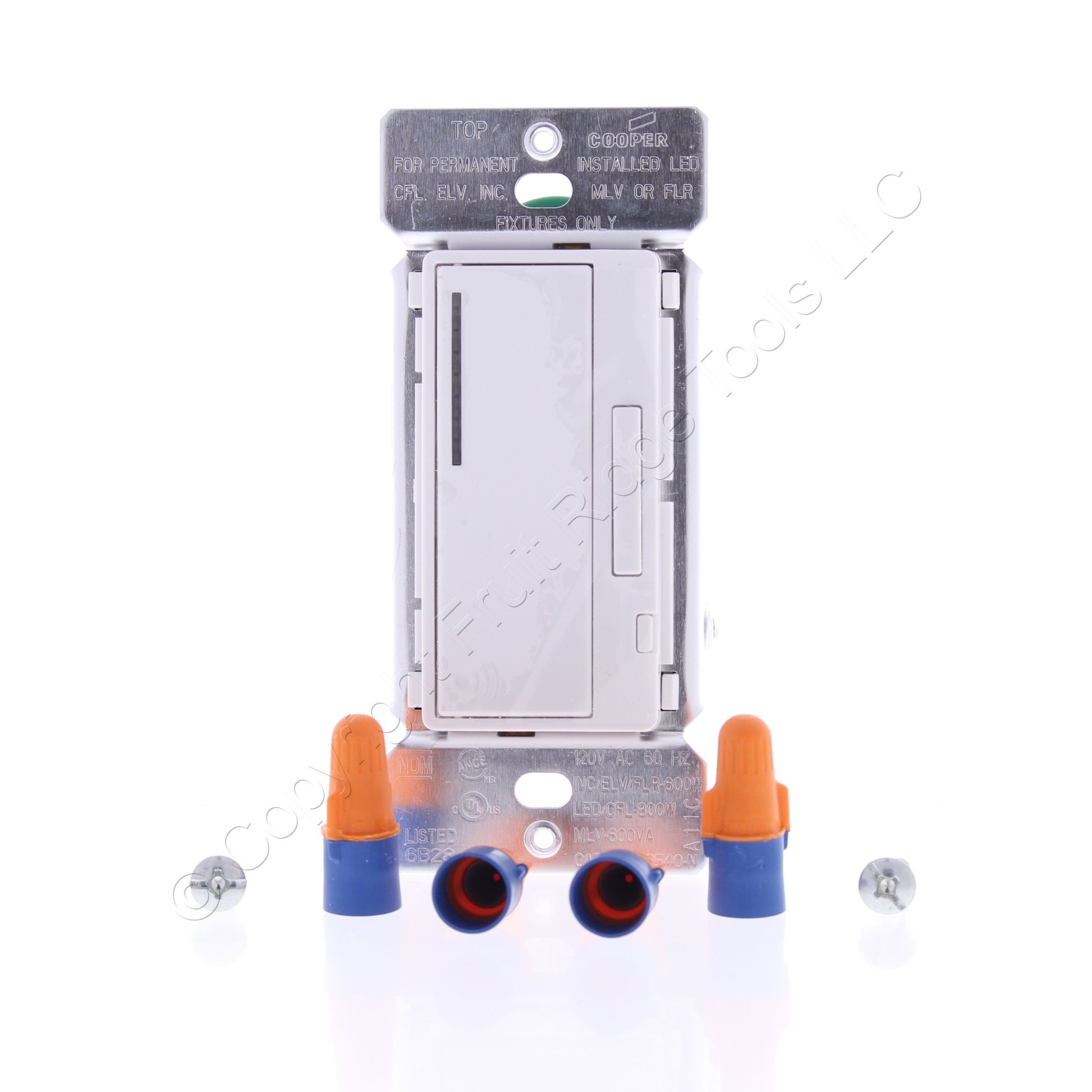

Eaton RF9540-NDW designer white Z-Wave dimmer. Residential Grade, multi-way, grounding, 3 pre-stripped 6" wire leads for line, ground and neutral, rated 300W for dimmable LED/CFL, 600W for incandescent/halogen/magnetic low voltage/electronic low voltage/fluorescent. Each is individually packaged; packaging may differ from photo. Features include:
Adjustable low-level trim setting helps prevent flickering
Adjustable high-level trim setting for additional energy savings
Programmable rapid start feature ensures lamp start-up even at low dim levels
Seven step green LED display alongside push pad indicates selected light level and reduces brightness when OFF (location feature)
Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
Preset feature allows user to return to previous light setting when turning lights ON
Light level may be adjusted with the dimmer state ON or OFF
10 second delayed-OFF feature by pressing and holding push pad for 2 seconds when dimmer is ON
Pressing and holding push pad for 2 seconds when dimmer is OFF brings light to full brightness
Amber LED at bottom of LED display indicates ON/OFF load status
Master controls as many as 5 accessory units for multiple location installations
