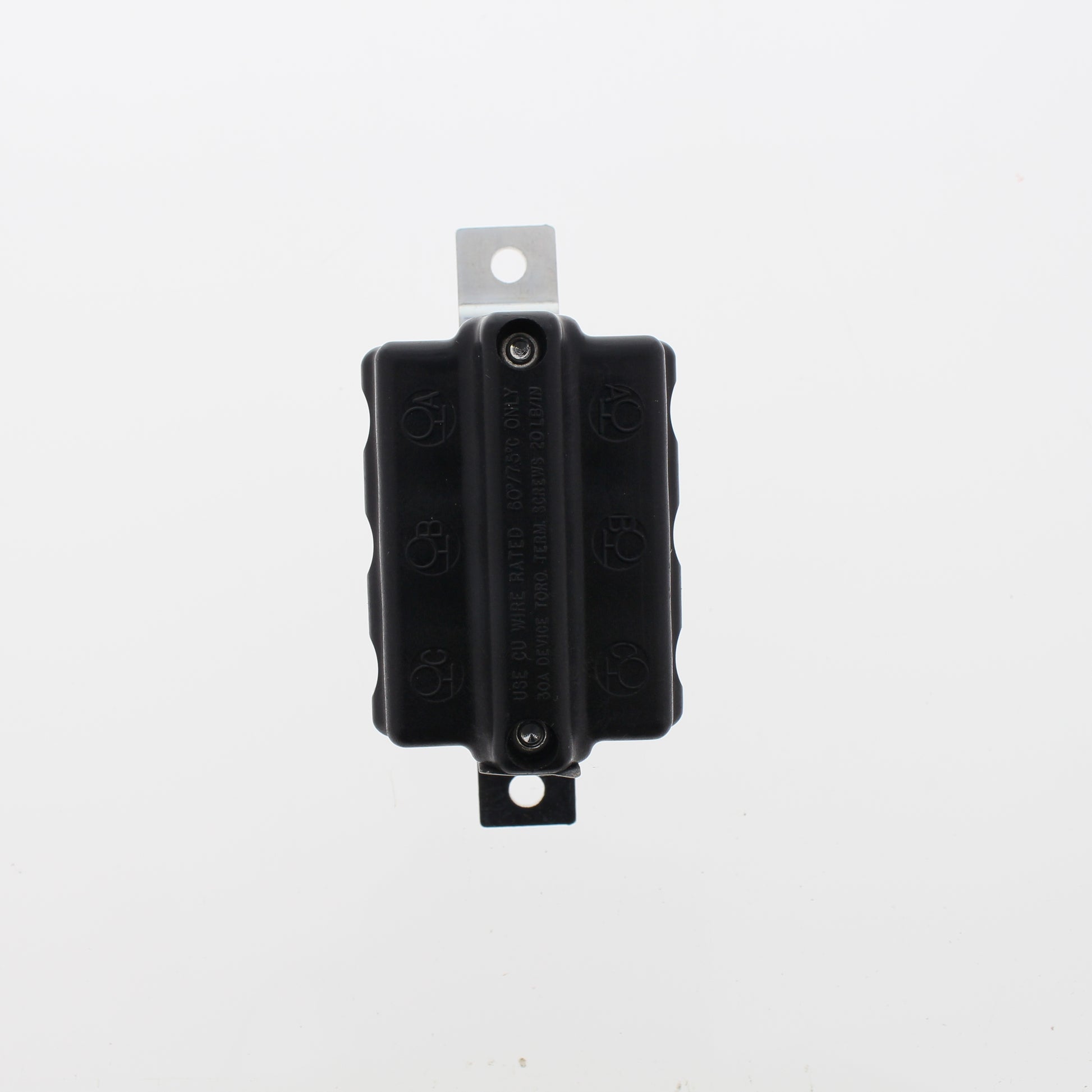

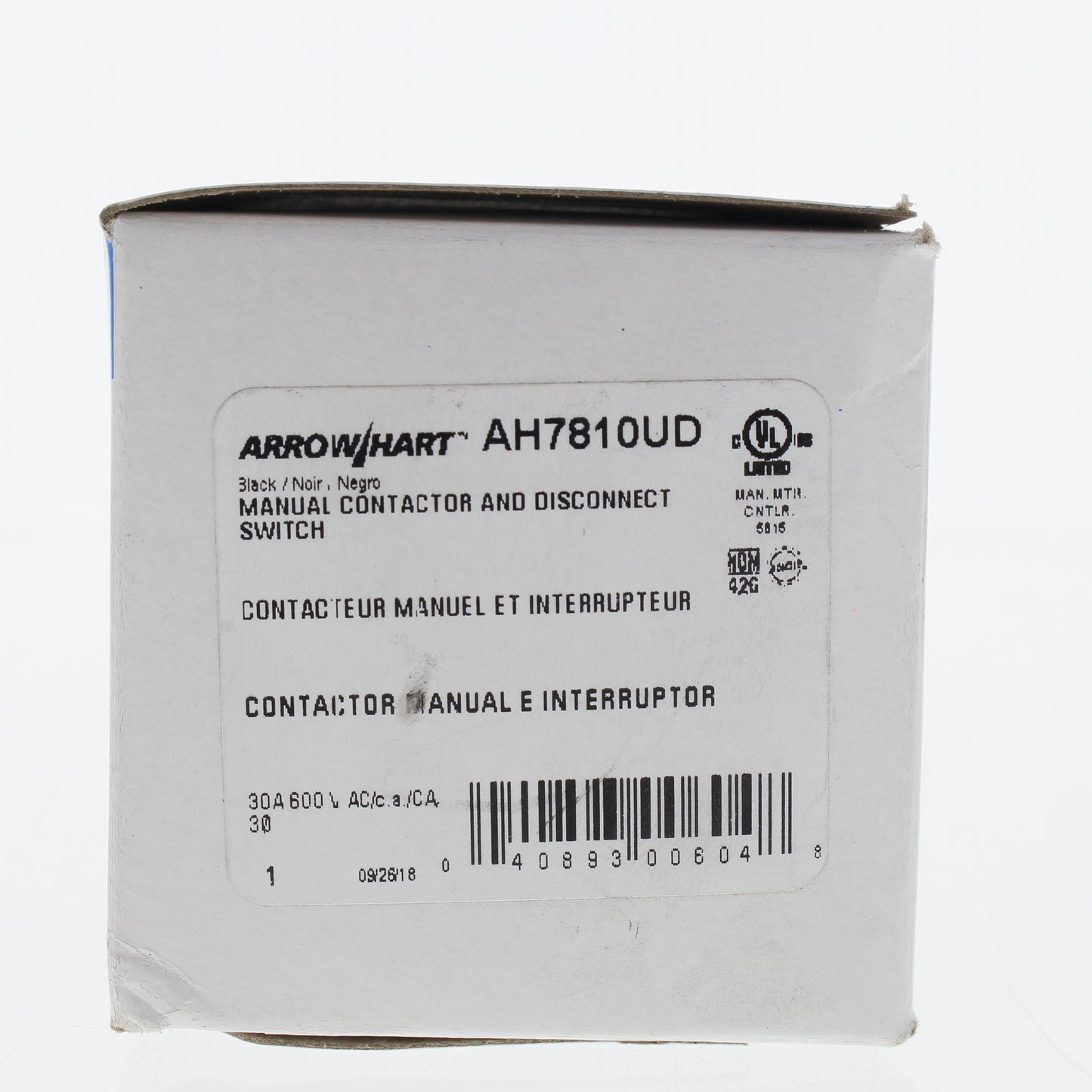

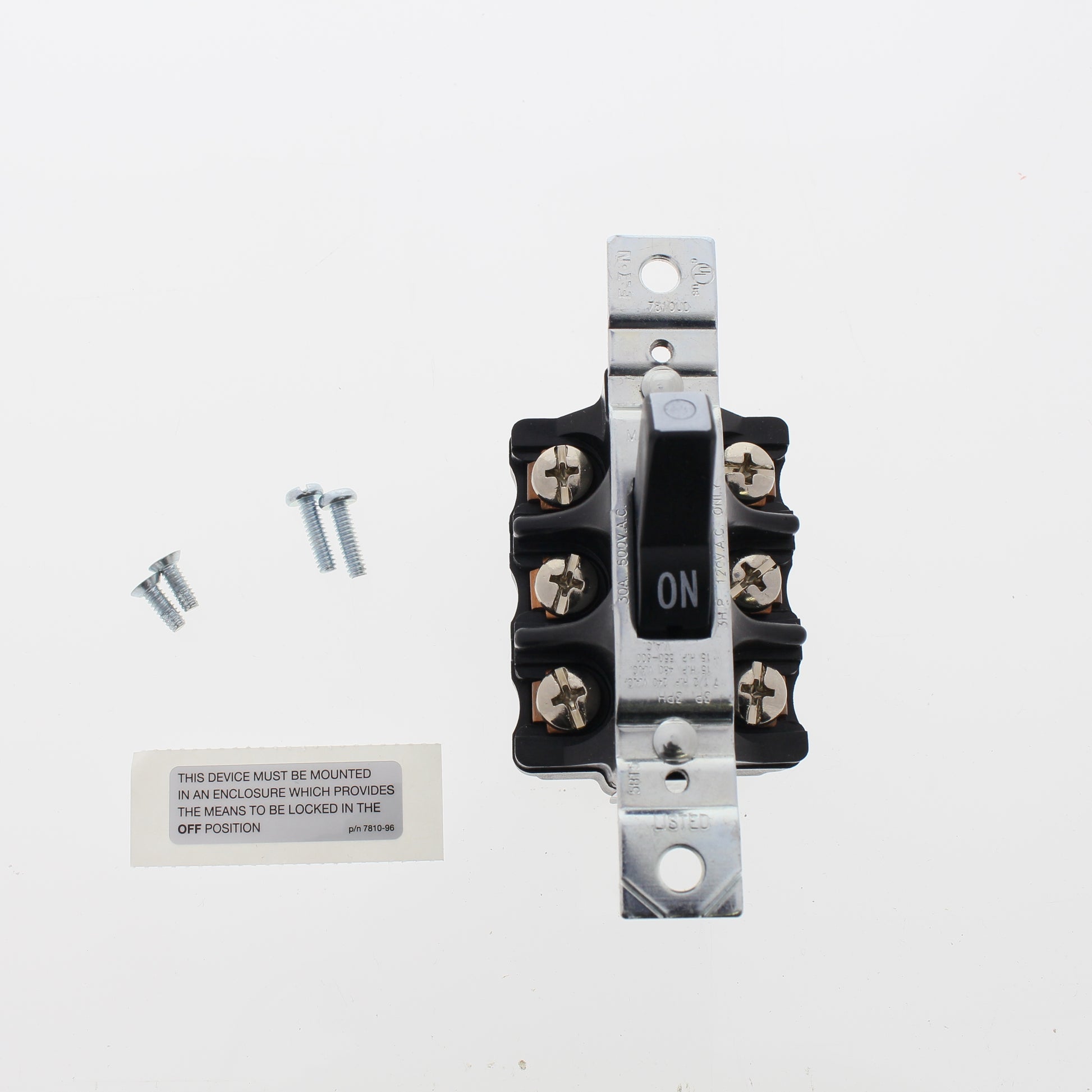

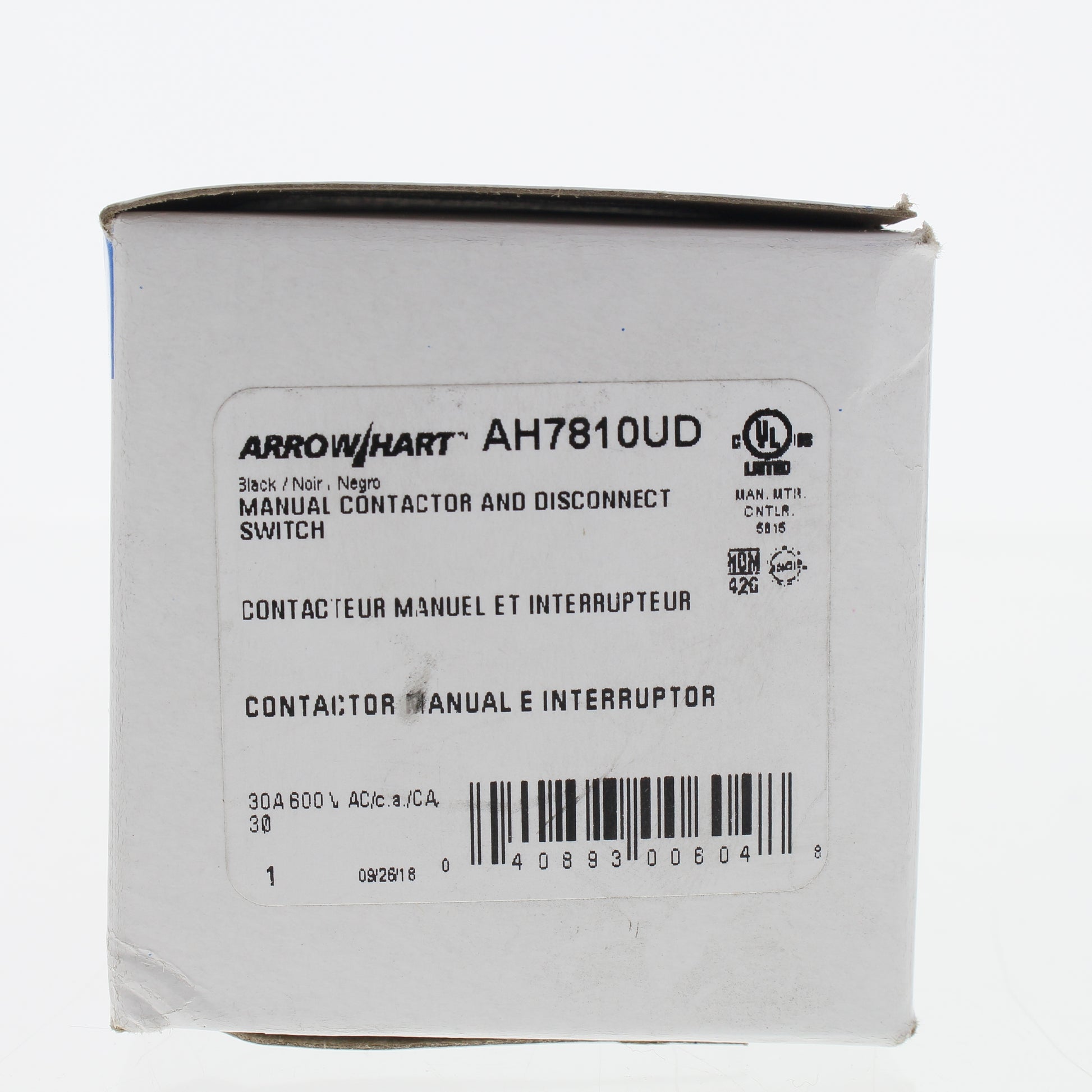

Eaton Motor Starter Switch TPST 3-POLE Single Throw 30A 600V AH7810UD

Eaton 7810UD manual motor starting switch without overload protection. Industrial Specification Grade, back & side wired, 3-pole, single throw, non-grounding, 30A 3-phase 600V Max. It is rated: 3HP@120VAC; 7.5HP@240VAC; 15HP@480VAC; and 20HP@600VAC.?Each is individually packaged. Features include:

• This device must be mounted in an enclosure which provides the means to be locked in the OFF position
• Positive-contact design enhances fast-make/slow-break
• Silver-alloy contacts for maximum conductivity and service life
• Back and side wire terminals accept up to #10 AWG solid copper wire. For stranded #8 AWG wire, remove terminal clamp and use ring terminal
• Oversized #10 triple-combination terminal screws are vibration resistant
• All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
• Insulating barrier between terminals provide isolation from each phase
• Nickel-plated brass mounting yoke for superior corrosion resistance
• Large toggle provides positive actuation, even with gloved hand

Compatible accessories:

• Leviton N13NC Type 1 Steel Enclosure
• Leviton N33NC Type 3R Enclosure
• Leviton 84001-LOK Stainless Steel Lockout Wallplate
• Leviton N13NC-T Type 1 Enclosure w/Thermoplastic Cover
