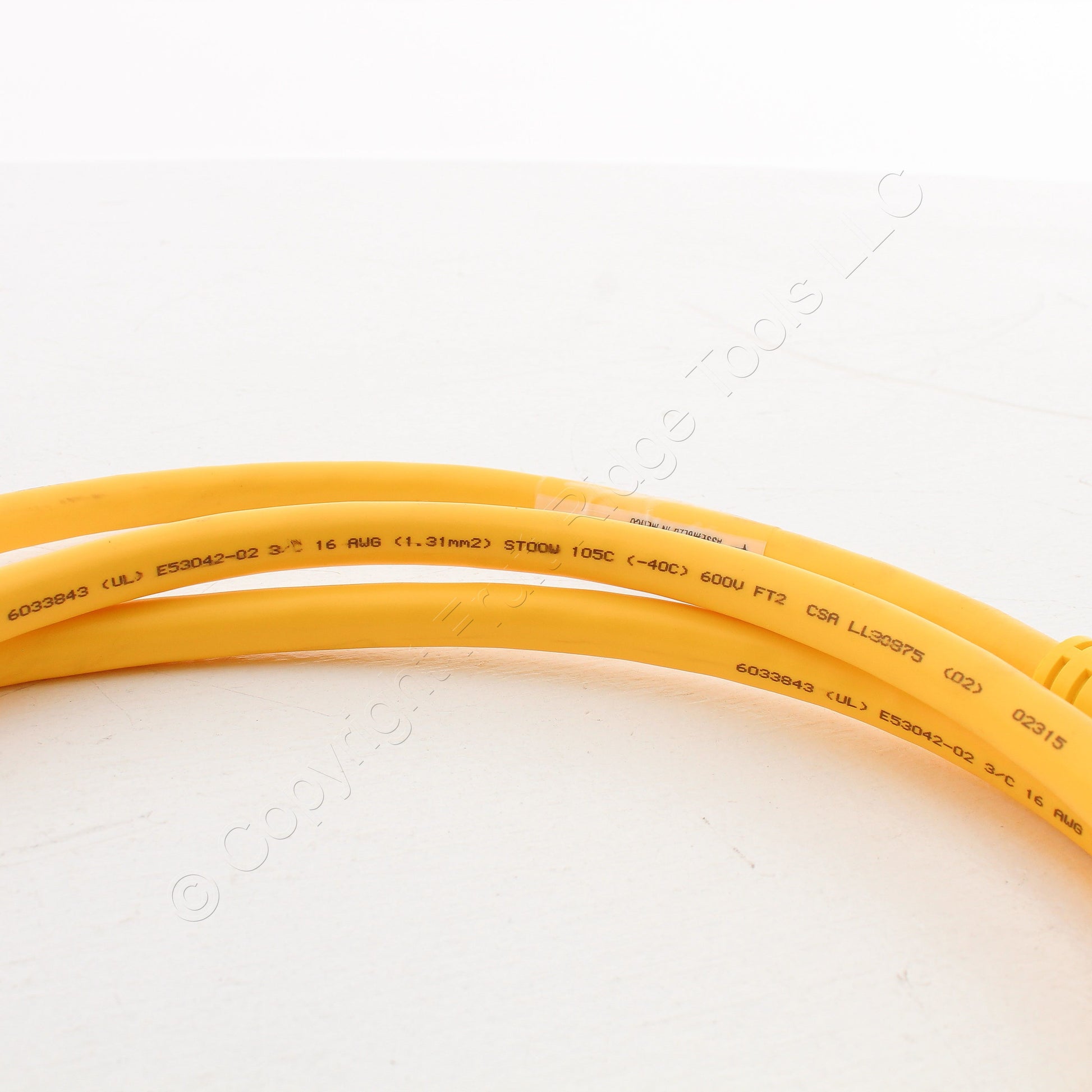

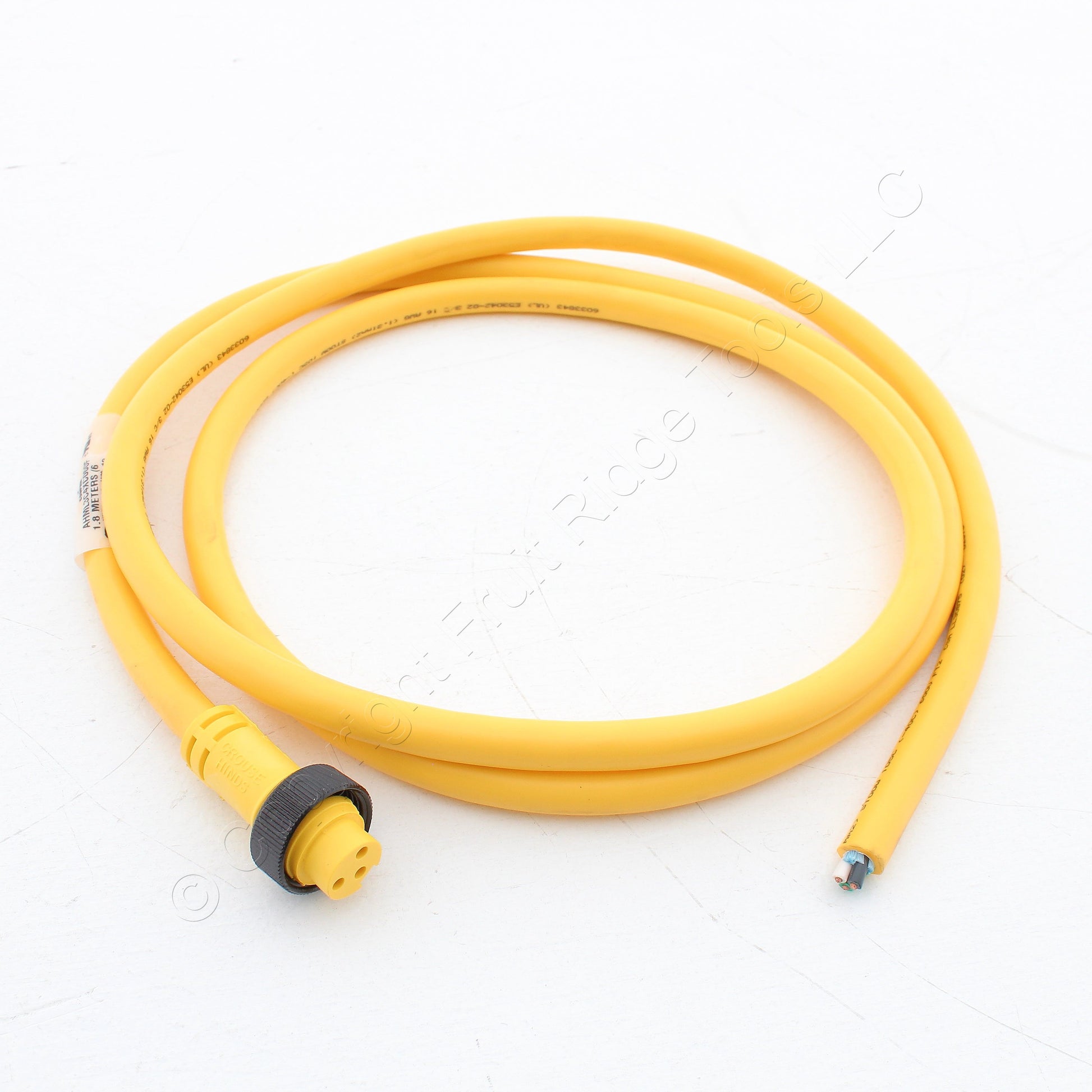

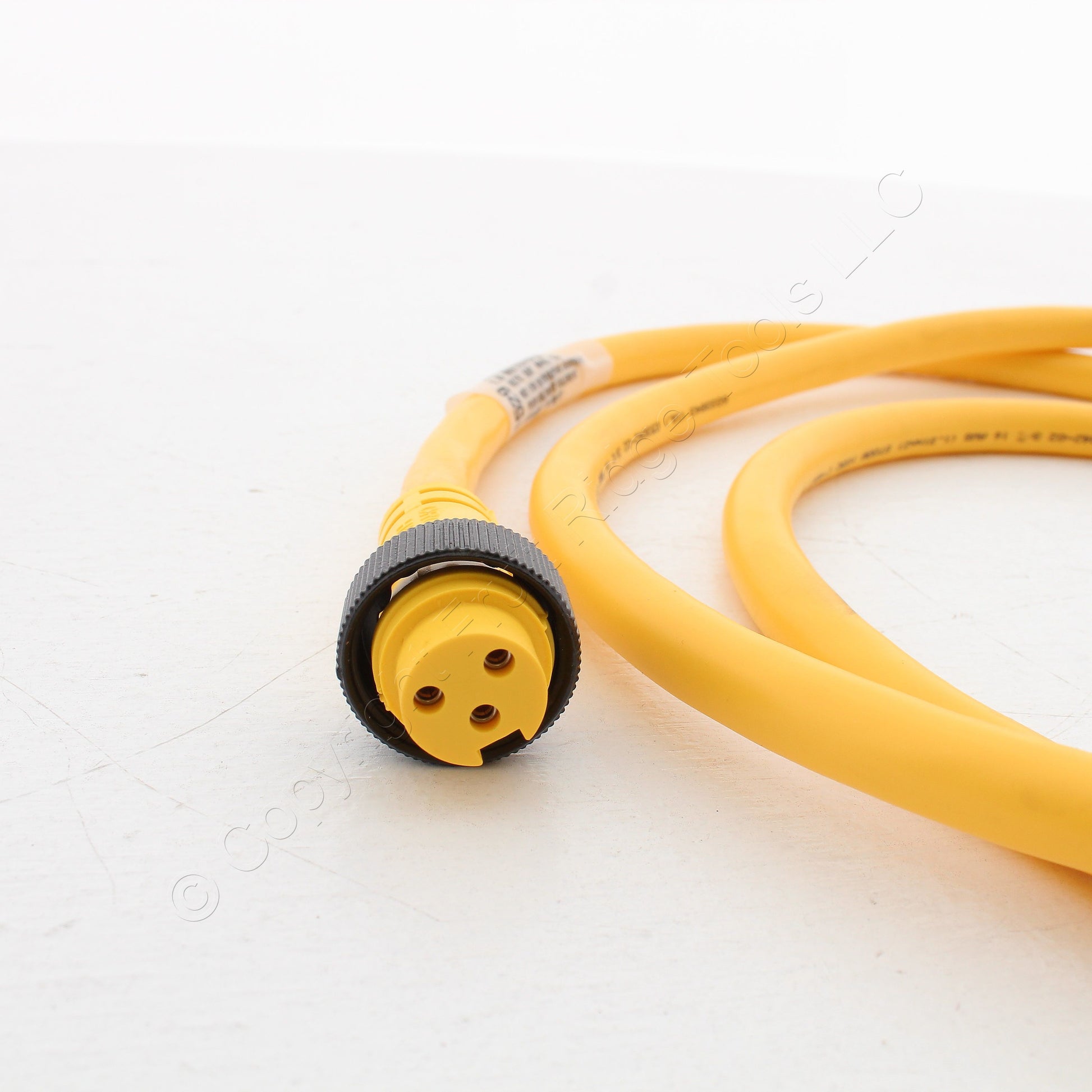

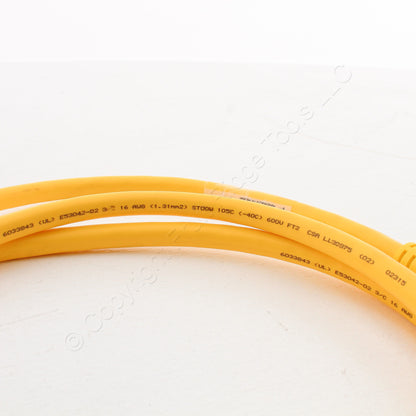

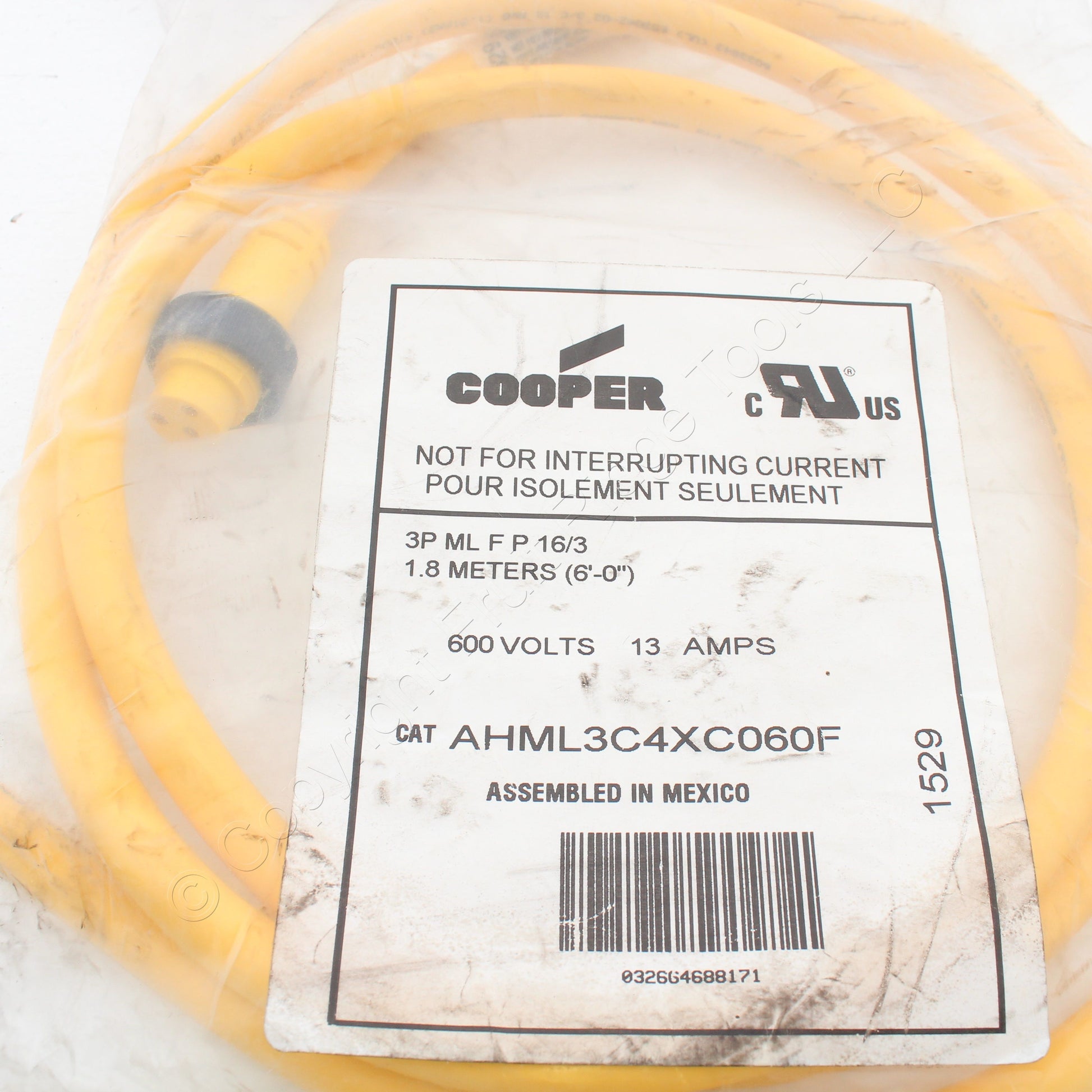

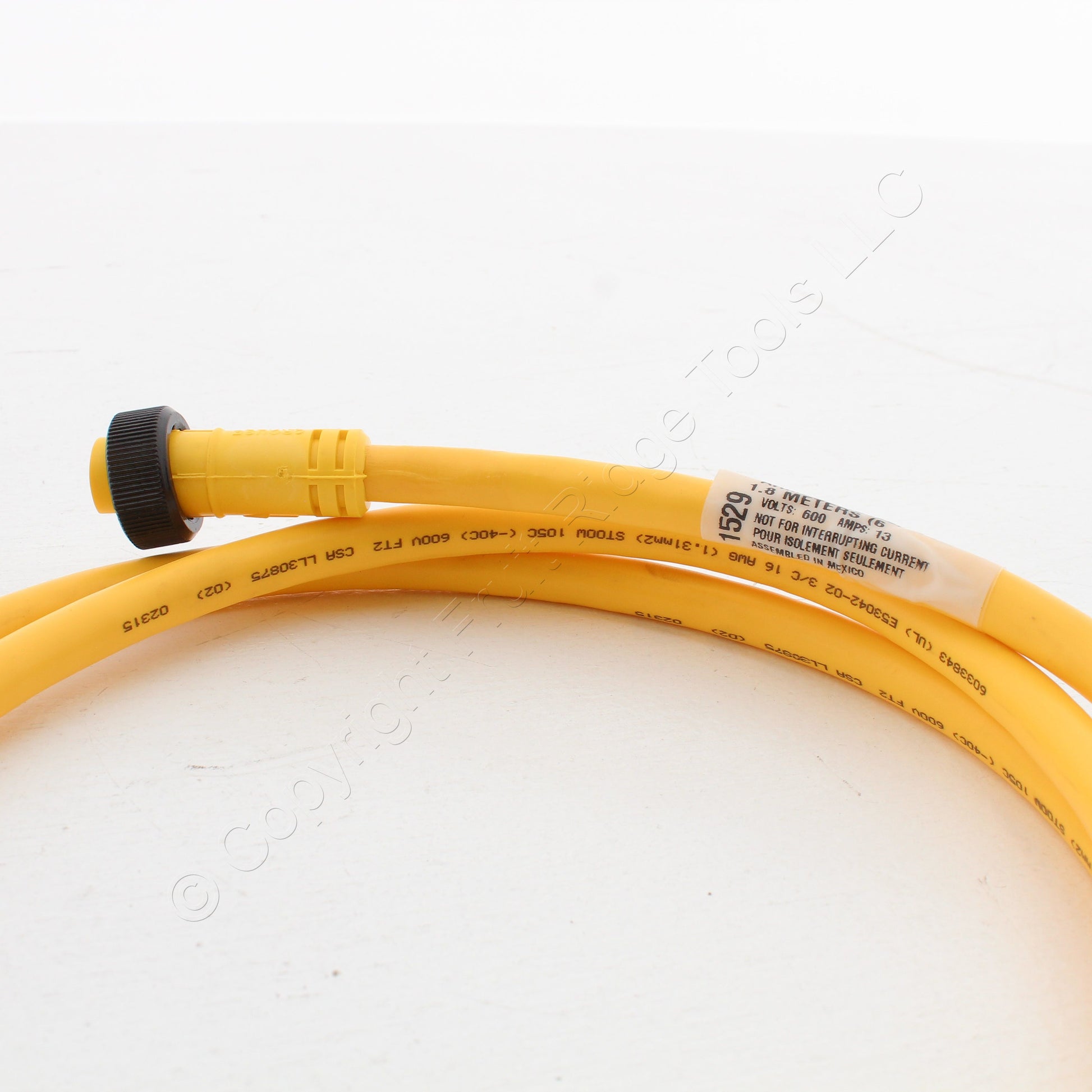

Eaton AHML3C4XC060F LynxPOWER passive mini-line cordset (Crouse Hinds is a division of Eaton). Female straight 3-pole plug with internally threaded coupler and 6-foot 16/3 AWG STO pigtail. Features include:
Factory molded-to-cable cordsets provide quick connect capability
Modular components allow for easy expansion and reconfiguration without the need for re-wiring; eliminates the need for multiple cable assemblies, reduces installation time, reduces design time and lessens the need for special tools.
Environmentally sealed ends rated at IP68 to prevent the ingress of dust, water and other contaminants to reduce maintenance and downtime
Vibration-resistant ratchet couplers assure cordsets stay connected under load
Superior female contact design with stainless steel sleeve for minimal degradation
End-to-cable molded junction securely bonds for excellent reliability
Internal contact support maintains pin location and proper keyway alignment
Shroud and cork design exceeds IP68 and NEMA 6P rating (rated 1,200 psi hose down spray)
Easy stripping jacketed cable design allows fast stripping with simple hand tools; high flex copper stranding delivers improved flexibility; multiple cable options
