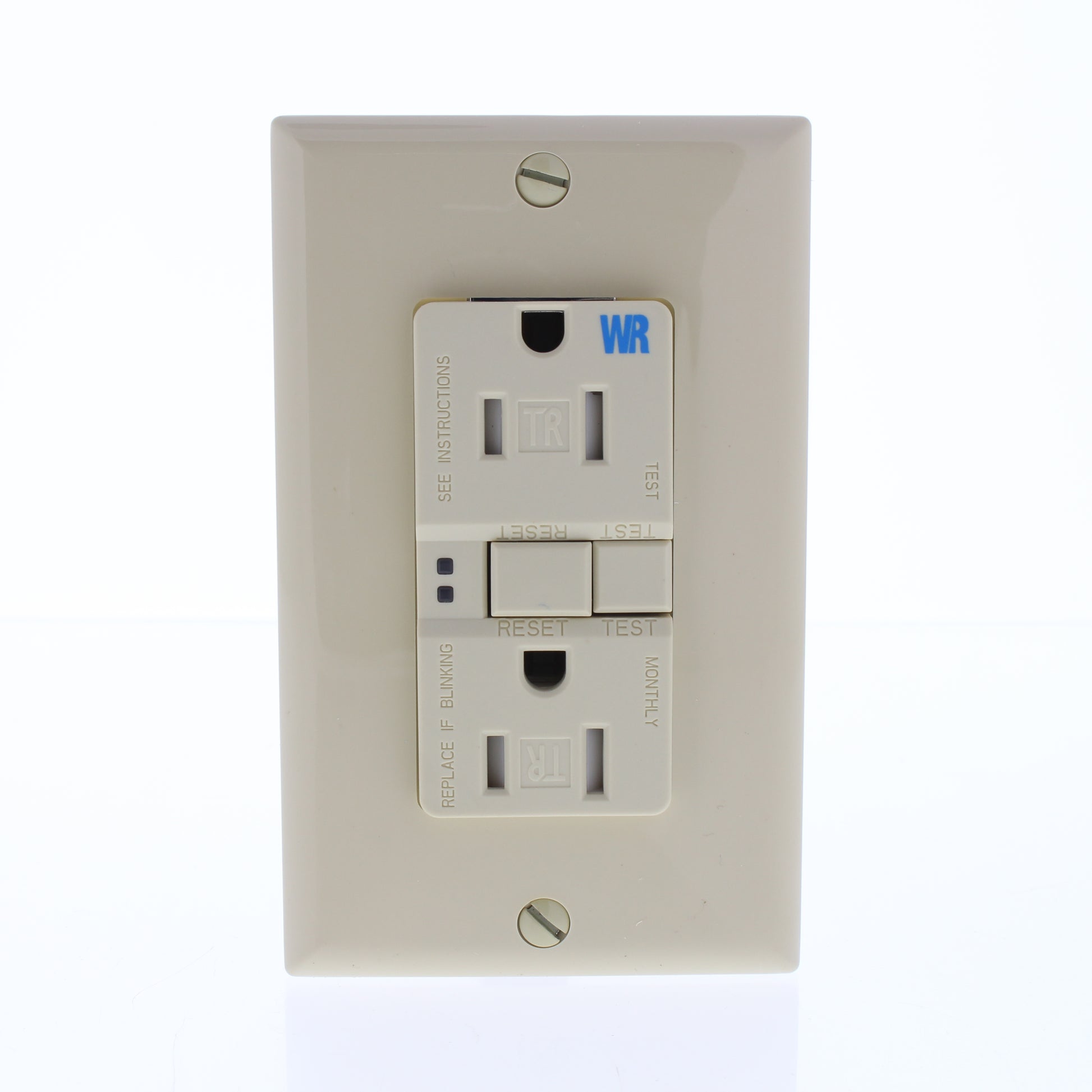

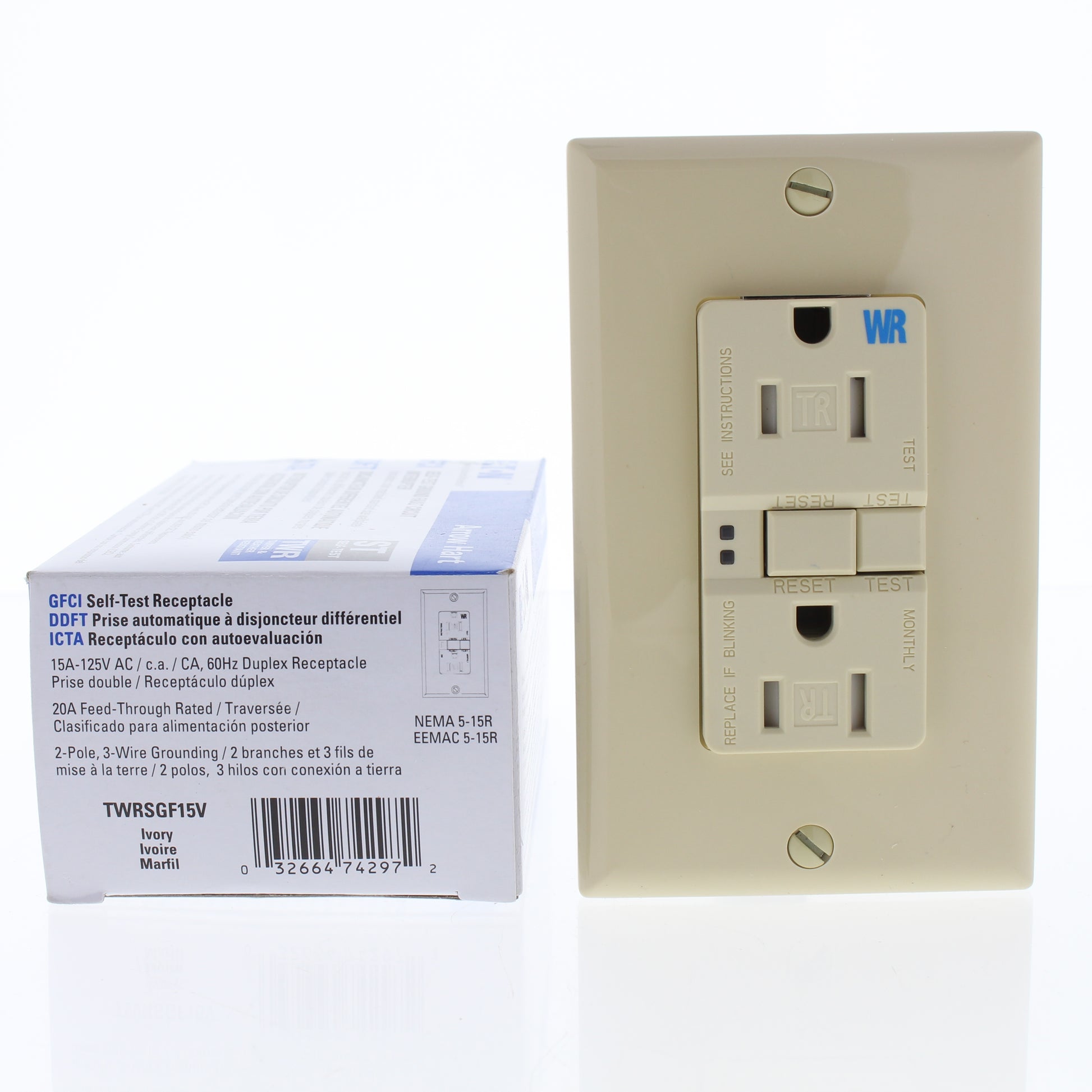

Eaton TWRSGF15V ivory self-testing GFCI tamper- and weather-resistant receptacle with color matching standard size wallplates and with LED indicators on the face. Specification Grade, NEMA 5-15R, back and side wired, rated 15A-125V at receptacle and 20A-125V feed-through. Each is individually packaged; packaging may differ from photo. Features include:
Provides compliance with 2017 NEC Article 406.9 that states that all receptacles installed in wet and damp locations must be weather resistan
"WR" indentifer quickly indicates during inspections that a weather resistant receptacle has been installed
Performs periodic self tests to ensure integrity of GFCI protection: if no ground-fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
Two visual indicator LED lights on face give quick notification of a tripped or "end of life" condition
Line-load miswiring protection: GFCIs will not provide power downstream when wired incorrectly
When downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection
Test and reset buttons are color matched to provide superior aesthetics; horizontal test/reset button alignment provides larger unobstructed area
Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
Longer, wider "bridge" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
Exclusive built-in wire stripper provides fast stripping of wire without tools
Rugged construction provides unsurpassed chemical and impact resistance

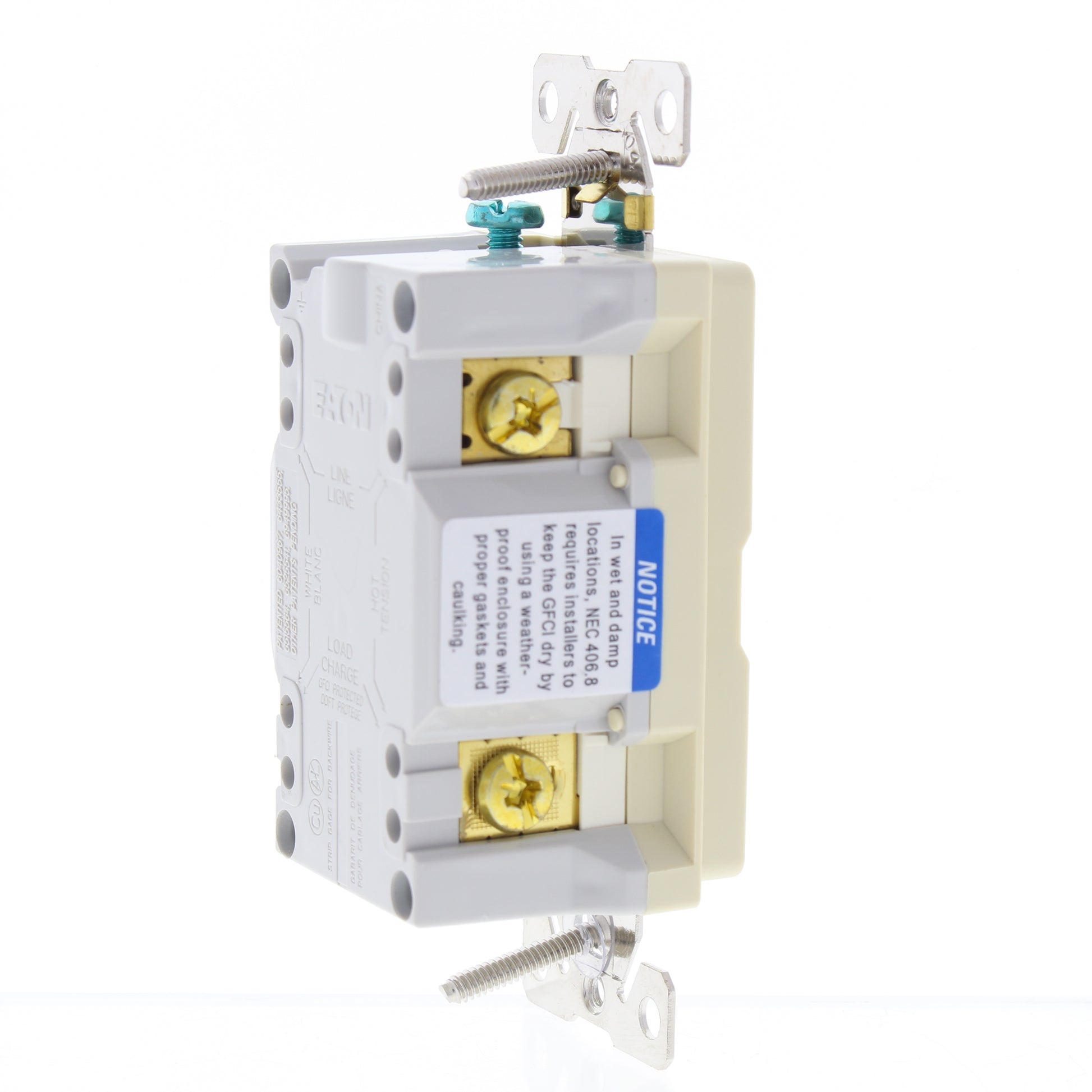

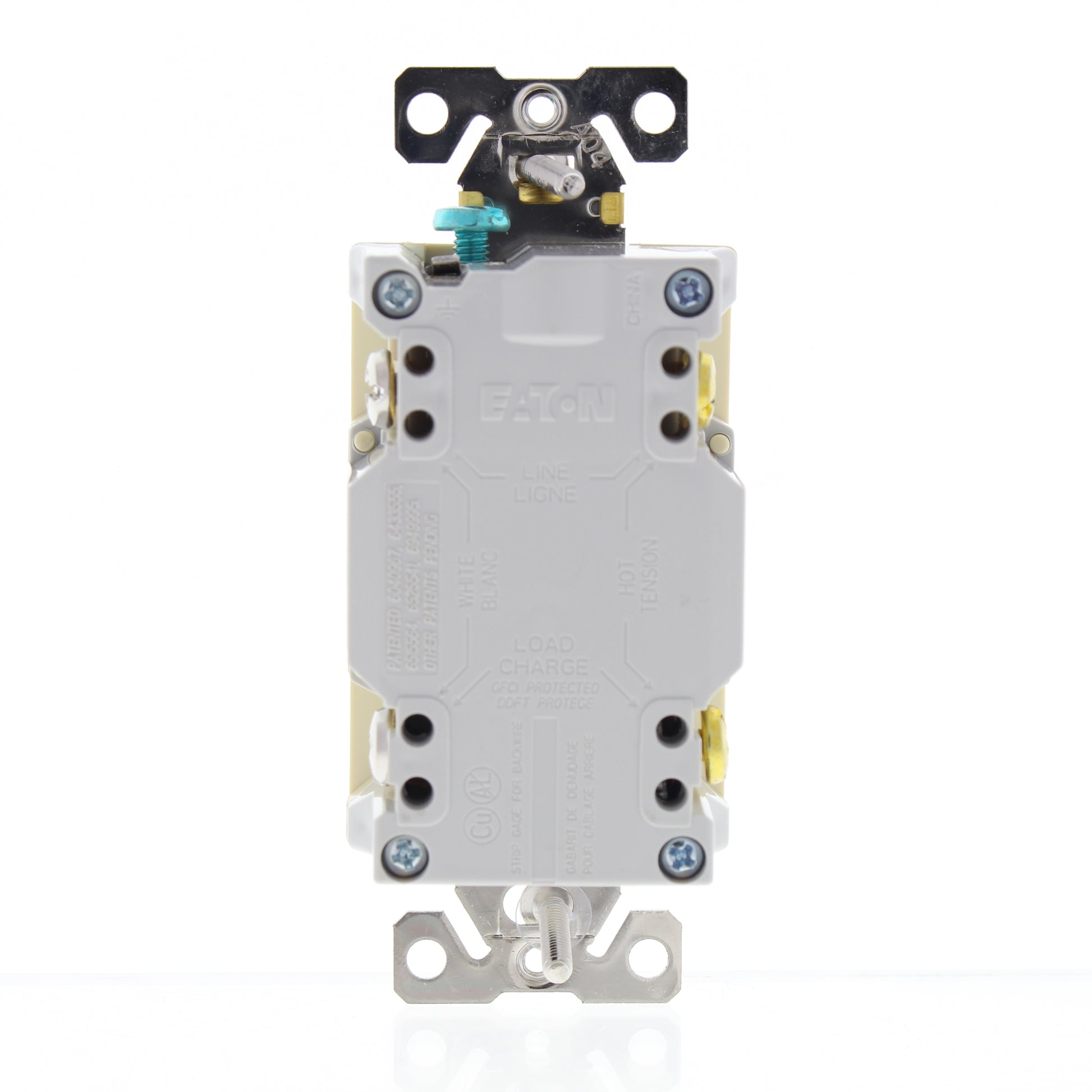

Ground termination with back wire clamp provides secure wiring and reduces installation time
Line side terminals are backed out and staked for fast installation
Tri-combo head terminal and mounting screws
Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire

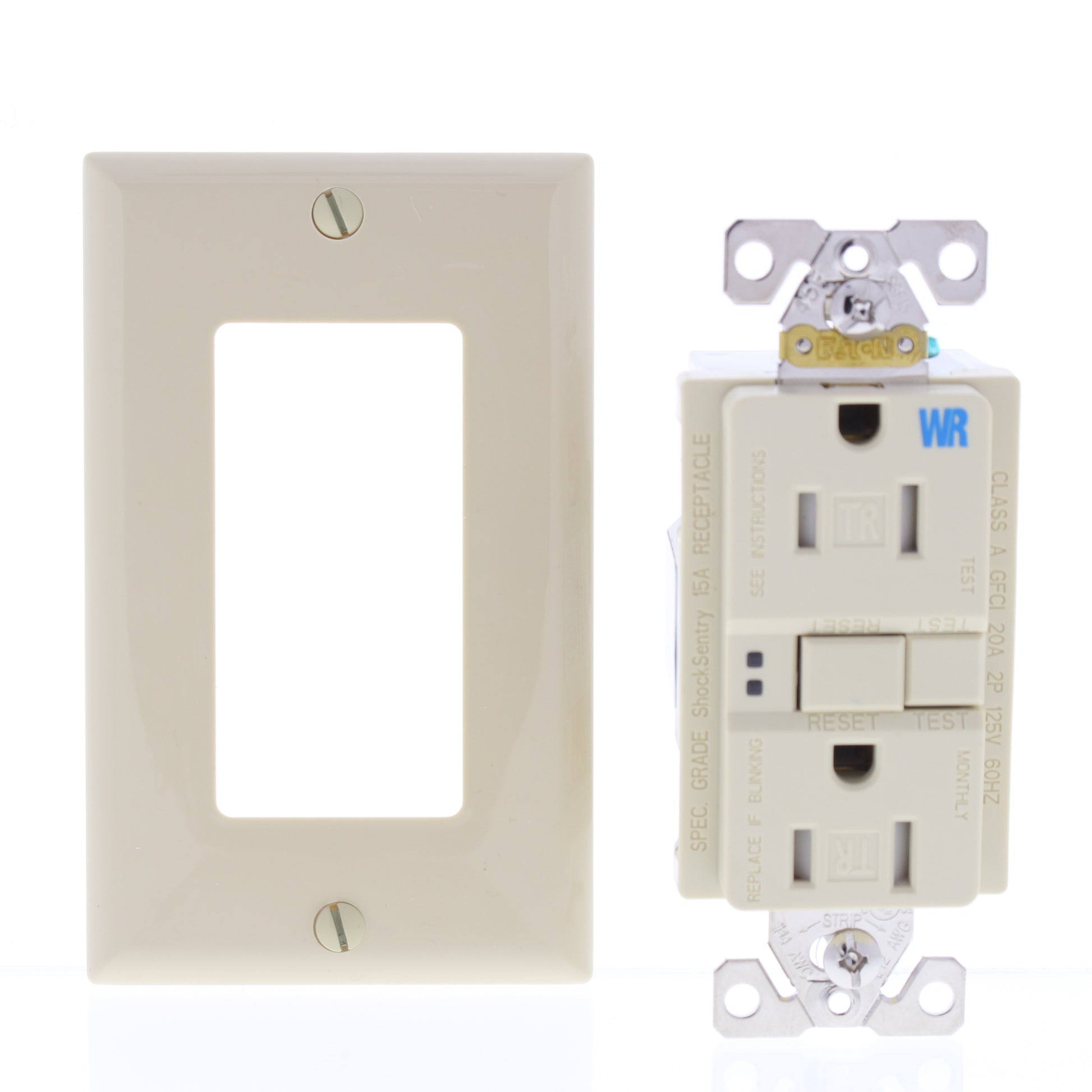

Includes color matching standard size wallplate, measuring 2.75"w X 4.50"h
