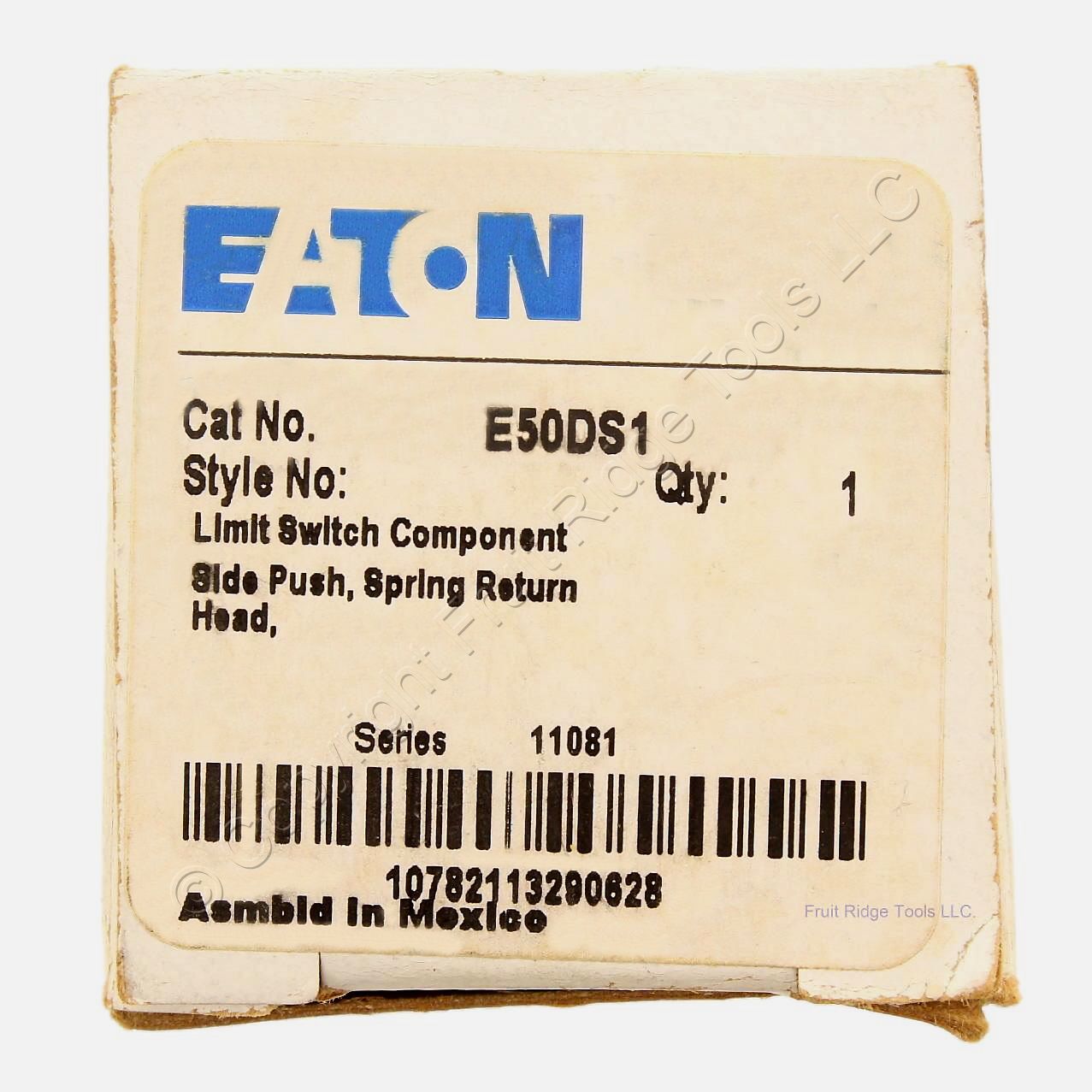

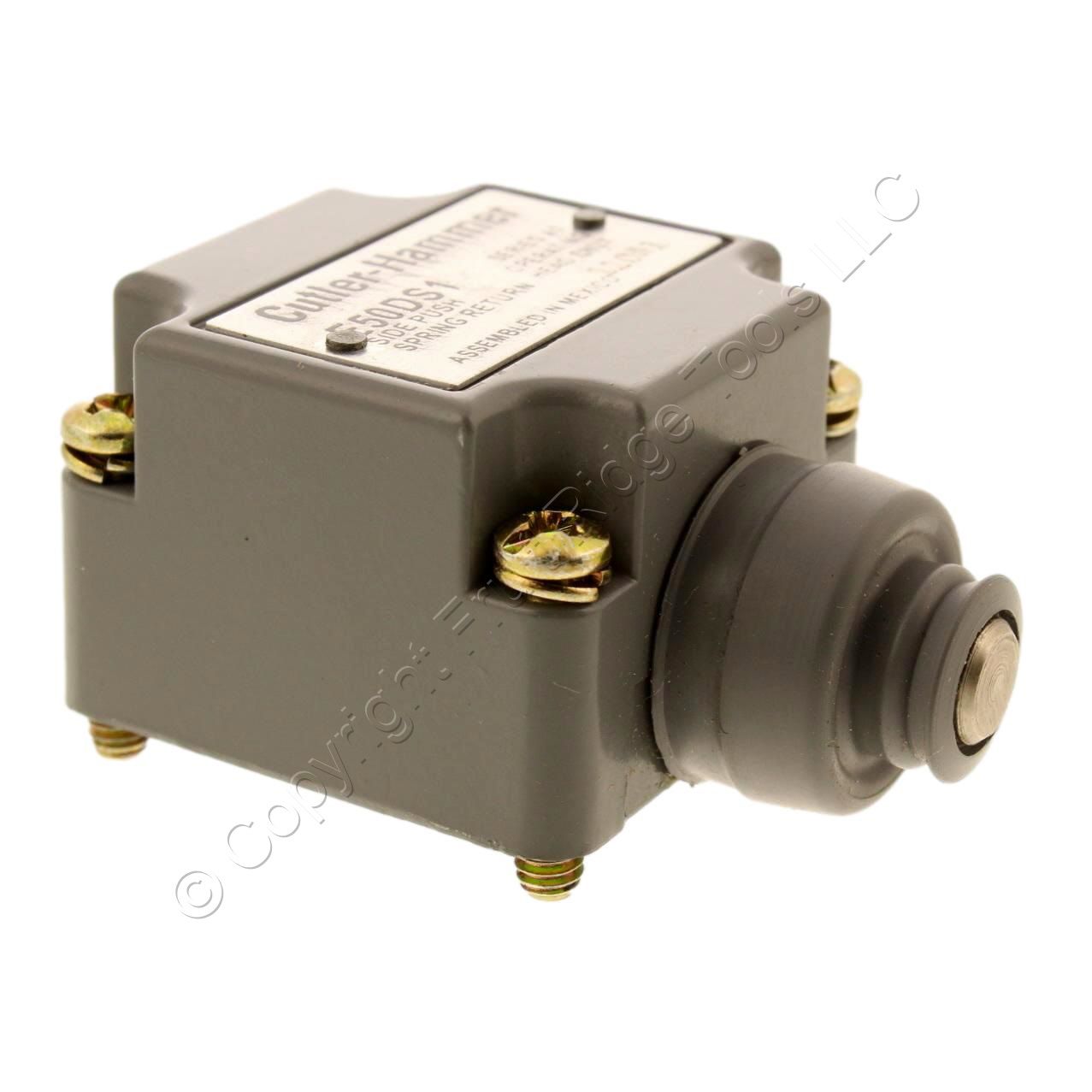

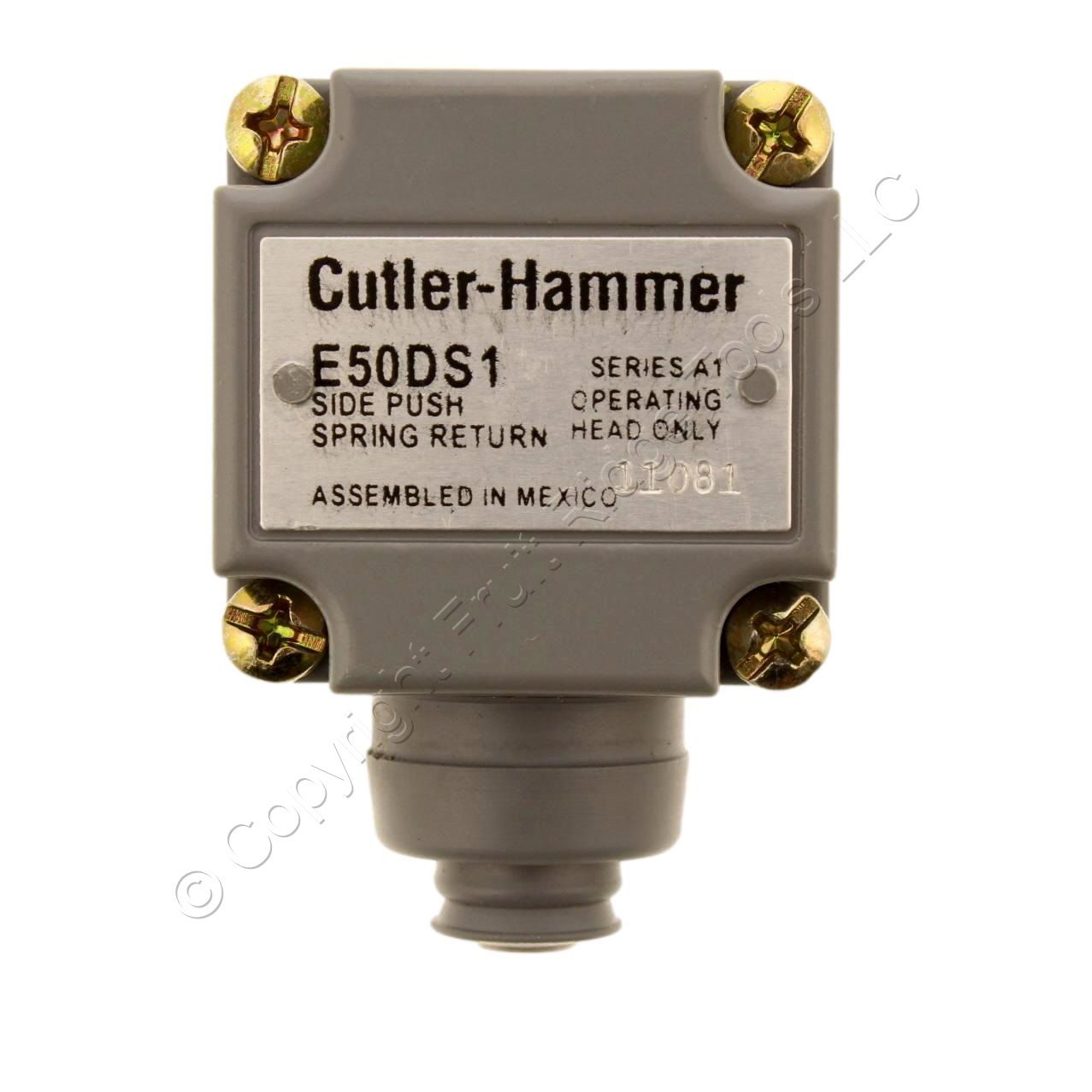

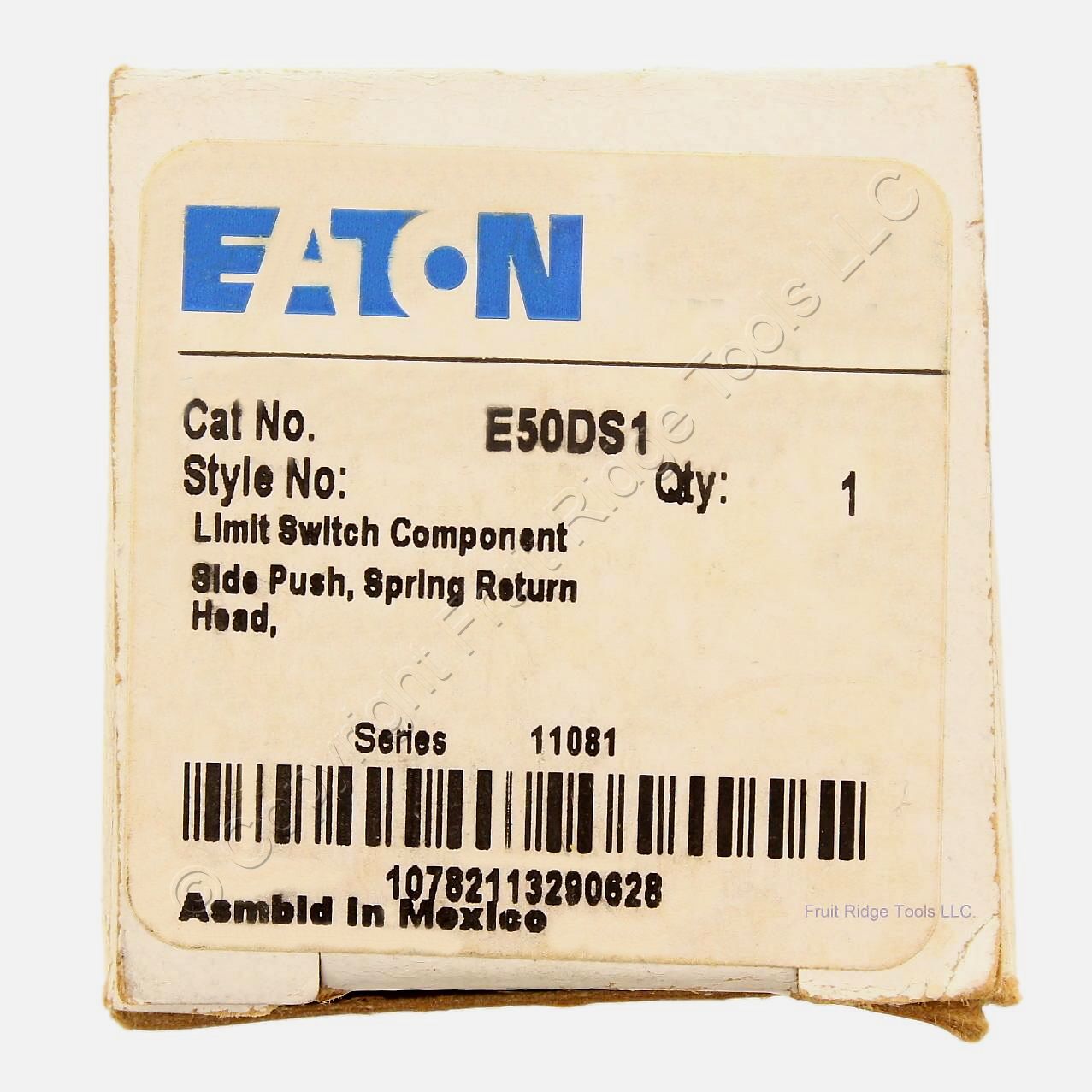

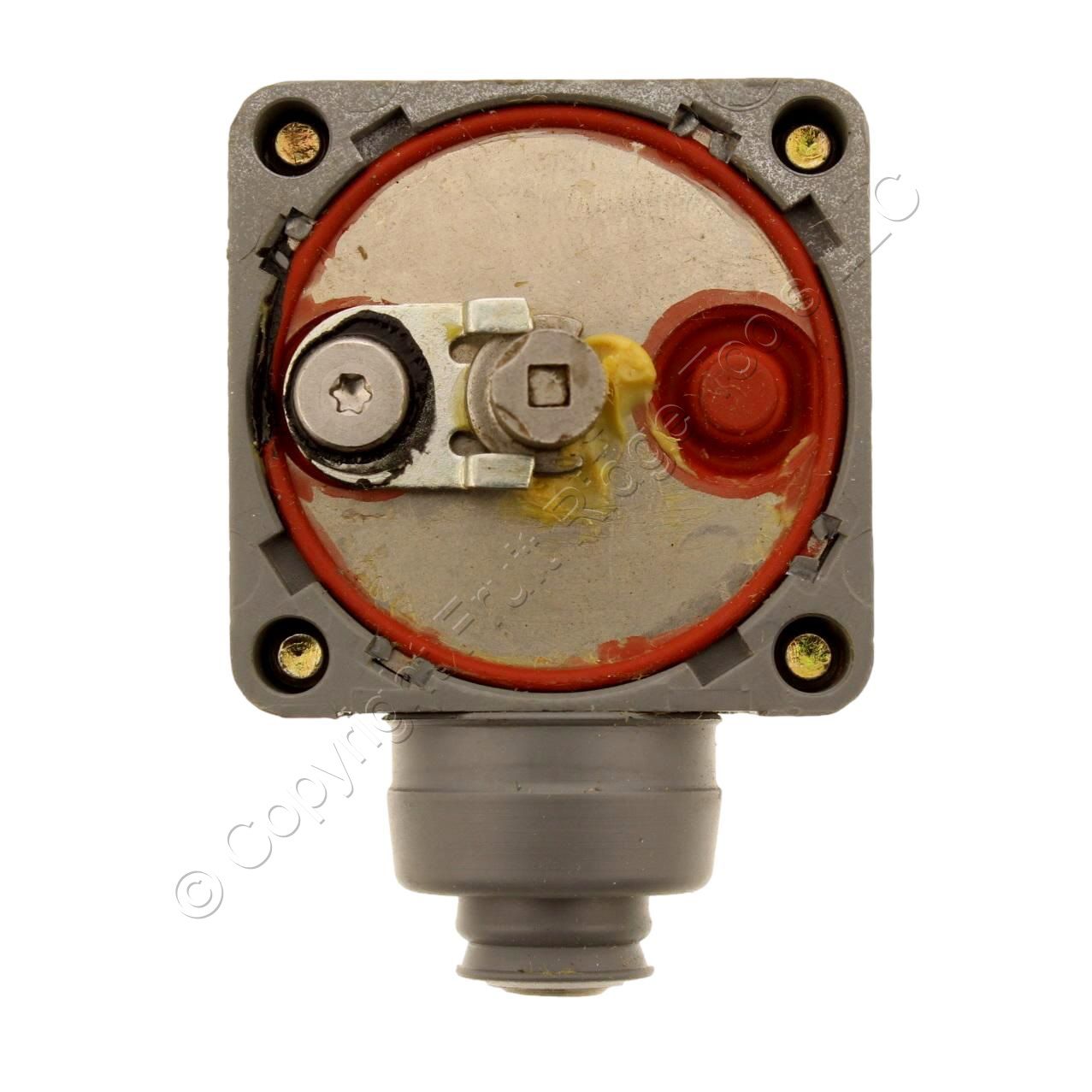

Eaton E50 Heavy Duty Sealed Limit Switch Side Pushbutton Spring Return E50DS1

Eaton E50DS1 limit switch. Standard Viton gaskets, seals and boots and a zinc die cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents, and hydraulic fluids found in machine tool, automotive, waste water treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Features include:

• Modular, plug-in components (head, body and receptacle) provide application flexibility, reduced inventory and less downtime
• Manufactured to take the physical and environmental abuse (including cutting fluids and chemicals) of harsh industrial environments
• Chemical resistant Viton gaskets, seals and boots are standard, and so are captive, posi-drive screws
• The switches have terminal identification on the nameplate for a visual wiring checkout without guesswork. Heads and switch bodies can be replaced without rewiring
• 600V rating, ridge-topped contacts and wiping action assure continuity even to logic level circuits
• Keyed, four direction head positioning
• Standard 5 degree pre-travel and 90 degree total travel
• Side pushbutton
• Spring return
• Travel to operate contacts: 0.065"
• Travel to reset contacts: 0.030"
• Total travel: 0.250"
• Force to operate contacts: 4 lbs.
• Minimum return force: 8 oz.
