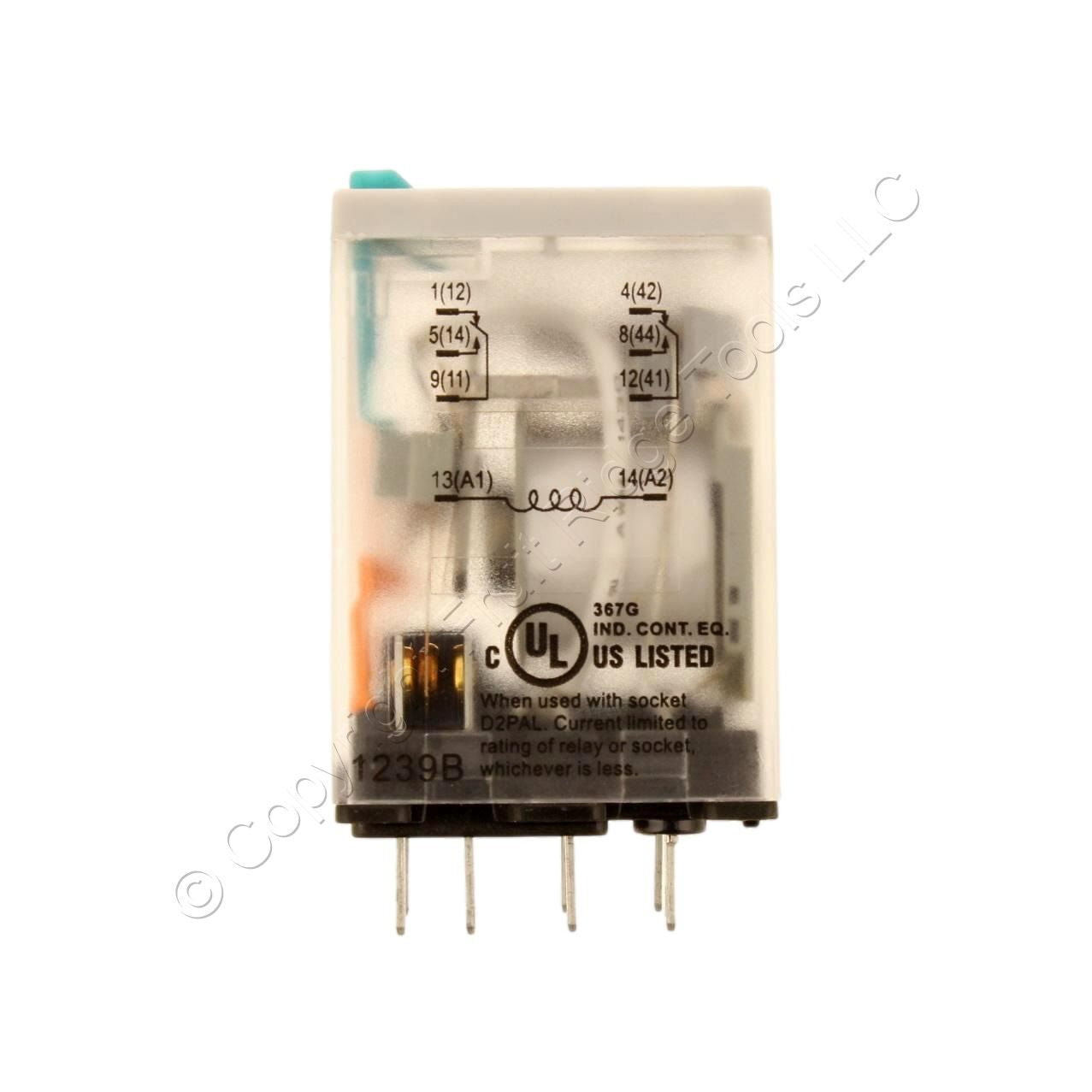

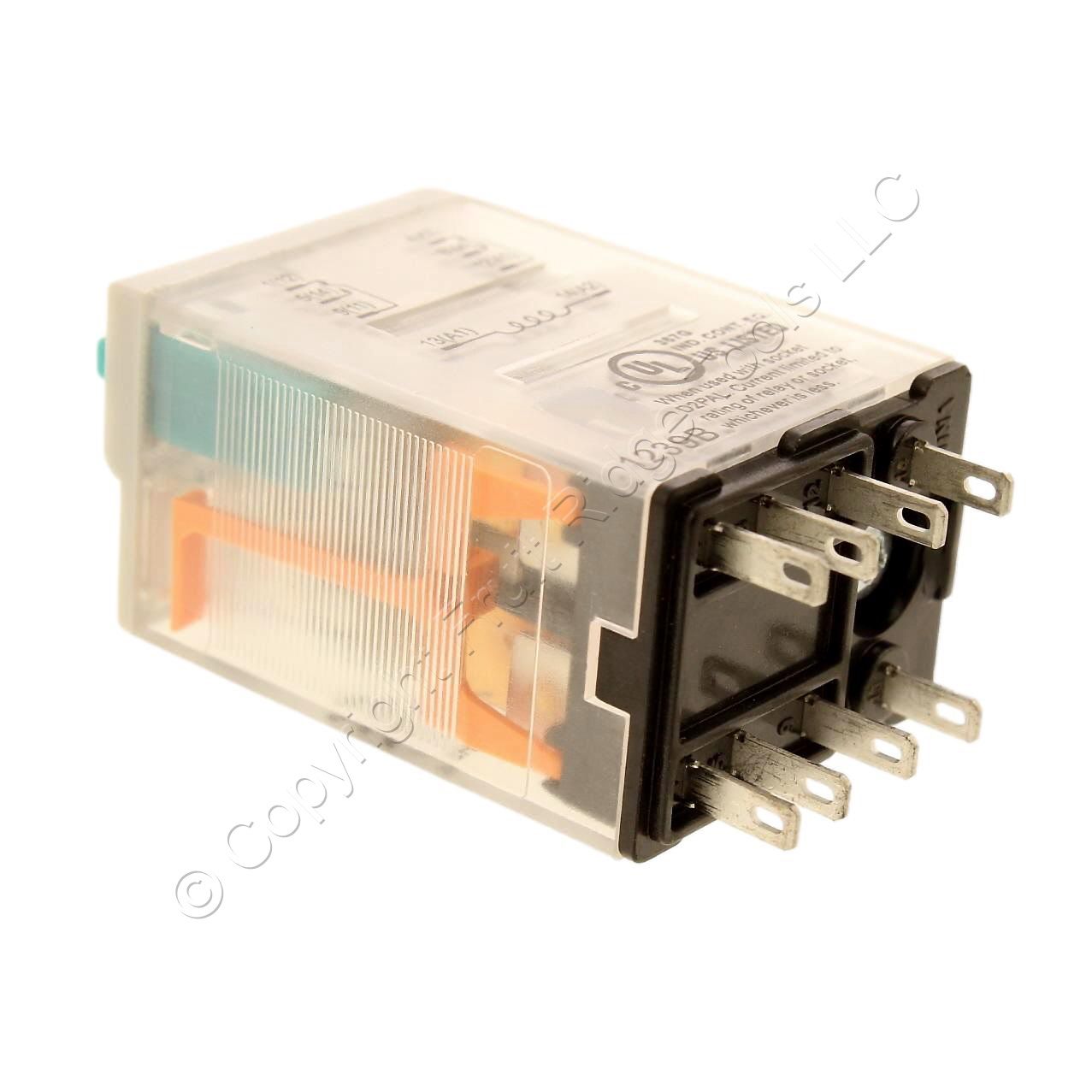

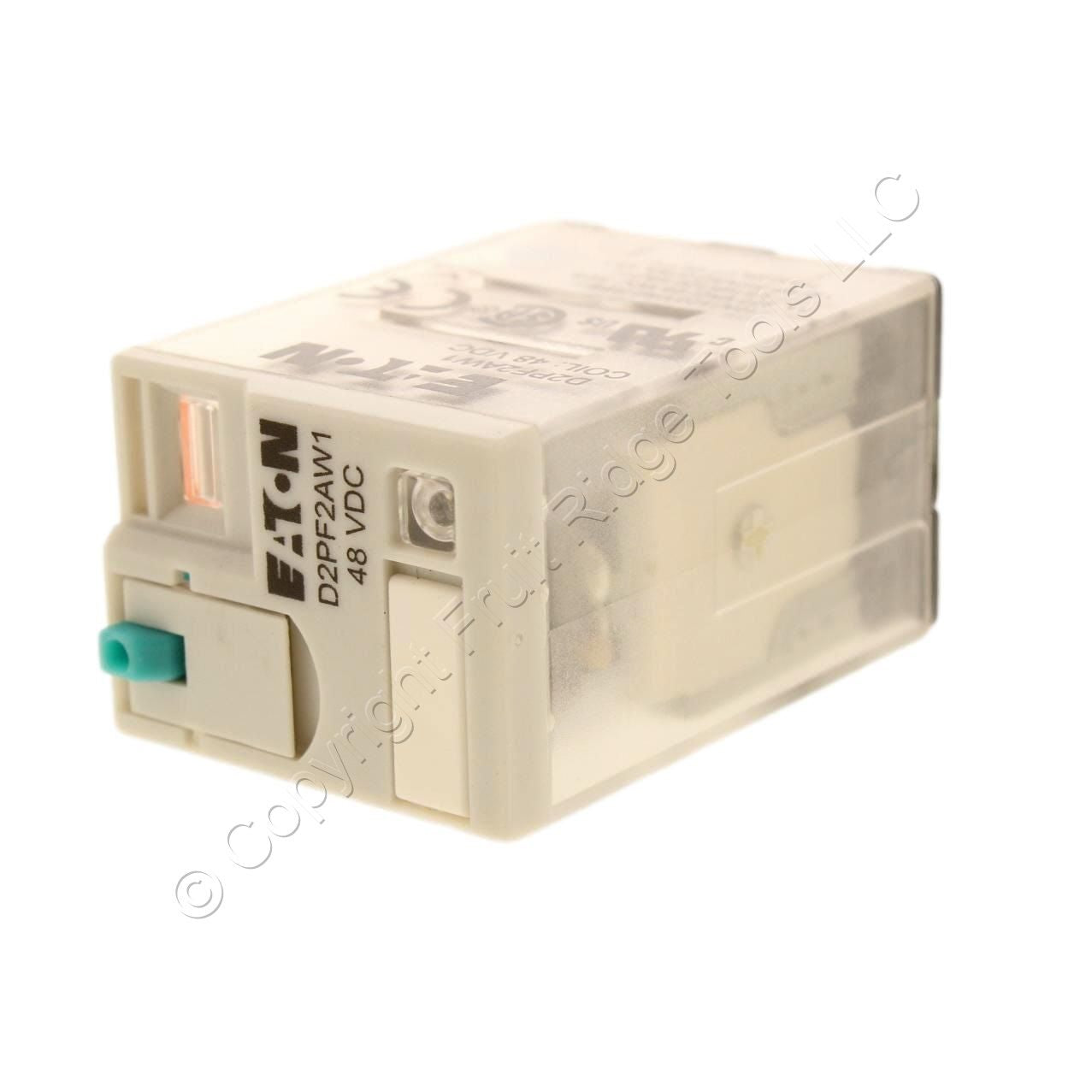

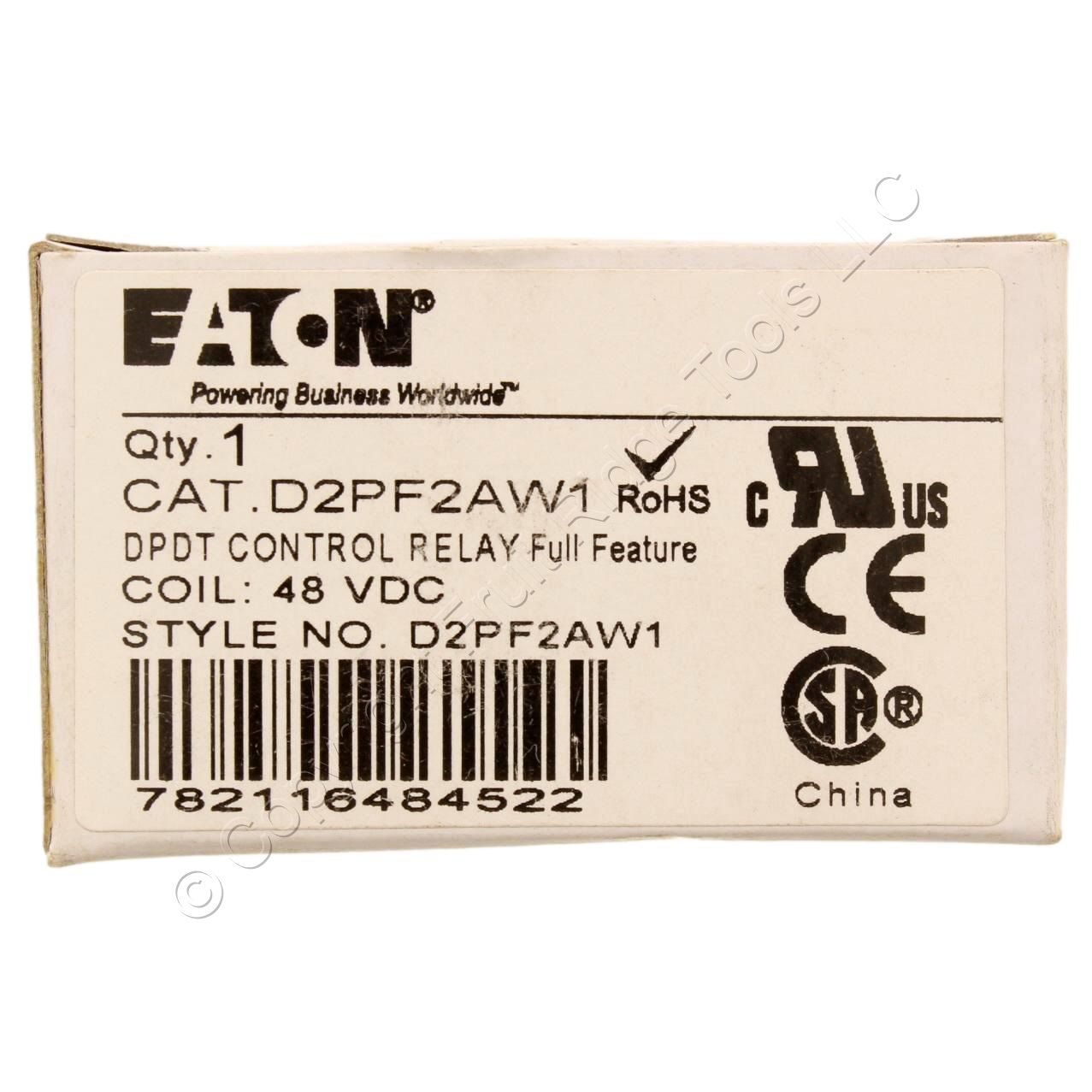

Eaton D2 Series Plug-In Control Relay DPDT 48VDC Coil 10A 2,600 Ohm D2PF2AW1
Eaton D2 Series Plug-In Control Relay DPDT 48VDC Coil 10A 2,600 Ohm D2PF2AW1
Low stock: 1 left
Regular price
$10.82 USD
Regular price
Sale price
$10.82 USD
Shipping calculated at checkout.
Eaton D2PF2AW1 full-featured relay. Features include:
- Full featured version: LED test button, flag indicator, lock-down door, finger-grip cover, ID tag
- Flag indicator shows relay status in manual or powered condition
- Bipolar LED status lamp allows for reverse polarity applications; shows coil ON or OFF status - ideal in low light conditions
- Color-coded pushbutton identifies AC coils with red or DC coils with blue pushbuttons; allows for manual operation of relay without the need for coil power - ideal for field service personnel to test control circuits
- Lock-down door, when activated, holds pushbutton and contacts in the operate position - excellent for analyzing circuit problems
- Finger-grip cover allows operator to remove relays from sockets more easily than conventional relays
- White plastic ID tag/write label used for identification of relays in multi-relay circuits
- Coil voltage: 48VDC
- Contact configuration: DPDT
- Contact material: silver alloy
- Contact rating: 10A
- Enclosure: IP40
- Maximum voltage: 300V switching
- Resistance: 2,600 Ohms
- Series: D2 Series
- Terminals: plug-in
*Fruit Ridge Tools is not an authorized distributor for this Manufacturer
