Eaton CH42B200K Type CH 200A 42-Space Main Breaker Panel w/COPPER Bus No Main

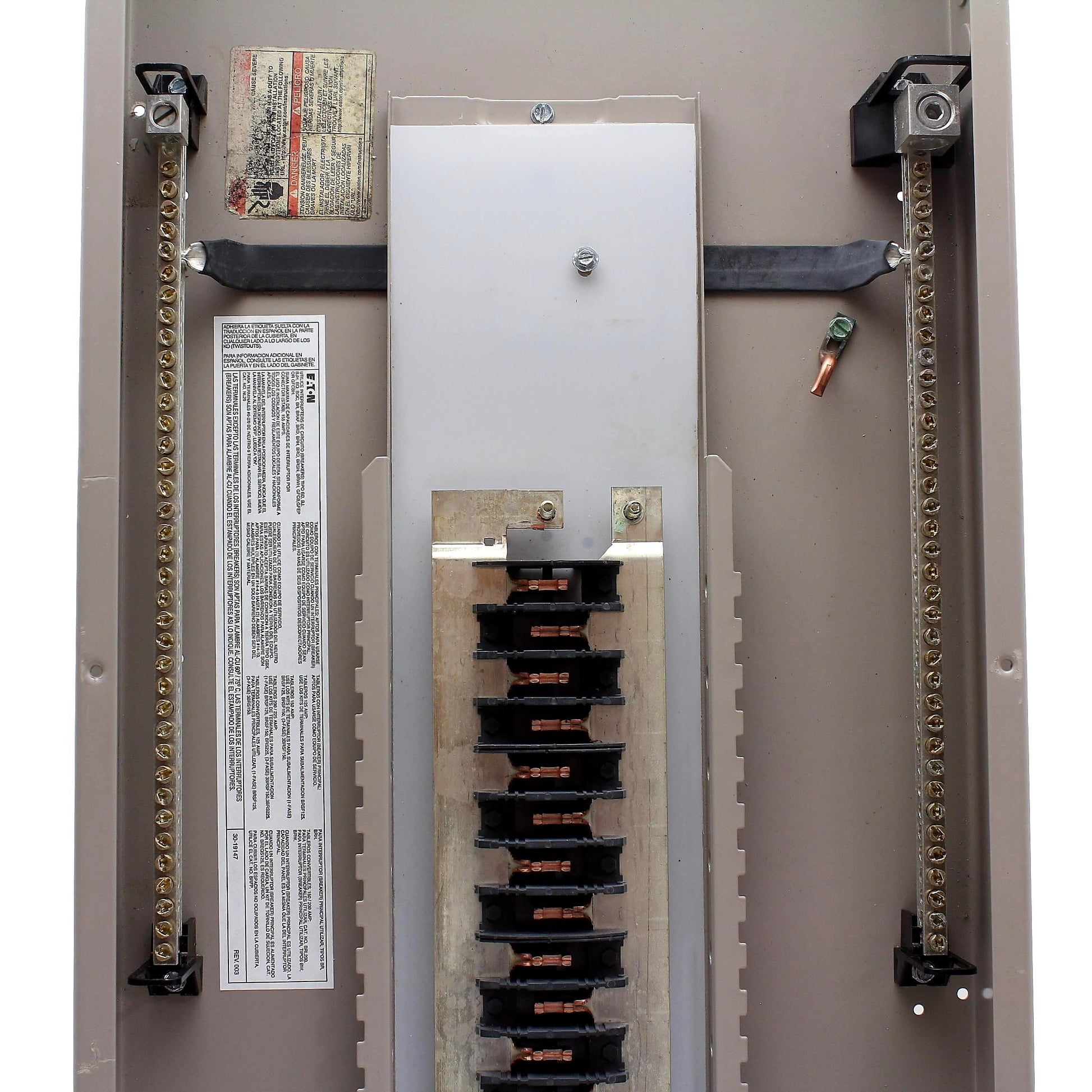

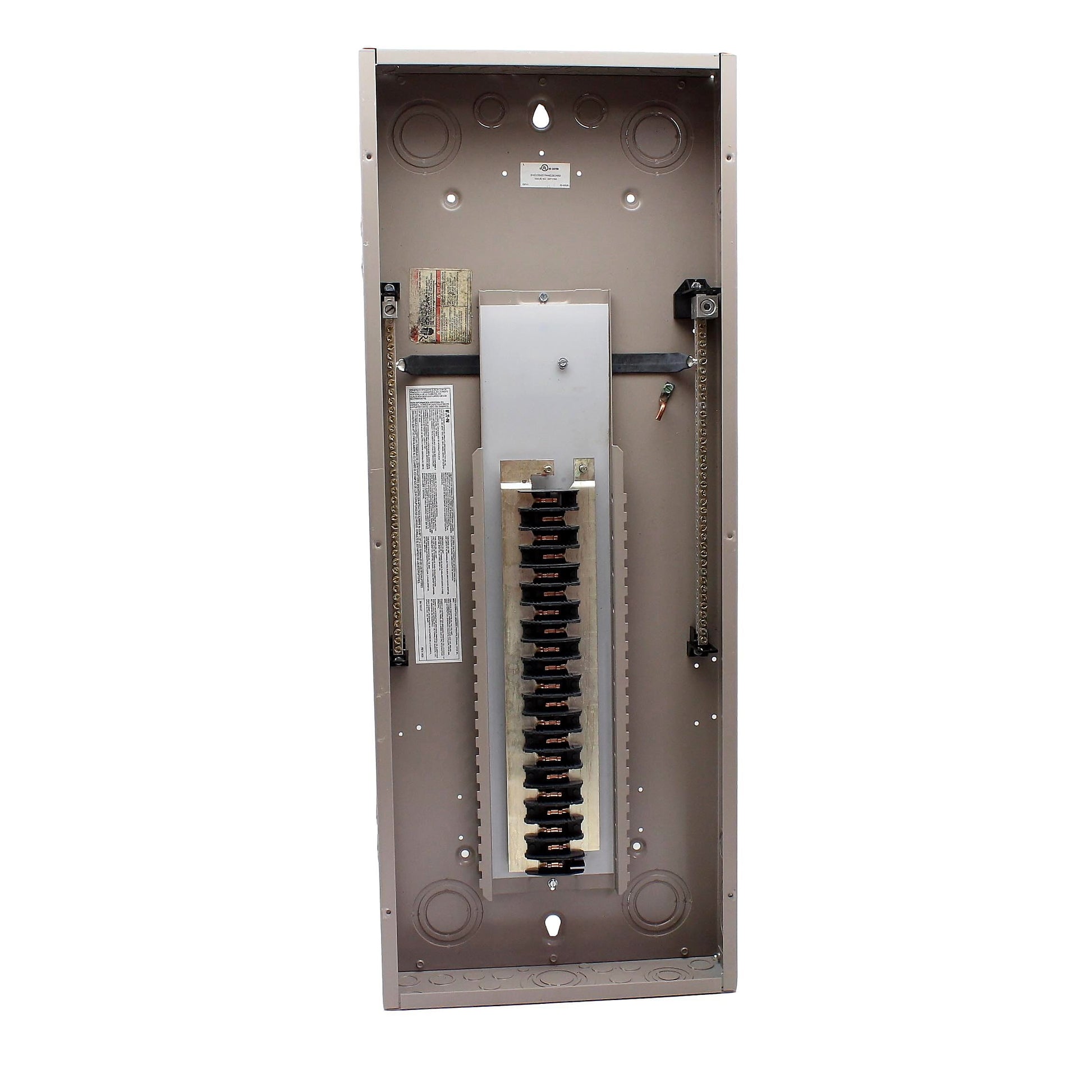

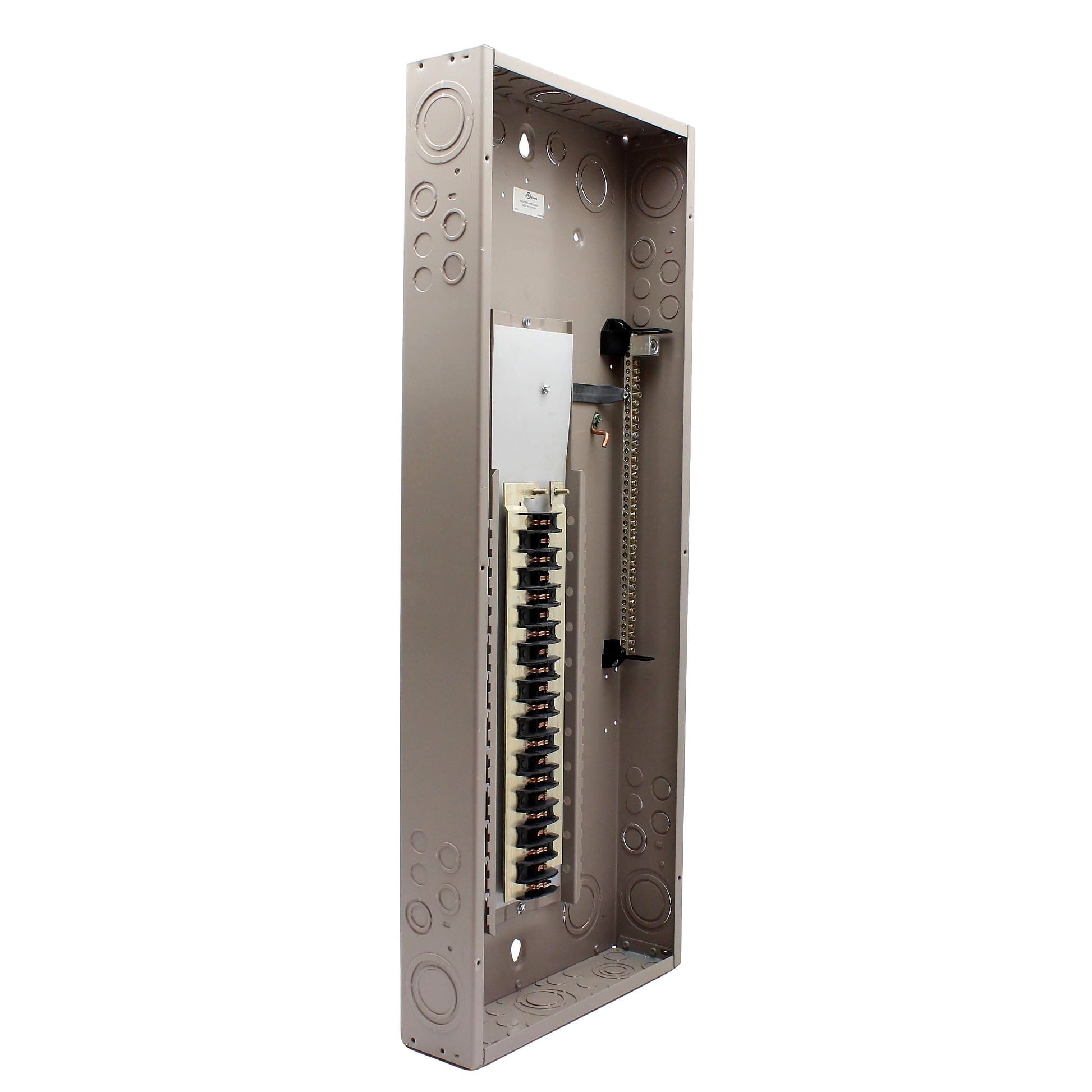

Eaton CH42B200K 42-space indoor main breaker loadcenter panel with copper bus. This listing does not include main breaker (or other breakers) and is corroded and has some water damage. Features include:

• Interrupt rating: 25 kAIC
• 42 spaces (up to 42 circuits)
• Bus material: copper
• 1-piece silver-flashed copper bus - provides superior conductivity, corrosion resistance and durability
• Wire size: #2 AWG-300 kcmil
• Uses CH type breakers
• Measures 37 in. high, 14.31 in. wide, 3.88 in. deep
• "Tangential" center knockout easier installation for conduit applications
• 2/0 lug easily removable and can be installed in any location on the neutral bar
• Neutral bus (strap) is easily removable for sub-panel applications
• Bonding Z-strap provides easy field conversion for service entrance applications
• Twin neutral bars provides minimum 150% neutral capacity
• Steel back pan provides solid and reliable breaker mounting - single piece design for stability and durability
• Single keyhole mounting - one keyhole at the top and bottom provides easier mounting and leveling
