Please note this panel does not come with the main breaker, cover or screws.

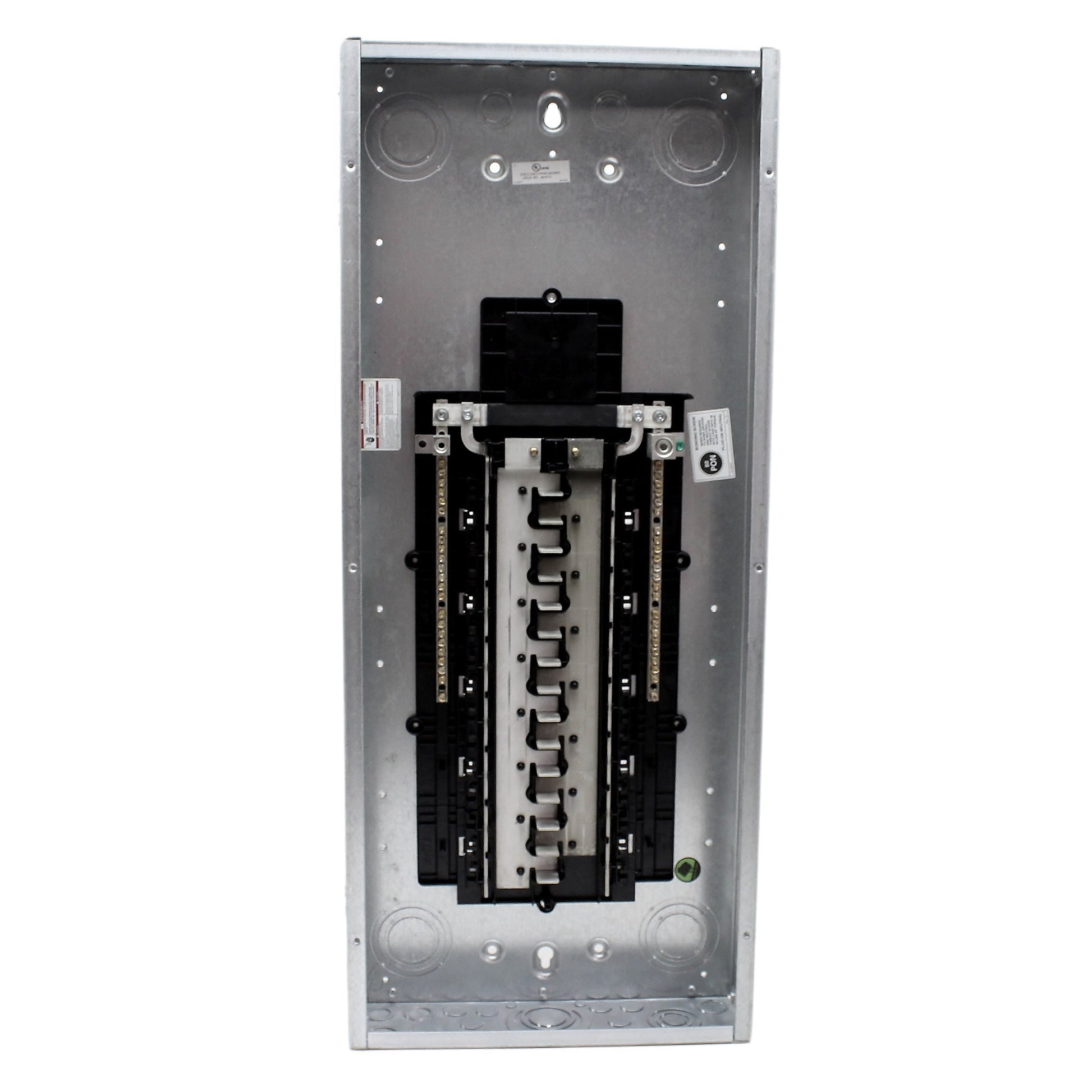

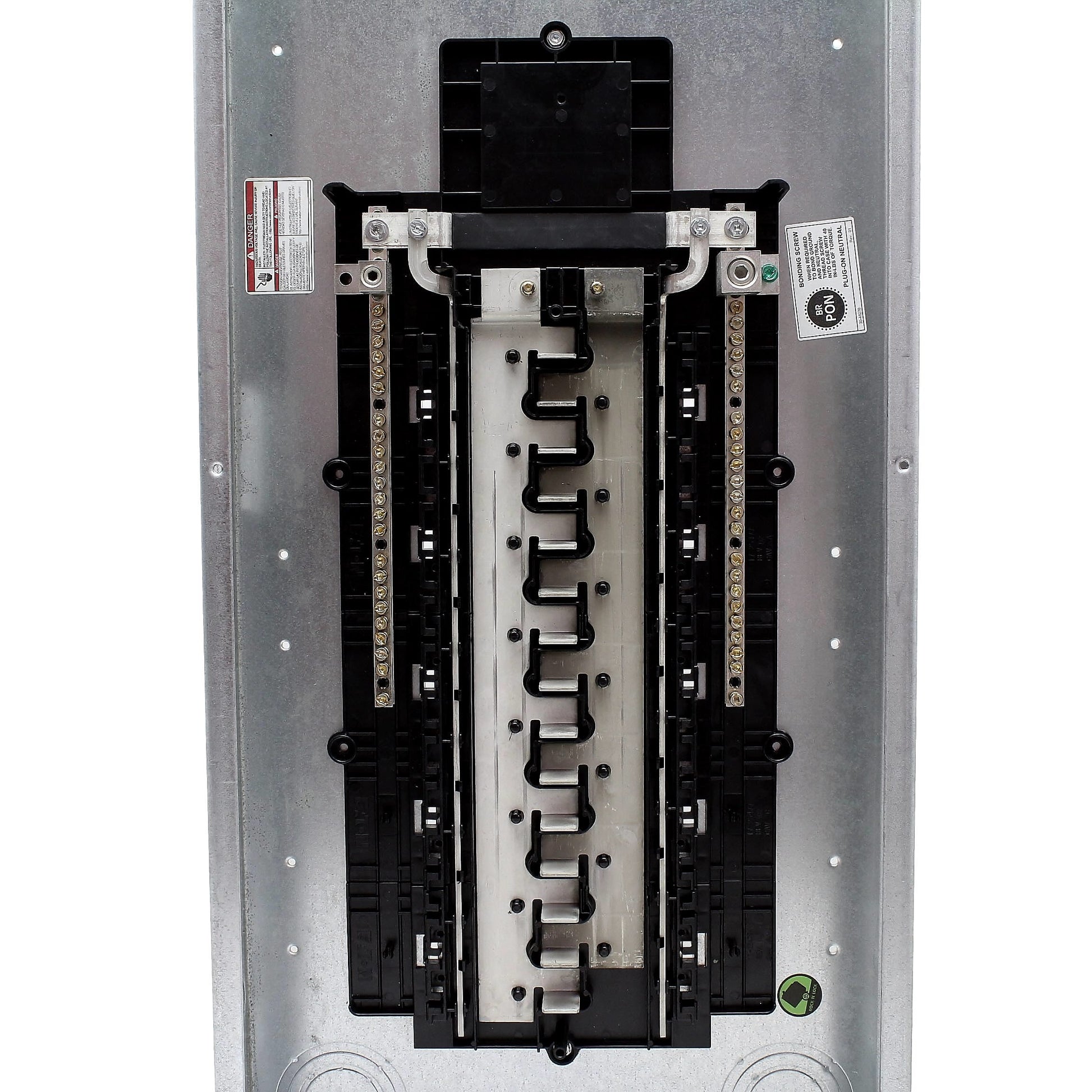

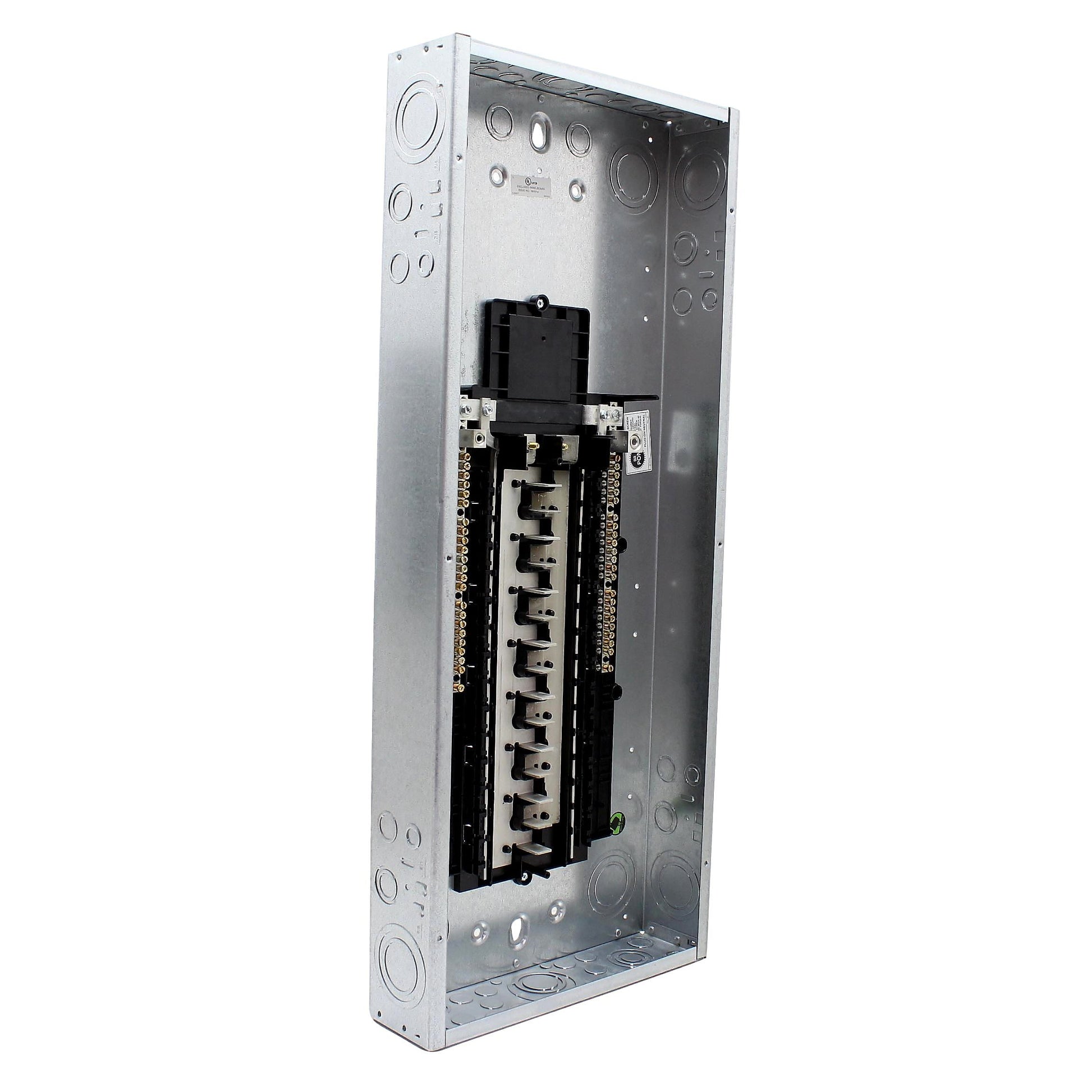

Eaton BRP30B200 Cutler-Hammer series 30-space indoor main breaker panel. Features include:

• Interrupt rating: 25 kAIC
• 30 spaces (up to 60 circuits)
• Wire size: #2 AWG - 300 kcmil Cu/Al
• Uses BR type breakers
• Dimensions: 34.12 in. high, 14.31 in. wide, 3.88 in. deep (measurements do not include covers/fronts)
• Does Not Include cover, cover latch and cover mounting bolts
• The short-body BR electronic circuit breakers are optimized to save gutter space and installation time with an easier, more succinct installation process
• Unique self-leveling tabs to allow for quick drywall offset
• Added keyhole hanging feature on cover for ease of installation
• Common drive types on screw connections for added simplicity and convenience
• Inboard neutral to increase the gutter space for easier installation of conductors
• Backed-out neutral screws to allow for a quick connection of ground and neutral conductors
• Upgraded to embossed circuit numbers for a more clean and professional look
• Standard tin-plated aluminum bus
• Enclosure is manufactured from galvanized steel
• "Tangential" center knockout provides easier installation for conduit applications
• Steel back pan provides solid and reliable breaker mounting - single piece design for stability and durability
• Single keyhole mounting - one keyhole at the top and bottom provides easier mounting and leveling
• Drywall marking on enclosure - indicates proper mounting depth for flush applications
