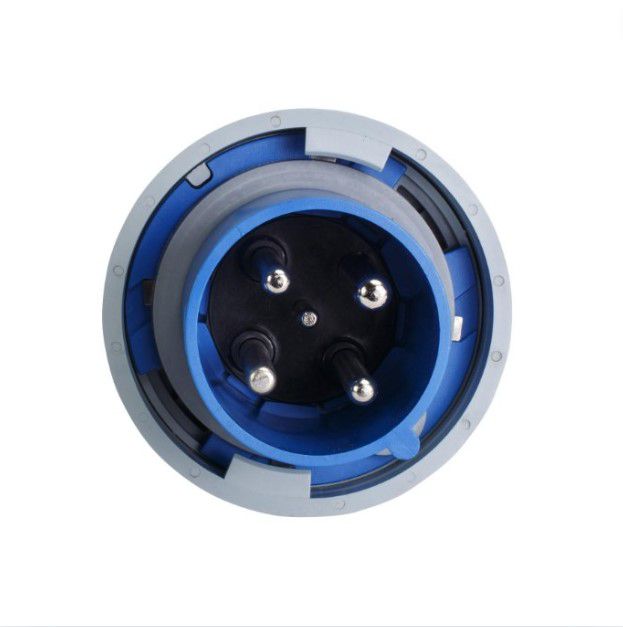

Eaton Arrow Hart Watertight Pin & Sleeve Plug 60A 250V 3 Phase 3P4W AH460P9W

Eaton AH460P9W watertight pin and sleeve plug. Industrial Grade, IEC 309, 3-pole, 4-wire, grounding, rated 60A 250V 3 Phase. Each is individually packaged; packaging may differ from photo. Features include:

• External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o�clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings
• Oversized grounding pin assures mating only with oversized female grounding sleeve; staggered contact to ensure ground makes first and breaks last
• Mechanical cord clamp with silicone rubber grommet seal and locking screw ensures a positive and watertight strain relief system
• Pins fully shrouded for mechanical protection; lockout hole for plugs
• Tri-combo cord grip screws for convenience
• Threaded NPT cable entry provides efficient means of attaching flexible conduit or wire mesh grips
• Standard mounting footprints and blind holes provide interchangeability with major brands
• Durable impact resistant thermoplastic body
• Tapered wiring pockets to ease insertion of stranded wire; deep pockets with clear markings keep bare conductors isolated
• Color-coded front housing for easy and accurate identification of voltages
