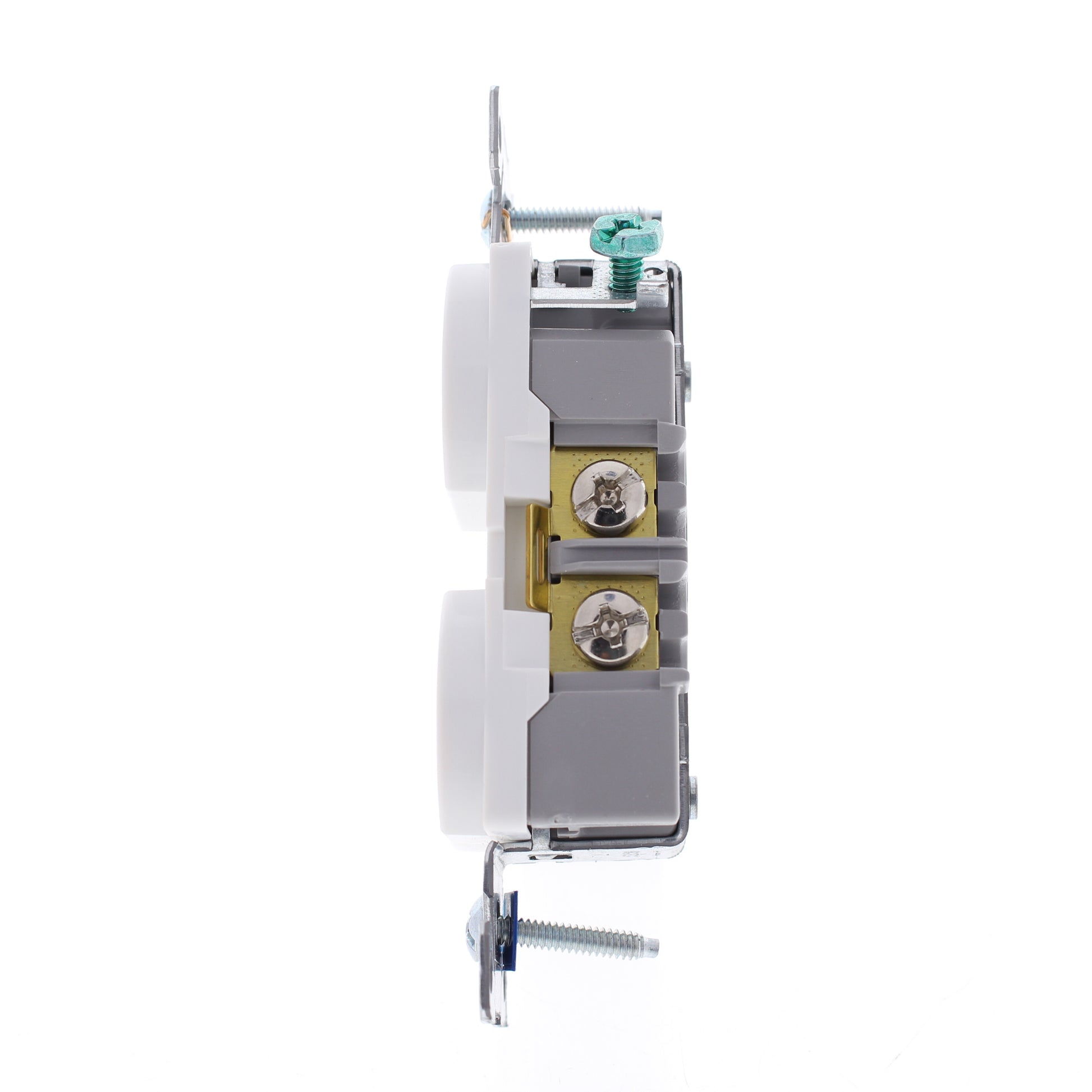

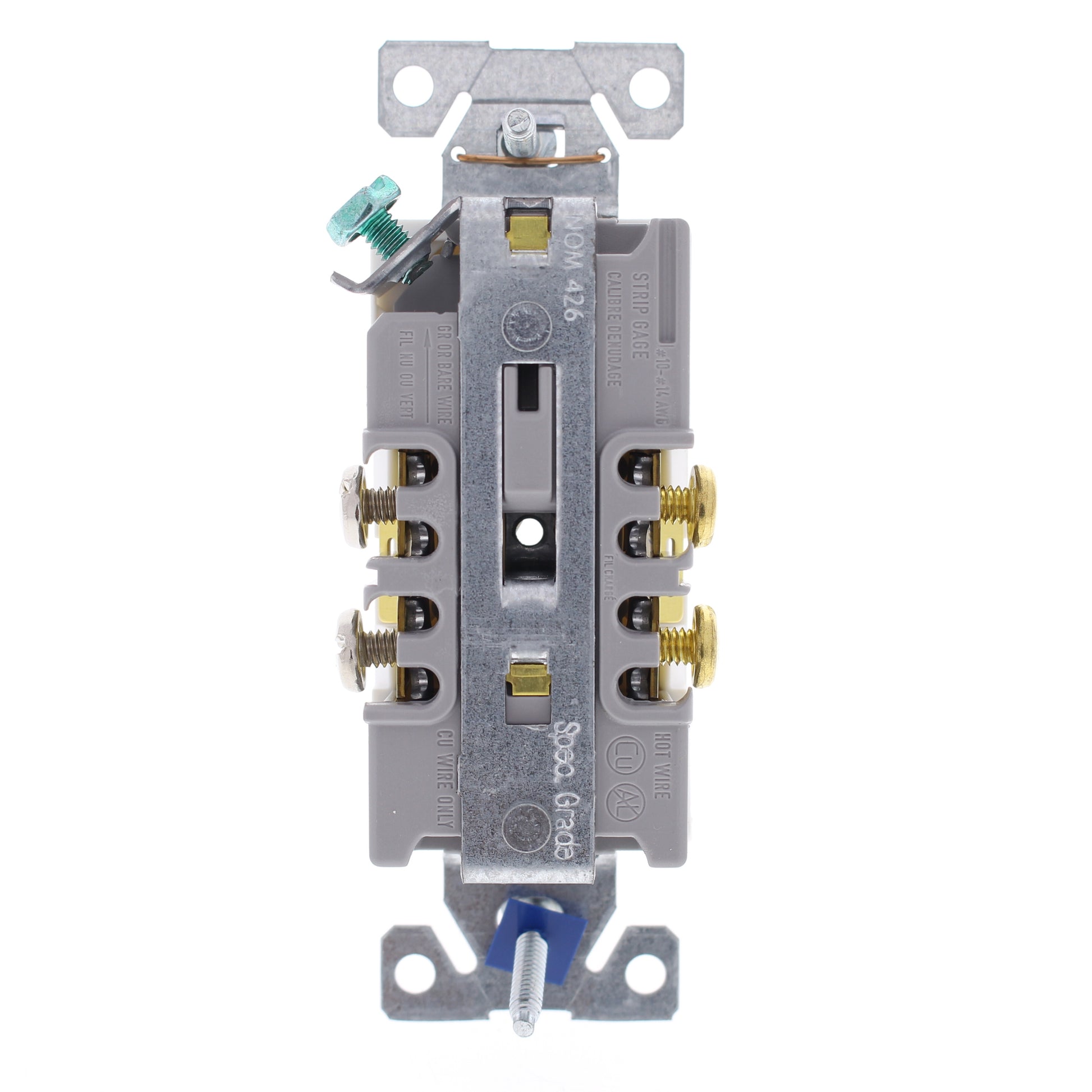

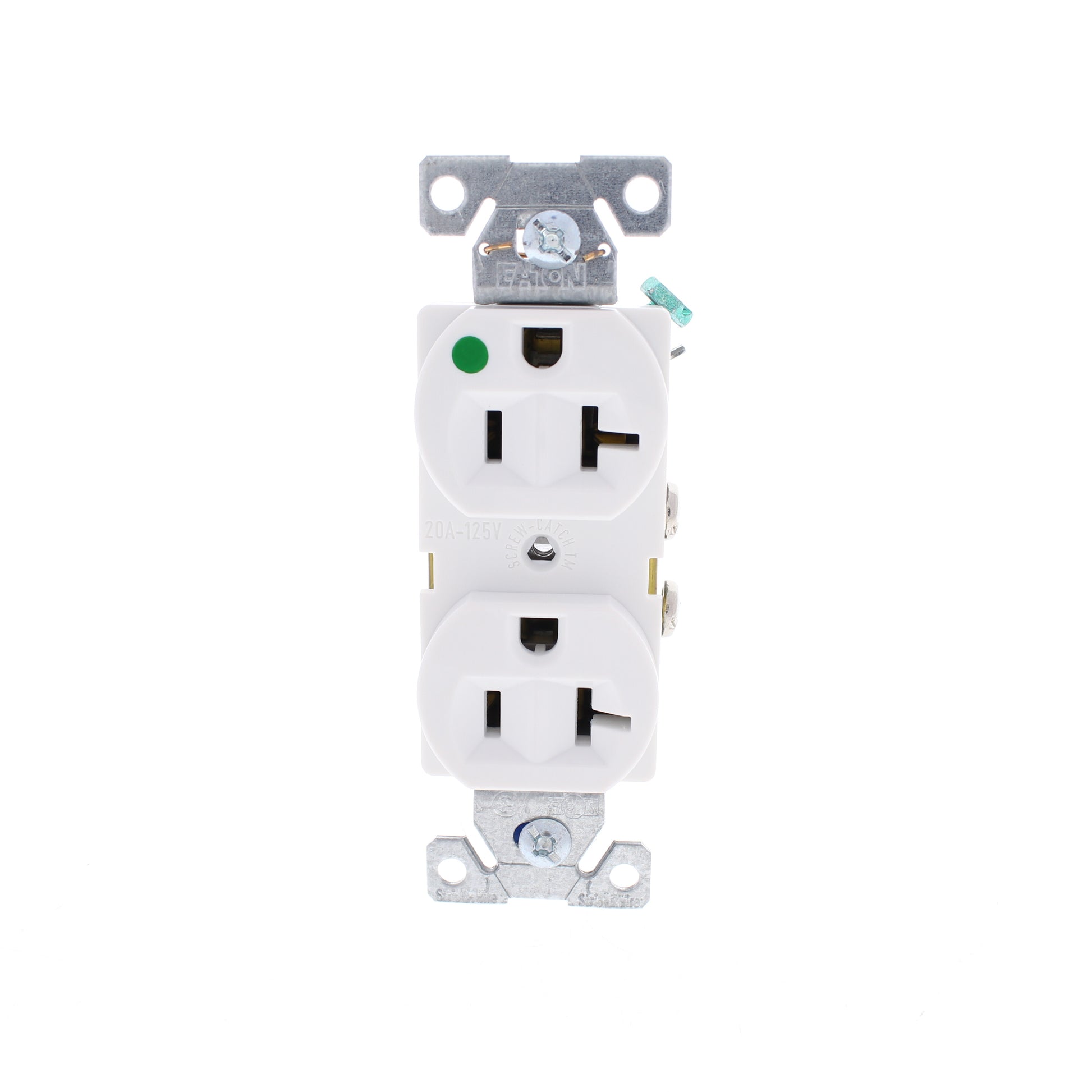

Eaton 8300W white duplex receptacle. Hospital Grade, NEMA 5-20R, 2-pole, 3-wire, grounding, back and side wired, rated 20A 125V. Hospital grade devices are top of the line in their category, designed for high-abuse environments such as those found in healthcare facilities. Features include:
Sturdy, compact design delivers full hospital grade performance and lower profile
Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
Heavy gauge 0.037" triple-wipe brass line contacts provide excellent long-term plug blade retention
Screw-Catch feature on device speeds mounting of wallplates
Extra-long mounting straps help secure installation in poorly cut wall openings
Solid one-piece brass grounding systems assures ground integrity under heaviest abuse
Glass reinforced nylon base provides superior strength and high-heat resistance in contact carrier assembly
Tapered lead-in backwiring slots speed securing up to #10 AWG solid or stranded
High impact and chemical resistant nylon face holds structural integrity, retains appearance; recessed lead-ins speed blade insertion, reducing scarring of face
Tri-head combination brass terminal screws are backed out, staked and afford maximum installation flexibility
