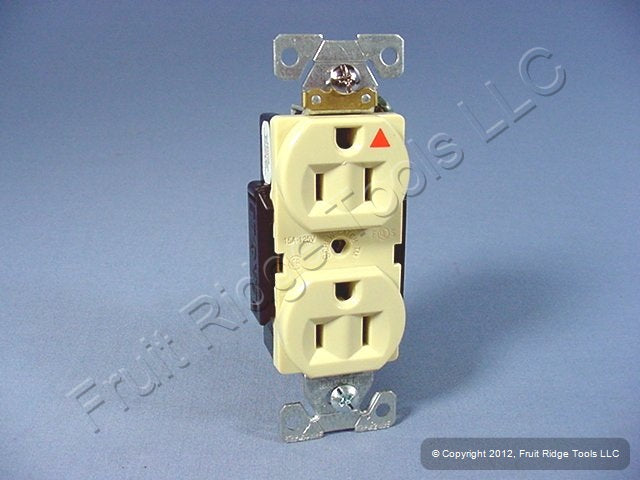

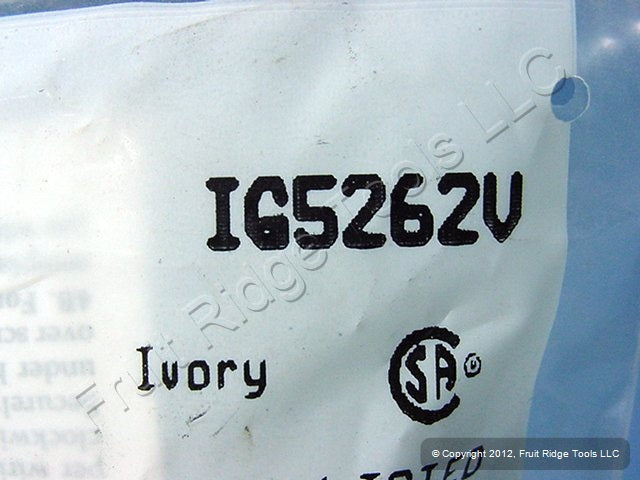

Eagle Electric IG5262V ivory duplex receptacle. Industrial Specification Grade, NEMA 5-15R, 2-pole, 3-wire, back and side wired, Isolated Ground, rated 15A 125VAC. Isolated ground devices have a grounding terminal that is electronically isolated from the strap to eliminate electrical interference (noise) in grounding networks that can cause problems in modern electronics. Features include:
Exclusive 5-leaf brass line contacts ensure lowest heat rise, smooth plug blade insertion and long-term retention
Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
Exclusive 0.030" solid brass, nonriveted, integral one-piece isolated grounding shunt system assures ground integrity under heaviest use - isolated from common building ground
High-impact and chemical-resistant nylon face

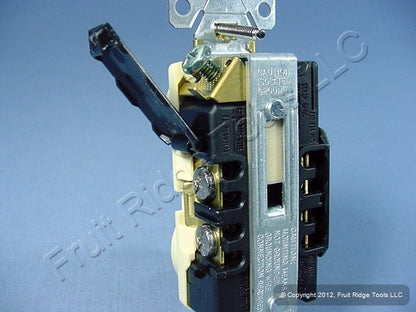

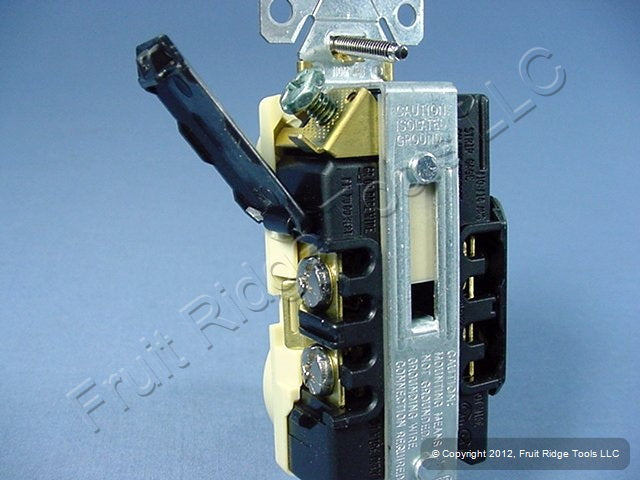

Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
Long, broad mounting strap allows for secure installation even in large wall cutouts; virtually eliminating floating installations
All terminal (H-N-G) and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
