Daniel Woodhead 85269 straight blade connector. Heavy duty hospital grade, NEMA 5-15P, 2-pole, 3-wire, grounding, rated 15A 125V. Hospital Grade devices are top of the line in their category, designed for the high-abuse environments typically found in healthcare, commercial and industrial facilities. Each is individually packaged; packaging may differ from photo. Features include:

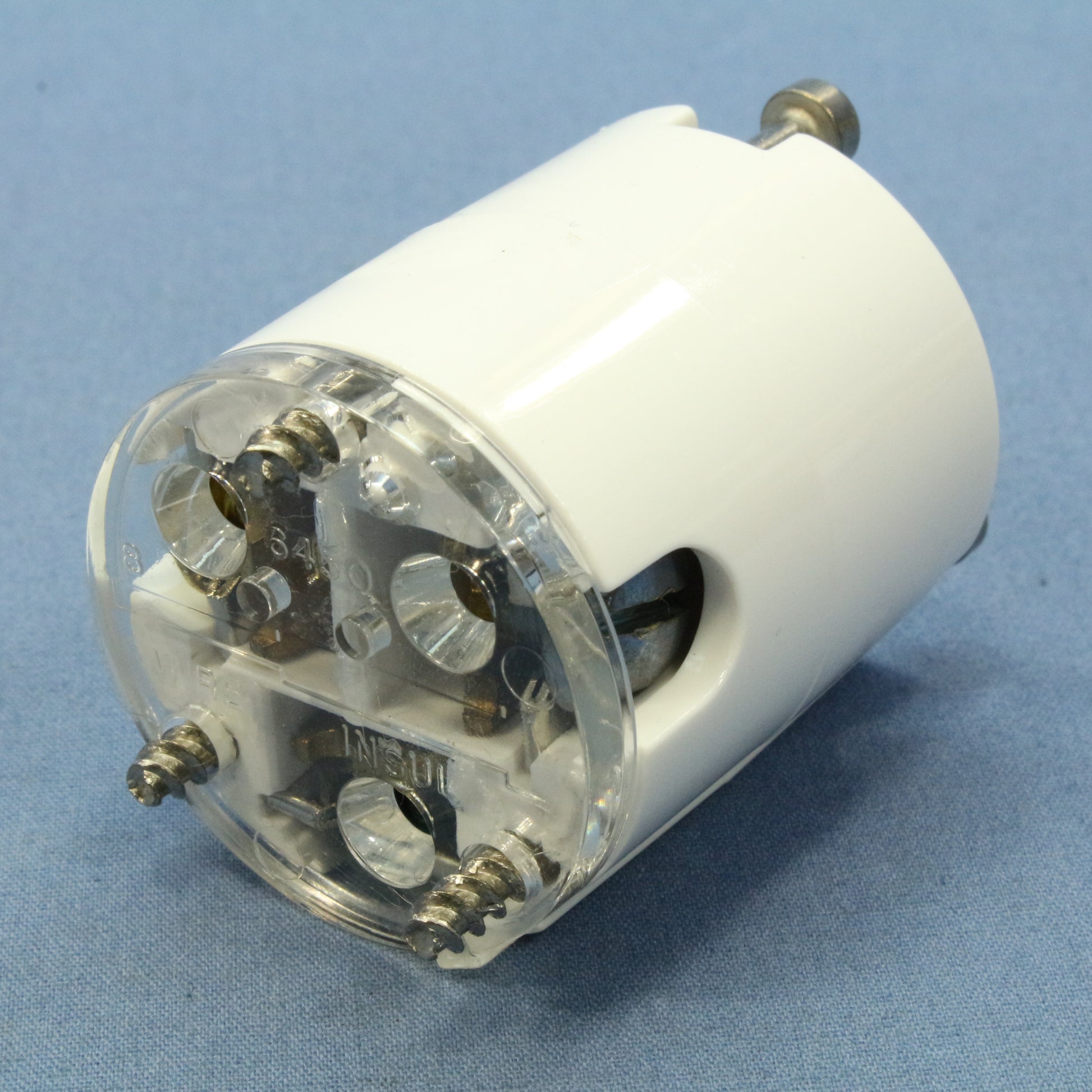

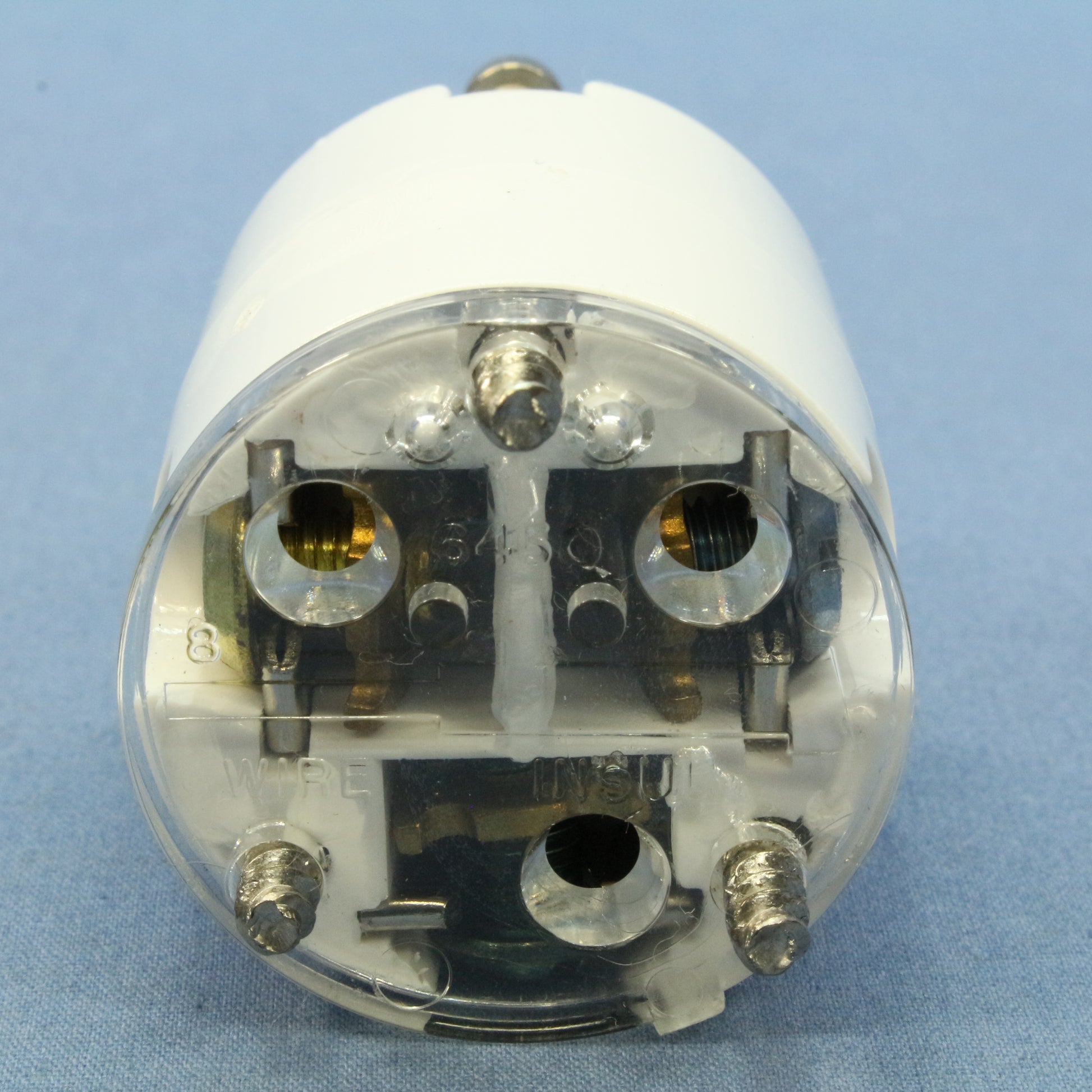

Individual deep-funnelled rectangular-shaped chamfered wire wells. Clear housing allows inspection of wire termination and provides molded-in wire strip gauge
Wire clamps move in individual chamber - provide positive crimp lock without cutting wire strand
Captive, color-coded brass #8 terminal screws

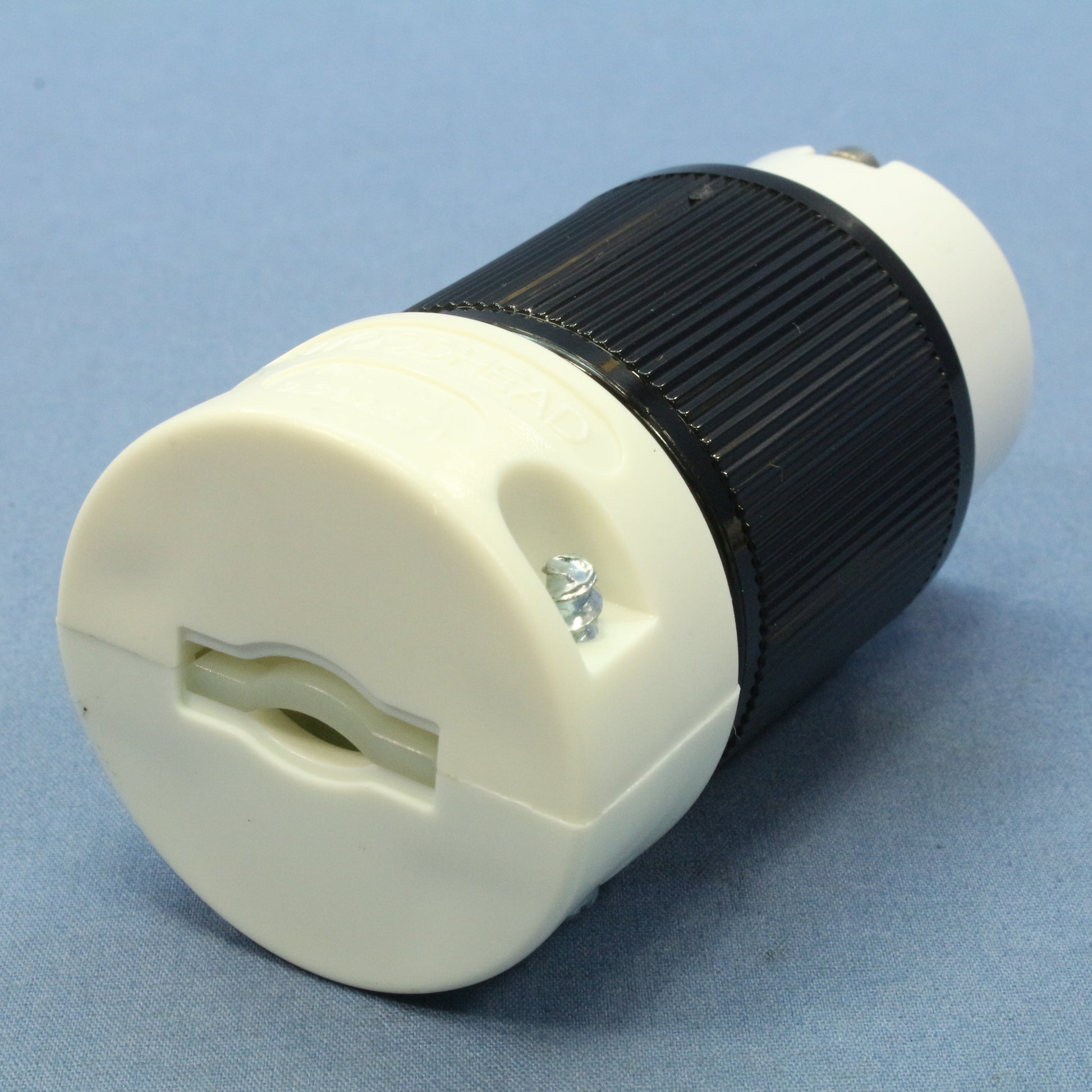

Cord clamp does not have to be disassembled from body for wiring - easy to tighten and no lost screws to find. Accepts all wire mesh strain reliefs
Cord clamp seats flush with body for all cables rated from 10-3 ST to 18-3 SVT (.245"-.700")
Clamp prevents damage to jacket on any cable used within rated range
Husk is constructed of ST801 Super Tough Nylon for superior impact resistance in rugged environments
Wiring module keyed to body for easy assembly and a tight fit
Three fast-threading screws secure wiring module to body - combination Phillips and straight blade screws
Beveled back edges prevent body from catching on corners and rough surfaces
Complete-containment design insulates non-current carrying parts
Fluted body design provides a sure grip

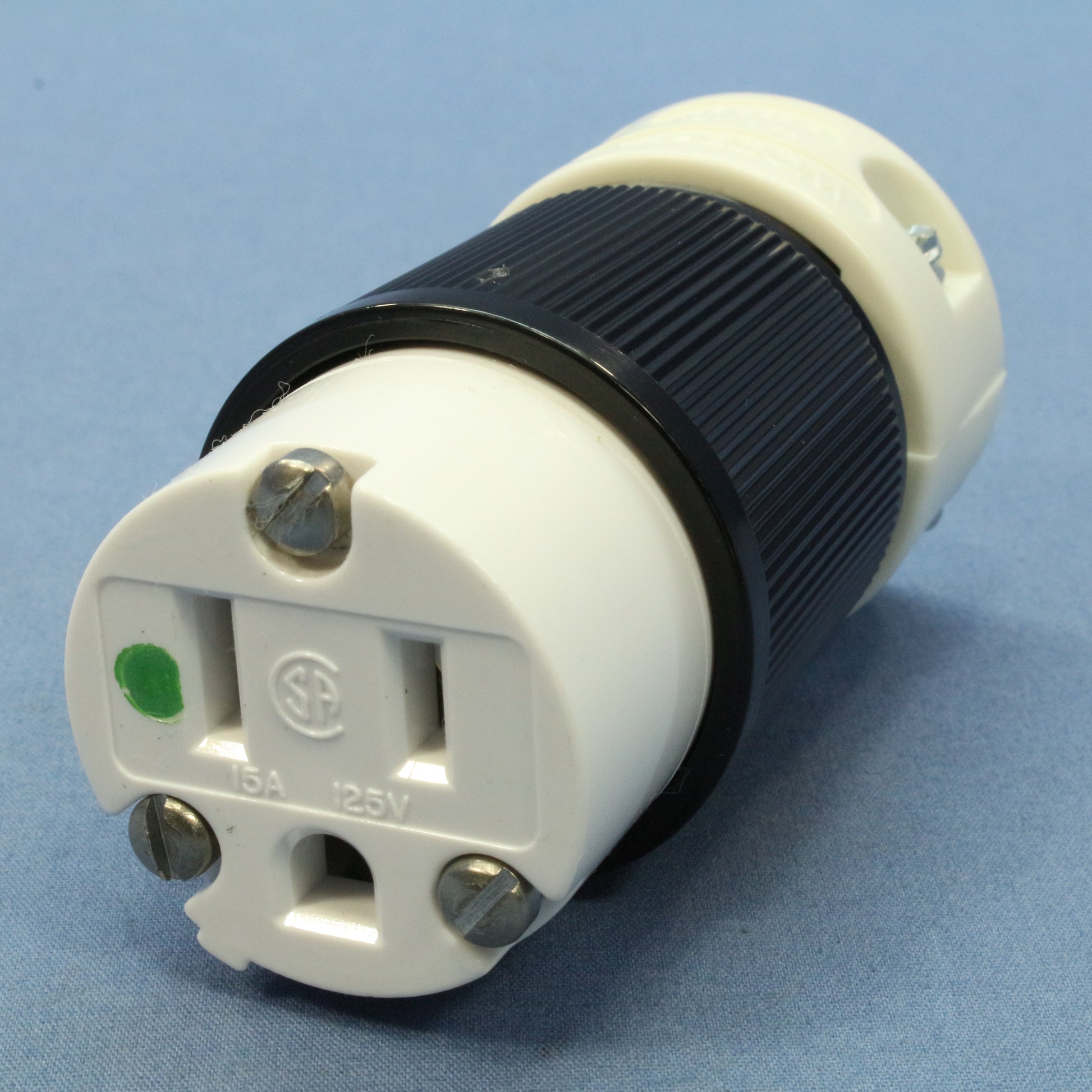

NEMA configuration and Cat. No. printed on cord clamp; NEMA configuration and rating molded on front
