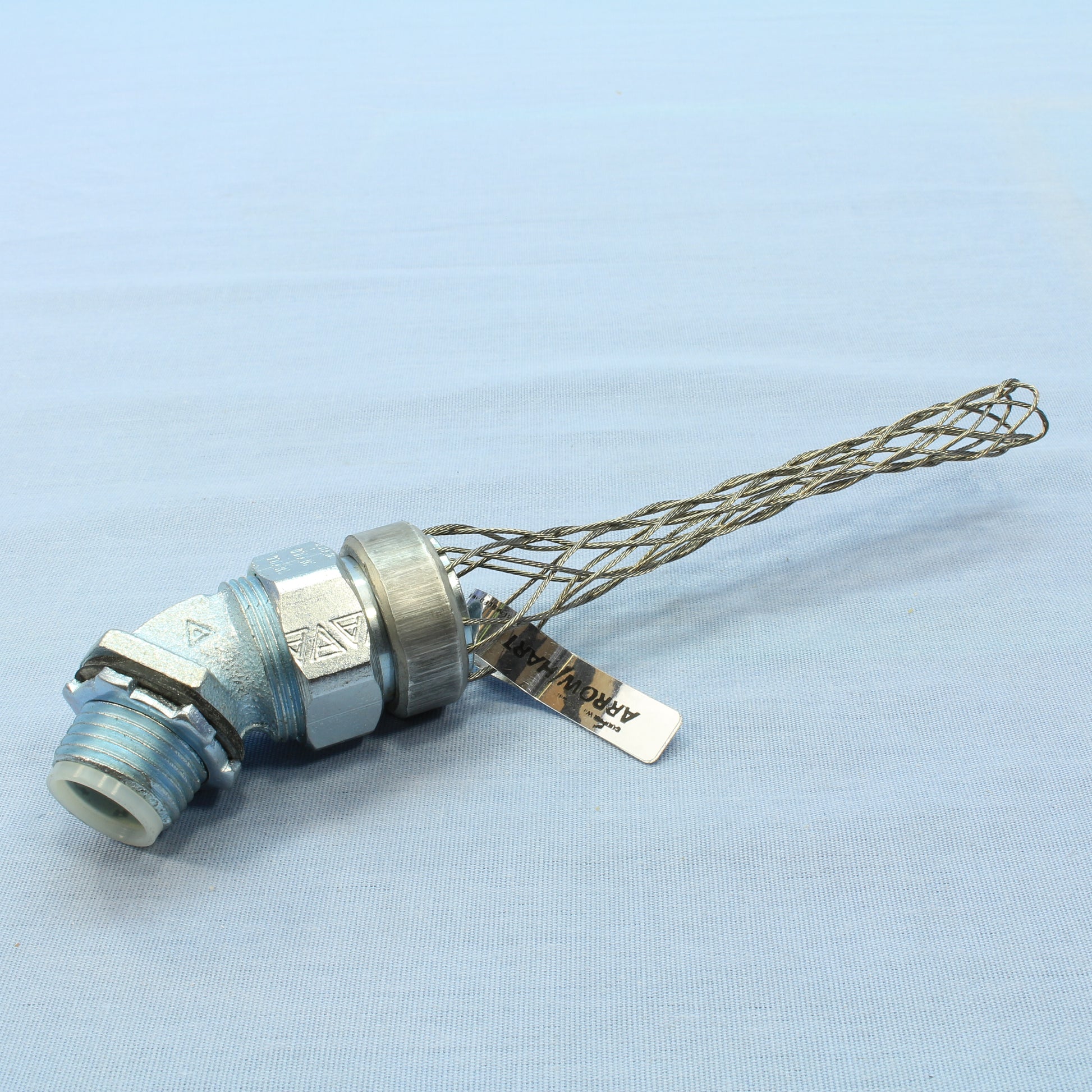

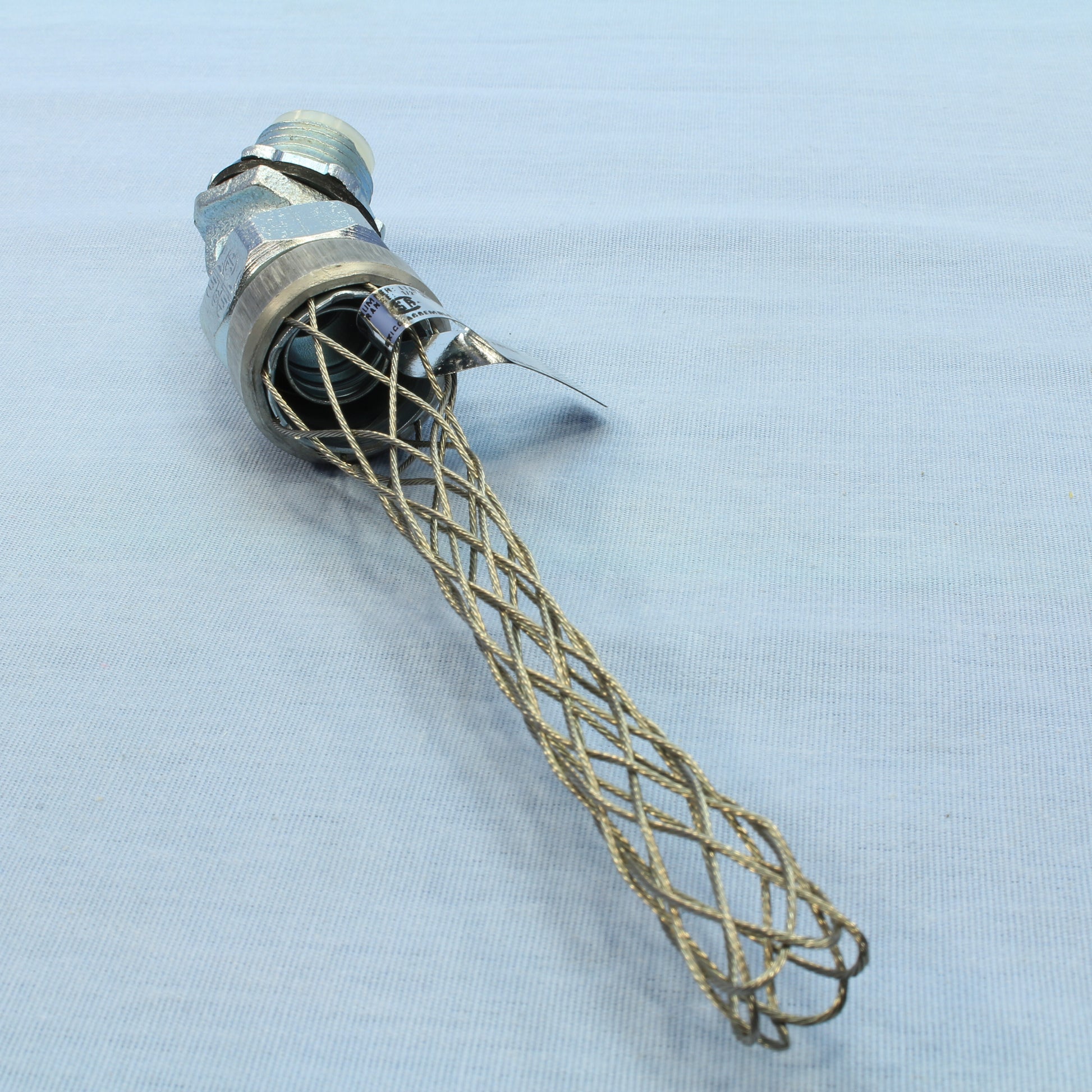

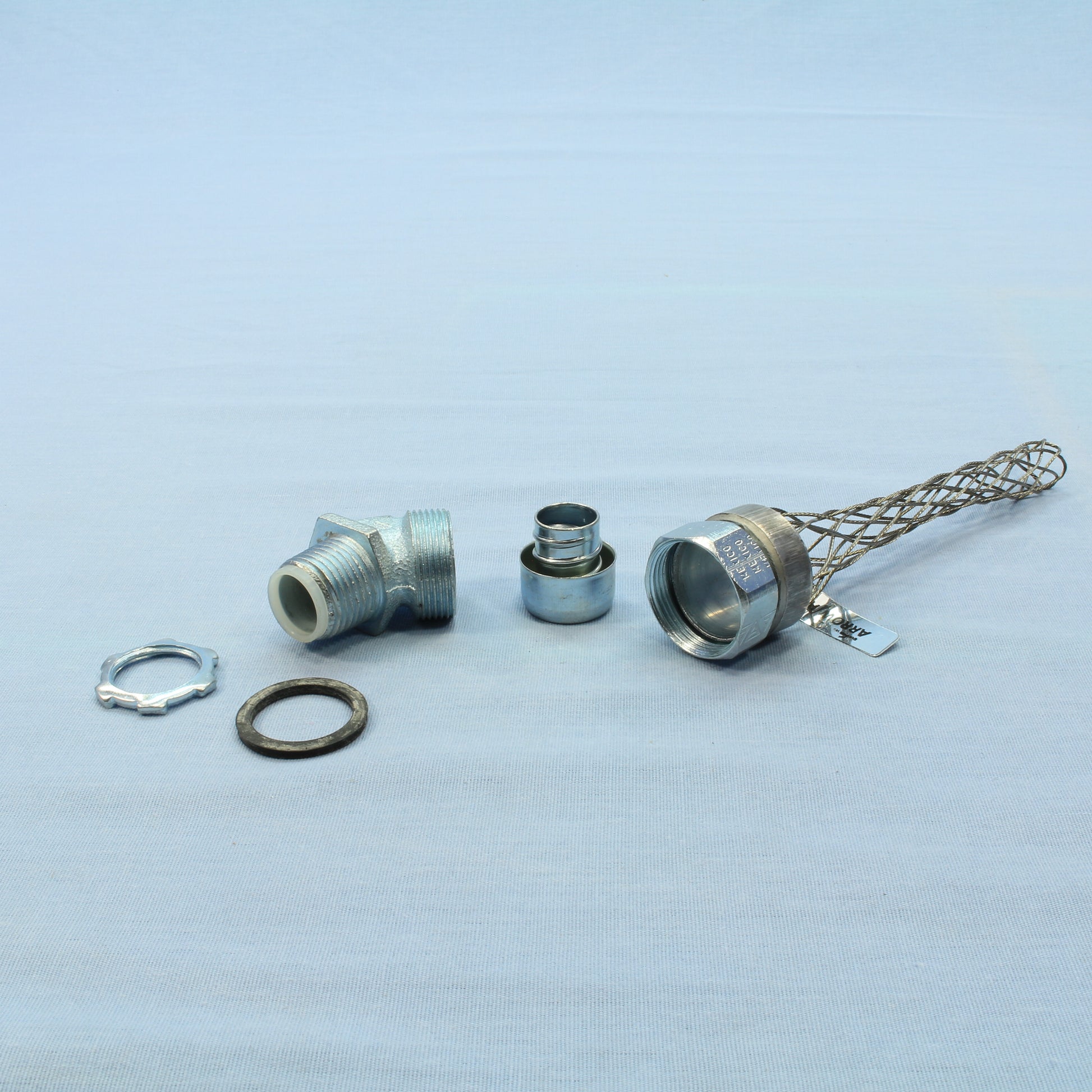

Cooper #LTB145 4.375" single weave mesh length strain relief cable grip for liquidtight metallilc flexible conduit. The Cooper cable grip has a 45 degree body design and a 1/2" NPT hub size. Used to connect cable enclosures and industrial equipment. These grips prevent cable or conduit pull?out at the point of termination due to tension. Strain relief grips also distribute train throughout the length of the mesh during bending, prolonging the life of the cable. Each fitting is supplied with an insulated throat to provide conductor insulation and protect against damage by flexing, heat expansion and contraction. Woven of stainless steel mesh with zinc plated steel or malleable iron bodies and nuts for corrosion resistance. They are used to connect liquid-tight flexible conduits to electrical enclosures to prevent conduit pullout. UL and CSA approved. Each is individually packaged; packaging may differ from photos. Features include:
Single weave wire mesh provides uniform arc of bend and corrosion resistance
Liquid-tight grips are recommended in the wiring of motors and any electrical enclosure where liquid-tight conduit is subject to motion or strain
For indoor and outdoor use
Mesh length of 4.375"
1/2" NPT hub size
45 degree body design
UL and CSA approved
Woven of stainless steel mesh with zinc plated steel
