Cooper 6669 straight blade connector. Made to resist impact, punishing application environments, chemicals and sunlight, resulting in superior performance and long-lasting reliability. Industrial Specification Grade, NEMA 6-15R, 2-pole, 3-wire, grounding, rated 15A 250V. Each is individually packaged; packaging may differ from photos. Features include:
All-nylon dead front. Heavy, solid brass blades held tightly in individual module configurations

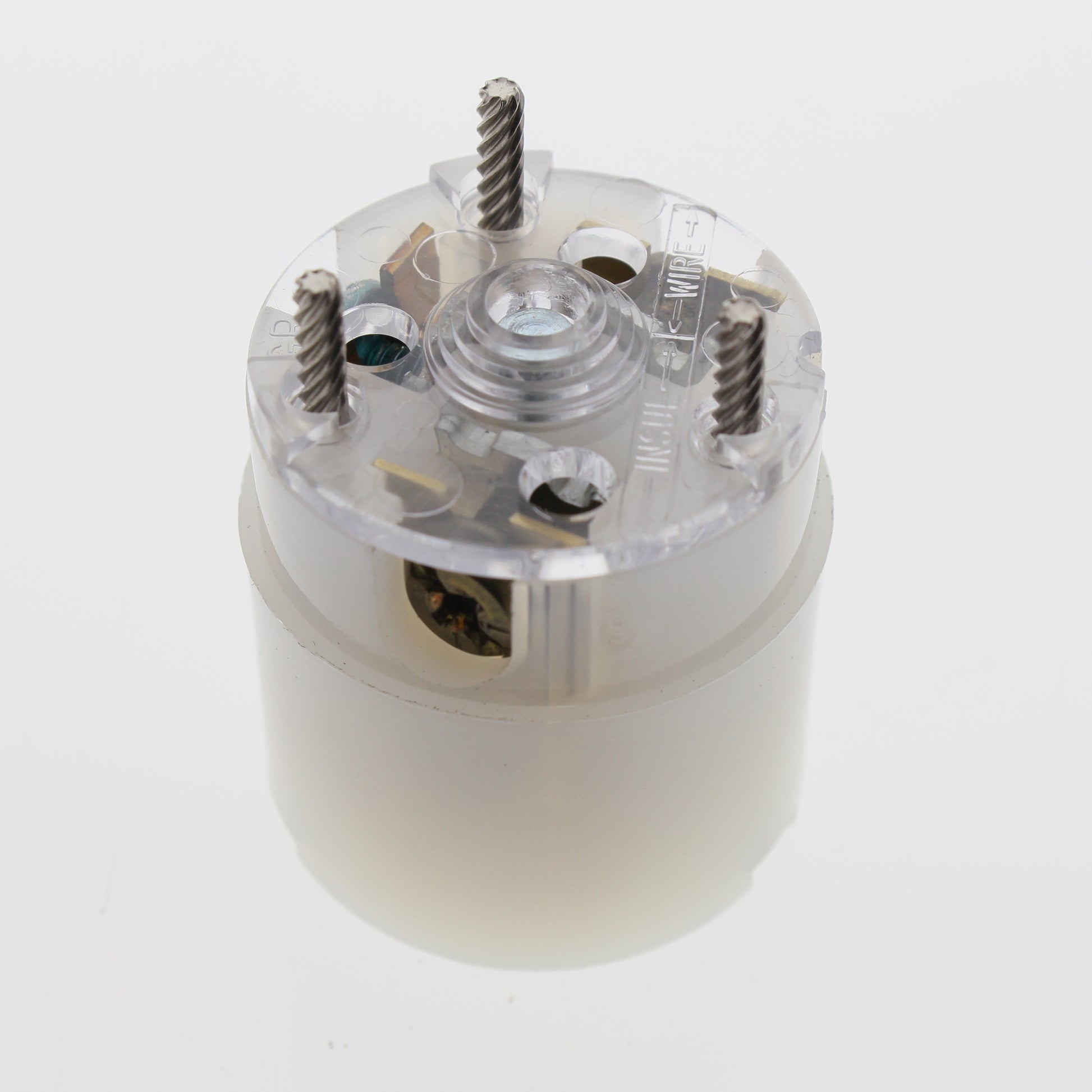

Individual deep-funnelled rectangular-shaped chamfered wire wells. Clear housing allows inspection of wire termination and provides molded-in wire strip gage
Wire clamps move in individual chamber - provide positive crimp lock without cutting wire strand
Captive, color-coded brass #8 terminal screws
Cord clamp does not have to be disassembled from body for wiring - easy to tighten and no lost screws to find. Accepts all wire mesh strain reliefs
Cord clamp seats flush with body for all cables rated from 10-3 ST to 18-3 SVT (.250" -.656")
Clamp prevents damage to jacket on any cable used within rated range
Husk is constructed of ST801 Super Tough Nylon for superior impact resistance in rugged environments

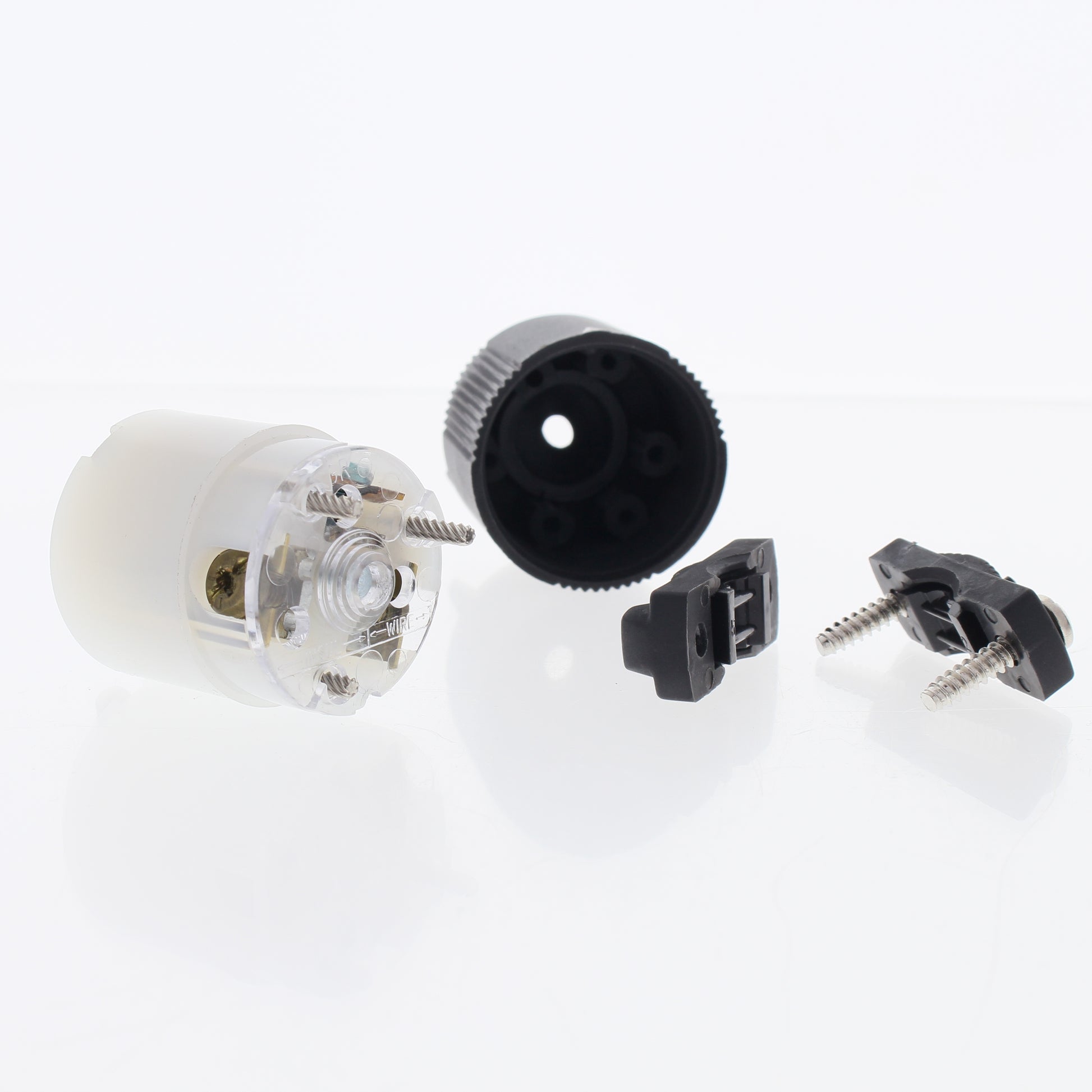

Wiring module keyed to body for easy assembly and a tight fit
Three fast-threading screws secure wiring module to body - combination Phillips and straight blade screws
Beveled back edges prevent body from catching on corners and rough surfaces
Complete-containment design insulates non-current carrying parts
Fluted body design provides a sure grip
NEMA configuration and Cat. No. printed on cord clamp; NEMA configuration and rating molded on front
