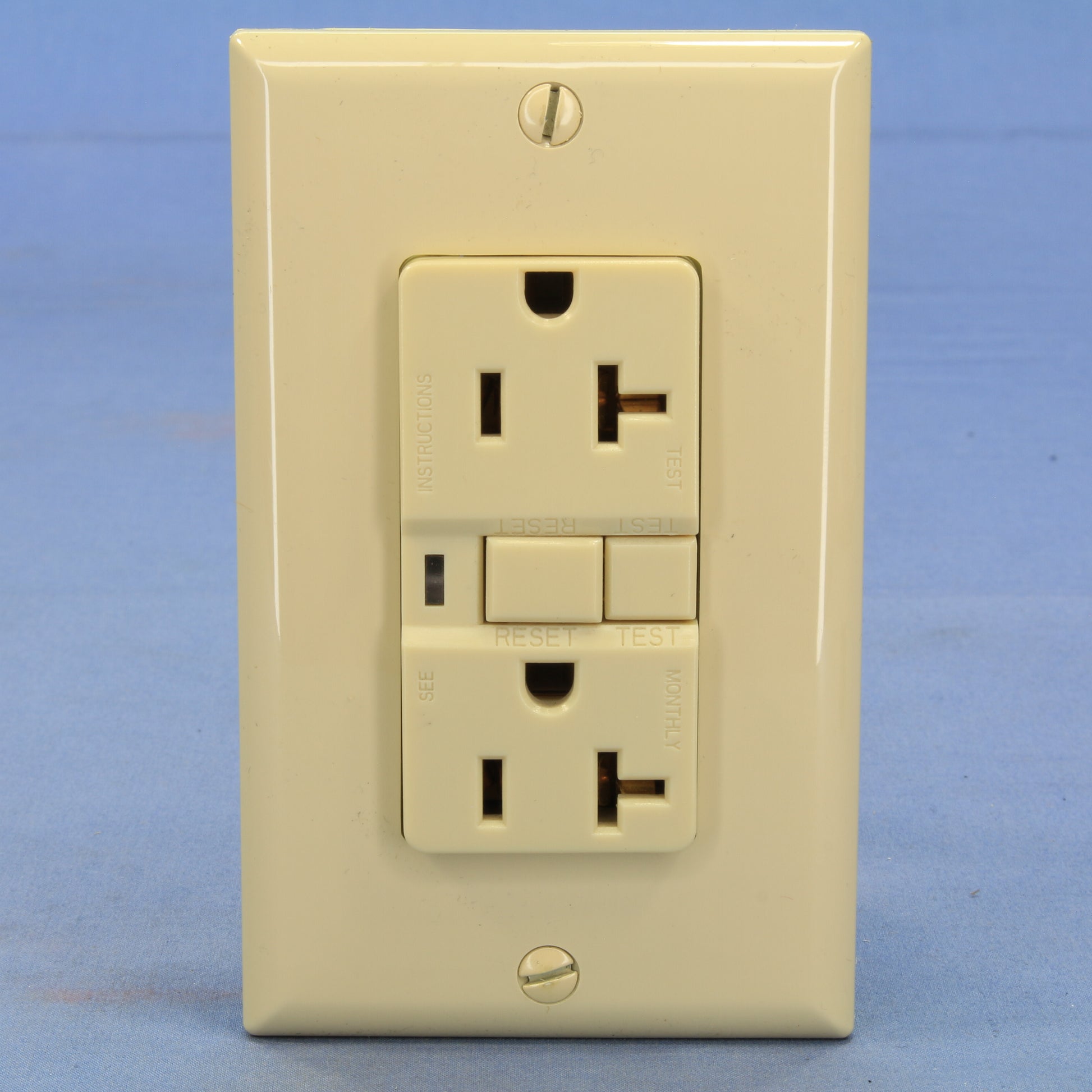

Cooper VGF20VM ivory GFCI Decorator receptacle with quick-connect module. Specification Grade, NEMA 5-20R, quick-connect, rated 20A-125V at receptacle and 20A-125V feed-through. Bulk packed loose with no individual packaging; as a result some may have minor dings. Features include:

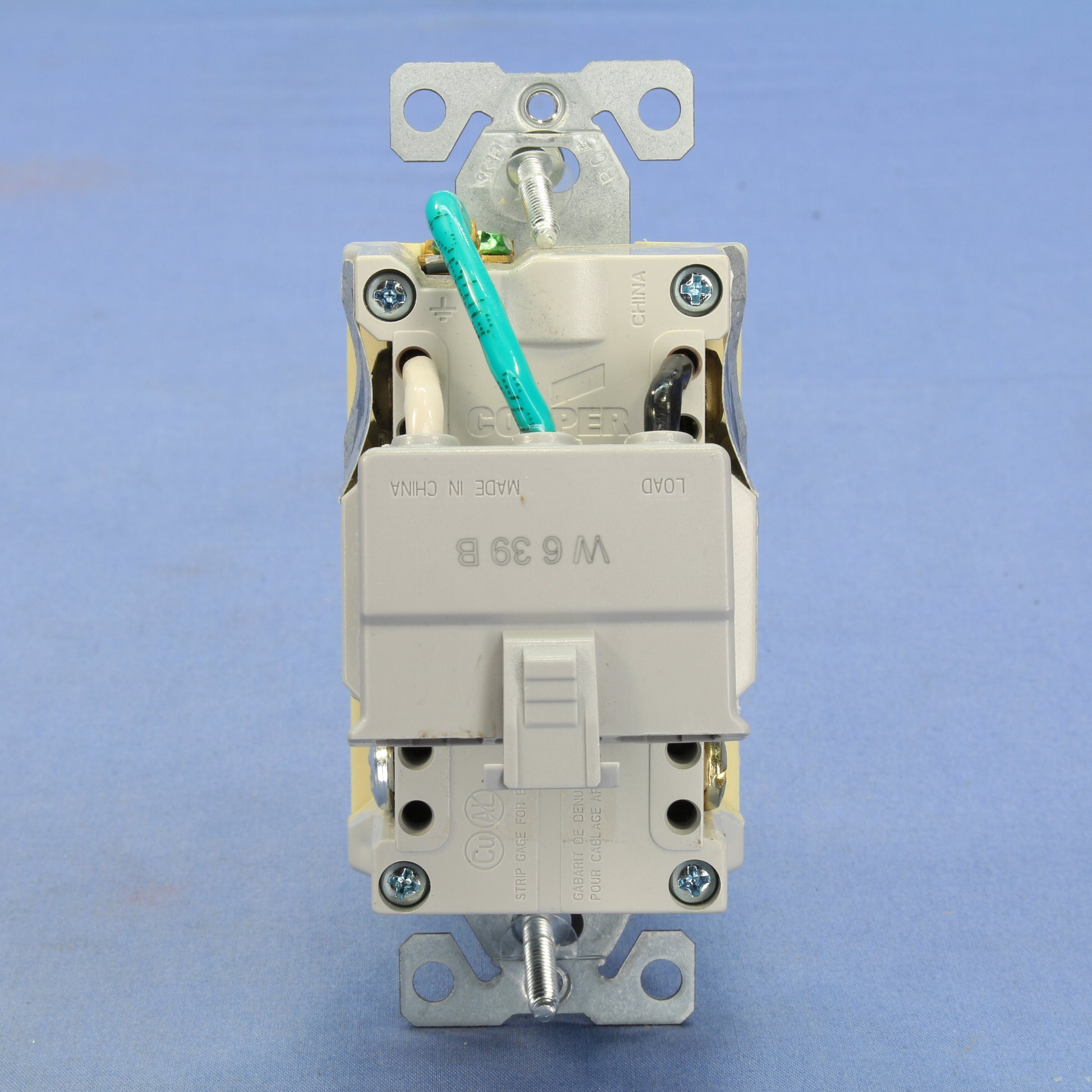

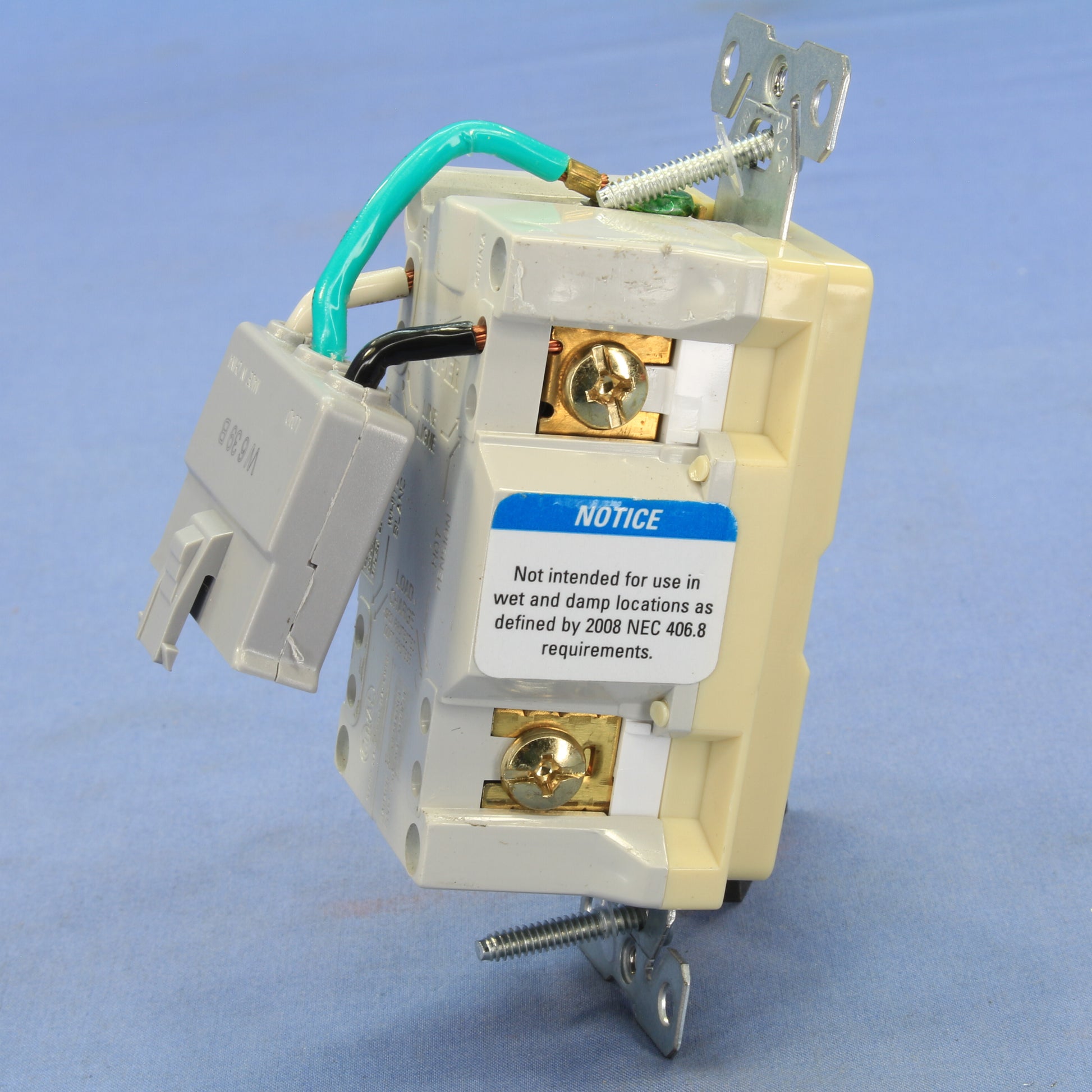

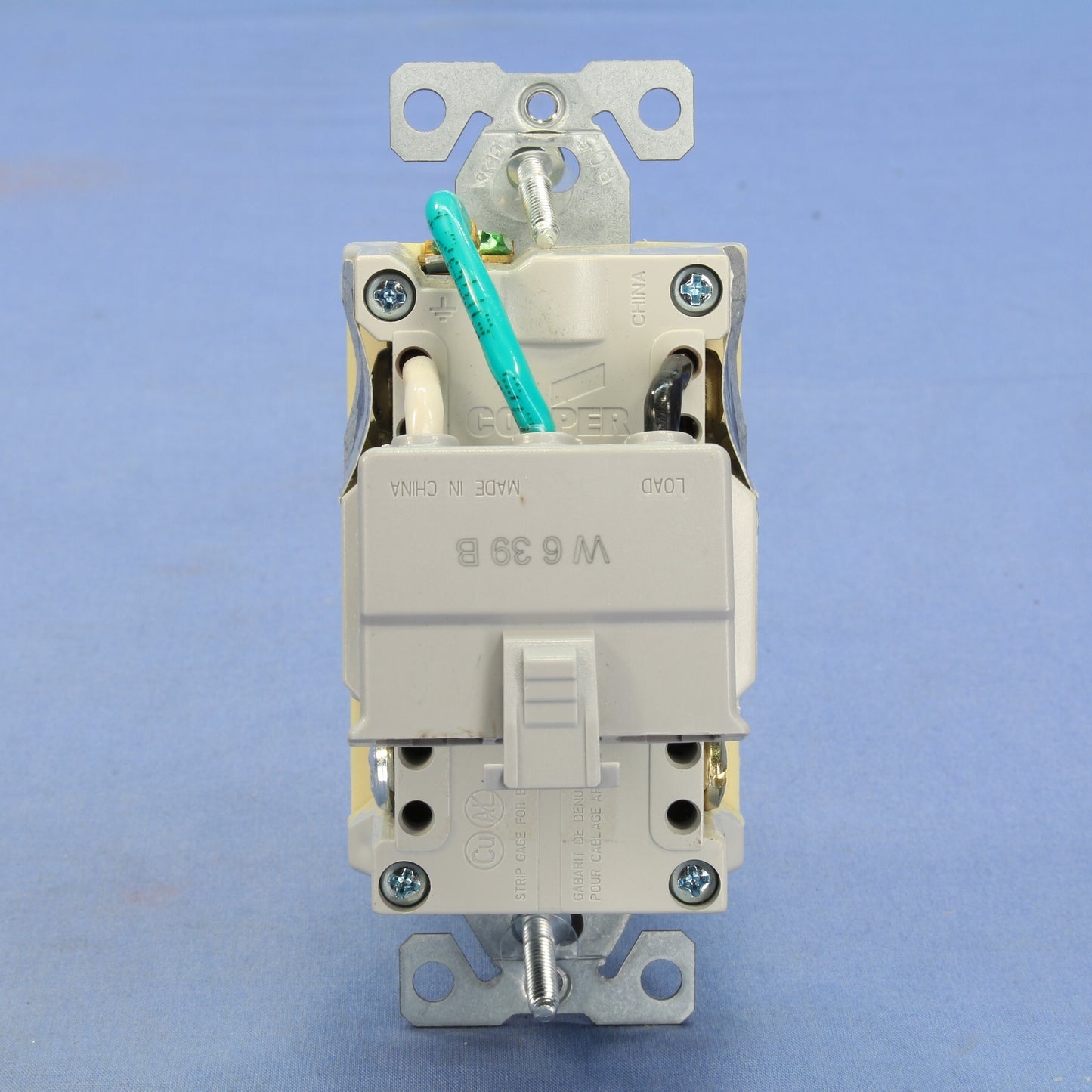

Wiring Module Locks and Latches to the Device Body Providing Double the Connection Security
Modules are Constructed of an Impact-Resistant Polycarbonate
THHN Wire Type
Sturdy, compact design meets the demands of commercial spec grade performance
TEST and RESET functions work together so that a tripped GFCI cannot be reset if GFCI circuit no longer provides ground fault protection
RESET button is blocked if GFCI protection has been compromised, eliminating the possibility of end-users incorrectly assuming that a reset GFCI is providing ground fault protection when it actually is not
Cannot be reset if neutral is not present. GFCI can still be tripped with TEST button under this condition
Large visual indicator light gives quick notification of a tripped or "end of life" condition
Unbreakable nylon construction provides unsurpassed chemical and impact resistance
Ground termination with backwire clamp provides secure wiring and reduces installation time
Horizontal Test/Reset button alignment provides larger unobstructed area; buttons color matched for superior aesthetics
Line-load mis-wiring protection, will not provide power downstream when wired incorrectly
Shock Sentry lock-out function protects from miswired line-load connections and GFCI circuitry damage
Longer, wider "bridged" strap provides 40% more contact area with wallboard, virtually eliminating floating installations

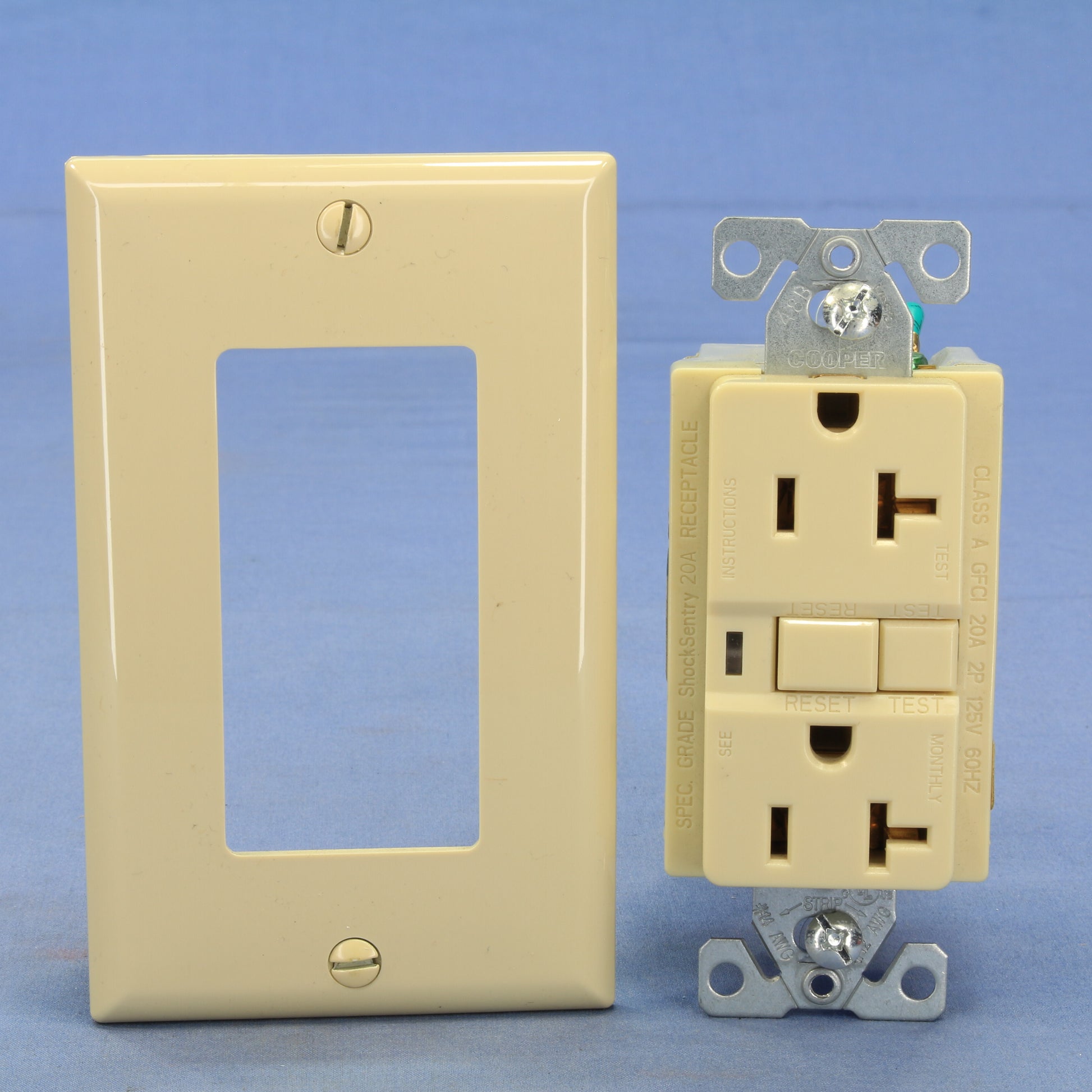

Matching standard size thermoplastic wallplate included
