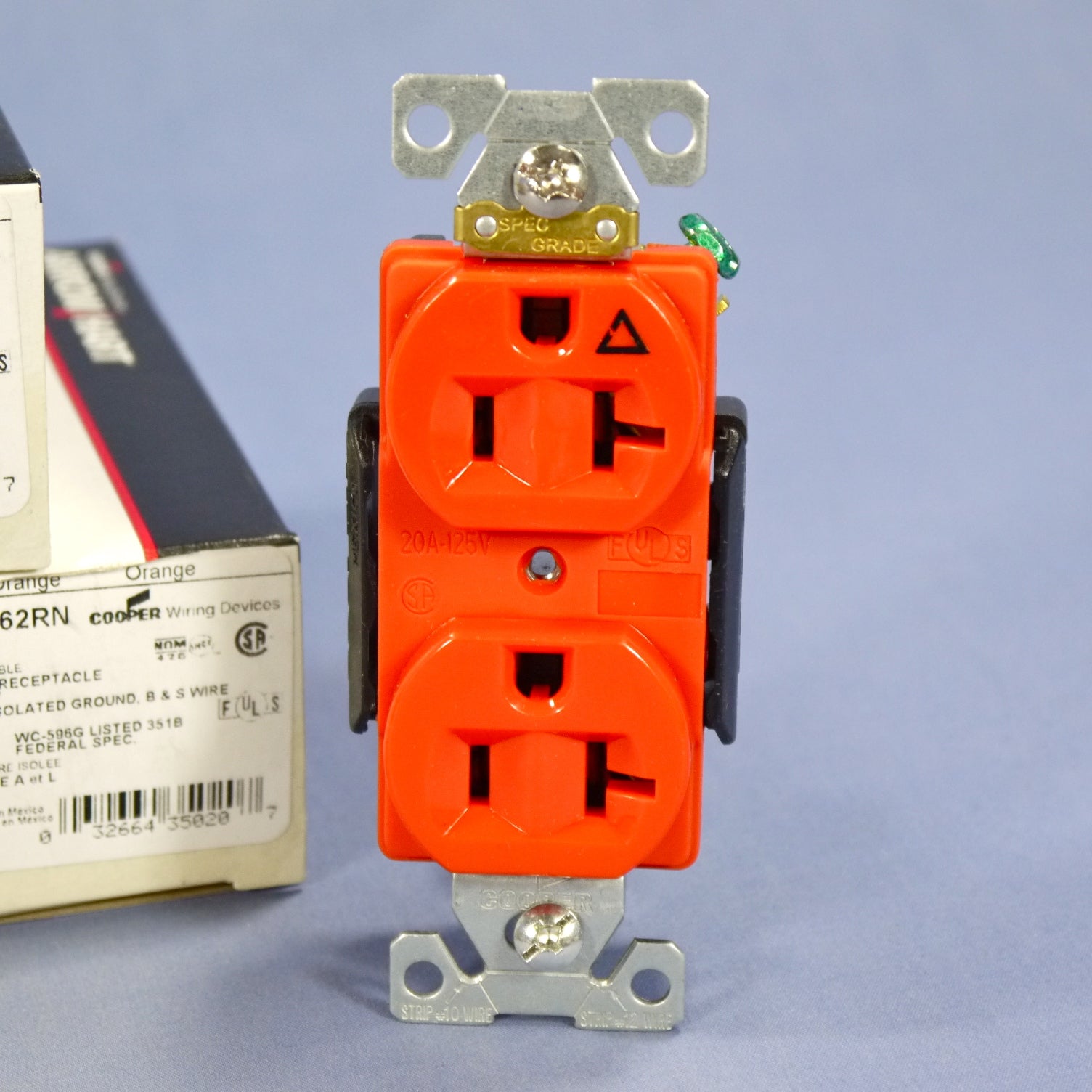

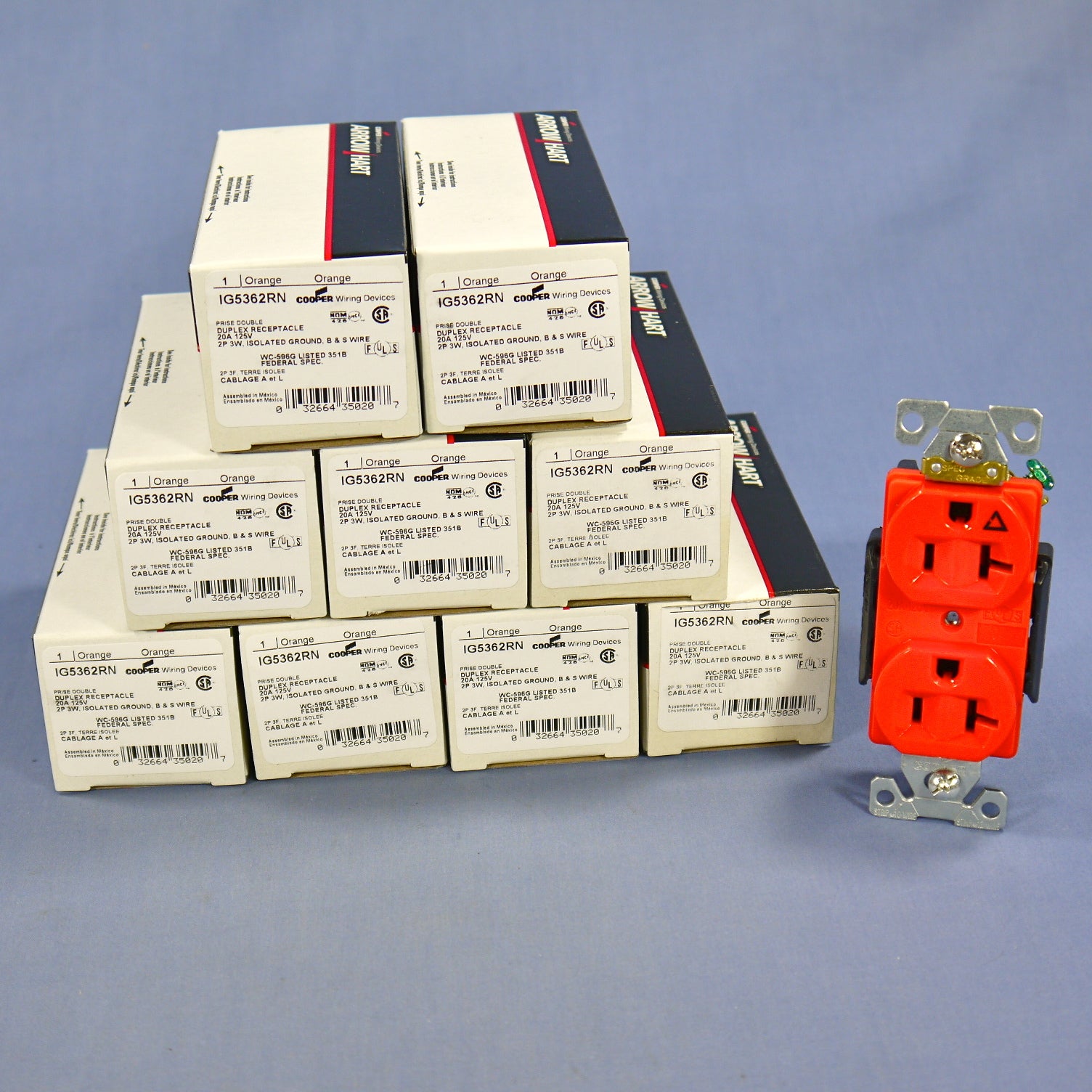

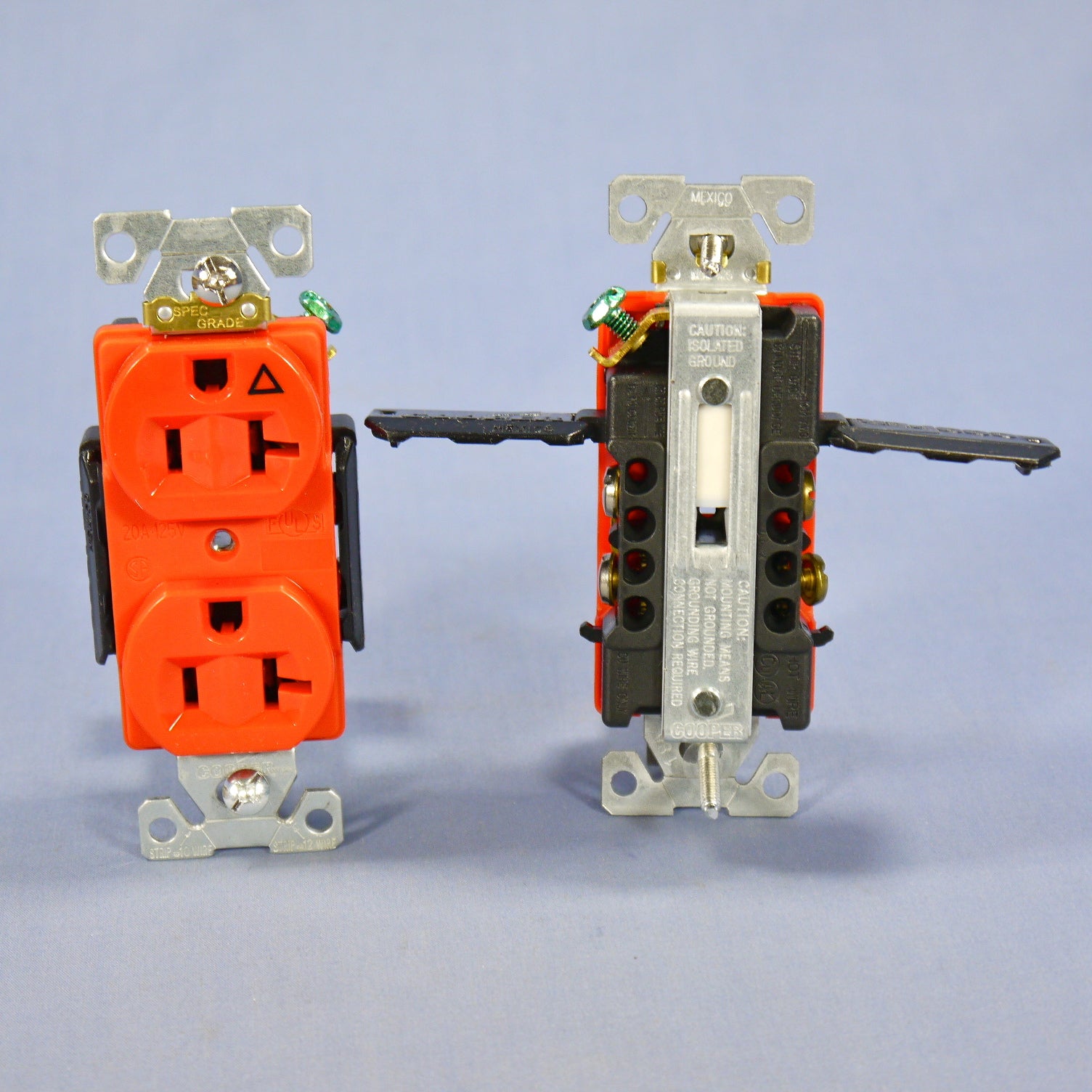

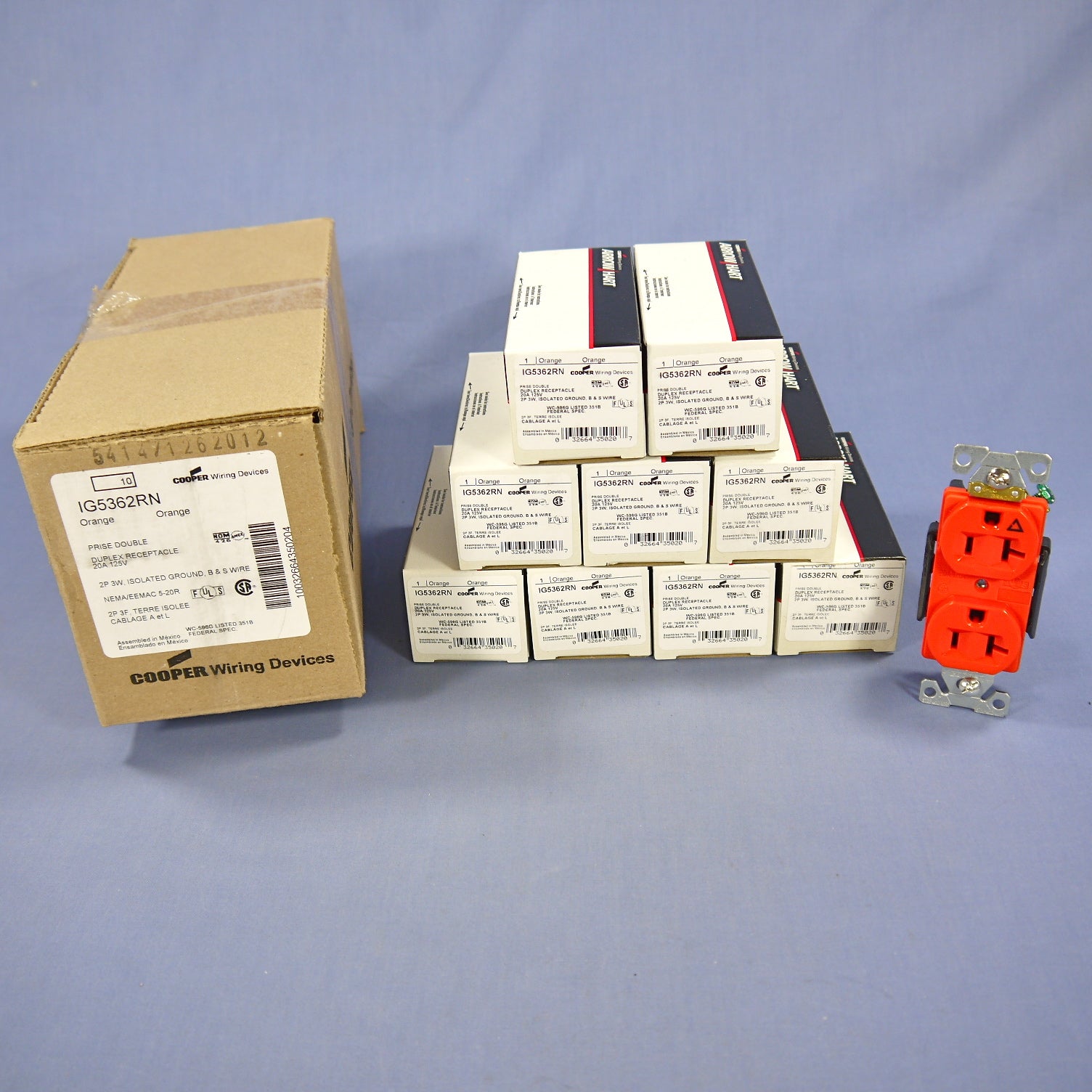

10 Cooper Wiring Devices IG5362RN orange isolated ground receptacles. Isolated ground devices have a grounding terminal that is electronically isolated from the strap to eliminate electrical interference (noise) in grounding networks that can cause problems in sensitive modern electronics. Industrial Specification Grade, NEMA 5-20R, 2-pole, 3-wire, isolated ground, back and side wired, rated 20A 125V. Features include:
Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
Exclusive 5-leaf brass line contacts ensure lowest heat rise, smooth plug blade insertion and long-term retention
Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
Exclusive 0.030" solid brass, non-riveted, integral one-piece isolated grounding shunt system assures ground integrity under heaviest use - isolated from common building ground
High-impact chemical-resistant nylon face
Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
All terminal (H-N-G) and mounting screws have triple combination heads for maximum installer flexibility (straight slot/Phillips/Robertson)
Long, broad mounting strap helps reach large panel cutouts for code compliance
Automatic grounding system assures wallplate grounding in grounded metal enclosure
