Cooper Hospital Grade Straight Blade Connector Plug Nema 5-20P 20A 125V AH8315HG

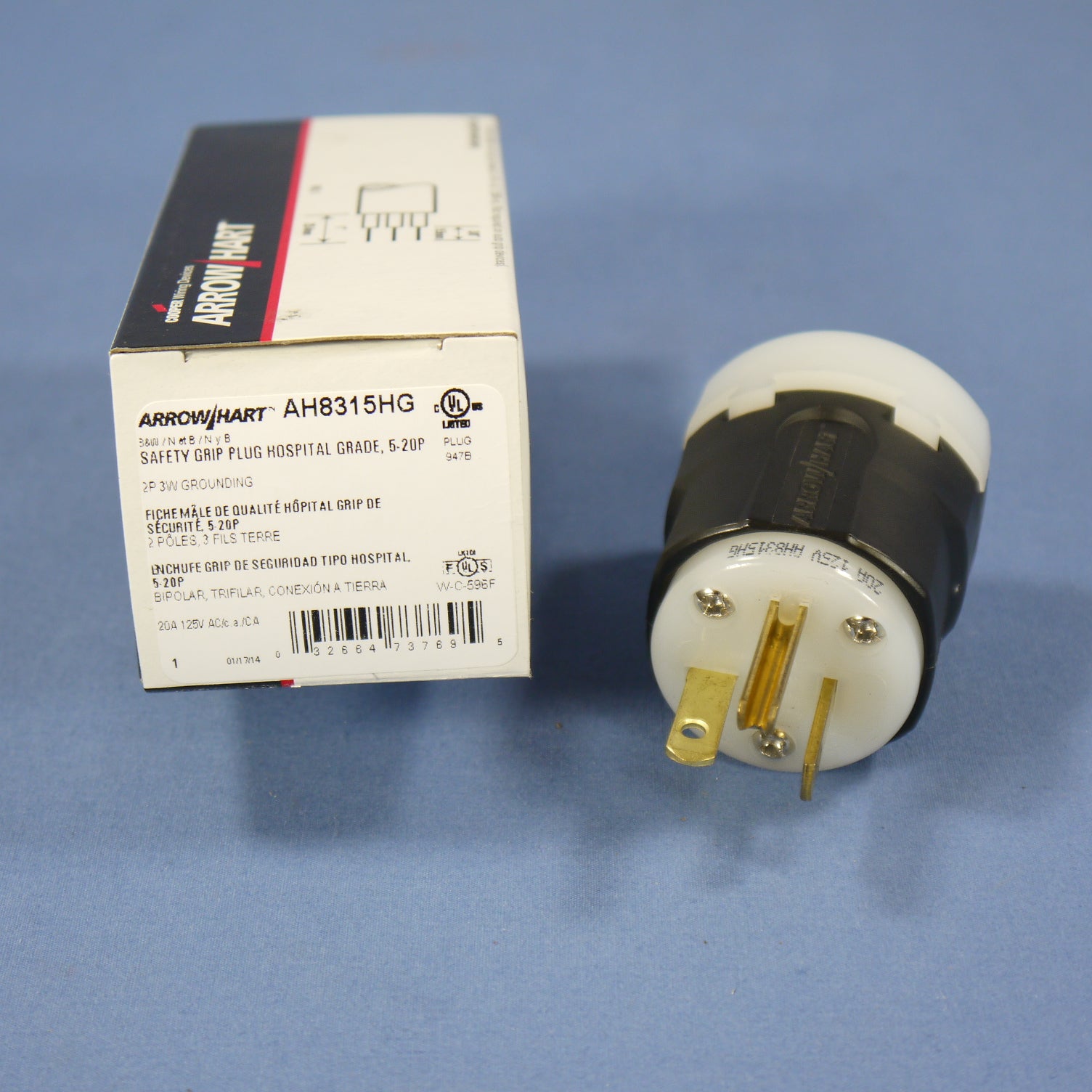

Cooper Arrow Hart AH8315HG Ultra Grip straight blade plug. Built with a contemporary flare and oval ergonomic design for a comfortable yet secure feel, ultra grip plug and connectors offer excellent reliability and durability. A dual dovetail design provides superior cord grip retention, and the grommet allows usage across a wide range of cord diameters. Additionally, reversible inserts in the cord grip allow for exceptional clamp force on large diameter cords. Hospital Grade, NEMA 5-20P, 2-pole, 3-wire, grounding, rated 20A 125V. Hospital Grade devices are top of the line in their category, designed for the high-abuse environments typically found in healthcare, commercial and industrial facilities. Each is individually packaged; packaging may differ from photo. Features include:

• Rated and marked "Hospital Grade" and identified with a green dot symbol
• Back-wired Dead-Front construction
• EPDM gasket seals cord hole on straight plugs and connectors
• Rugged nylon body resists impact and exposure to chemicals
• High impact-resistant thermoplastic housings with easy-grip grooves
• Assembly screws are speed-threaded and captive, reducing installation time

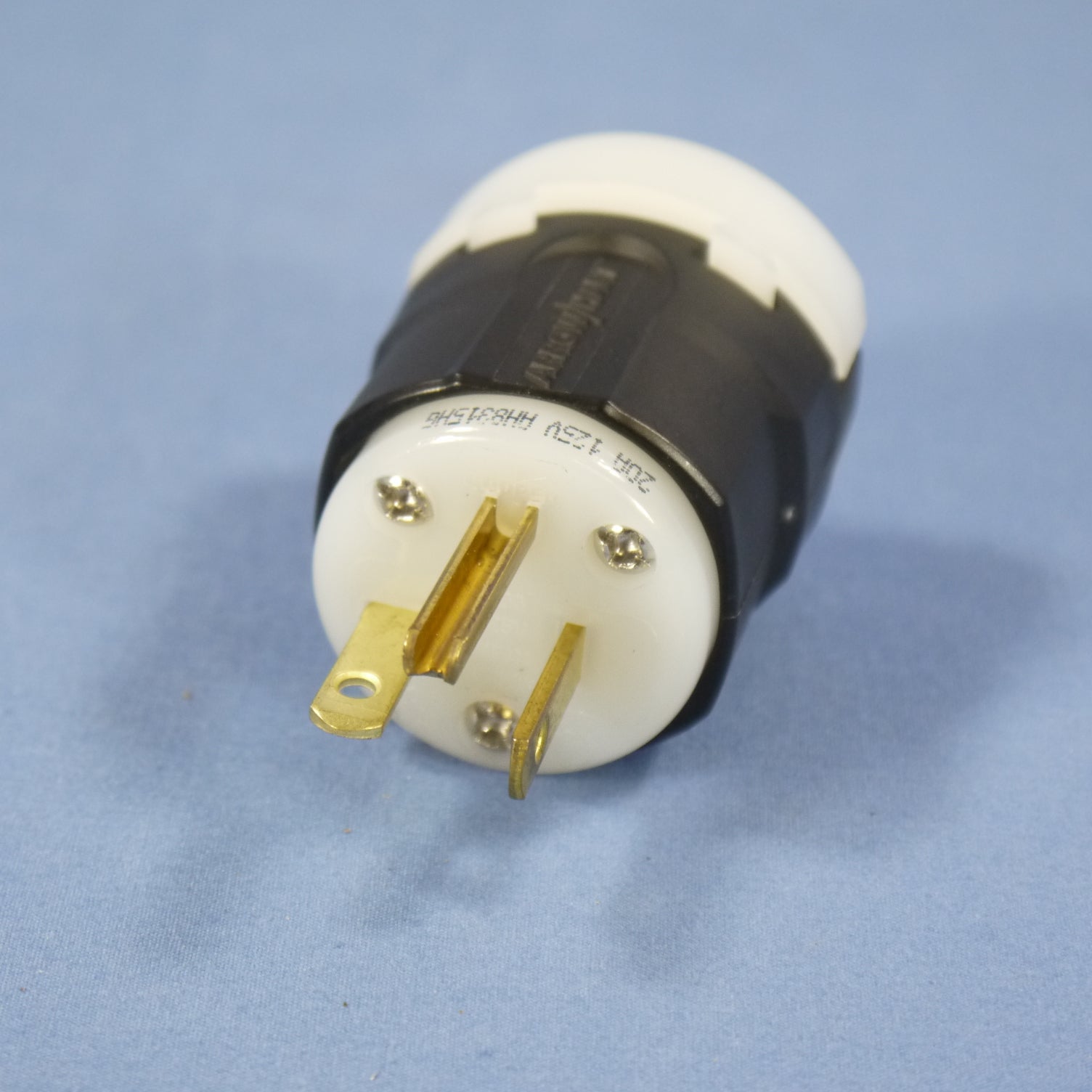

• Solid brass plug blades are firmly embedded in body
• Terminals in individual chambers to positively insulate conductors
• Terminal screws backed out - ready for wiring
• Neoprene gasket seals around cord for added terminal protection from external elements
• Dual range cord grip provides positive cord gripping while limiting strain on conductors

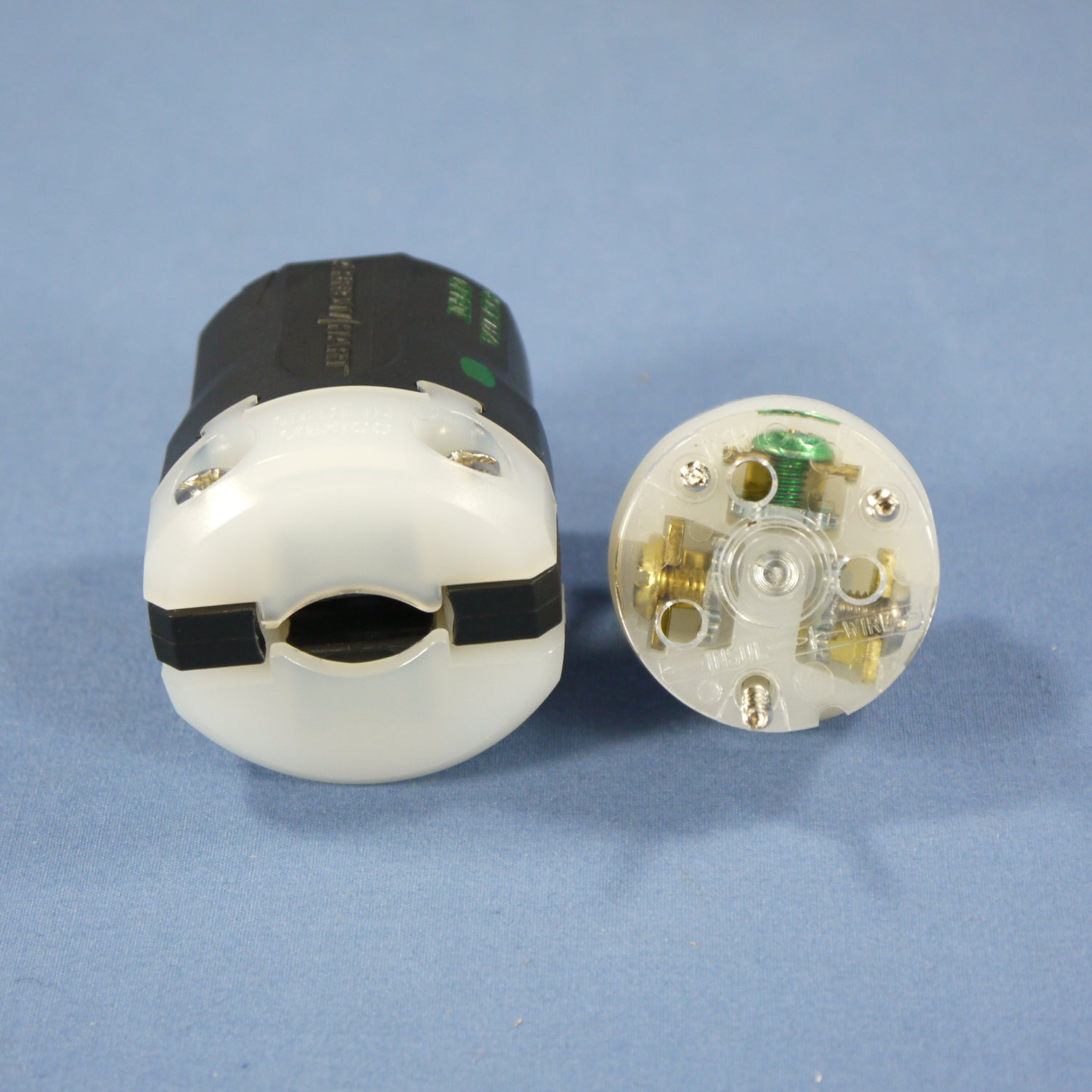

• Clear terminal cover allows for easy inspection of conductors and terminations
• Terminals accommodate #16-#12 AWG
