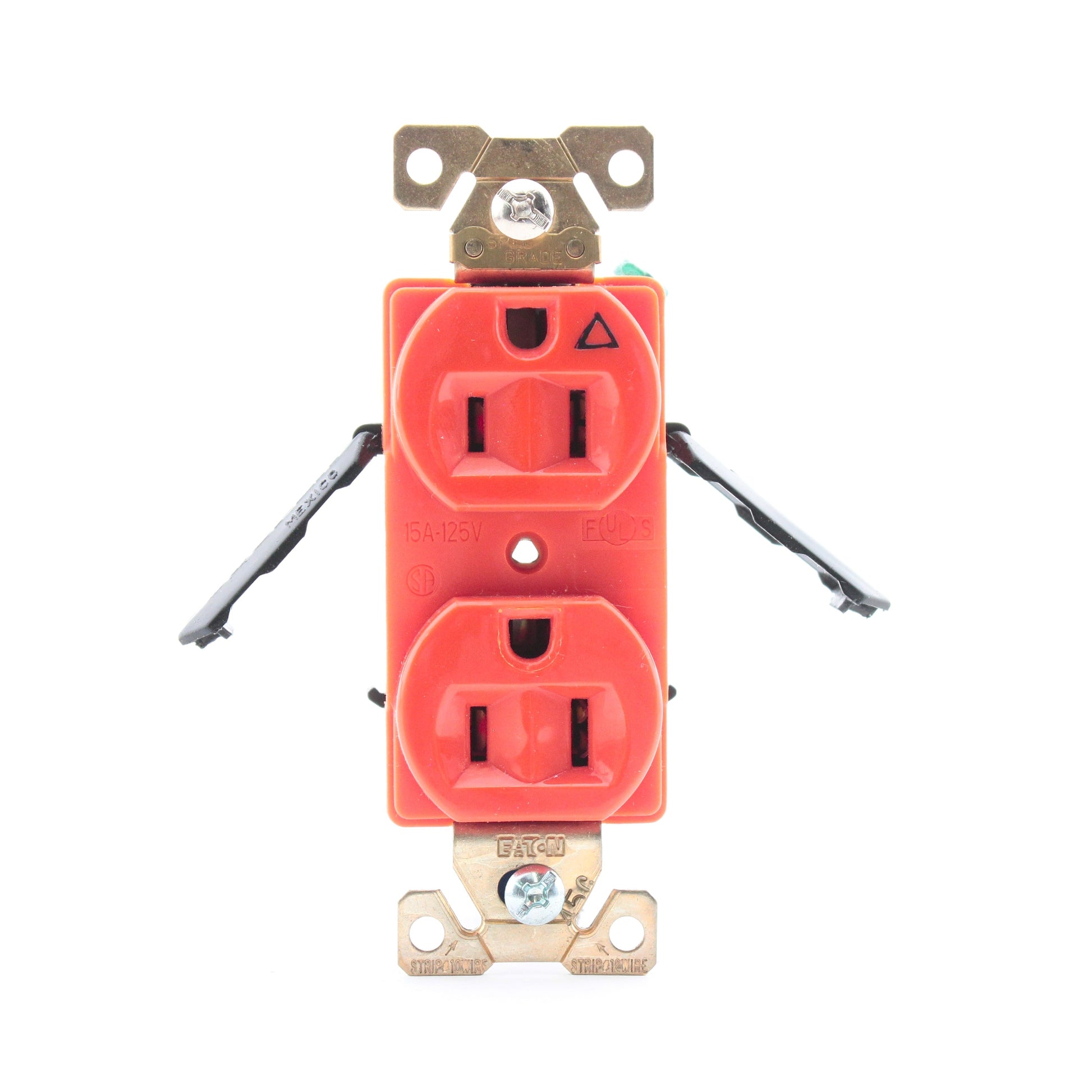

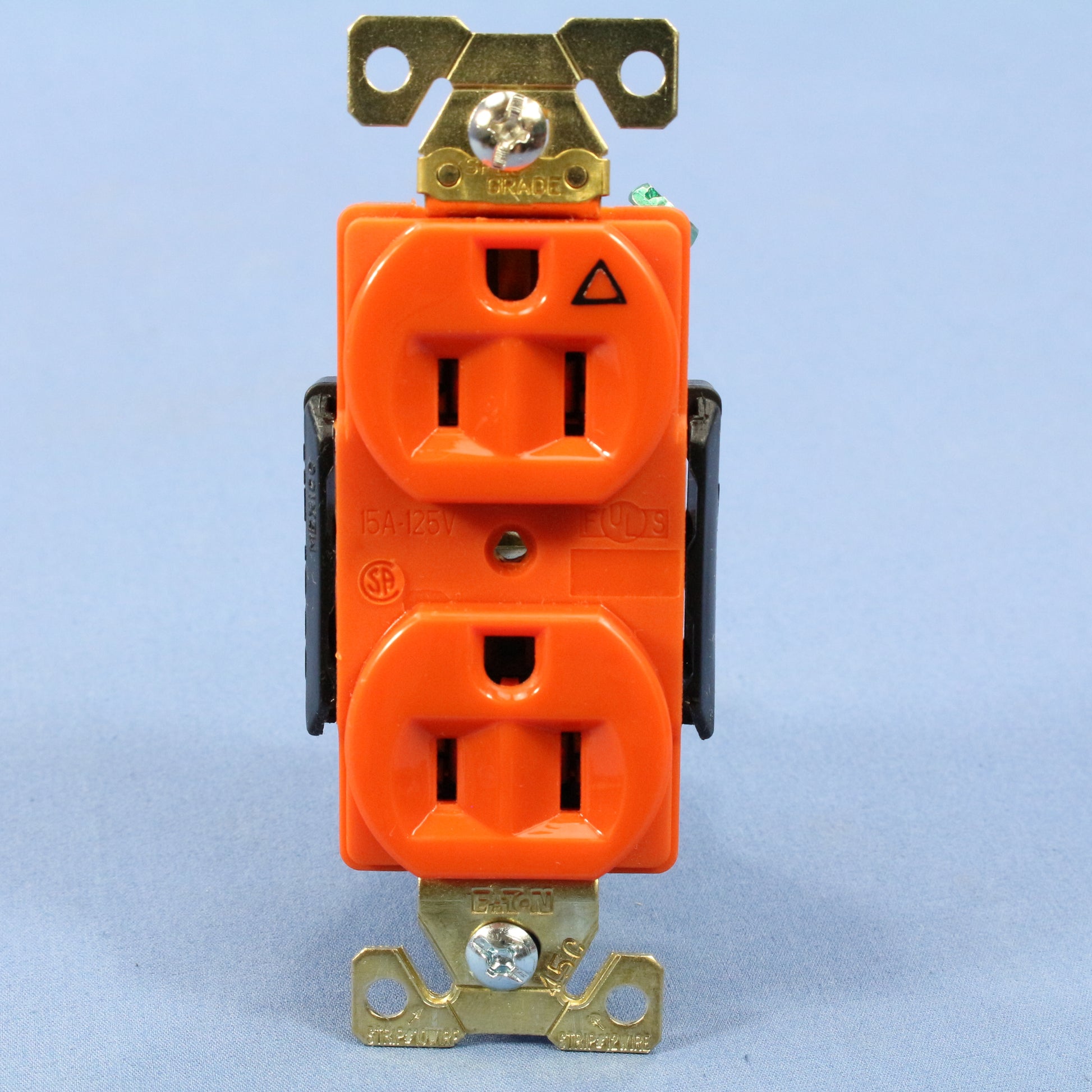

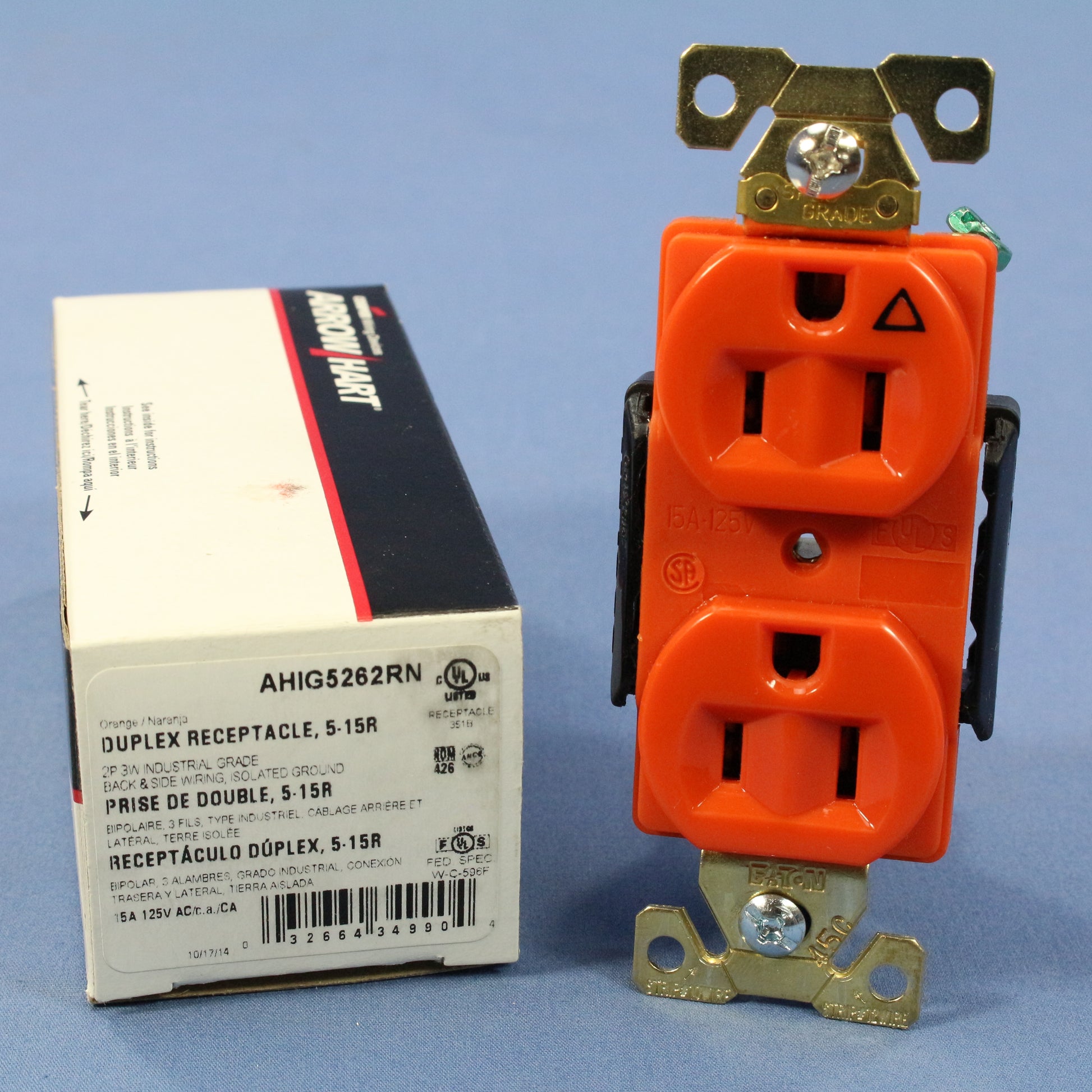

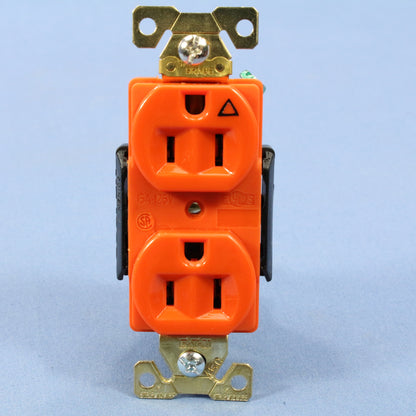

Cooper/Arrow Hart Devices AHIG5262RN orange duplex receptacle (Cooper/Arrow Hart is a division of Eaton). Industrial Specification Grade, NEMA 5-15R, 2-pole, 3-wire, Isolated Ground, back and side wired, rated 15A 125V. Isolated ground devices have a grounding terminal that is electronically isolated from the strap to eliminate electrical interference (noise) in grounding networks that can cause problems in modern electronics. Features include:
Exclusive 5-leaf brass line contacts ensure lowest heat rise, smooth plug blade insertion and long-term retention
Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
Unique screw terminal guards provide fast, easy insulation from conductive surfaces
Exclusive 0.030" (0.76mm) solid brass, nonriveted, integral one-piece isolated grounding shunt system assures ground integrity under heaviest use isolated from common building ground
High impact and chemical resistant nylon face holds structural integrity, retains appearance; recessed lead-ins speed blade insertion, reducing scarring of face

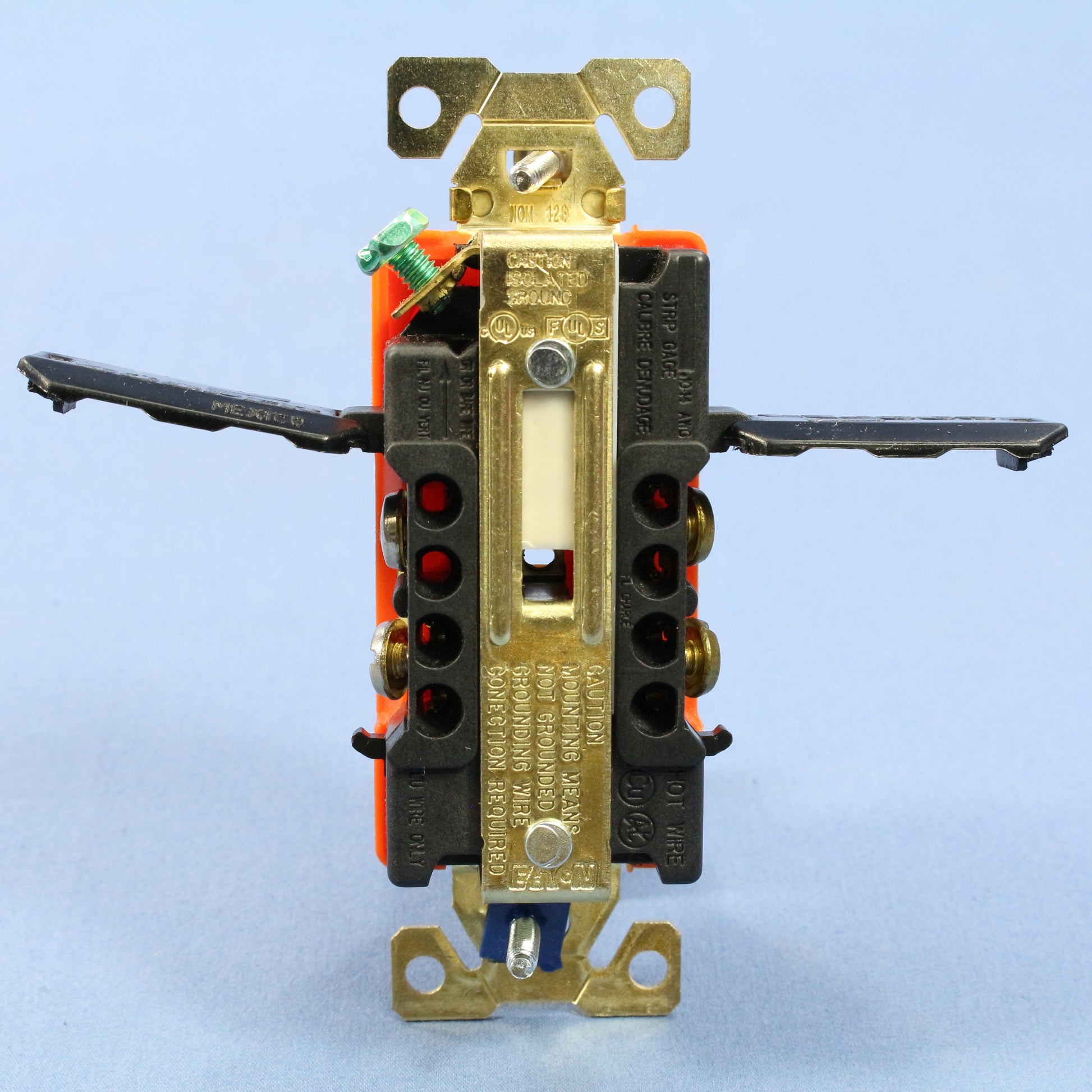

Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
All terminal (H-N-G) and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
Screw-Catch feature speeds mounting of wallplates
Extra-long mounting straps help secure installation in poorly cut wall openings
