Please note this is a Cooper Aspire device packaged inside RTI packaging (RTI is a partner of Cooper Aspire)

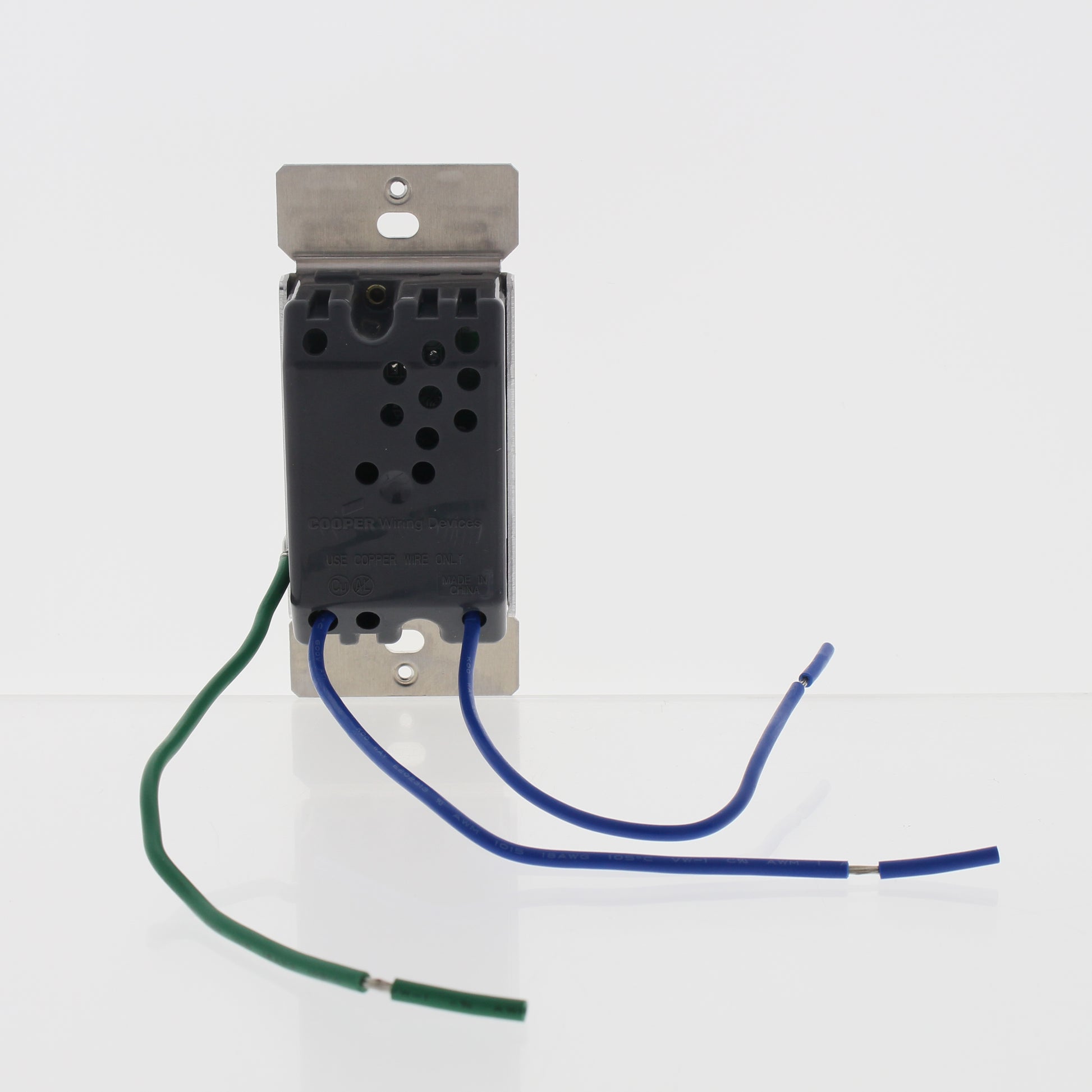

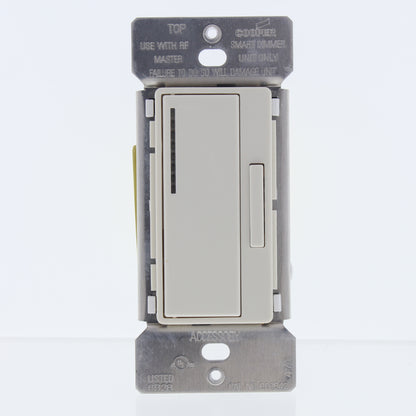

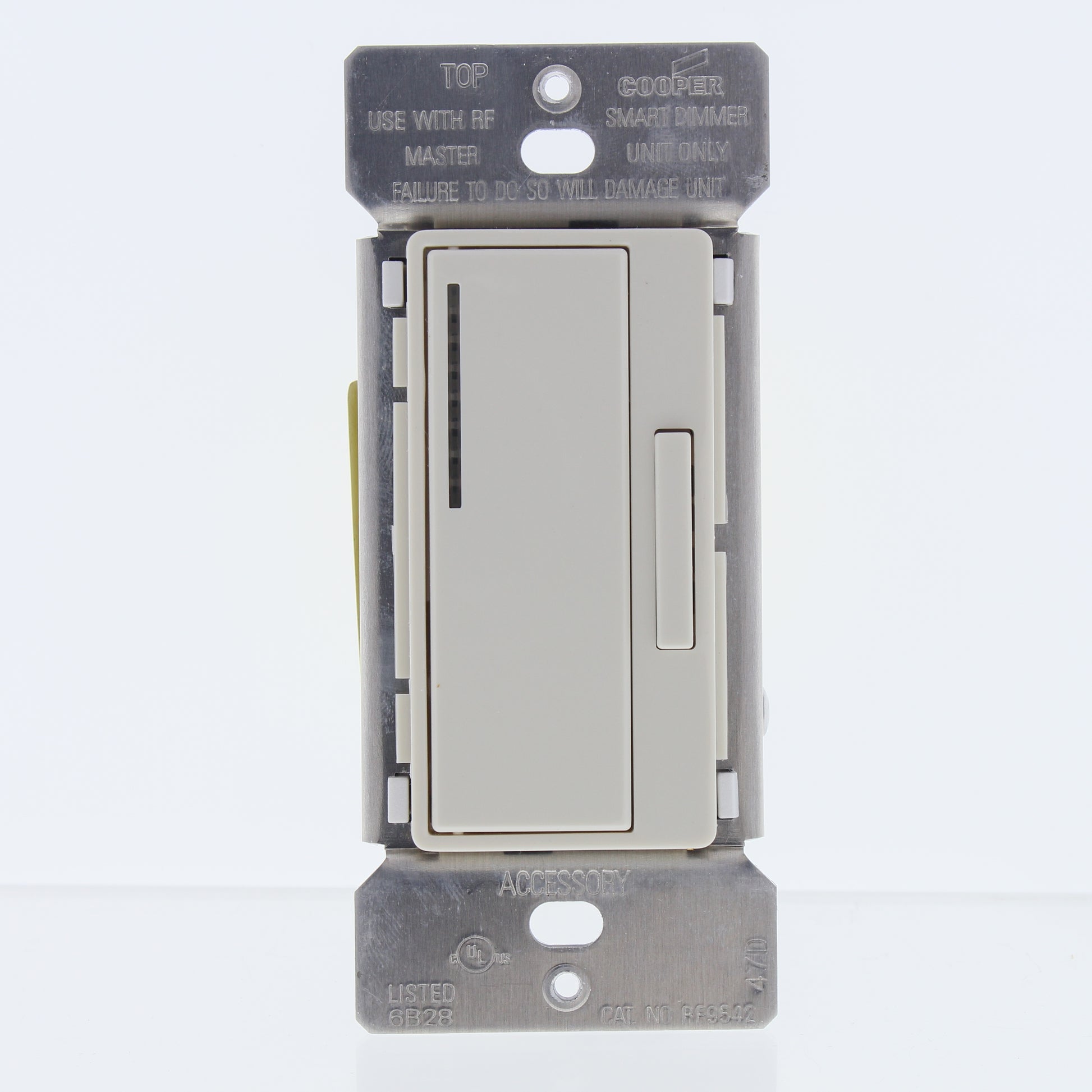

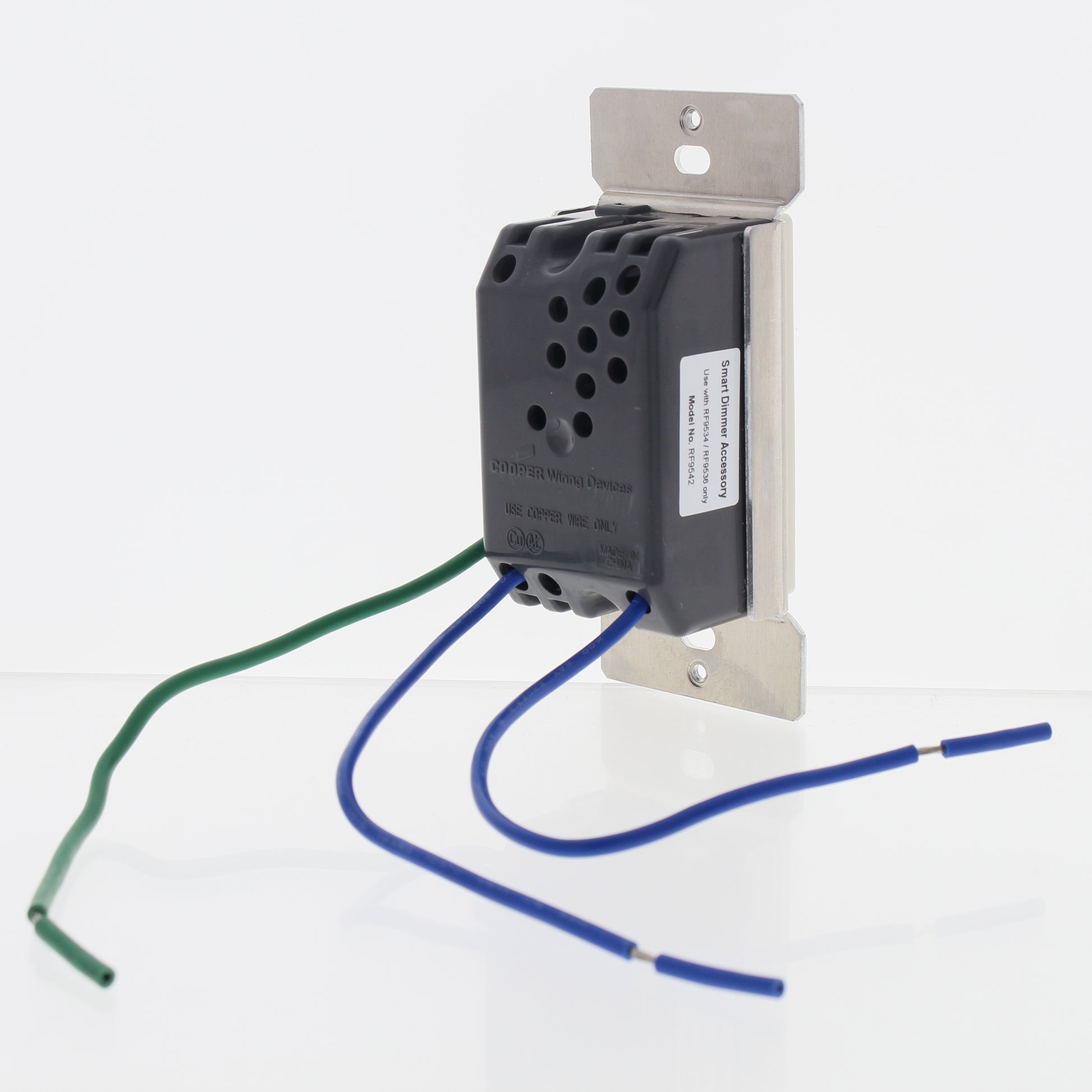

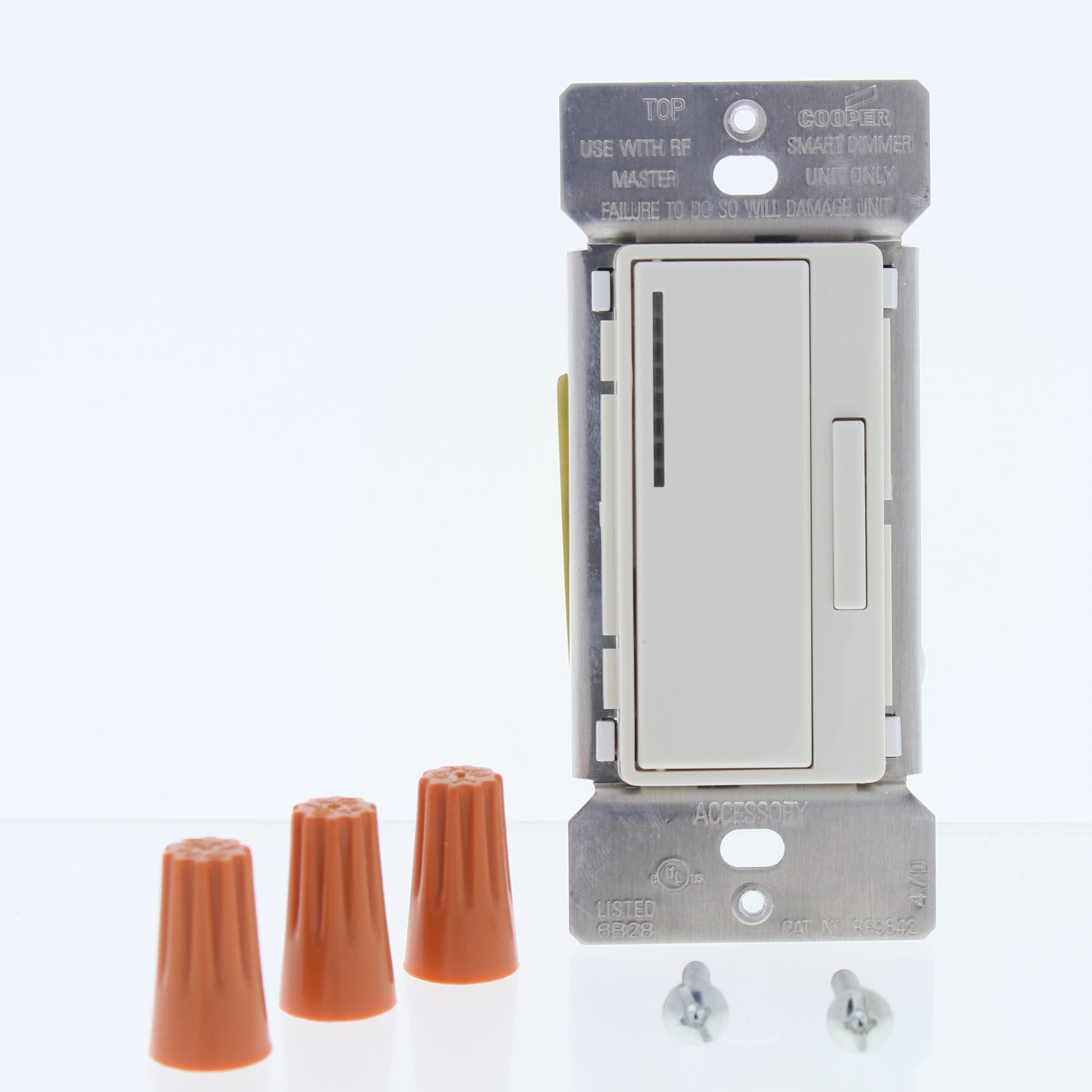

Eaton RF9542-DLA light almond non-RF smart dimmer accessory dimmer w/LEDs, compatible only with RF9534 & RF9536 (no neutral required). Residential Grade, multi-way, grounding, 3 pre-stripped 6" wire leads for line, ground and neutral, rated 120VAC. Each is individually packaged; packaging may differ from photo. Features include:
Electro-mechanical push button for ON/OFF operation
Seven step blue LED display alongside push pad indicates selected light level - even in full daylight (coordinates light level status with associated master dimmer)
Only compatible with Aspire non-RF master dimmer (RF9534 & RF9536) for wireless 1-pole/3-way control, eliminating the need for traditional 3-way wiring or dedicated traveler wires
Does NOT require a neutral wire for installation
Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
LED reduces brightness when in the OFF state (nightlight feature)
Adjustable ramp rate
Pressing and holding push pad for 2 seconds brings light to full brightness without affecting preset levels
Single button programming
Patented indicator system alerts if switch is not set up in the network
Can be associated with up to 5 other devices
Programmable rapid and delayed fading (up to 4 minutes) (default is 10 seconds)
