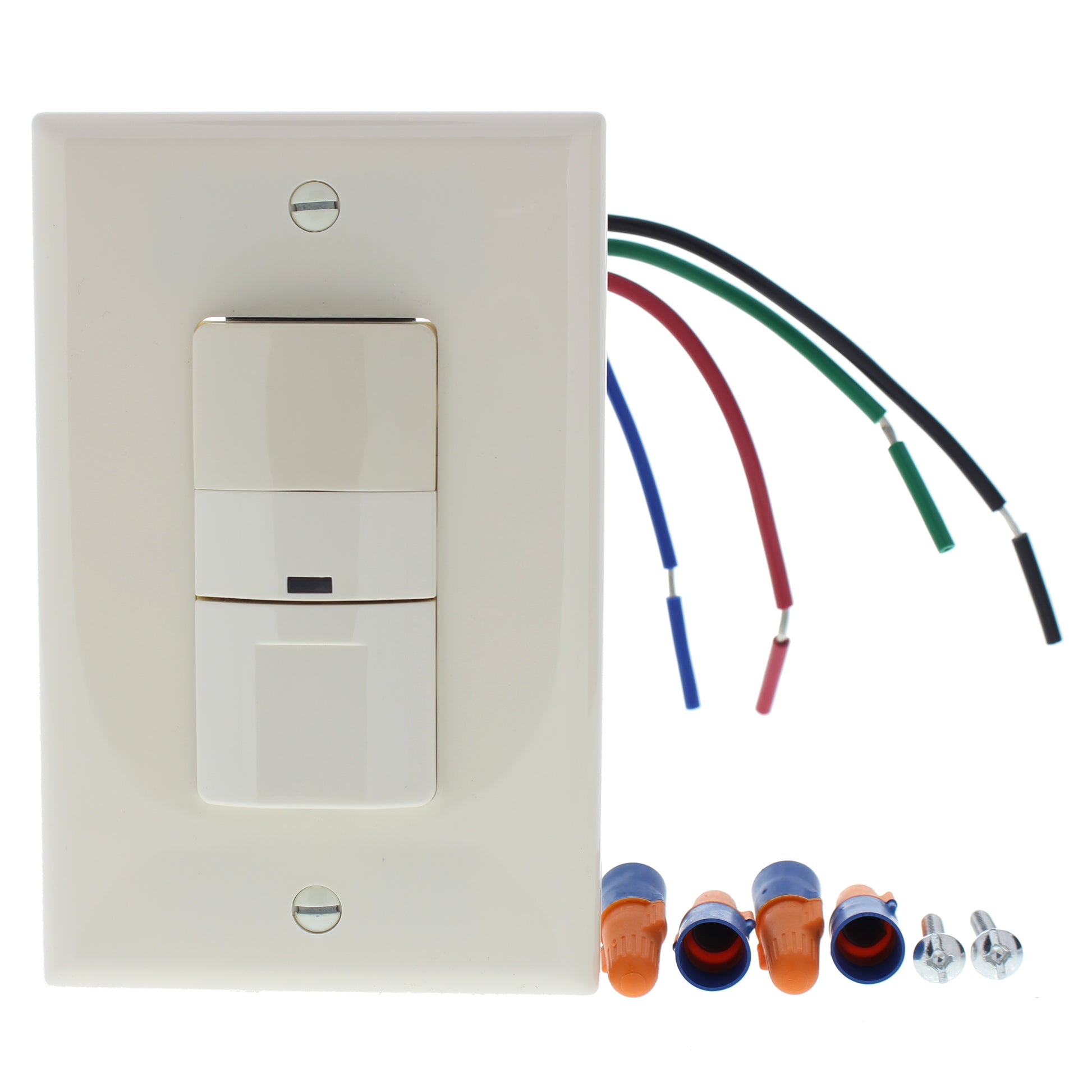

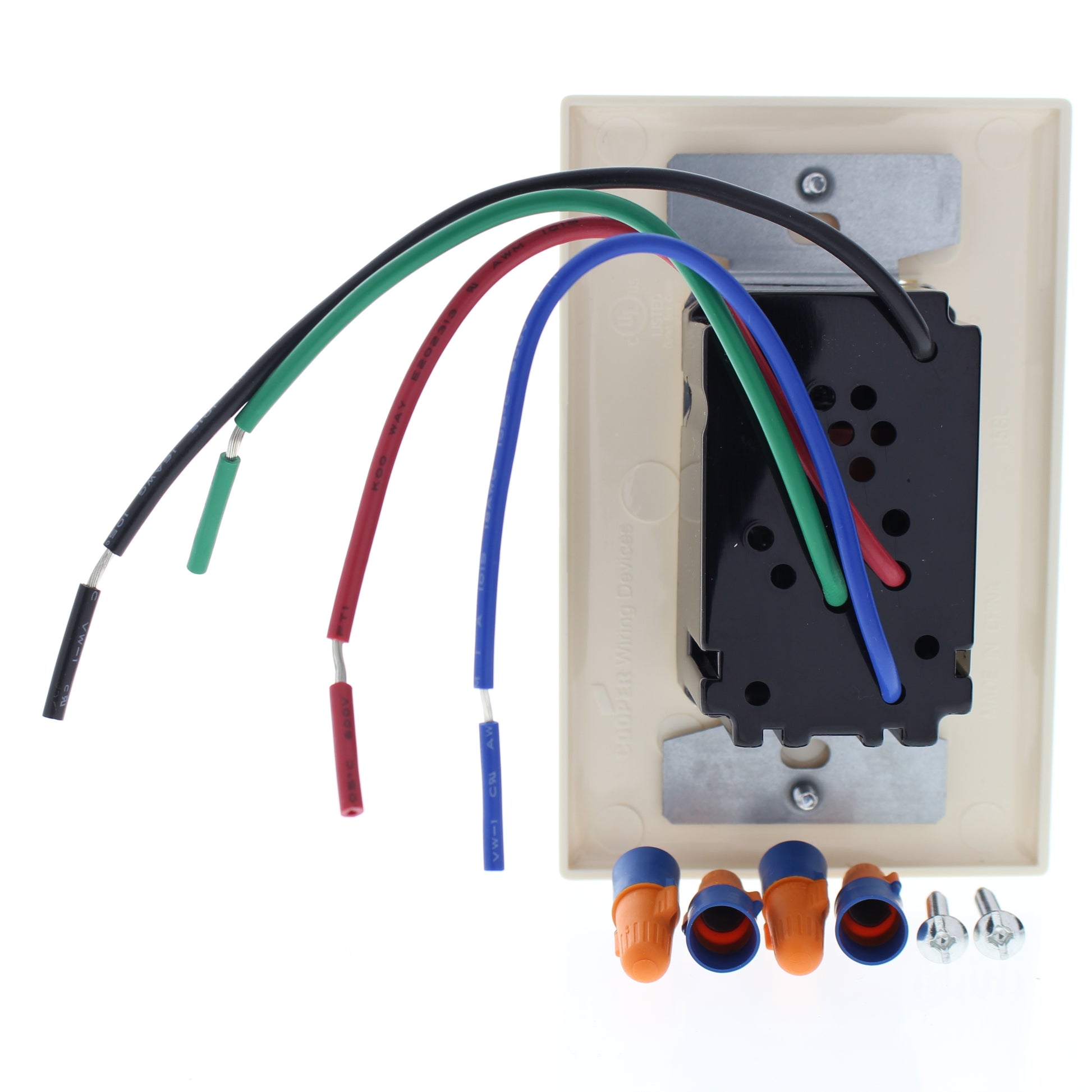

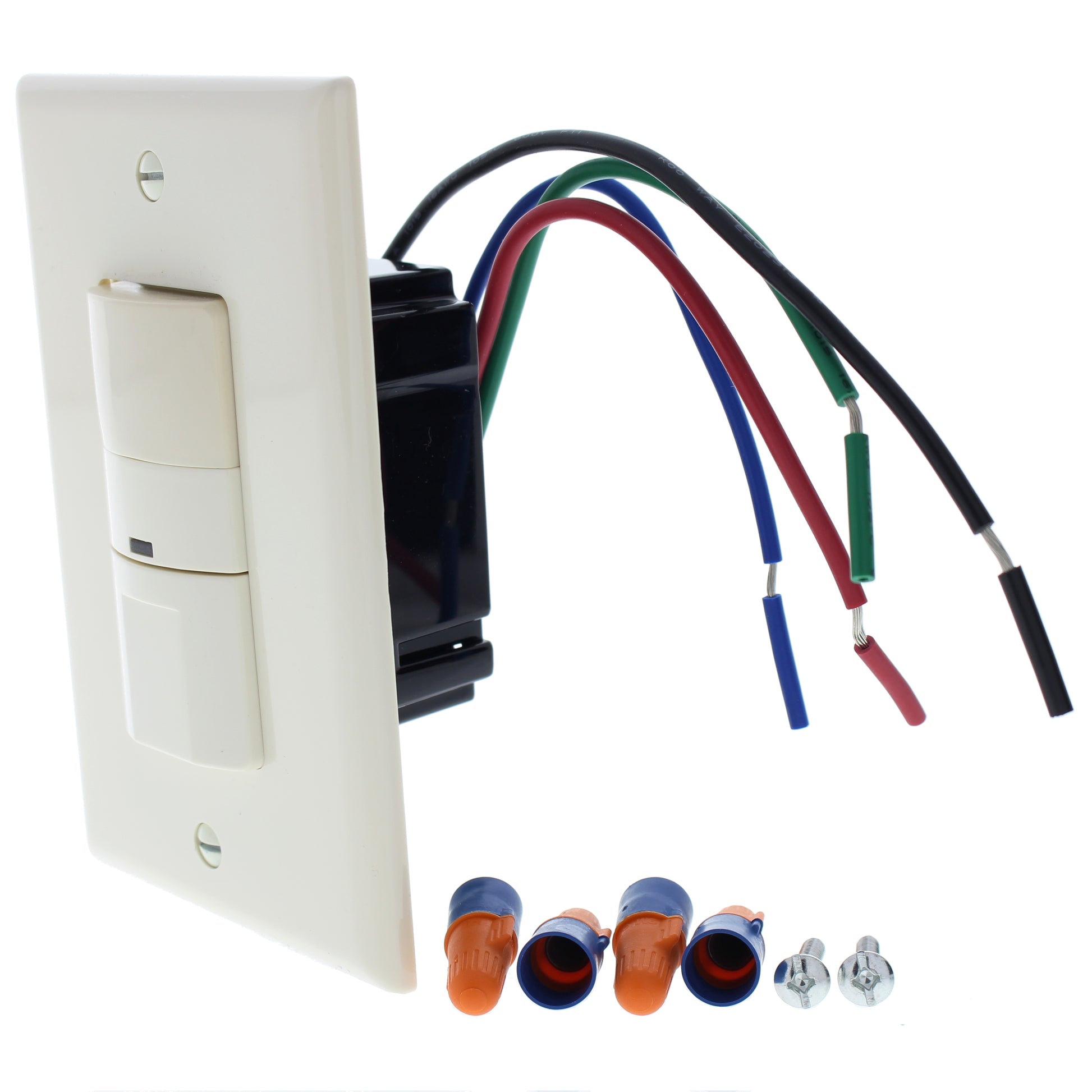

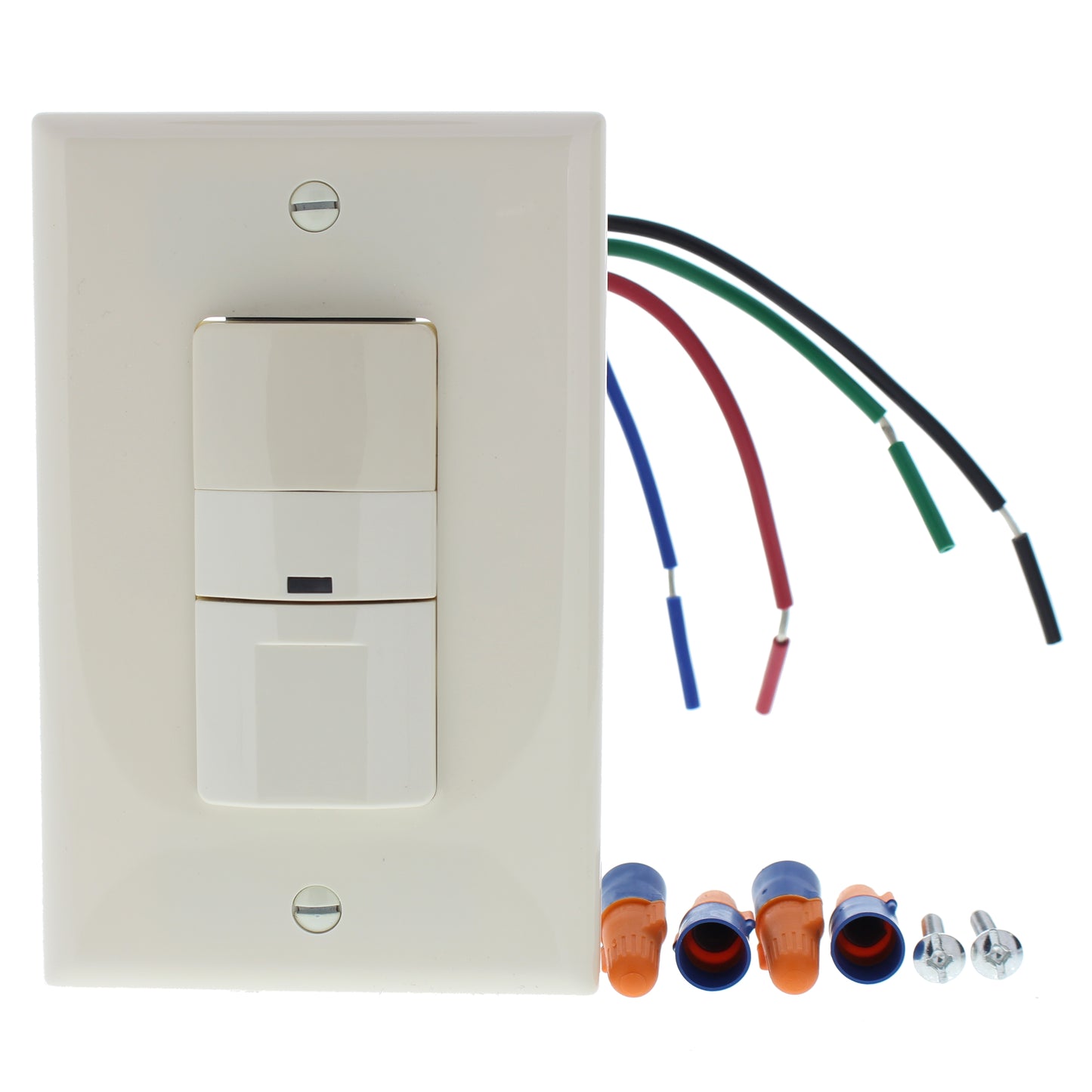

Cooper #VS306U-A almond passive infrared vacancy sensor switch. Can be wired as a single-pole or 3-way device. Selectable ON/OFF LED nightlight with press and hold dimming function. Works with popular load types: LED, CFL, Incandescent, Magnetic Low-Voltage, Electronic Low-Voltage, and Fluorescent. Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection. Push pad design provides minimal travel and crisp actuation. Replaces a standard light or fan switch. Provides 180-Degree field of view and 450 square feet of major motion coverage. Provides 3-Way operation when used with a 3-Way switch or sensor. Selectable time delay of 5 seconds (test), 5 minutes, 15 minutes and 30 minutes for lights to remain on after room is vacated. Walk-in-Delay feature allows sensor to turn lights off without time delay when motion is detected briefly in room. Vacancy Sensors time delay default set to 30 minutes. Each is individually packaged; packaging may differ from photos. Features include:
Requires neutral wire for installation
The sensor meets California 2008 Title 24
Electrostatic discharge protection
No leakage to load in off mode
Uniform color matched PIR lens to device housing
Mid-Size decorator wall plate included with product
