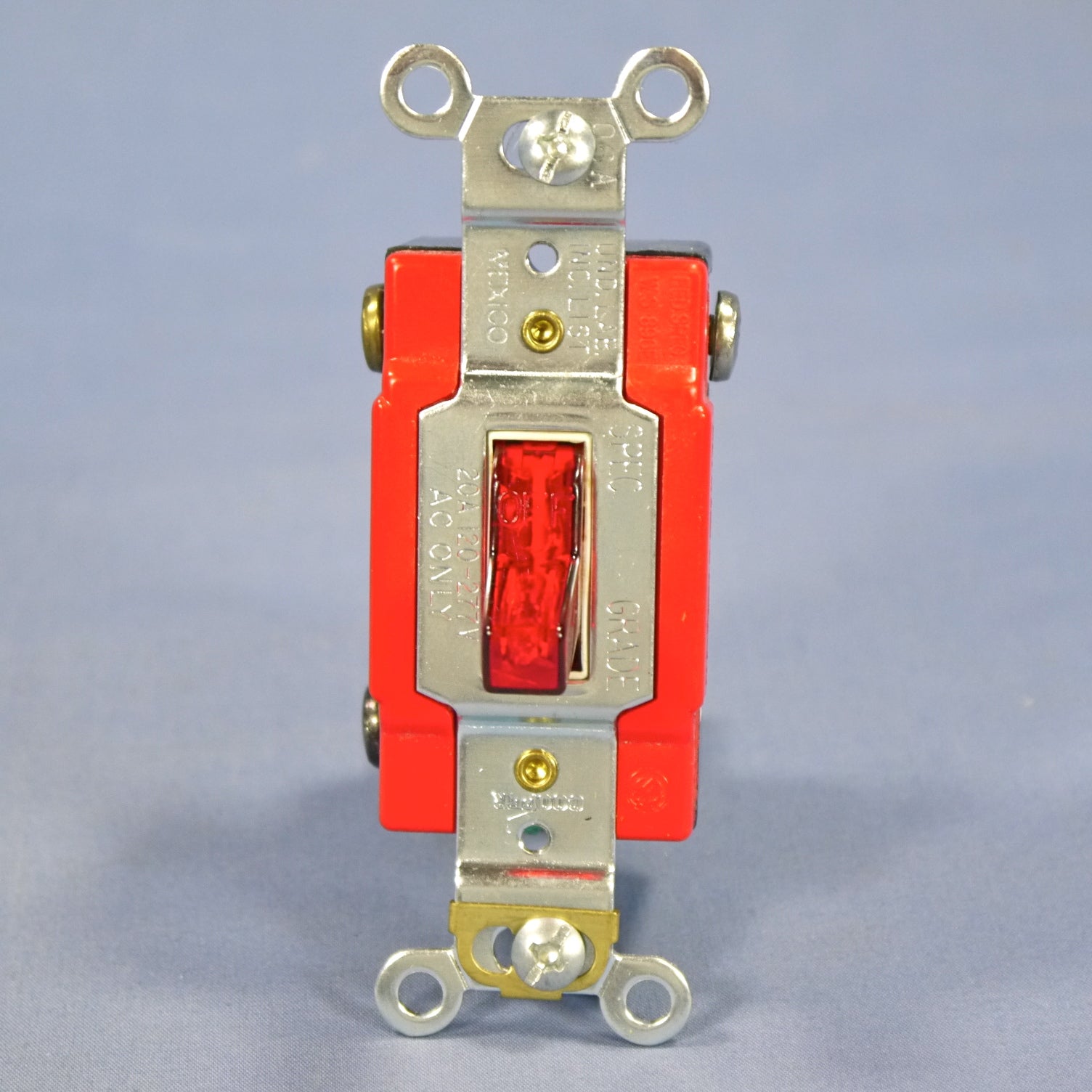

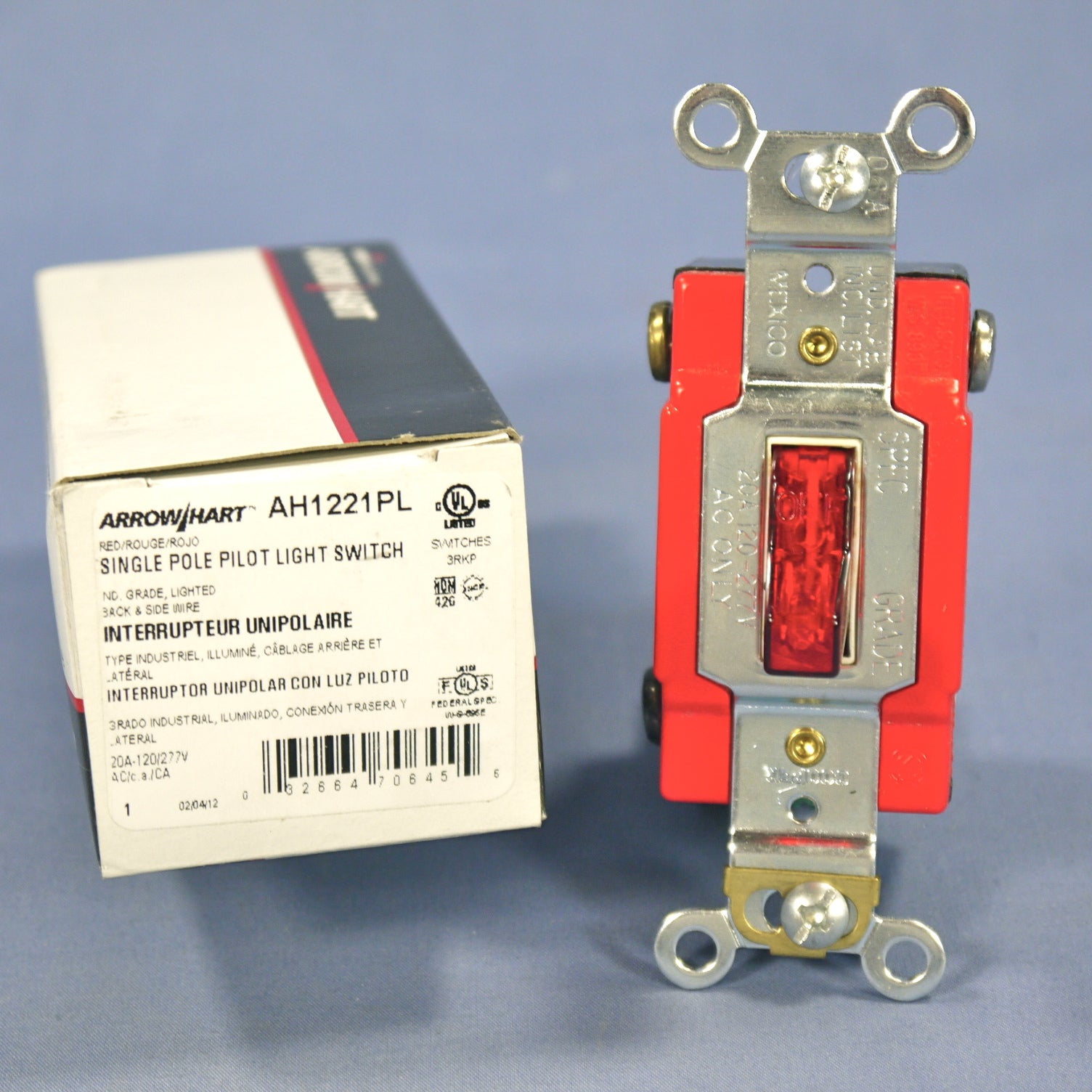

Cooper Arrow Hart AH1221PL red pilot light toggle switch. Red illuminated toggle is great for applications where you want to call attention to activated lights or equipment. Industrial Specification Grade, single pole, grounding, back and side wired, rated 20A 120V AC. Each is individually packaged; packaging may differ from photo. Features include:
Toggle is illuminated when the load is ON to alert users that equipment/lights are activated
Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosures and provides redundant measure of ground continuity where a jumper is used

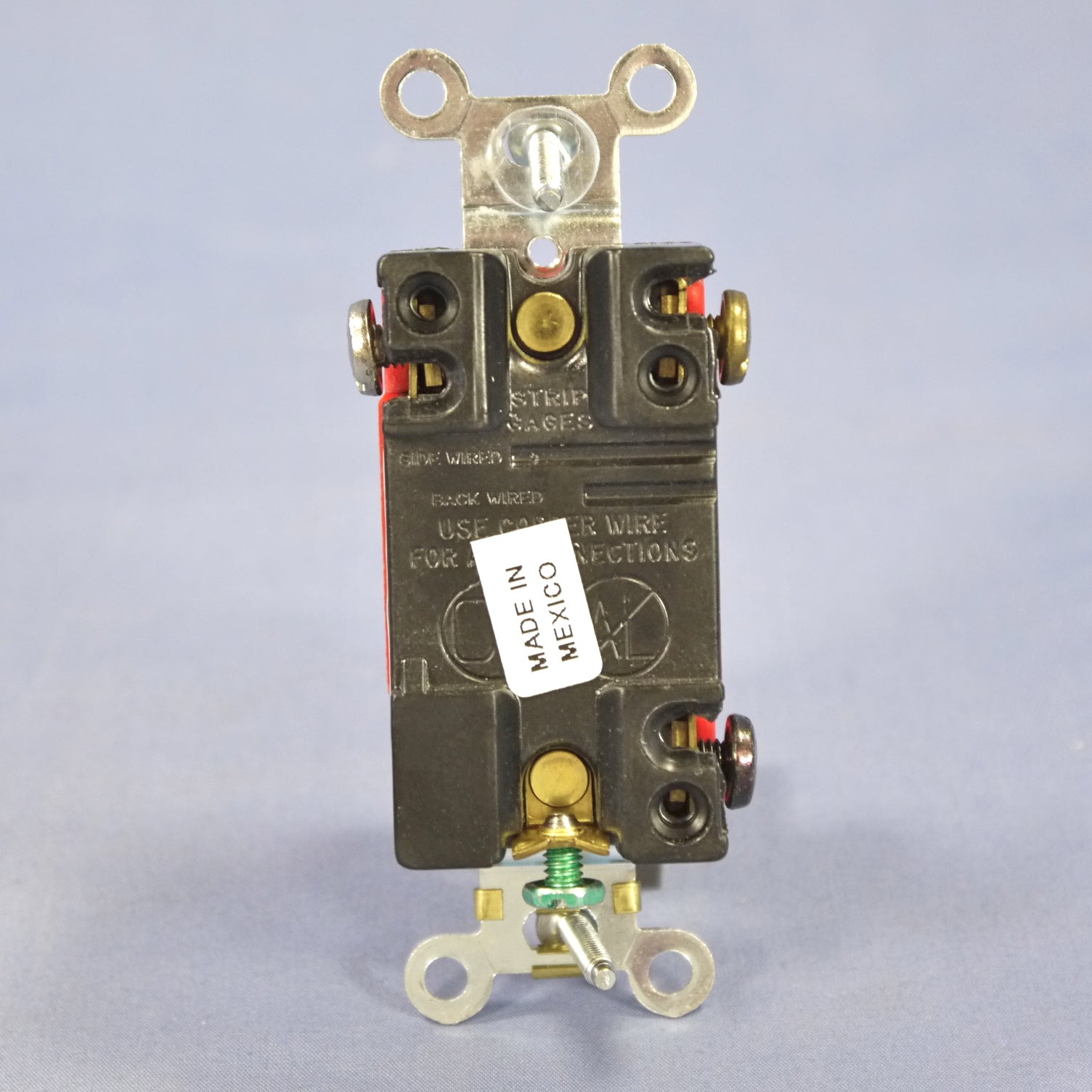

Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
Back and side wire terminals accept up to #10 solid or stranded wire
Ground screw terminal standard
0.050" (1.27mm) thick steel mounting strap zinc-plated for corrosion resistance
120/277V/AC rating ideal for fluorescent lighting fixtures typical in commercial applications
Combination slot/Robertson head mounting and terminal screws ease installation
