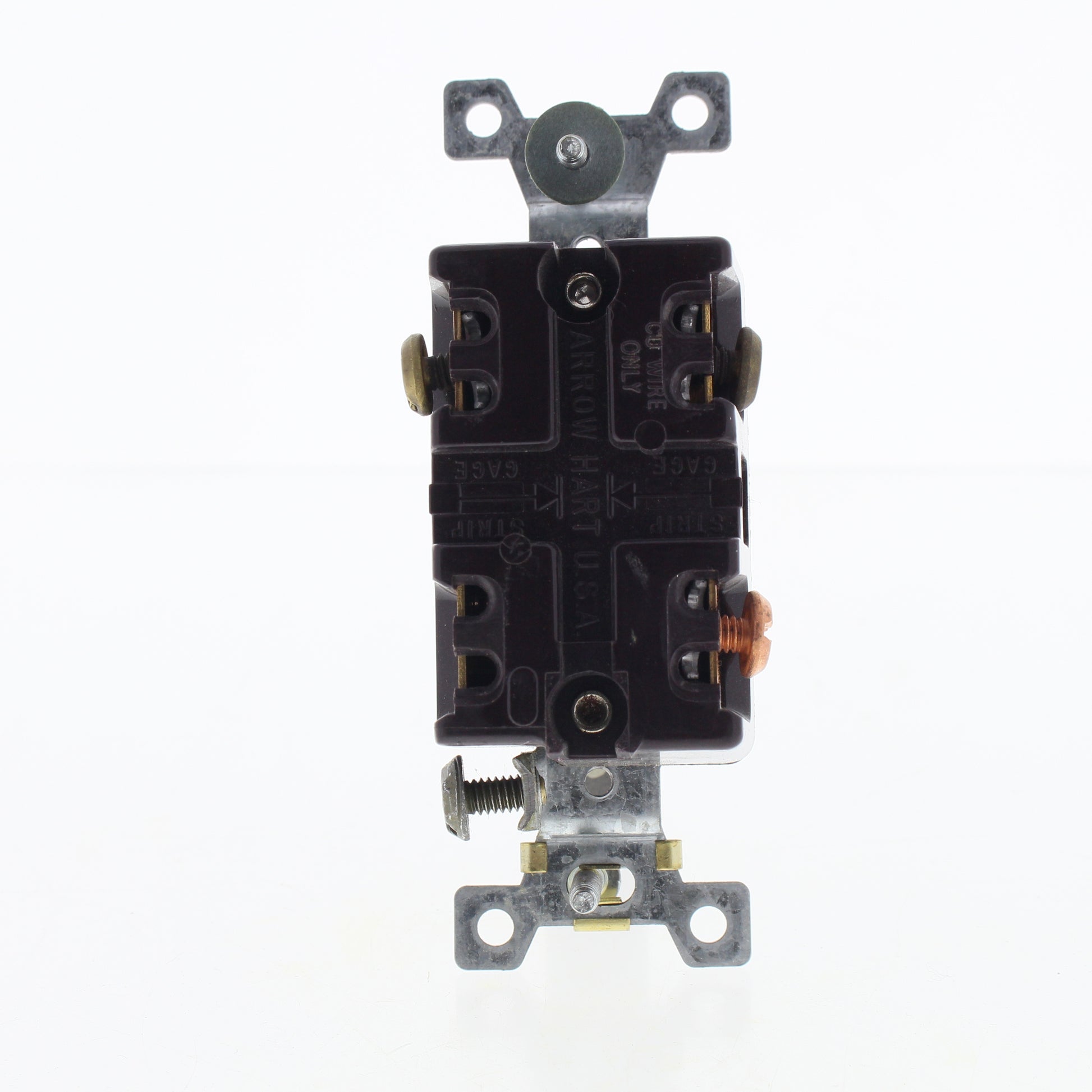

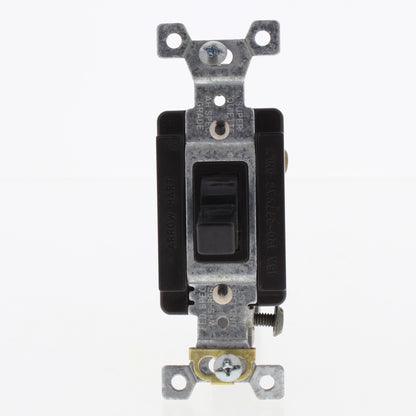

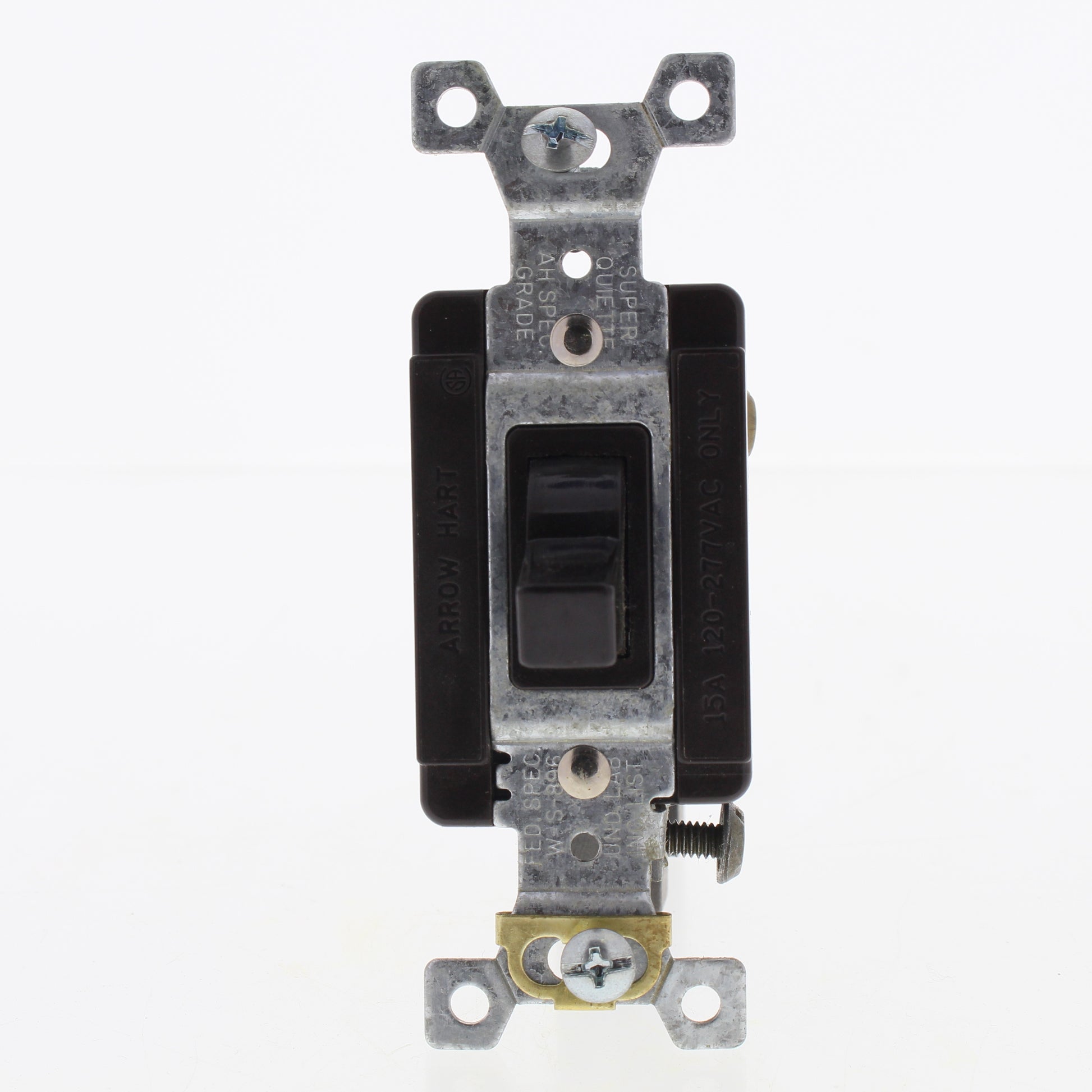

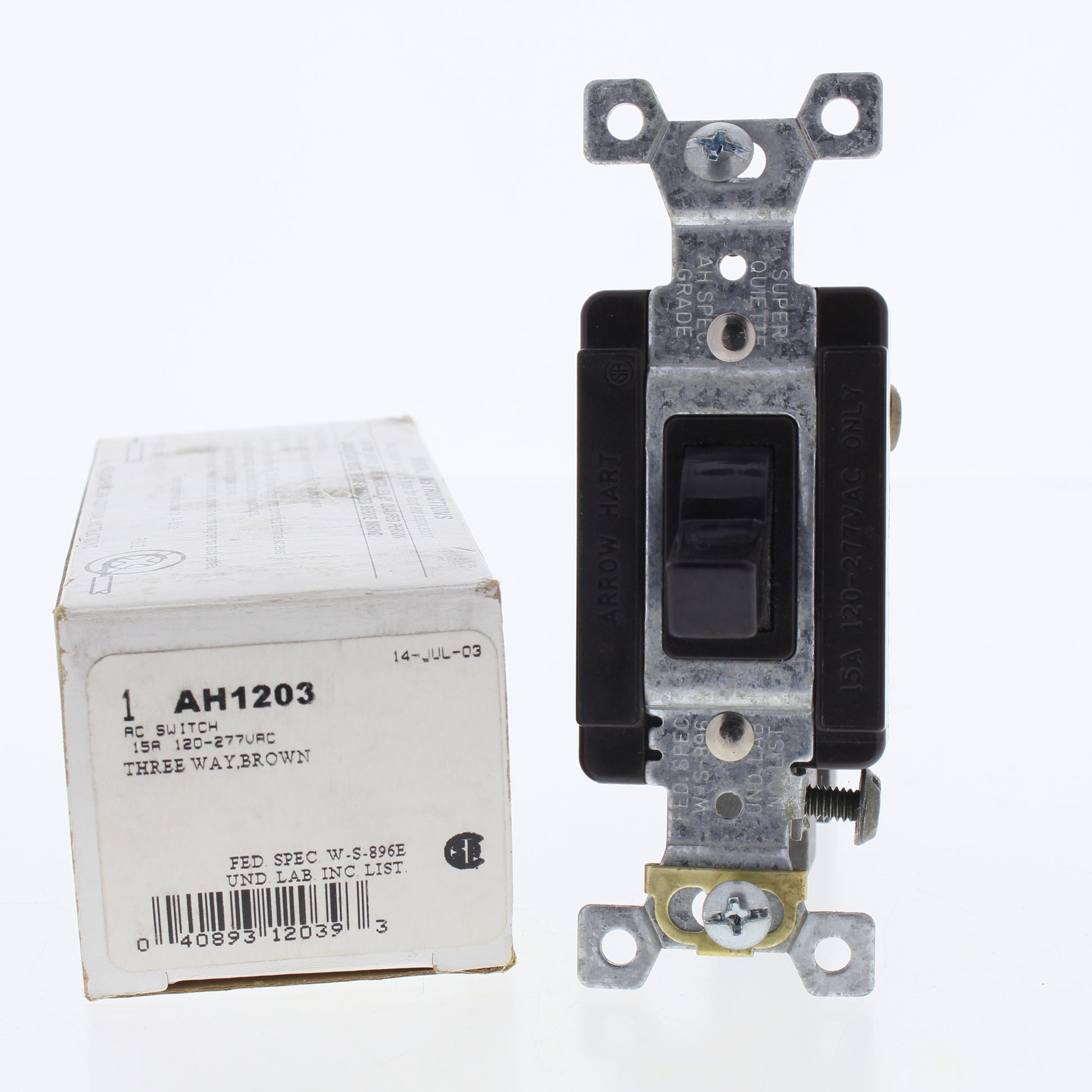

Cooper #1203 brown toggle wall light switch. The Cooper switch is rated at 15 amps and 120/277 volts. Industrial grade switch incorporates the most durable design elements in the industry and the horsepower rating to handle motor loads. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure. Ground screw terminal is standard. Measures 0.050" (1.27mm) thick steel mounting strap zinc-plated for corrosion resistance. 120/277V/AC rating ideal for fluorescent lighting fixtures typical in commercial applications. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers (slot/Robertson screws in Canada where available). Each is individually packaged; packaging may differ from photos. Features include:
Rugged thermoplastic top and bottom housing provides durability and strength
Back and side wire terminals accept up to #10 solid or stranded wire
Dual back-wire holes for maximum feed-through wiring flexibility
One-piece brass contact arm assures proper contact for low-resistance switching
Automatic grounding eliminates need for bonding jumper in metal enclosures
Tri-combo terminal and mounting screws for flexibility in installation
