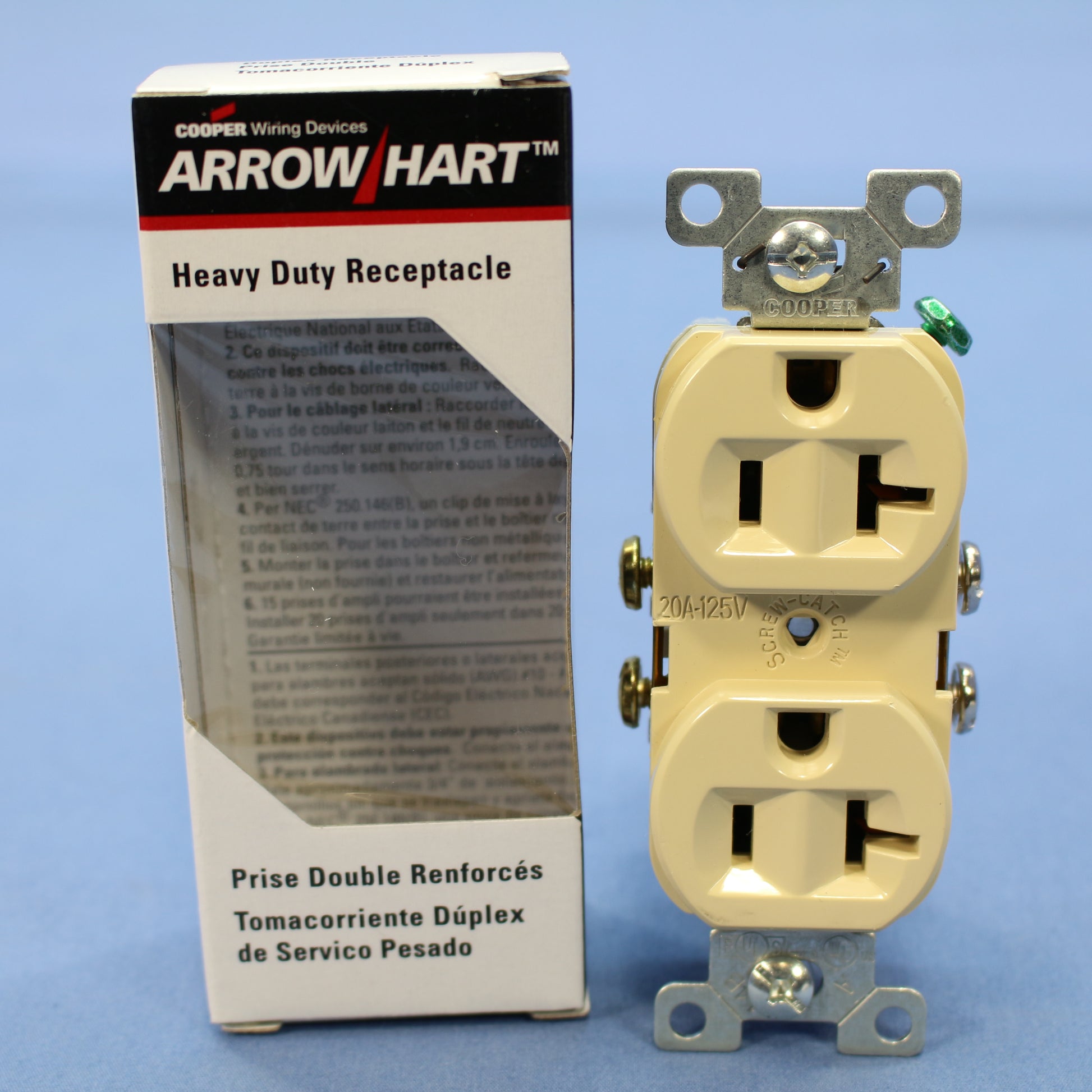

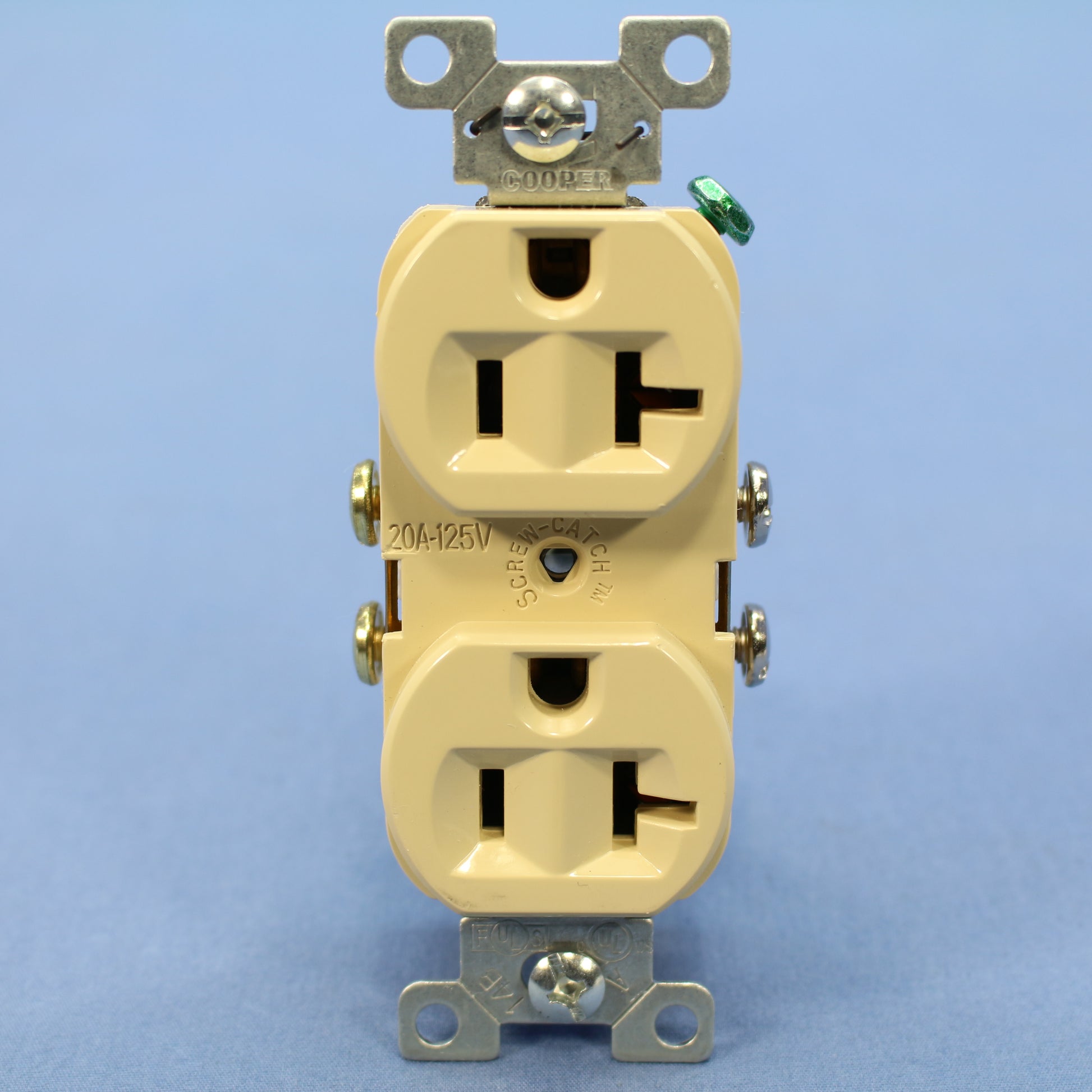

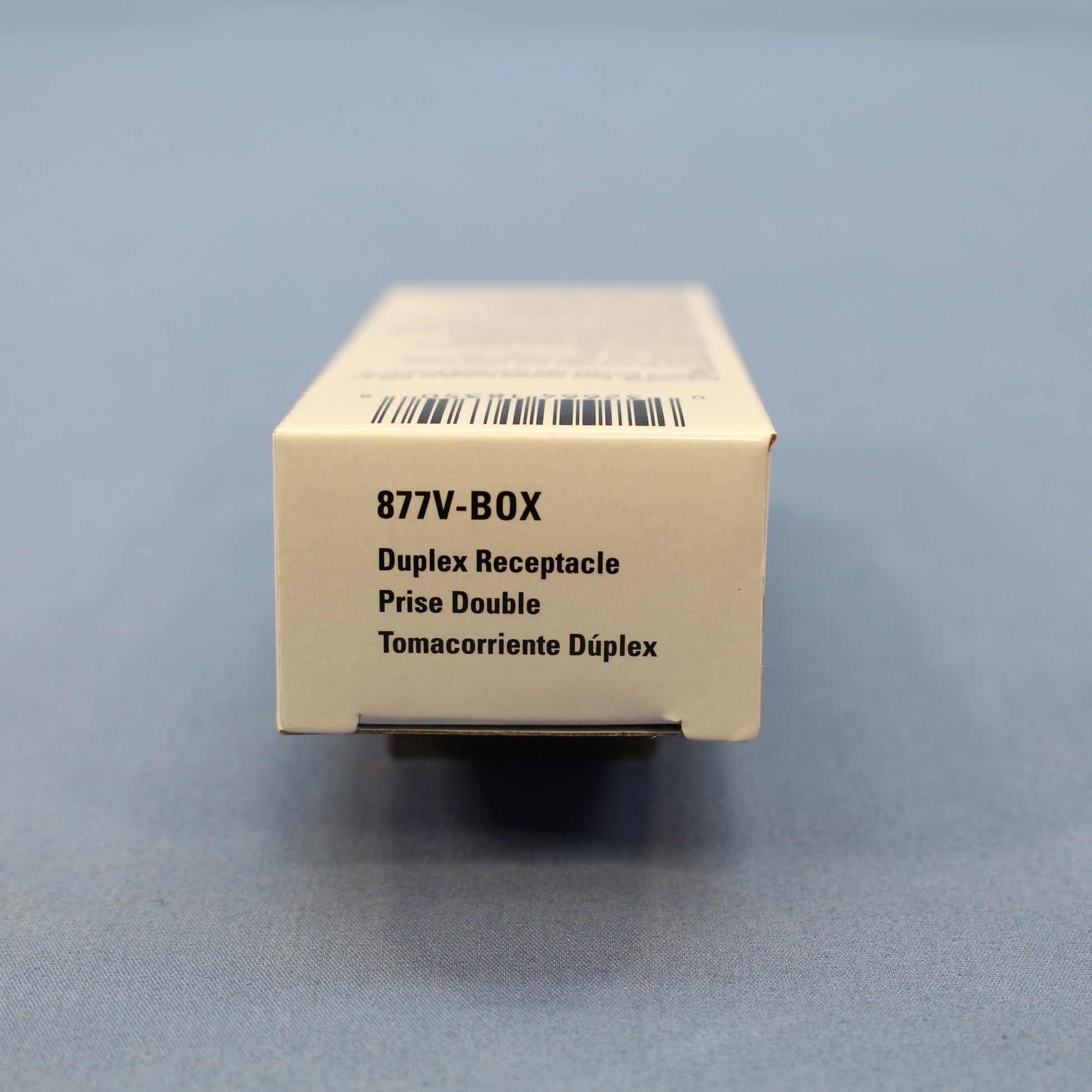

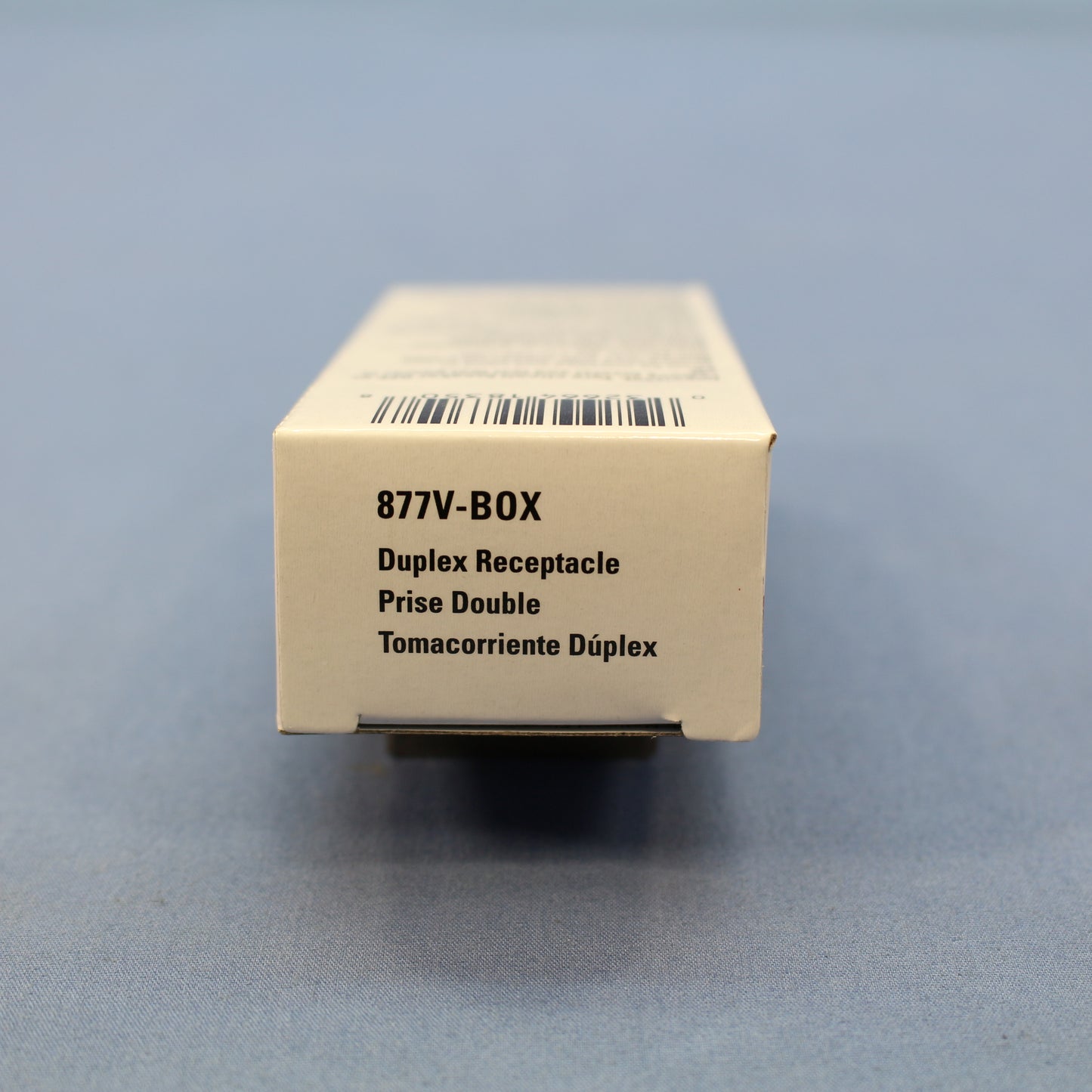

Cooper 877V ivory duplex receptacle. Commercial Specification Grade, NEMA 5-20R, 2-pole, 3-wire, self-grounding, side wired, rated 20A 125V. Each is individually packaged; packaging may differ from photo. Features include:
Excellent plug blade retention provided by 0.032" triple-wipe brass line contacts and 0.050" brass ground
Sturdy compact design meets the demands of commercial specification grade performance

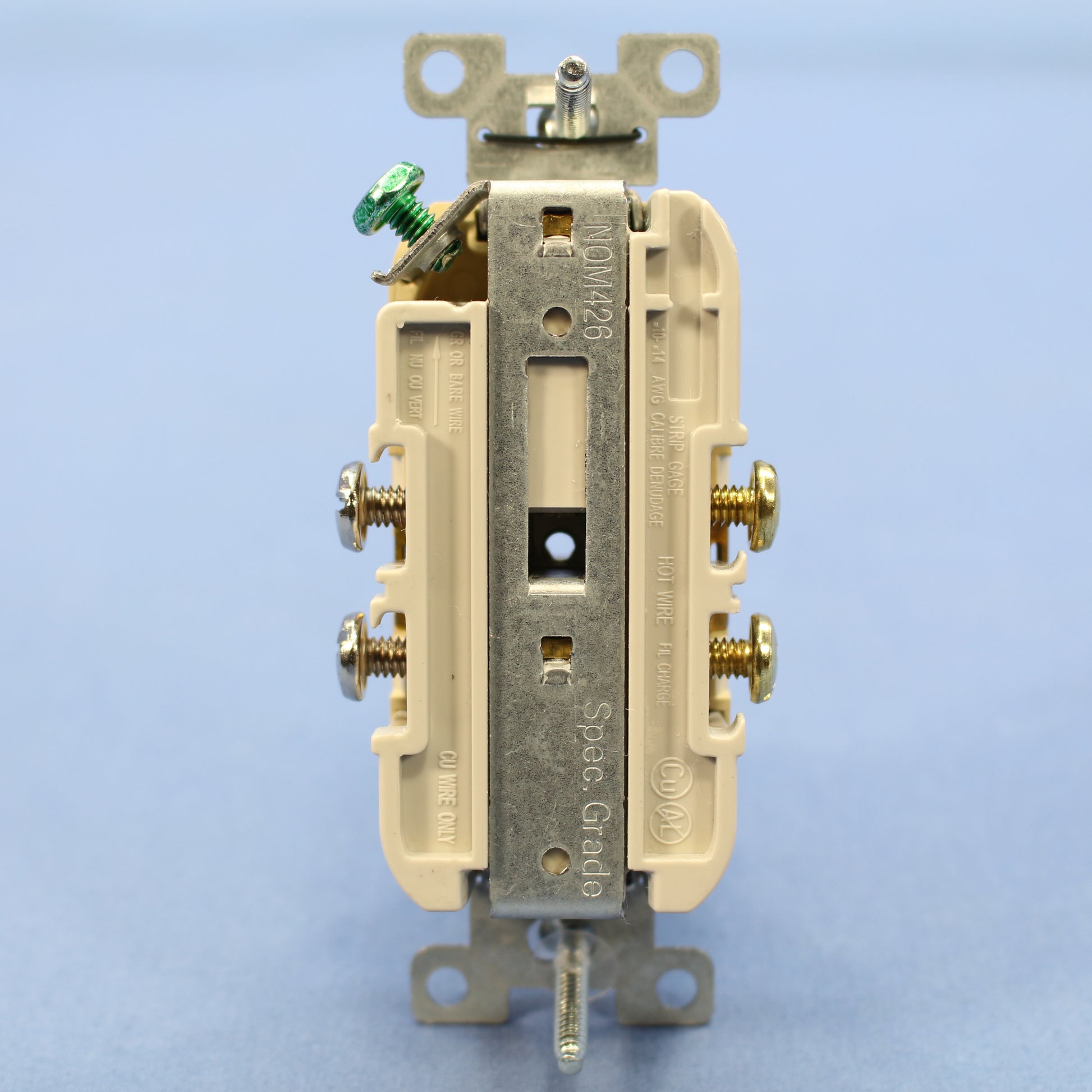

0.035" galvanized steel, wrap-around yoke mounting strap for superior assembly security
Large-head terminal screw, backed out and staked, accept No. 10 copper or copper-clad wire
High impact and chemical resistant nylon face
Mounting screws use square head tip for fast installation
Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures; it provides redundant measure of ground continuity when a jumper is used
