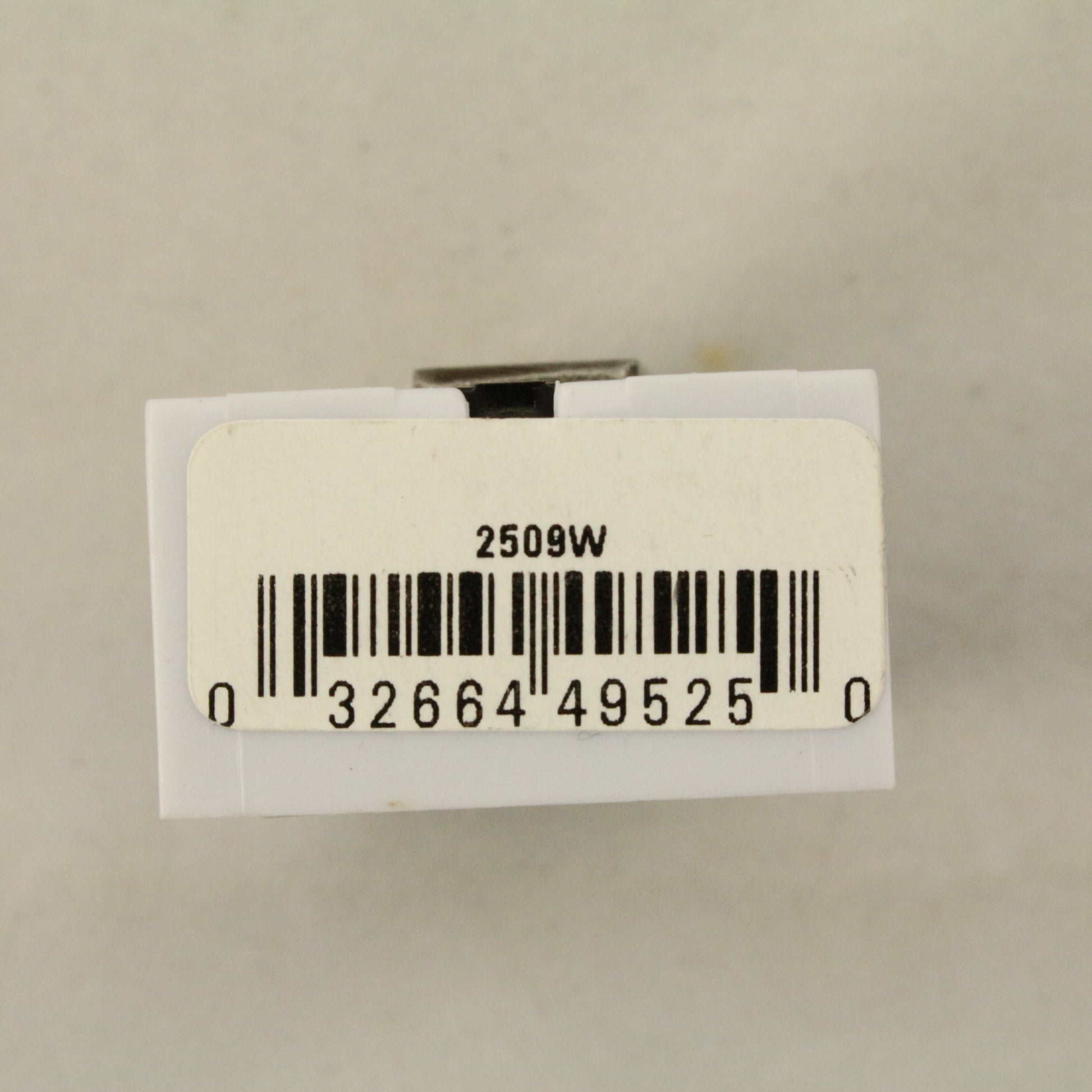

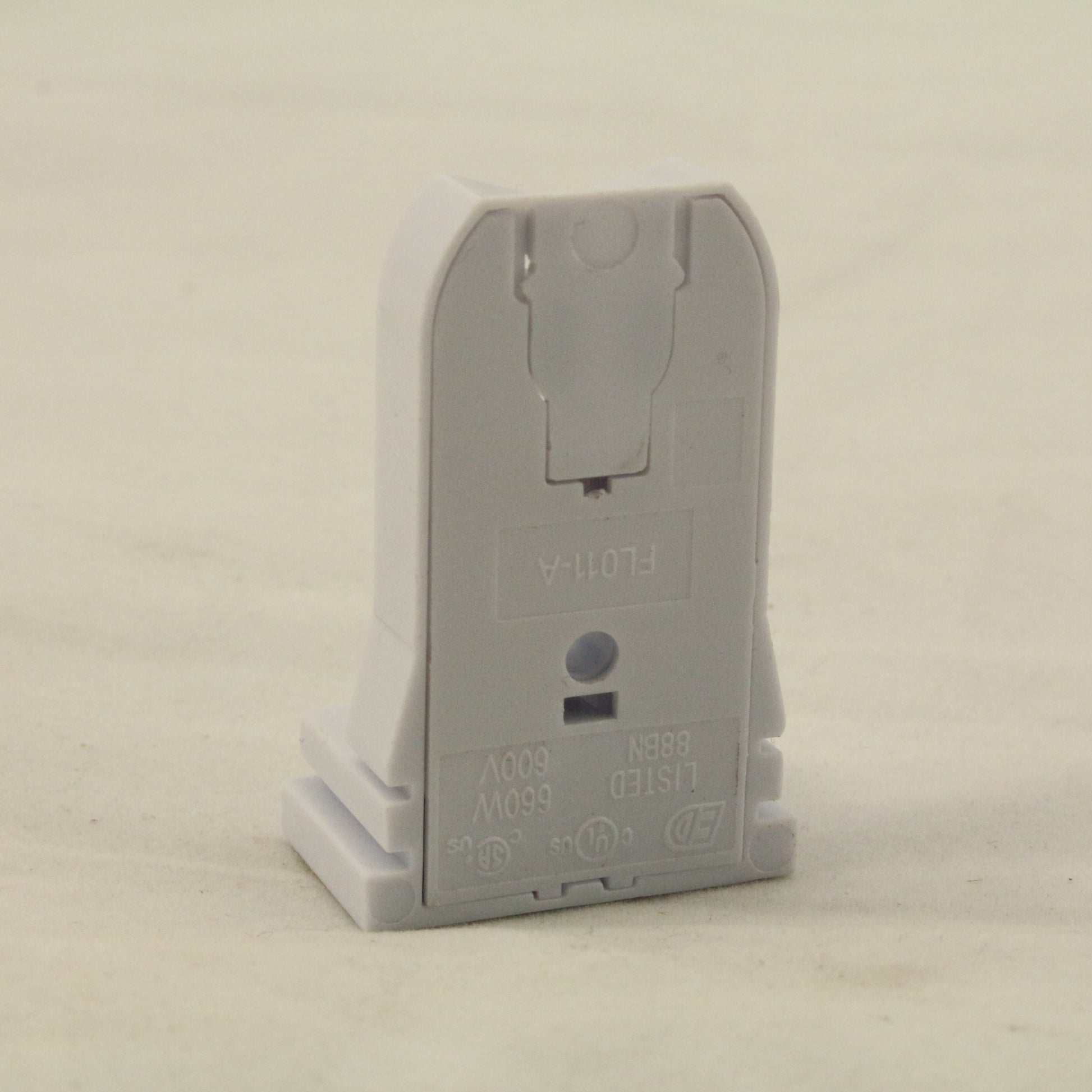

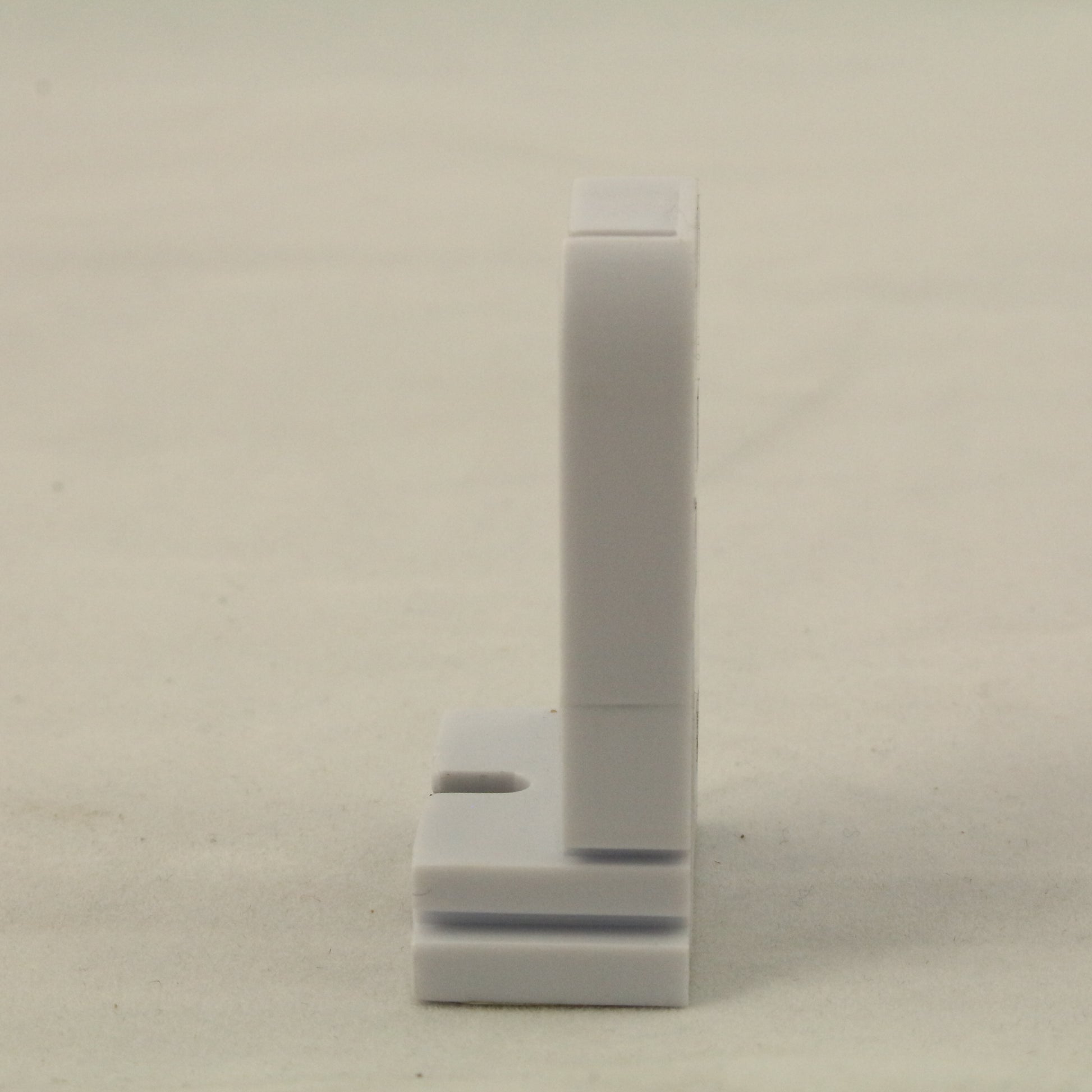

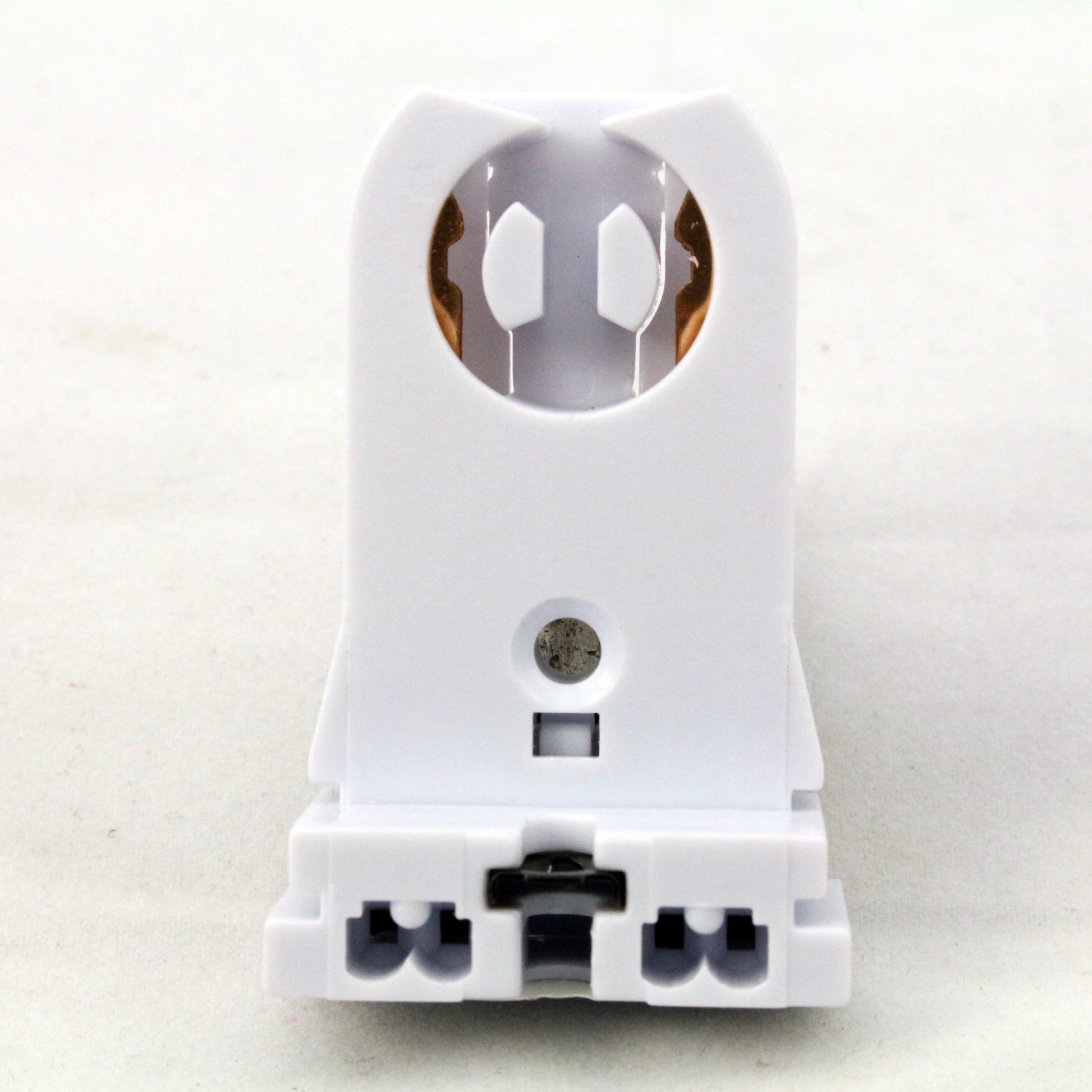

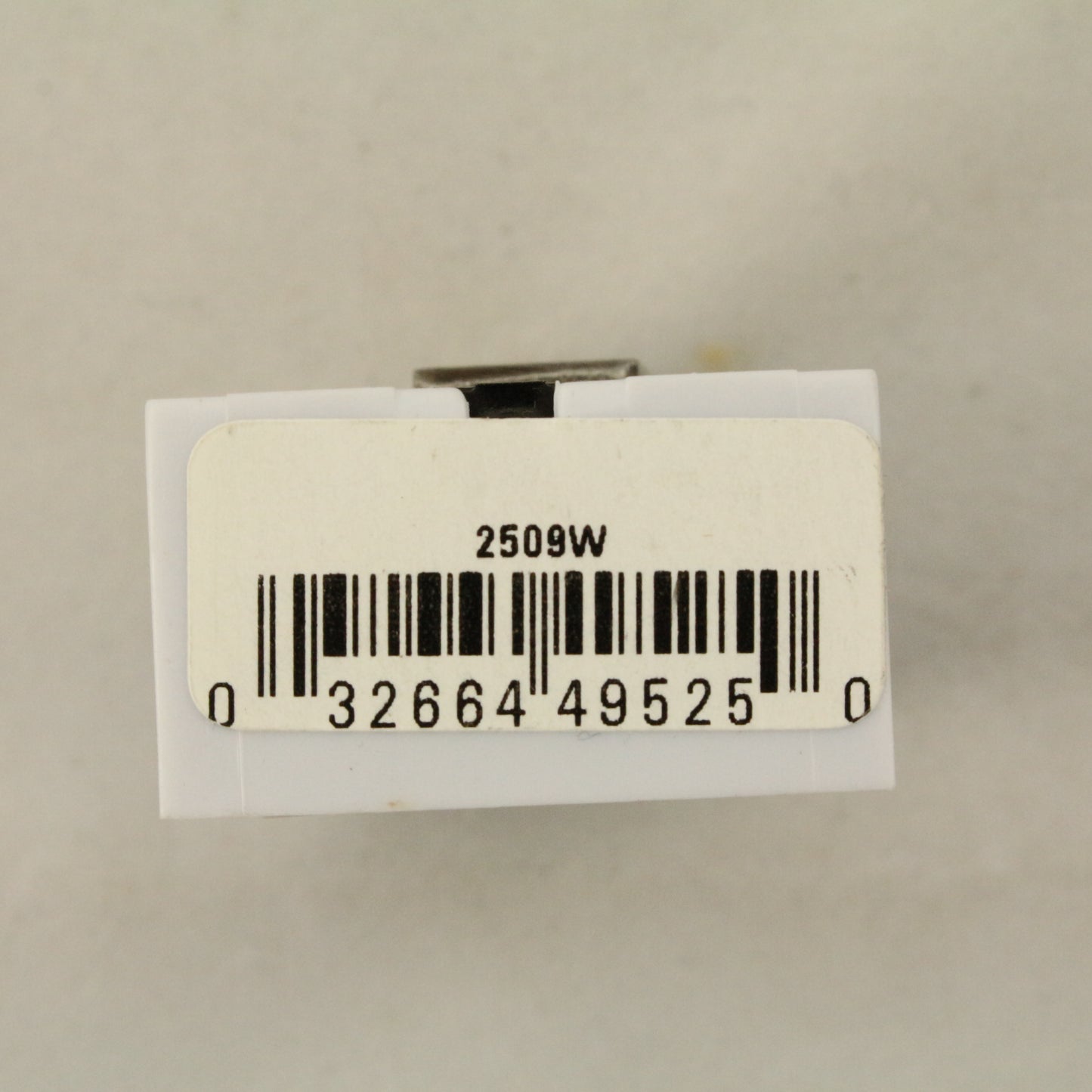

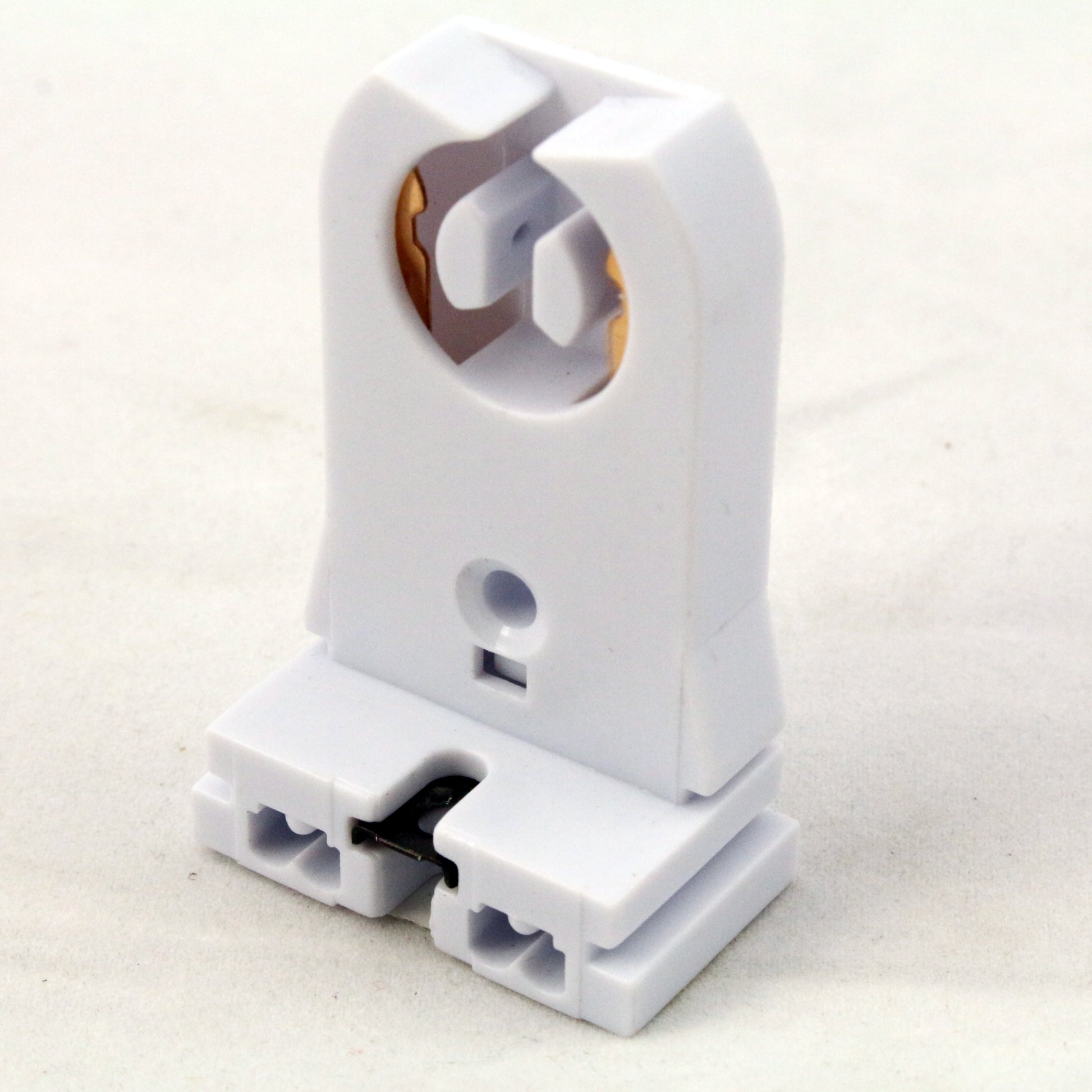

Cooper Wiring Devices 2509W white fluorescent lamp holder - for use with T-8 or T-12 lights. Standard height profile design with 1.17" center lamp height. Bulk packed loose with no individual packaging or instructions. Features include:
Medium Bi-Pin socket for T-8 or T-12 fluorescent lamps - G13 base
Molded of white thermoset plastic for neat appearance and durability
For replacement use in fluorescent lighting fixtures
Use for flush or surface mounting
Push-in wire terminals feature release slots
Slide-on and screw mounting - 1.17" lamp center height
Rated 660W 600V
Fits standard 1" wide panel openings (1.016" x .344")
Captive nut in base for easy mounting is threaded 6-32
Measures 1.35" wide at base and 2.03" high overall; riser measures 1" wide at the top; bulb height is 1.17" as measured from panel slot/shoulder to the centerline of bulb
