Cooper white plastic wallplates. These are standard grade, Mid-Size plates, larger in both dimensions than standard size plates and is intended for use with larger volume outlet boxes or to hide irregularities in the surrounding wall. Features include:
Mid-Size wallplates are a full 0.375" taller and wider than standard size Cooper wallplates w/ a nominal thickness, .040"
Assures NEC?-required gap coverage for most wallboard-to-box openings
Flush-fitting, warp-resistant design
Smooth face and rounded edges resist dust accumulation
Non-flammable thermoset phenolic or urea
Designed for high dielectric strength and arc resistance
Resistant to fading, discoloration, grease, oils, organic solvents, moisture, and scratches

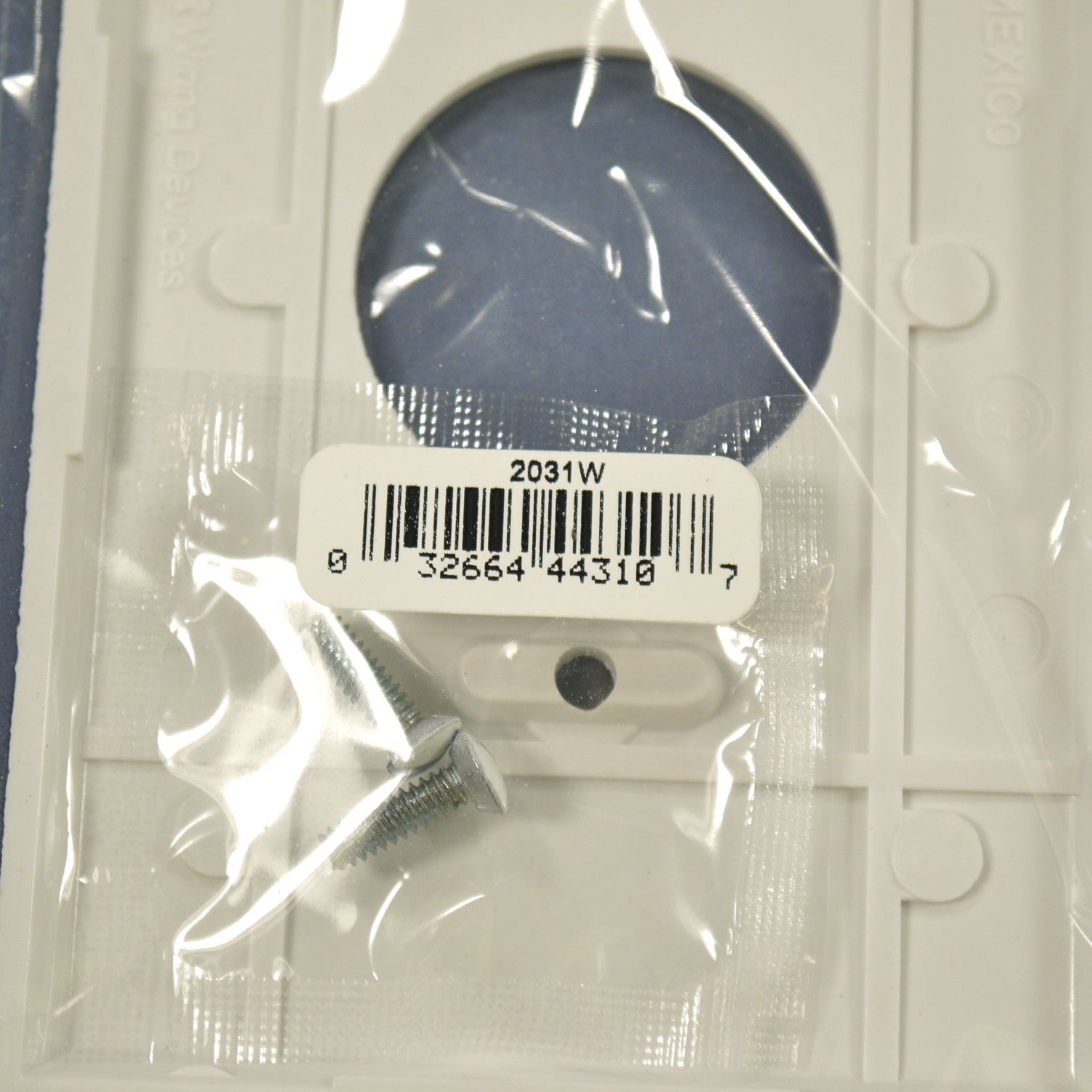

Individually packaged with color matching mounting screws
1-Gang = 4.875"H x 3.125"W
2-Gang = 4.875"H x 4.938"W
3-Gang = 4.875"H x 6.75"W
4-Gang = 4.875"H x 8.563"W
Part Number Ordering Note:
Toggle Switch compatible with framed and large toggle devices
1-Gang P/N: 2034
2-Gang P/N: 2039
3-Gang P/N: 2041
4-Gang P/N: 2054
Decorator with a rectangular opening that is compatible with Decorator/Rocker and GFCI devices
1-Gang P/N: 2051
2-Gang P/N: 2052
3-Gang P/N: 2063
4-Gang P/N: 2064
Receptacle

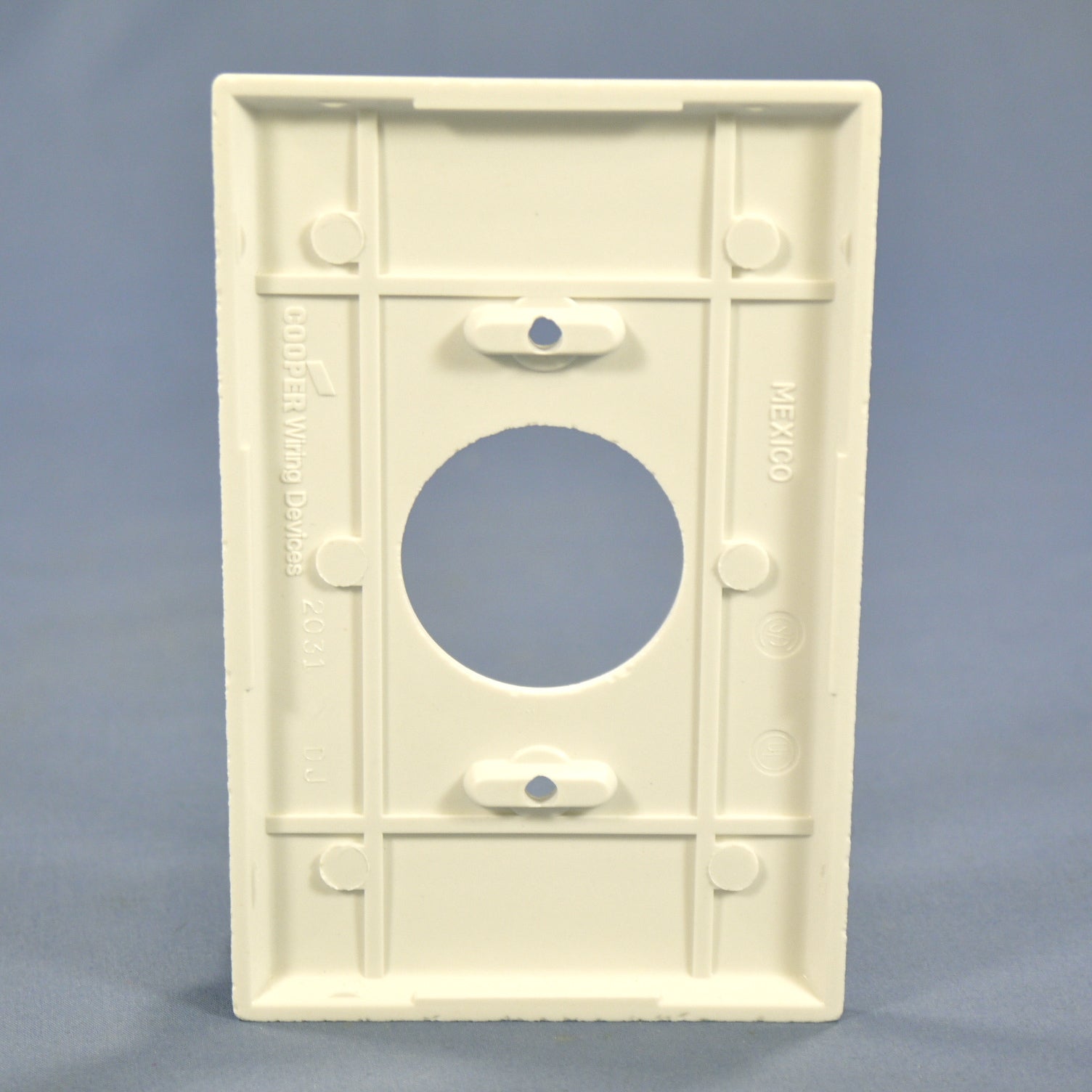

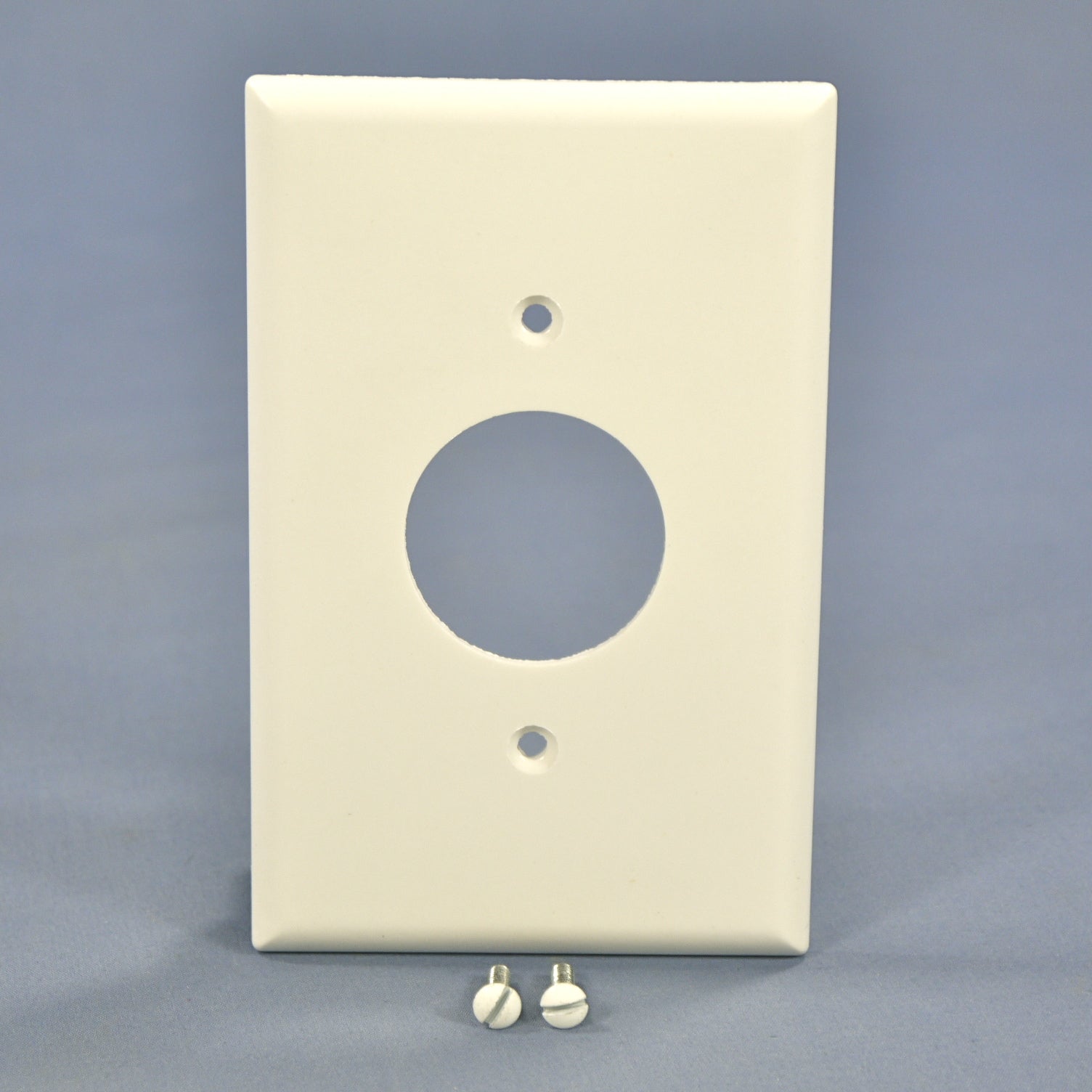

1-Gang Single Receptacle with a 1.406" diameter hole P/N: 2031
1-Gang Duplex P/N: 2032
2-Gang P/N: 2050
Blank Cover
1-Gang P/N: 2029
2-Gang P/N: 2037
Telephone and Coaxial with a 3/8" diameter hole for cable, radio, or telephone use
