Bryant Watertight Pin & Sleeve Mechnical Interlock 100A 600V 3� 3P4W 4100SMI5W

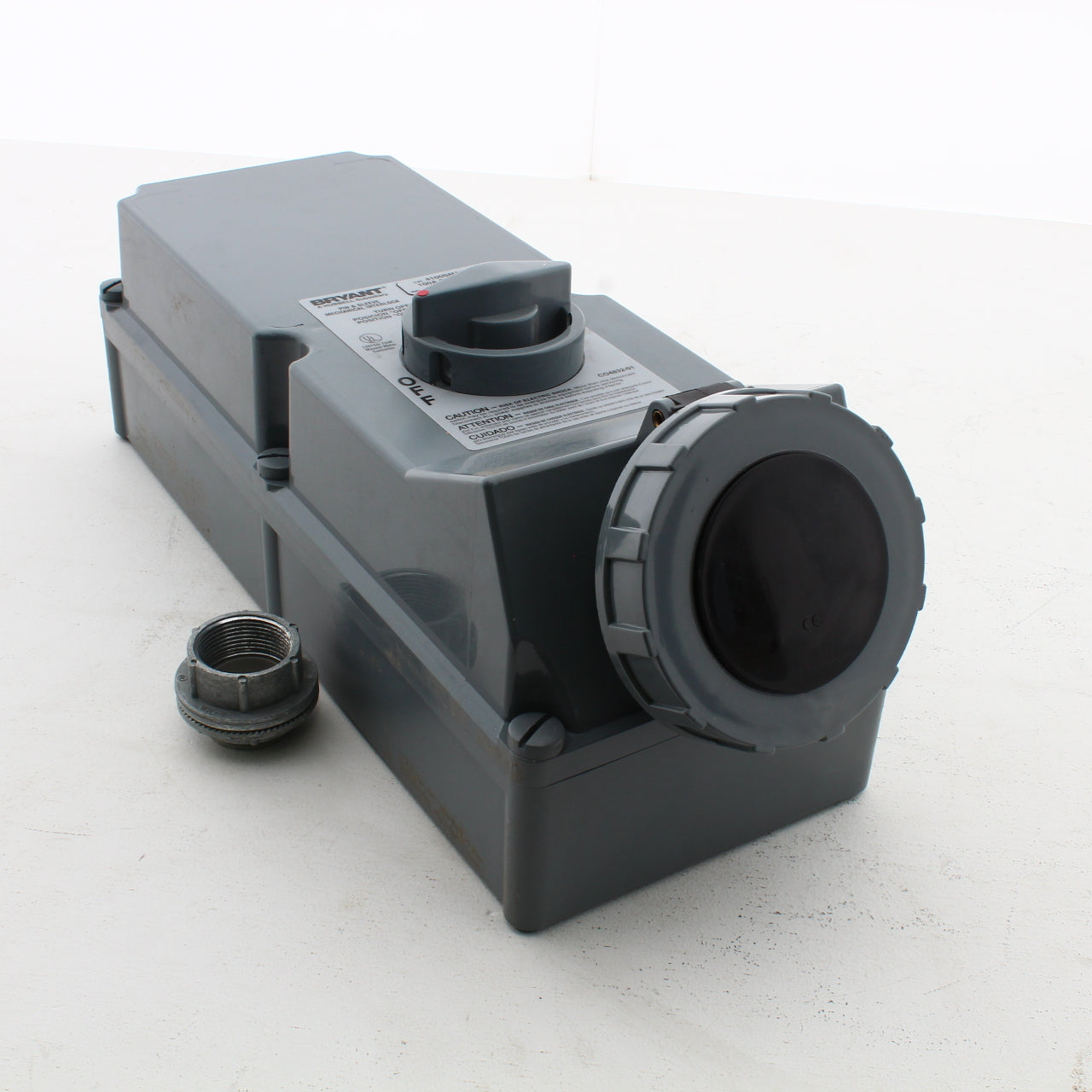

Bryant 4100SMI5W watertight pin and sleeve unfused mechanical interlock. Industrial grade, IEC 309, 3-pole, 4-wire, grounding, rated 100A 600VAC 3 phase. Mechanical Interlocks combine the safety of a disconnect switch and IEC pin and sleeve receptacle in one compact nonmetallic enclosure and provide ON/OFF switched control of a plug connected load. Interlocking feature prevents the plug from being disconnected while the receptacle is energized. The switch cannot be turned ON until plug is properly inserted. Plug can not be removed until the switch is turned OFF. Features include:

• Unfused
• NEMA 4X and 12 enclosures provide watertight and dust-tight protection
• Heavy duty disconnect switches are horse-power rated for motor load applications
• Impact, corrosion-resistant thermoplastic enclosure

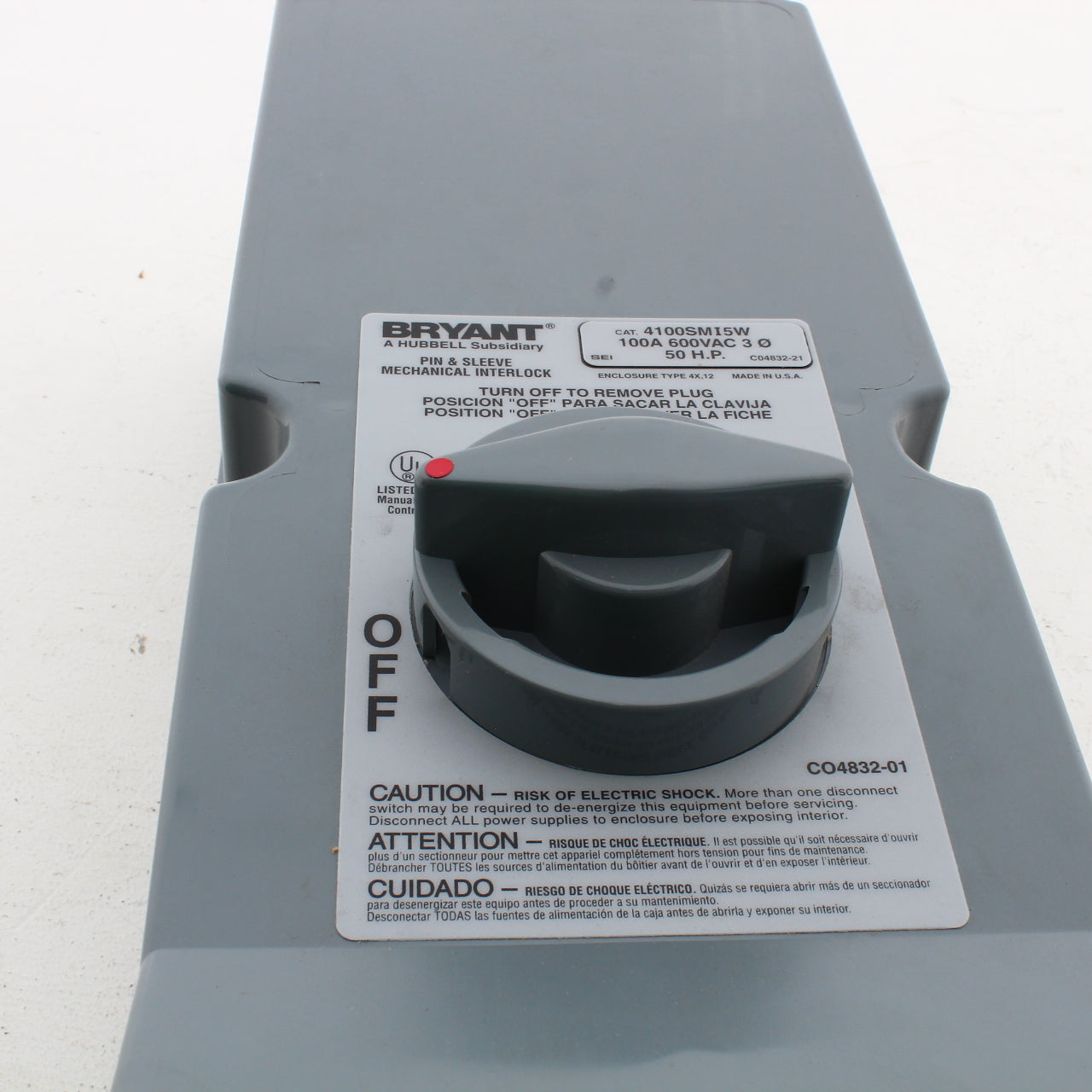

• Handle can be padlocked to comply with OSHA lockout/tagout requirements
• Heavy-duty disconnect switches are horsepower rated for motor load applications

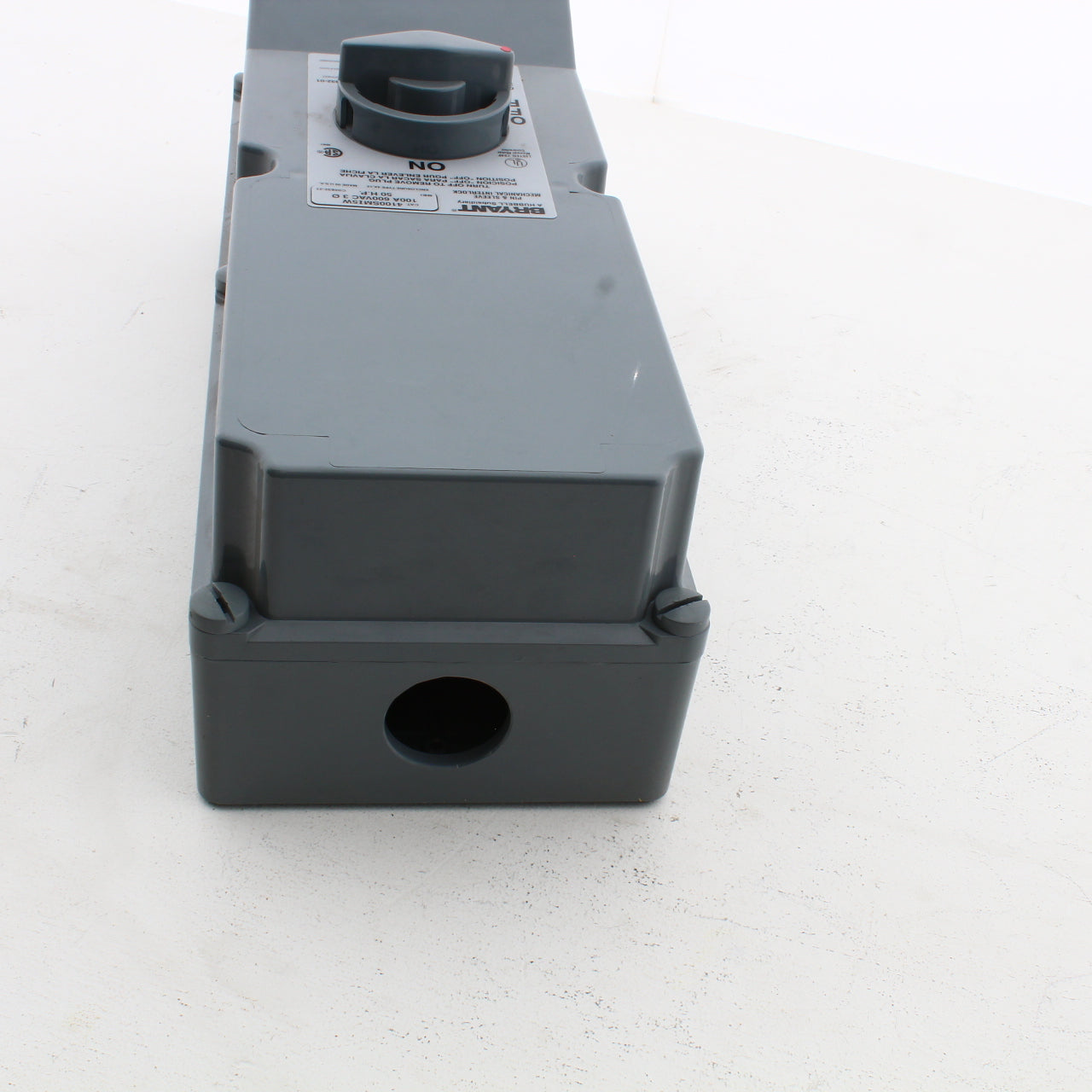

• Top feed

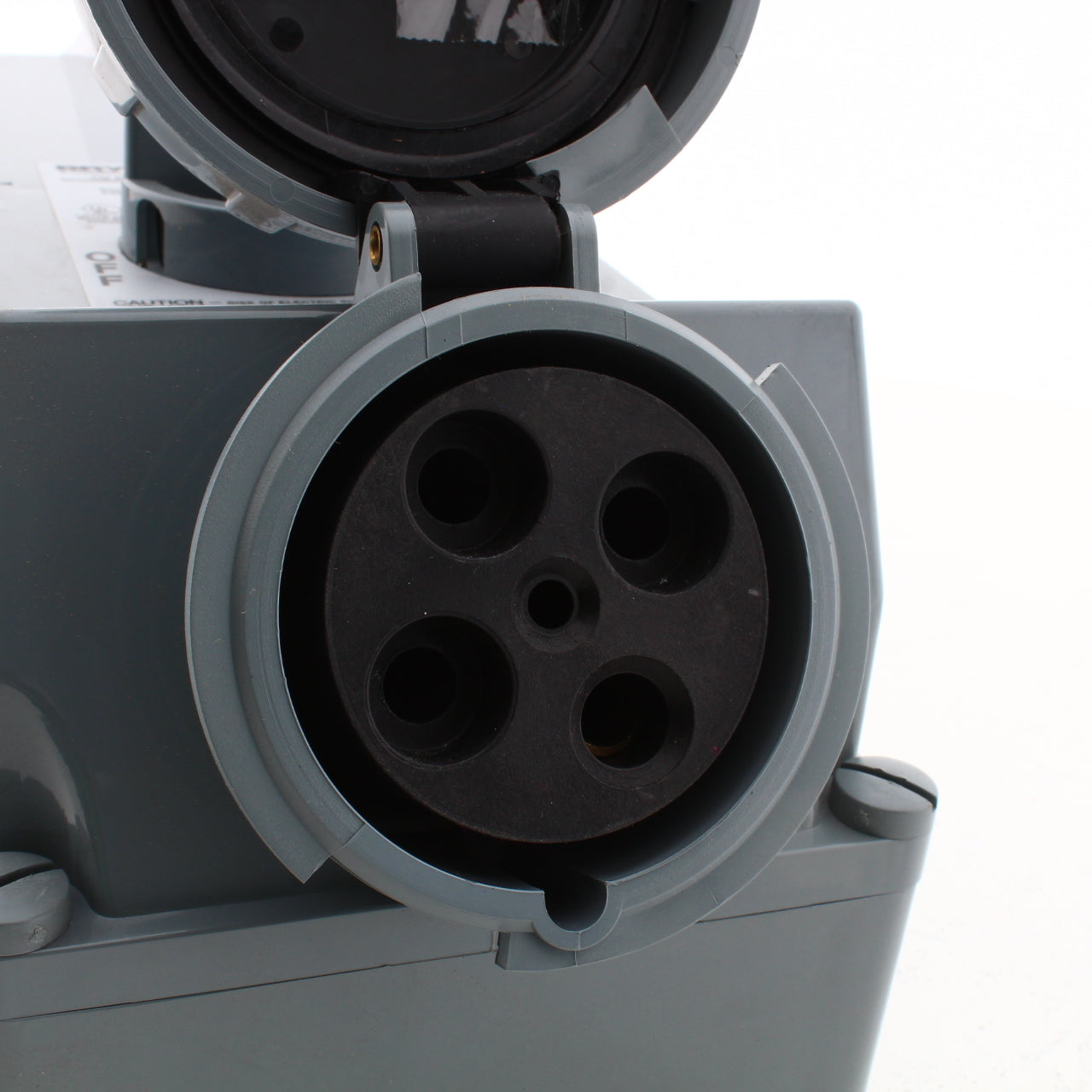

• Watertight receptacle cover opens from front of receptacle. Reduces potential for accumulation of dust and moisture inside cover
• Color-coded receptacle cover insert provides voltage rating identification
