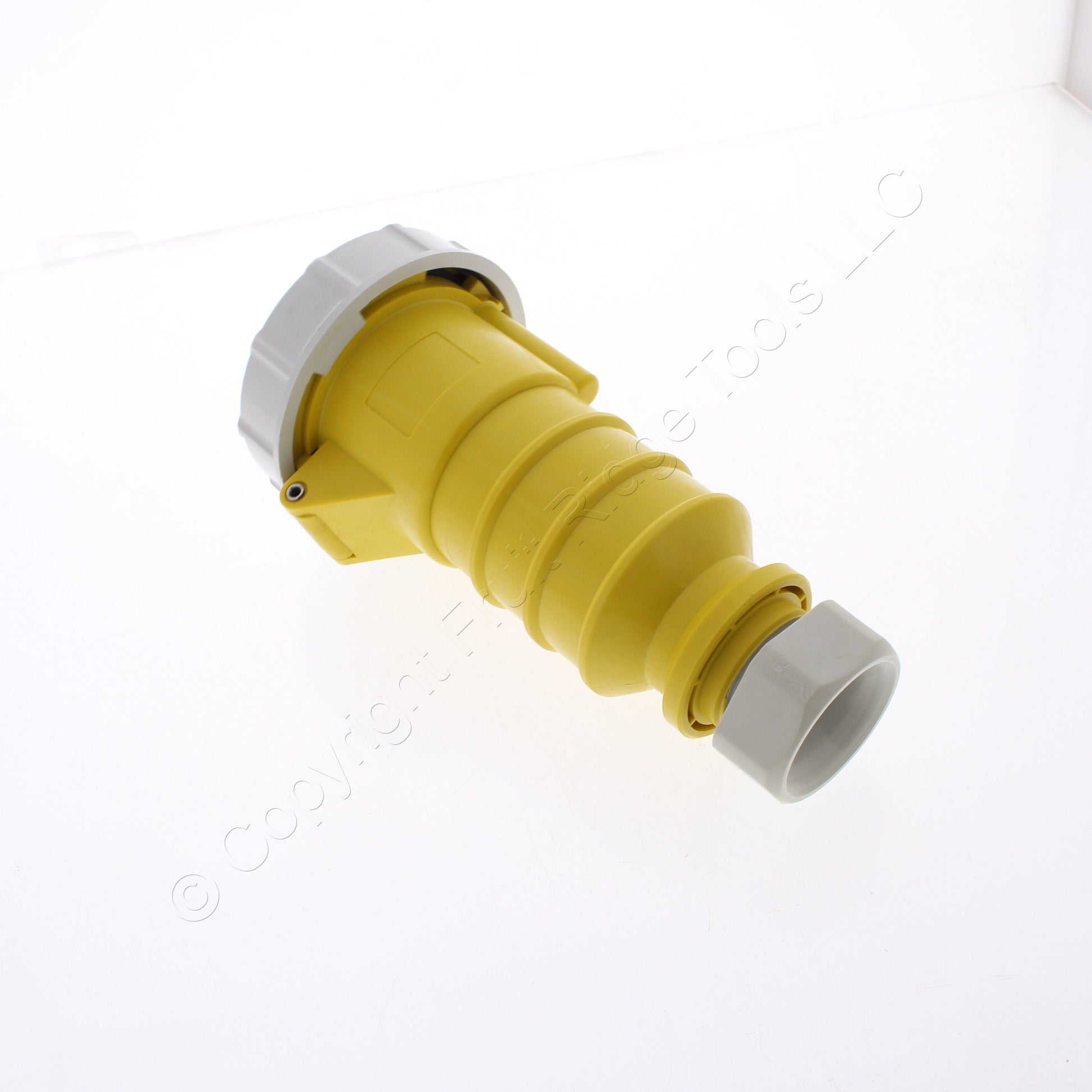

Bryant 332C4W watertight pin and sleeve connector (Bryant is a division of Hubbell). Manufactured for International Power Ratings (European); as a result they are not UL Listed or CSA Certified. Industrial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 32A 100-130V. Each is individually packaged; packaging may differ from photo. Features include:
External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o�clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings

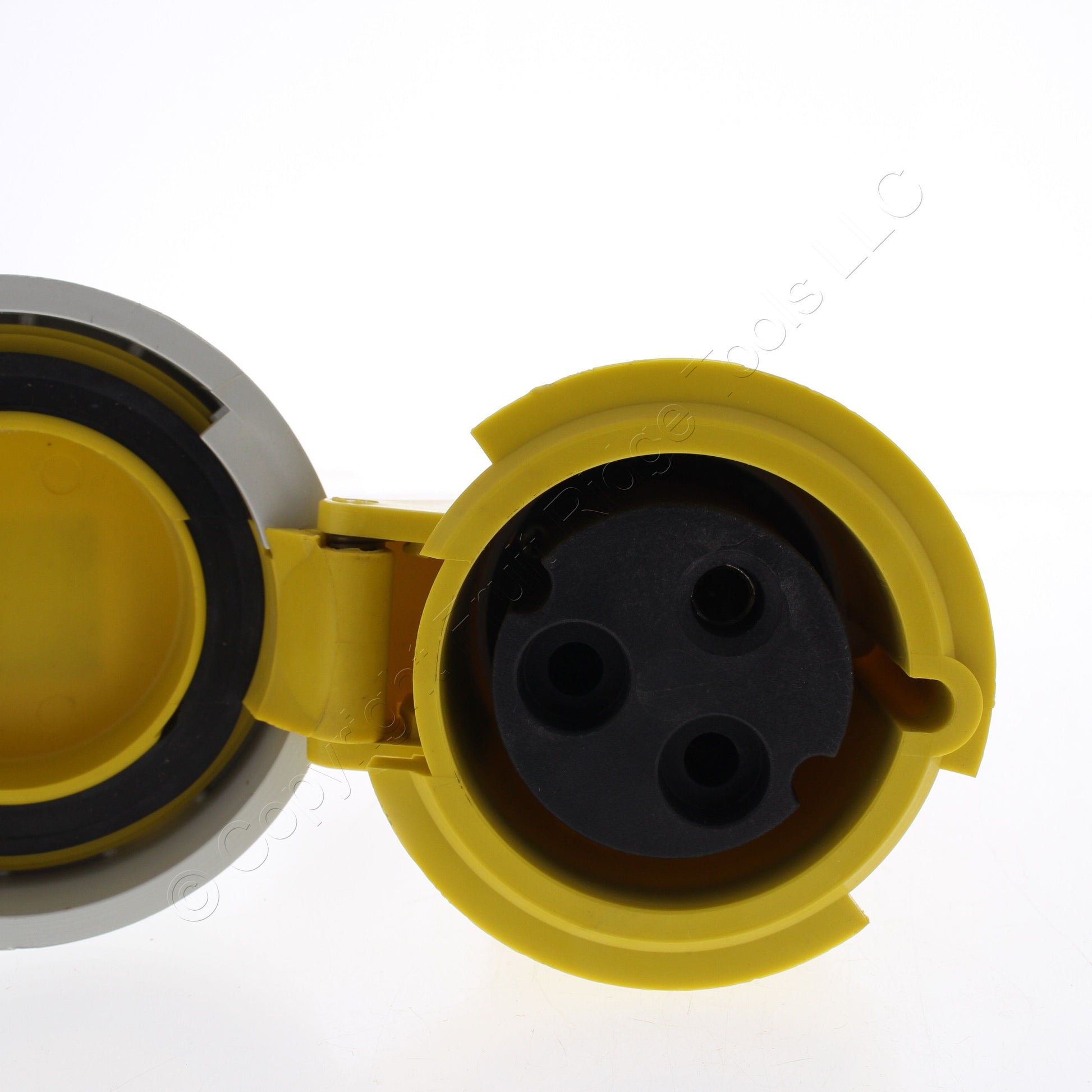

Spring-loaded gasketed cover
Self-adjusting contacts provide accurate pin insertion, producing self-cleaning effect as pin is inserted and withdrawn from sleeve
High temperature contact carrier
Radial rib exterior
Phase contacts are recessed in deep insulated chambers to minimize arcing
Ground contact in forward position ensures first make, last break, neutral contact connects next, then phase contacts
