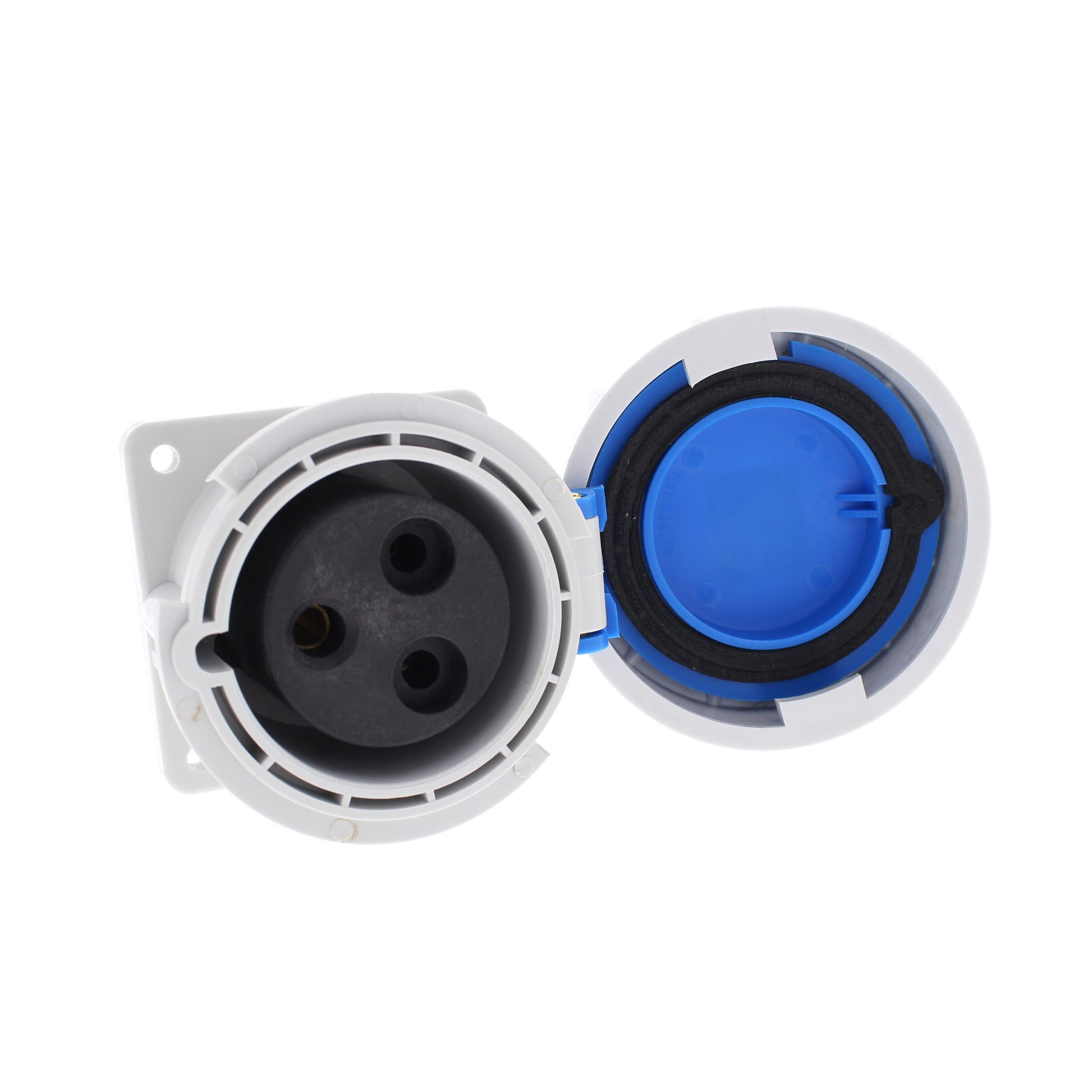

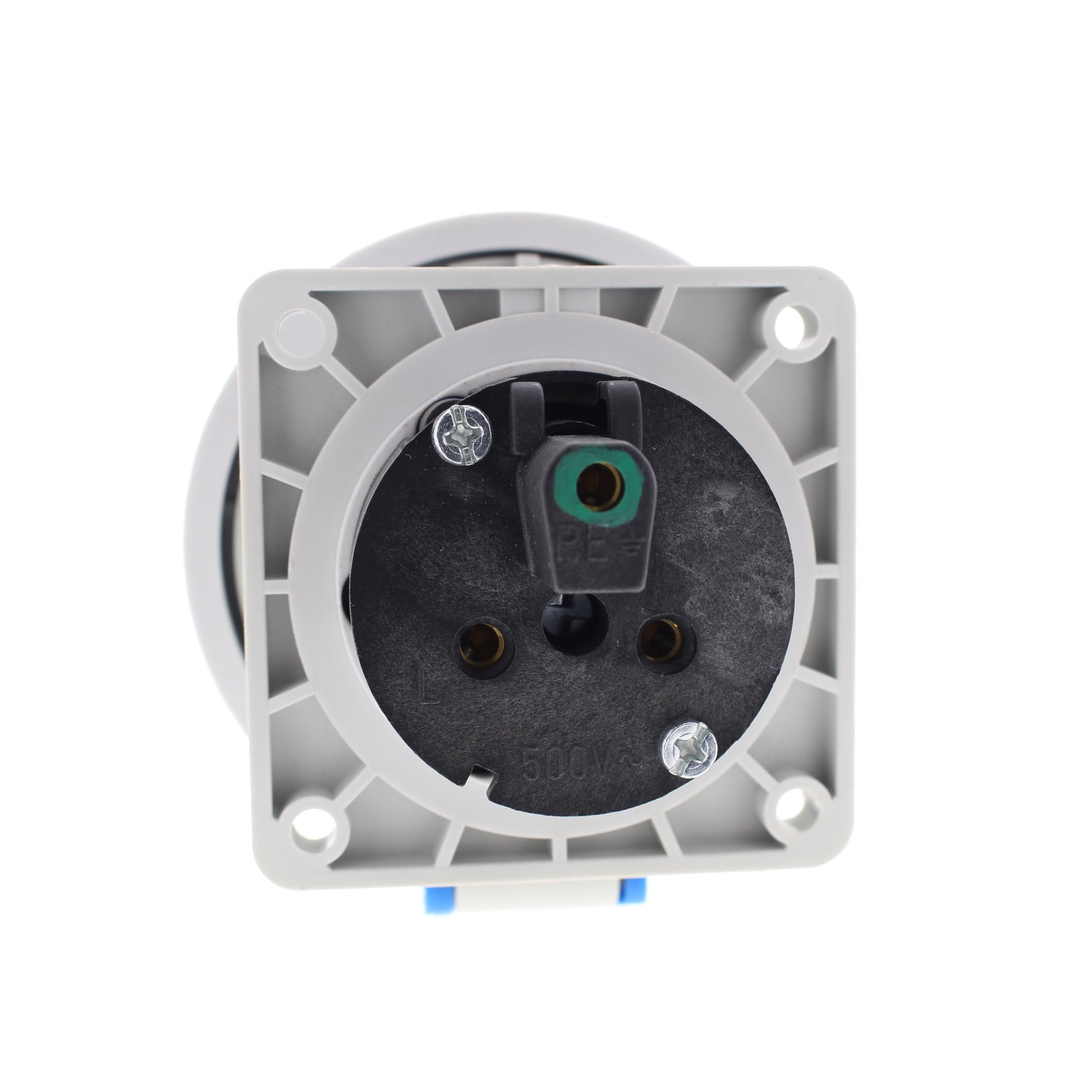

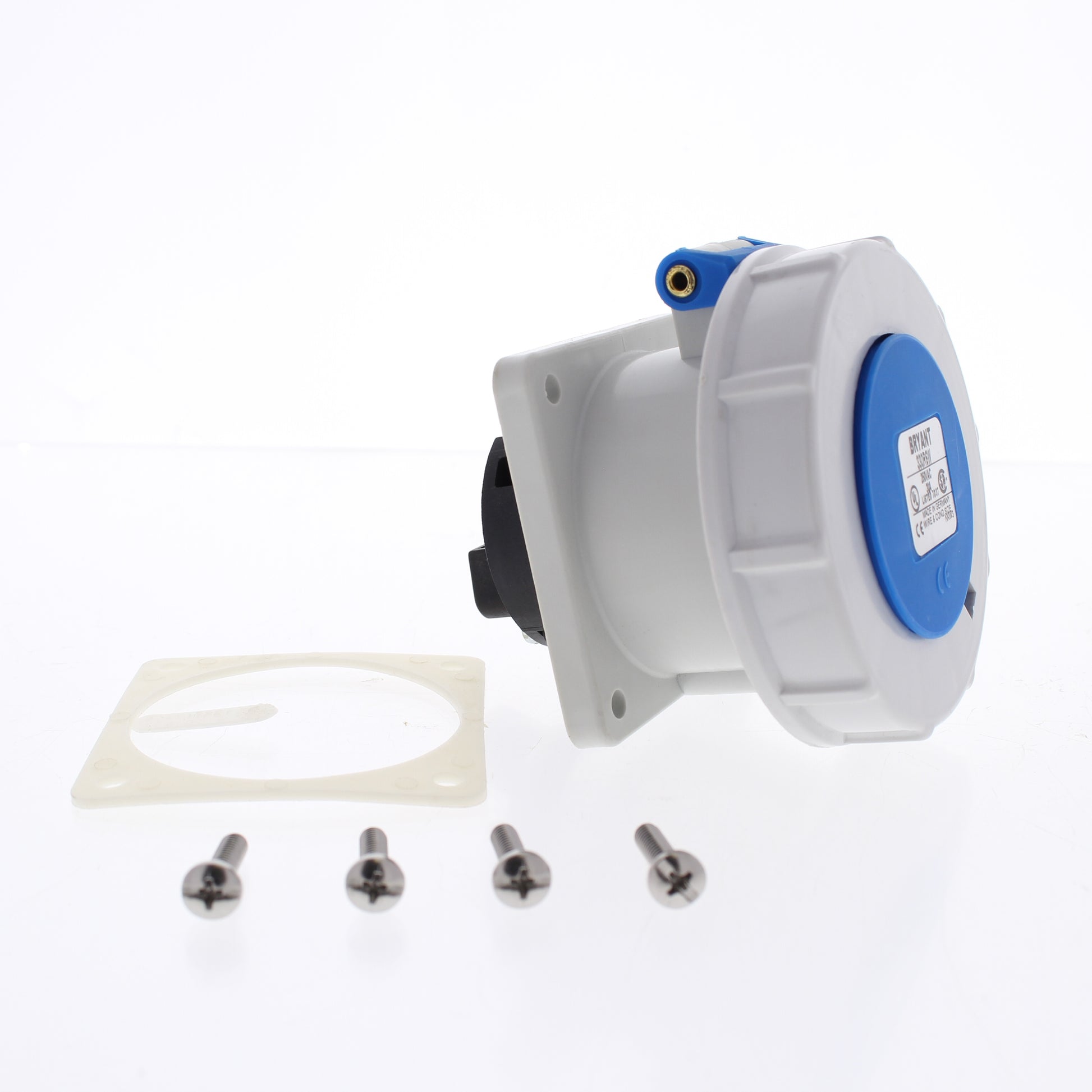

Bryant Watertight IEC Pin & Sleeve Receptacle 30A 250V Female Outlet 2P3W 330R6W

Bryant 330R6W watertight pin and sleeve receptacle. Industrial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 30A 250V AC. Each is individually packaged; packaging may differ from photo. Features include:

• External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o�clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings
• Spring-loaded gasketed cover
• Self-adjusting contacts provide accurate pin insertion, producing self-cleaning effect as pin is inserted and withdrawn from sleeve
• High temperature contact carrier Phase contacts are recessed in deep insulated chambers to minimize arcing
• Ground contact in forward position ensures first make, last break, neutral contact connects next, then phase contacts
• Terminal screws are backed out for easy assembly
