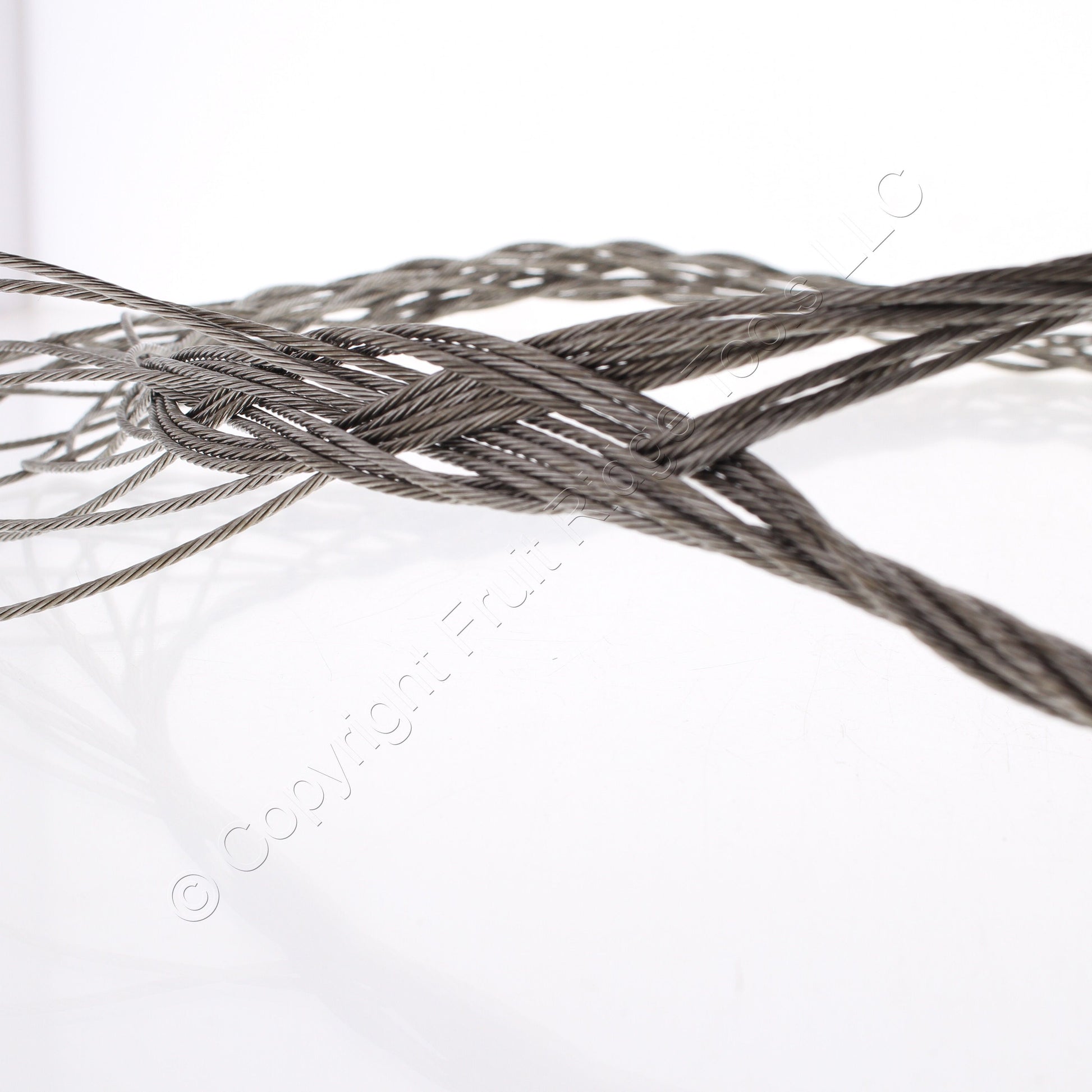

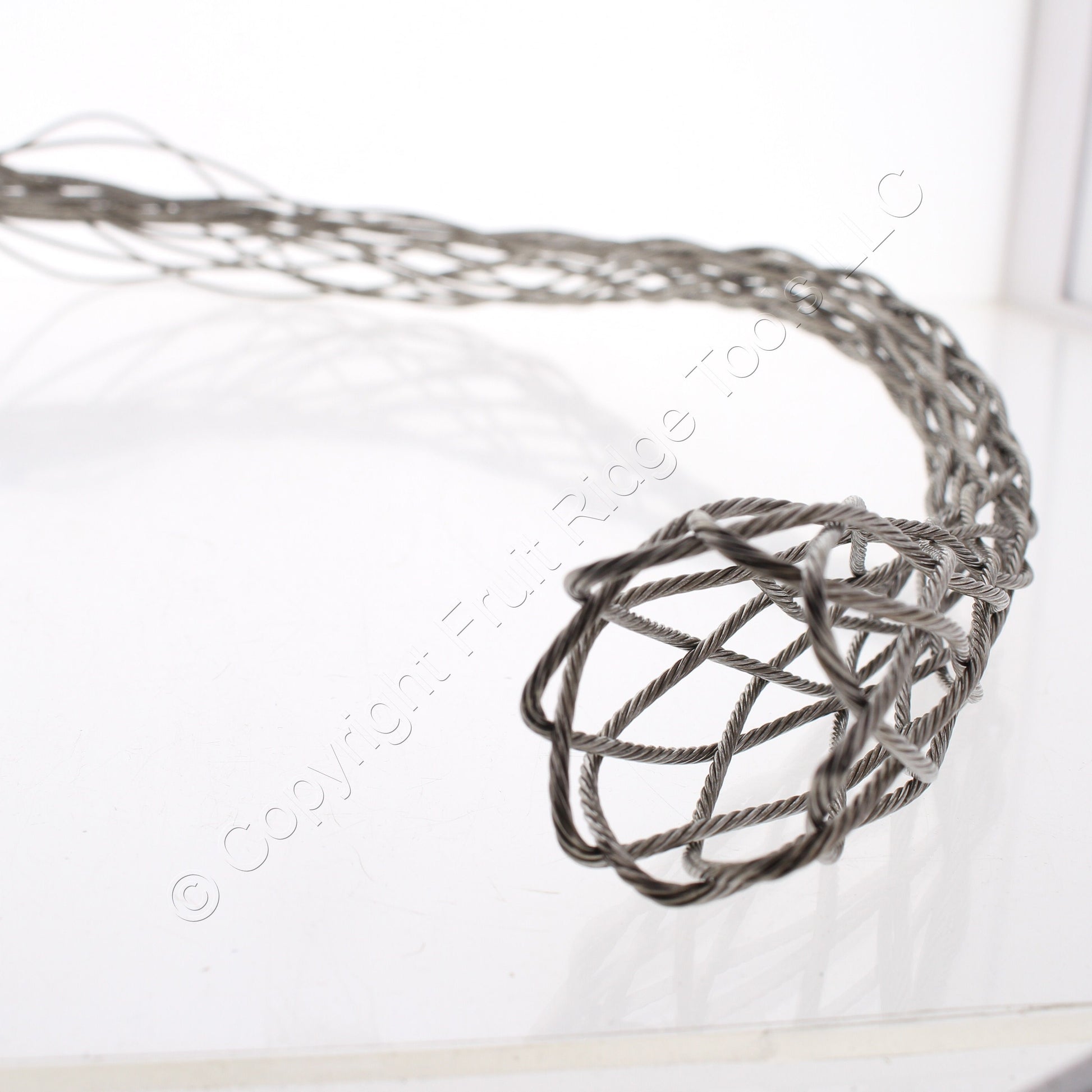

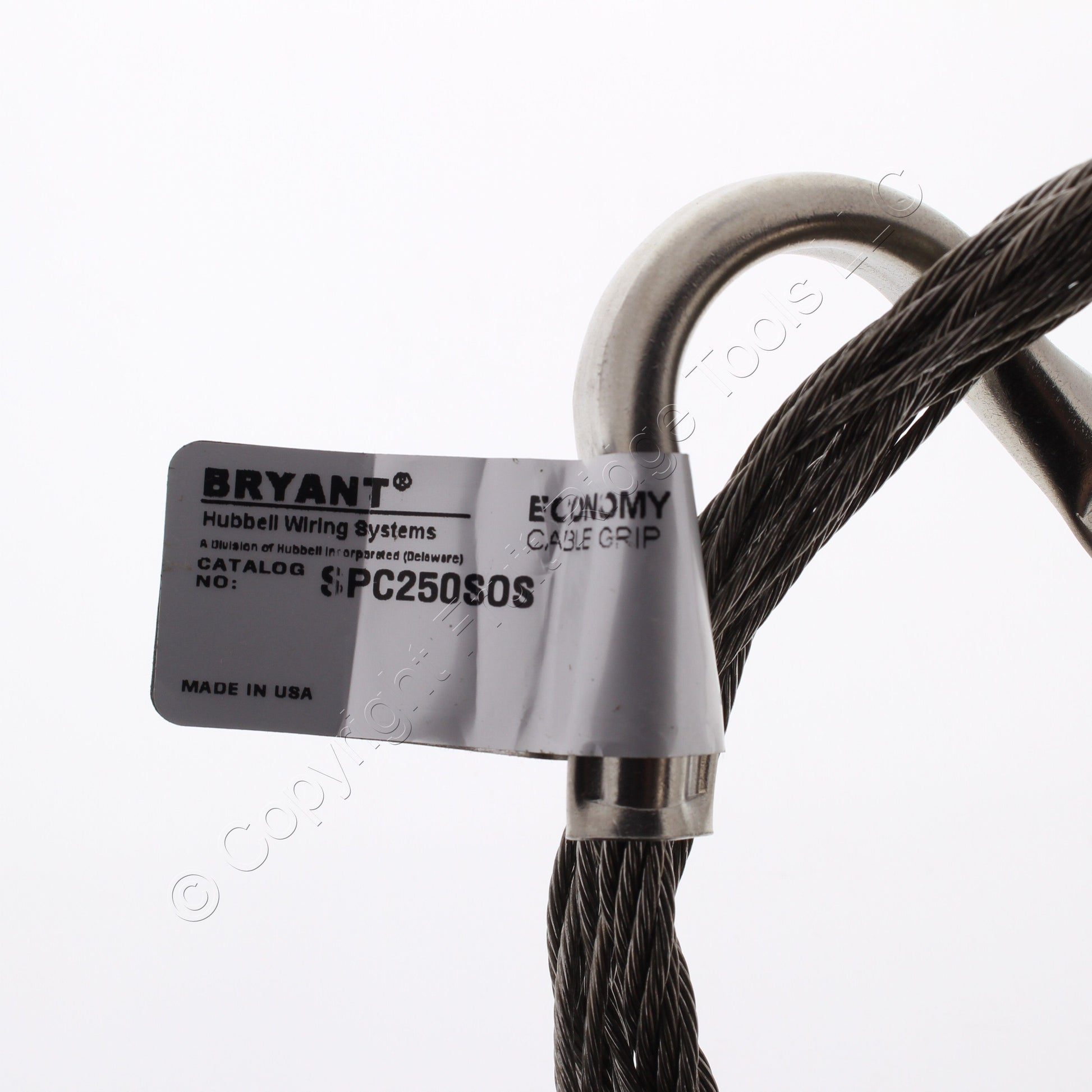

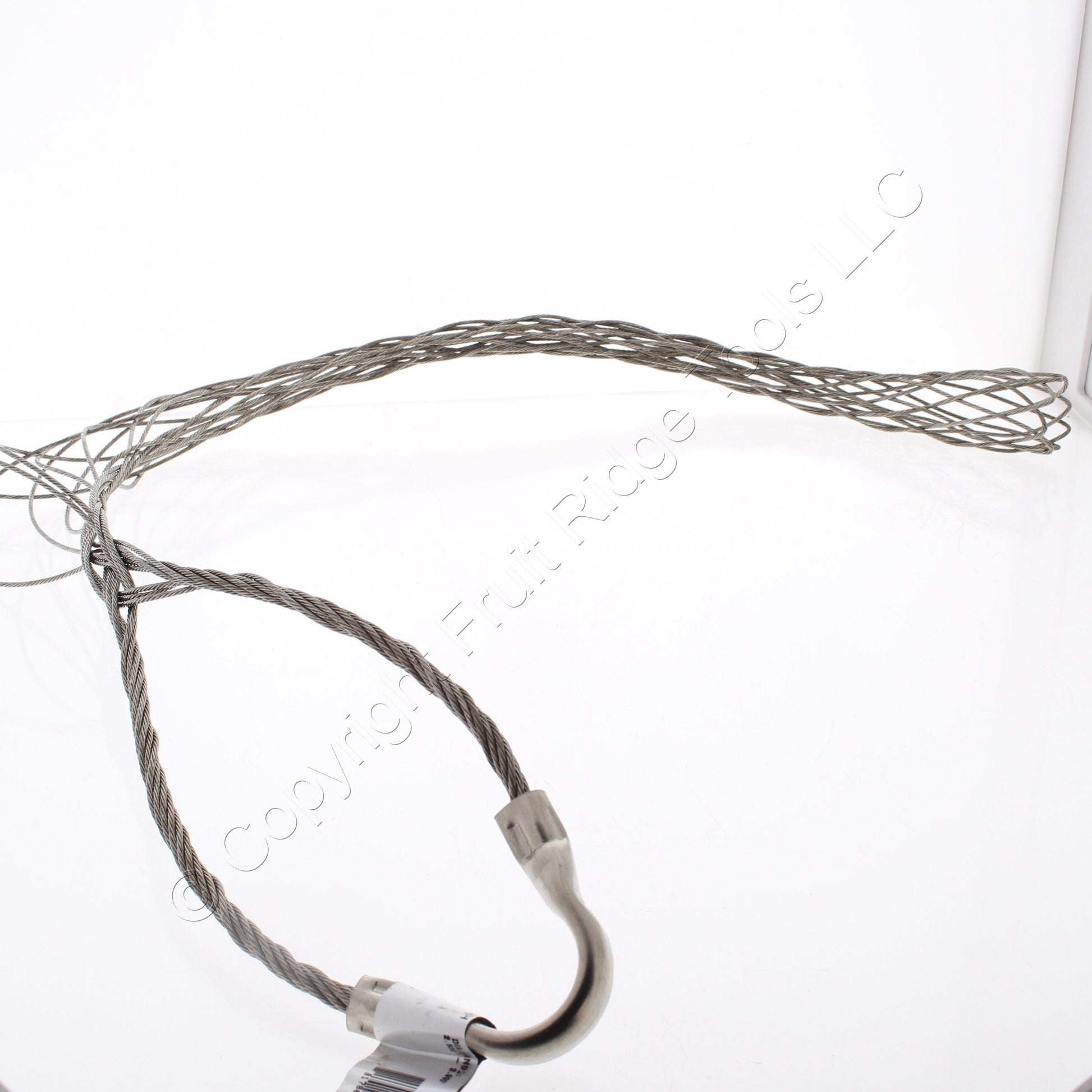

Bryant/Hubbell SPC250SOS standard duty, closed offset eye, closed mesh stainless steel cable support grip (Bryant is a division of Hubbell). Used to hold the weight of electrical cable as it hangs in a vertical, sloping, or horizontal position. Electrical cable must be supported, or its dead weight can cause excessive strain or pullout at the connections resulting in power failure. Support grips also absorb additional strain from flexure, vibration, expansion, and contraction. Features include:
Cable diameter range: 2.50-2.99"
Approximate breaking strength: 5,500 lbs.
Working load: unknown.
Eye length: 6"
Wire mesh length: 23"
302/304 stainless steel grips are designed for use in harsh environments where superior corrosion resistance and strength are required
Closed grip fits over cable end
For permanent support when cable end is available to be installed through grip
Positive action mesh grip
Strand equalizer positions wires for equal loading throughout the entire grip length
Never use grip to approximate breaking strength. Refer to manufacturer specifications for safety and working load factors
