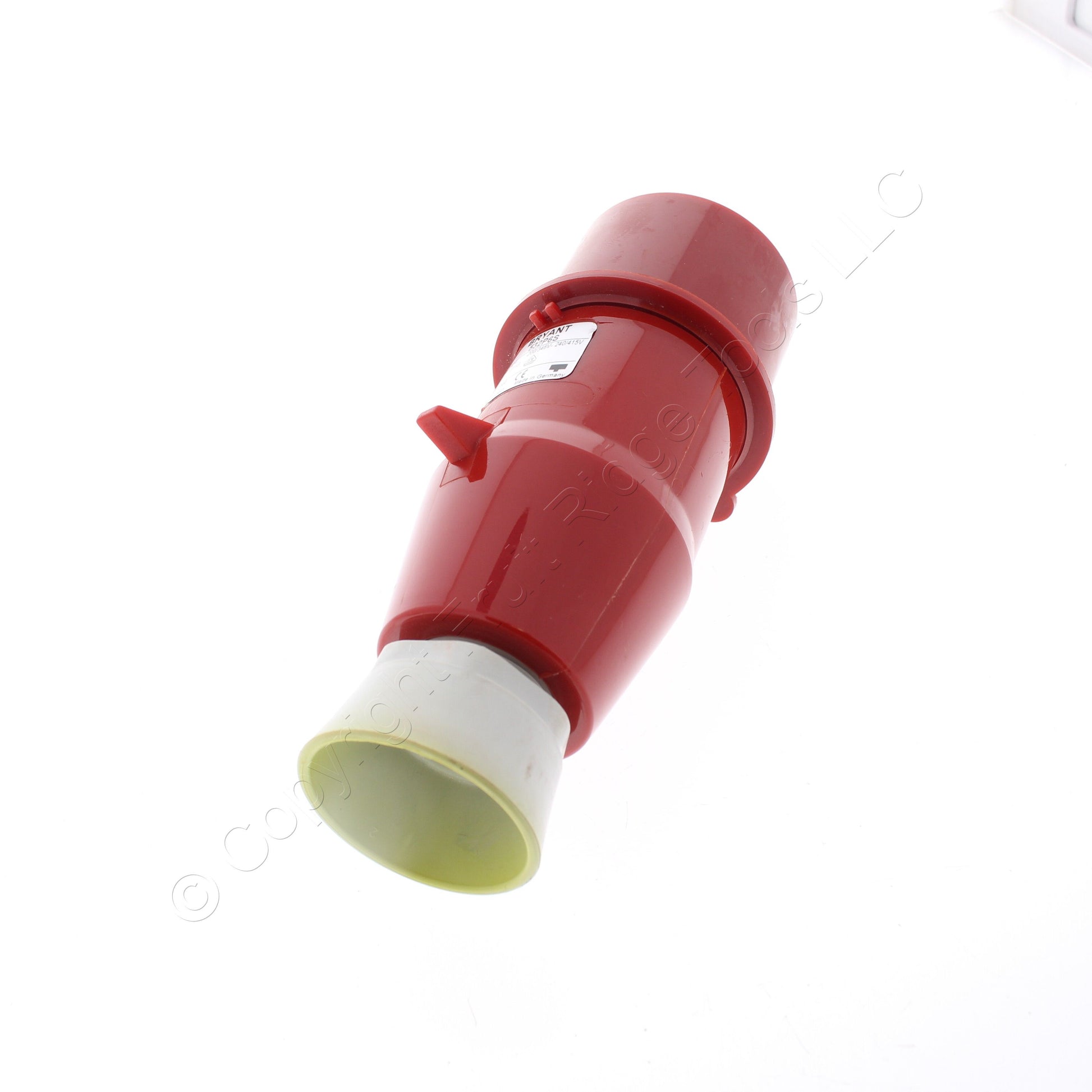

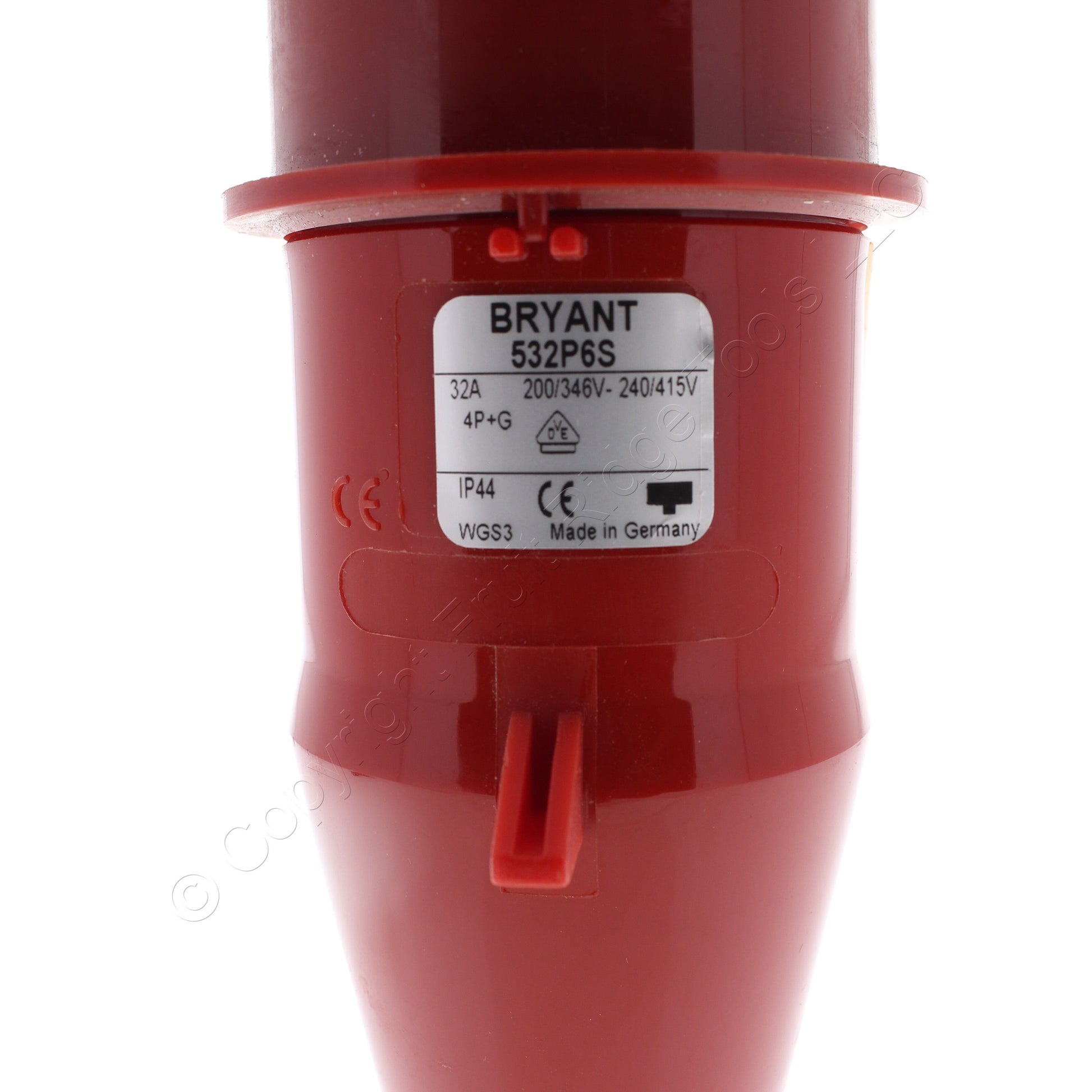

Bryant Splashproof Male IEC Pin & Sleeve Plug 32A 200/346V 240/415V 4P5W 532P6S

Bryant 532P6S splashproof pin and sleeve plug (Bryant is a division of Hubbell). Industrial Grade, IEC 309, 4-pole, 5-wire, grounding, rated 32A 200/346V and 240/415V. Each is individually packaged; packaging may differ from photo. Features of Bryant's pin and sleeve plugs and connectors include:

• Singly-rated, non-interchangeable configurations in accordance with IEC 309-1 and 309-2 standards. Prevents mismating of devices with different voltage ratings. Color coded for easy identification
• Self-adjusting, slotted contact sleeve and nickel-plated spring steel contact pressure spring ease insertion of pins and provide consistent contact pressure

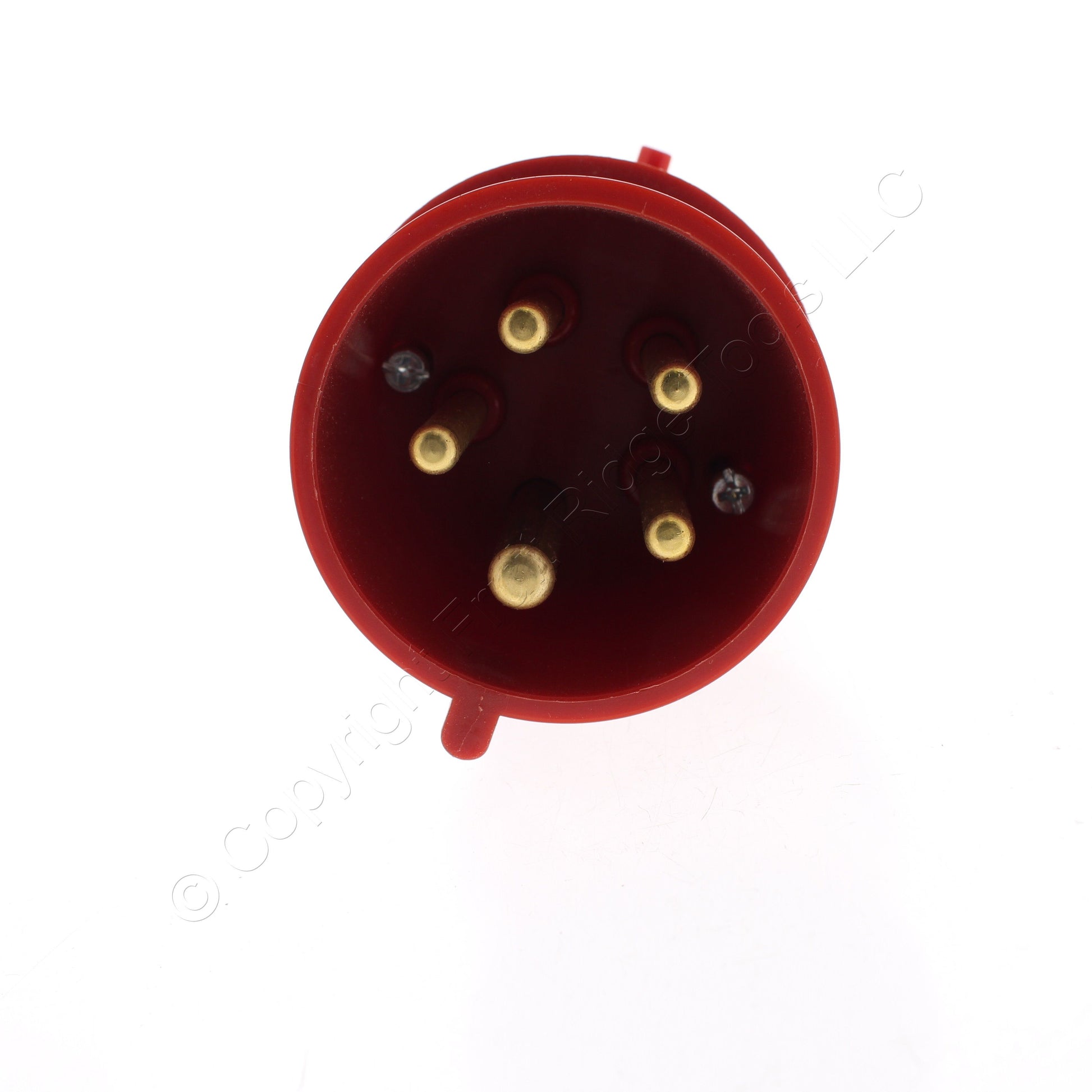

• Pins are recessed in shrouded housing for protection from abuse
• Pins and sleeves are fabricated from solid brass for longevity, contact reliability, and superior conductivity
• Ground contact in forward position to ensure first make, last break. Neutral contact connects next, then phase contacts

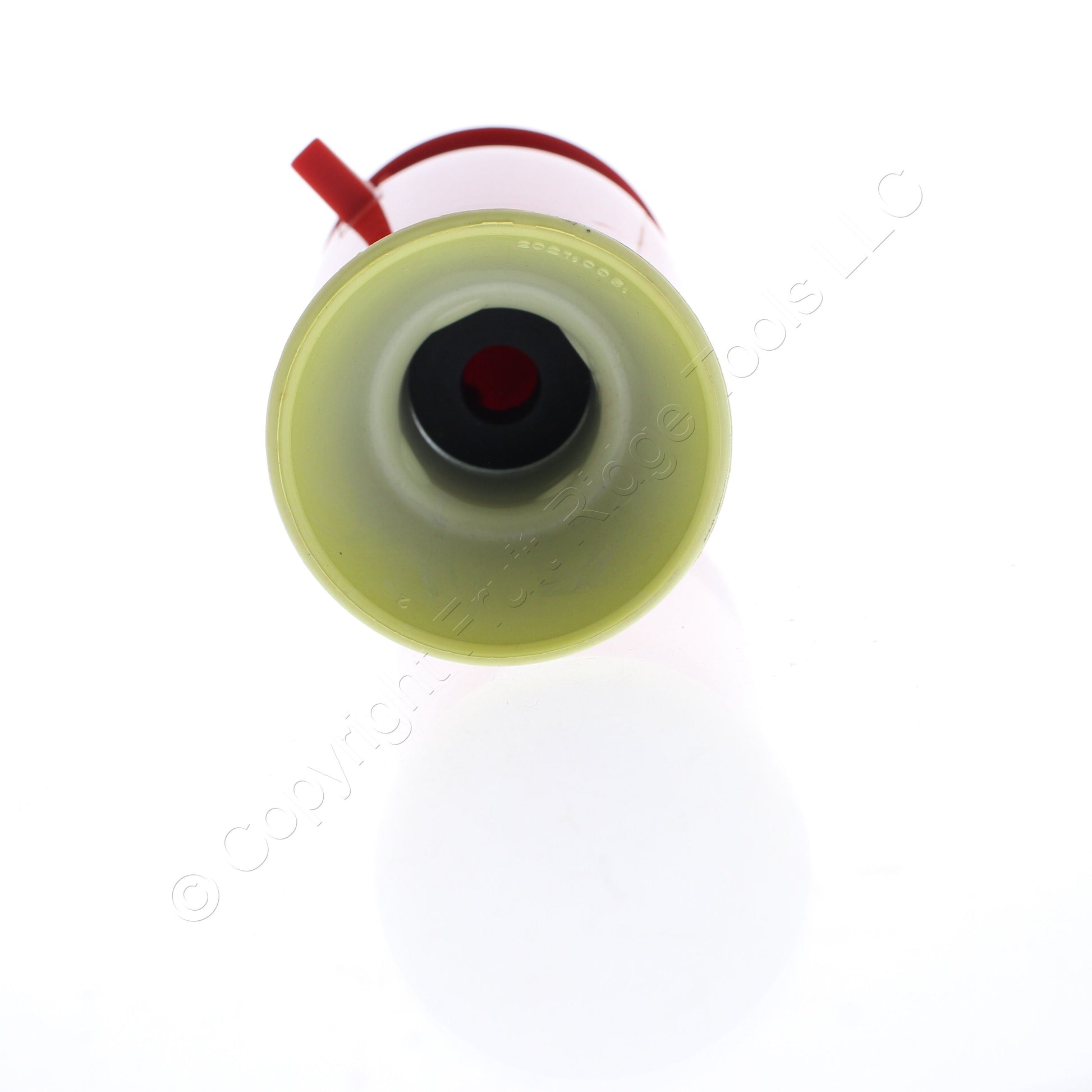

• Neoprene sealing glands seal out moisture and contaminants at cord entry and can accommodate a variety of cord diameters
• Cord clamp screws fasten into threaded, plated steel nuts to prevent strip-out
• Gland nut and ring compress sealing gland around cord to seal out contaminants. Provides supplemental strain relief
• Insulated nylon housing resists impact, corrosion, and chemical attack
• IP44 moisure resistance rating
• Combination straight/Phillips head cord grip, terminal and assembly screws, and single side terminals simplify wiring
• Manufactured for International Power Ratings (European); as a result they are not UL Listed or CSA Certified
