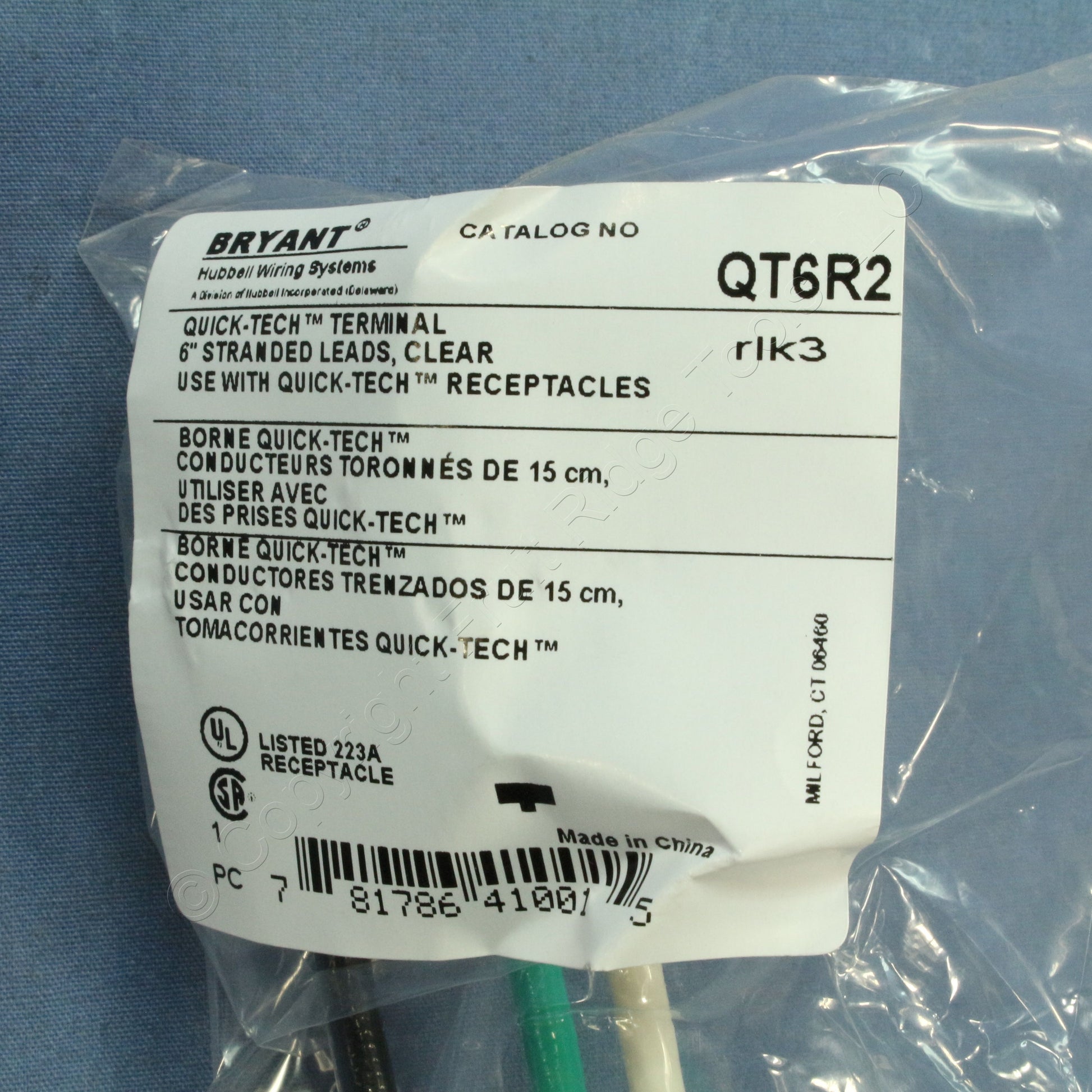

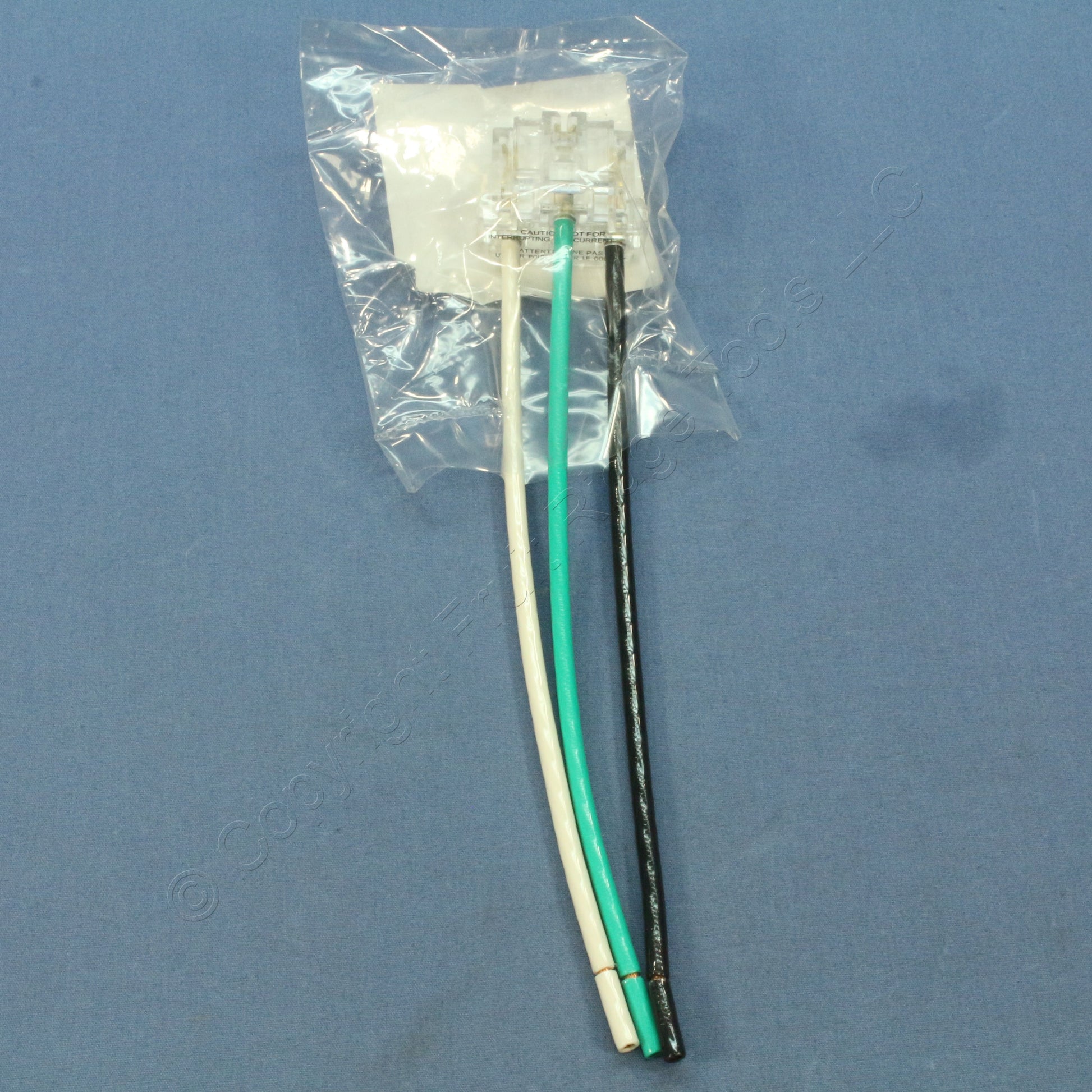

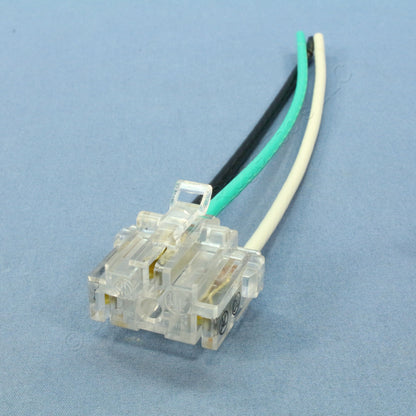

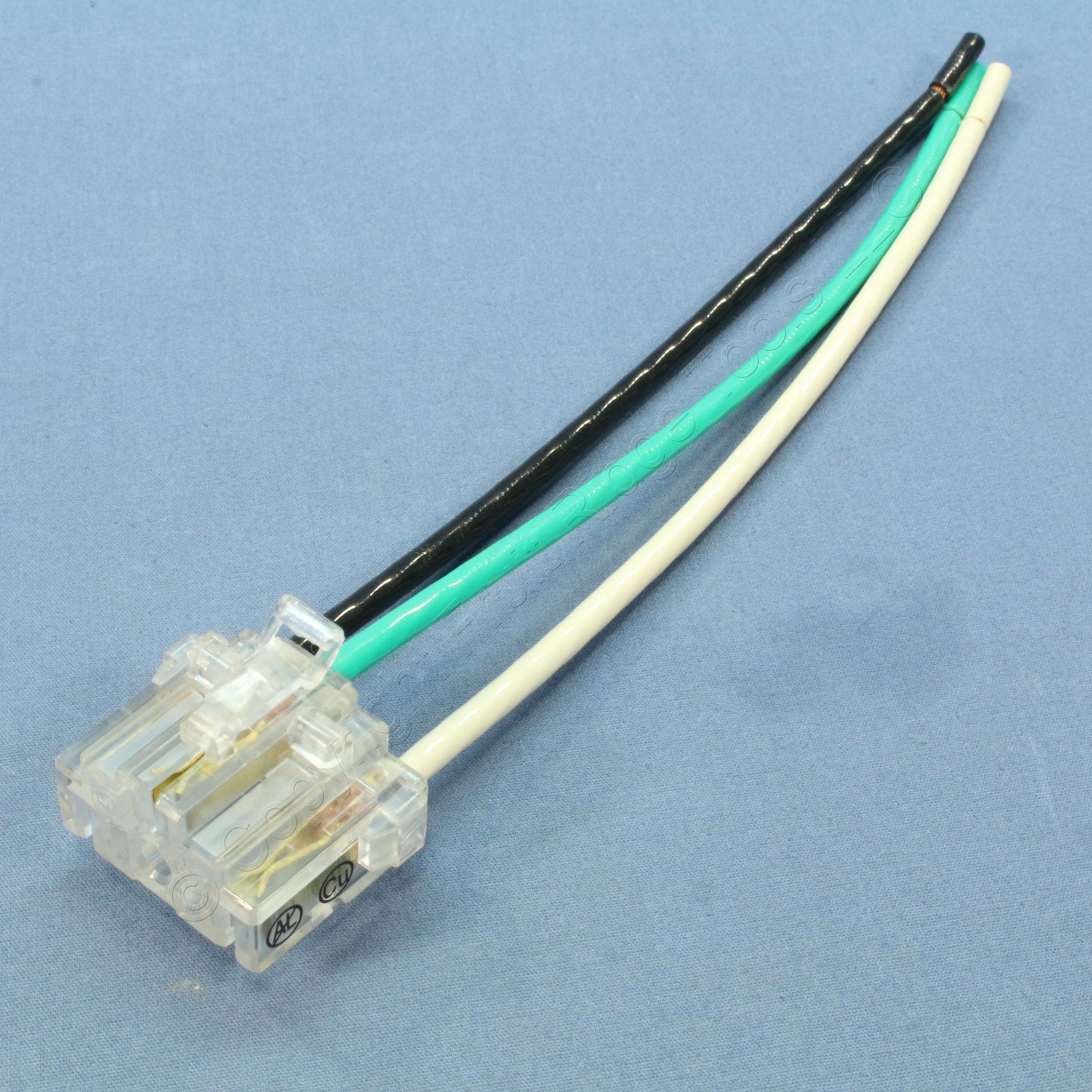

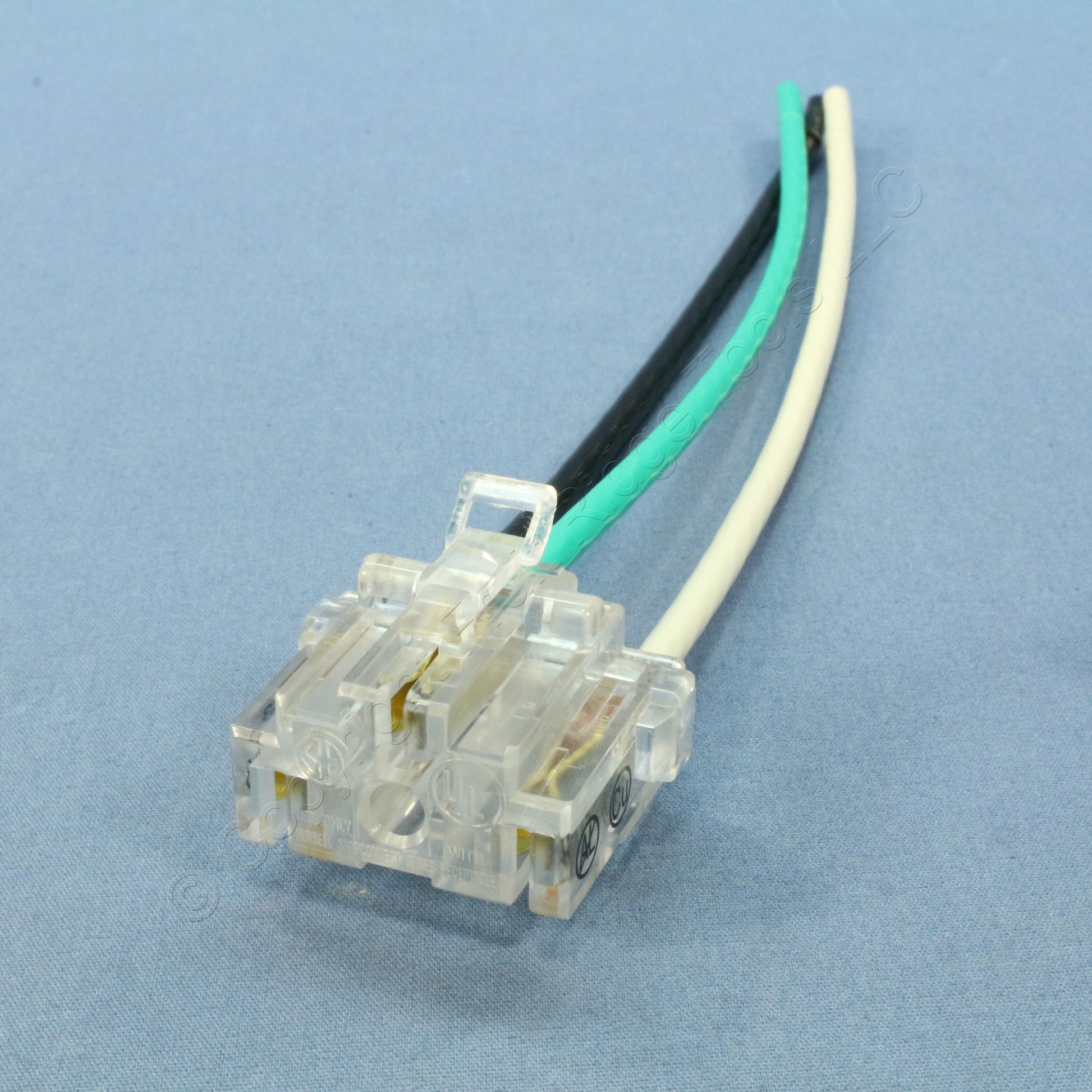

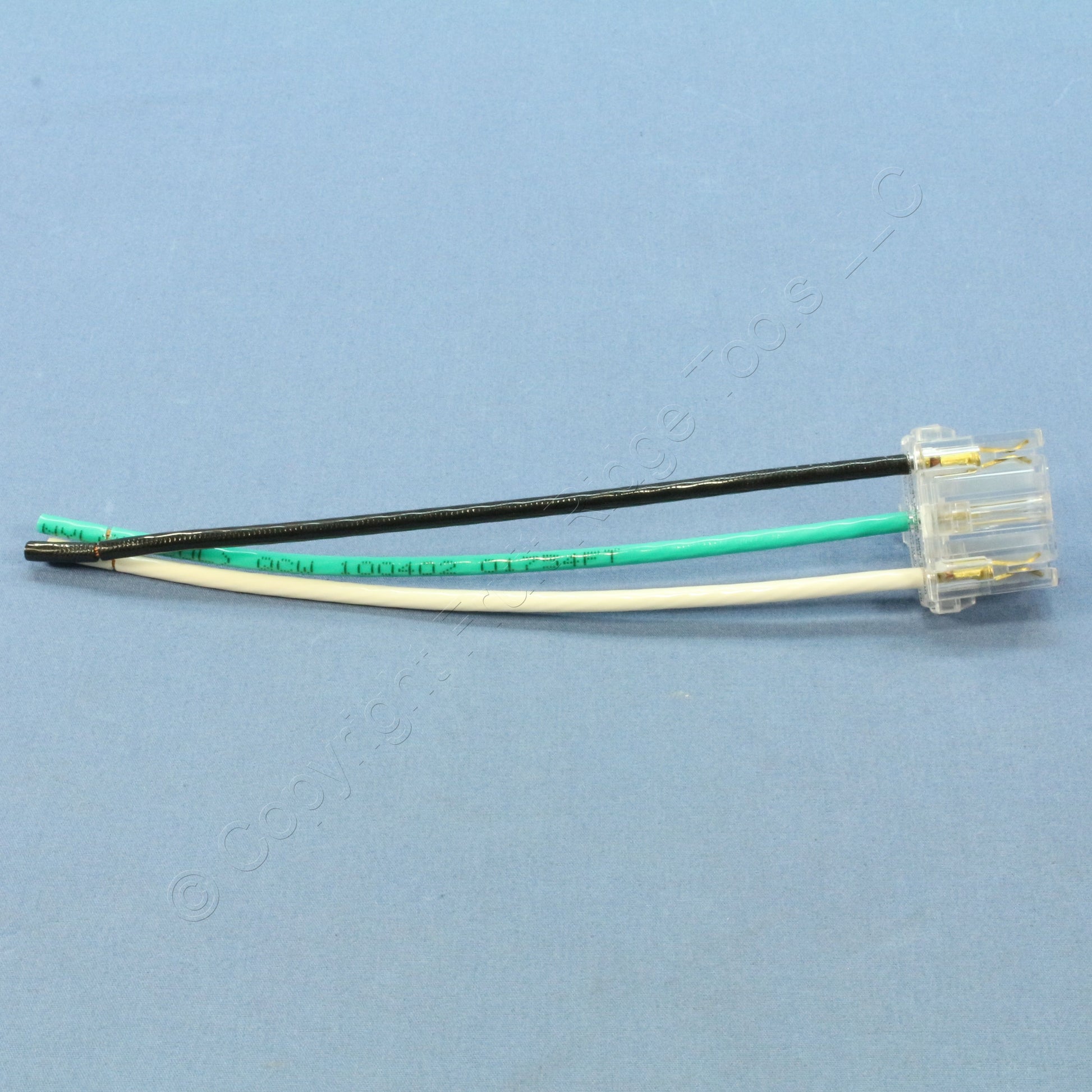

Bryant Quick-Tech Receptacle Pigtail Wiring Harness 6" Leads QT6R2

Bryant QT6R2 Quick-Tech modules for duplex straight blade receptacles. Engineered for fast and easy installation. Each is individually packaged; packaging may differ from photos. Features include:

• Bryant's Quick-Tech connectorized receptacles provide an amazingly quick and simple wiring method. Quick-Tech allows you to save up to three minutes of total installation time per duplex, compared to conventionally terminated devices
• The installation savings comes from the Quick-Tech terminal with its pre-cut and pre-stripped factory terminated leads. This installs at the rough-in stage of the project just like regular pigtails. A protective wrapper covers the terminal, keeping it free of plaster, paint and other debris until the receptacle is ready to be installed
• At trim-out, the receptacle quickly connects to the pre-wired Quick-Tech terminal. Simply remove the protective plastic wrapper and push the connector into the back of the receptacle. It's that easy! No wires to strip or terminal screws to tighten. Actual installation can be completed in less than a minute
• The Quick-Tech pre-wired terminal and receptacle are both fully insulated so there are no terminals left exposed. Wrapping the receptacle with electrical tape becomes unnecessary
• With Quick-Tech terminals the easy to grip latch connects to the back of the receptacle with an audible click, providing consistent, trouble free electrical connection every time. The stepped terminal design connects the ground contact first and then both line contacts
• The ground contact uses a single piece of brass to continuously connect the terminal contact to the ground blade of a plug. Quick-Tech receptacles also have a stainless steel auto-ground clip on the mounting strap
• Bryant Quick-Tech receptacles are constructed of nylon for optimum durability and resistance to abuse. The Quick-Tech terminals are molded in impact resistant clear polycarbonate that allows for easy inspection of the contacts
