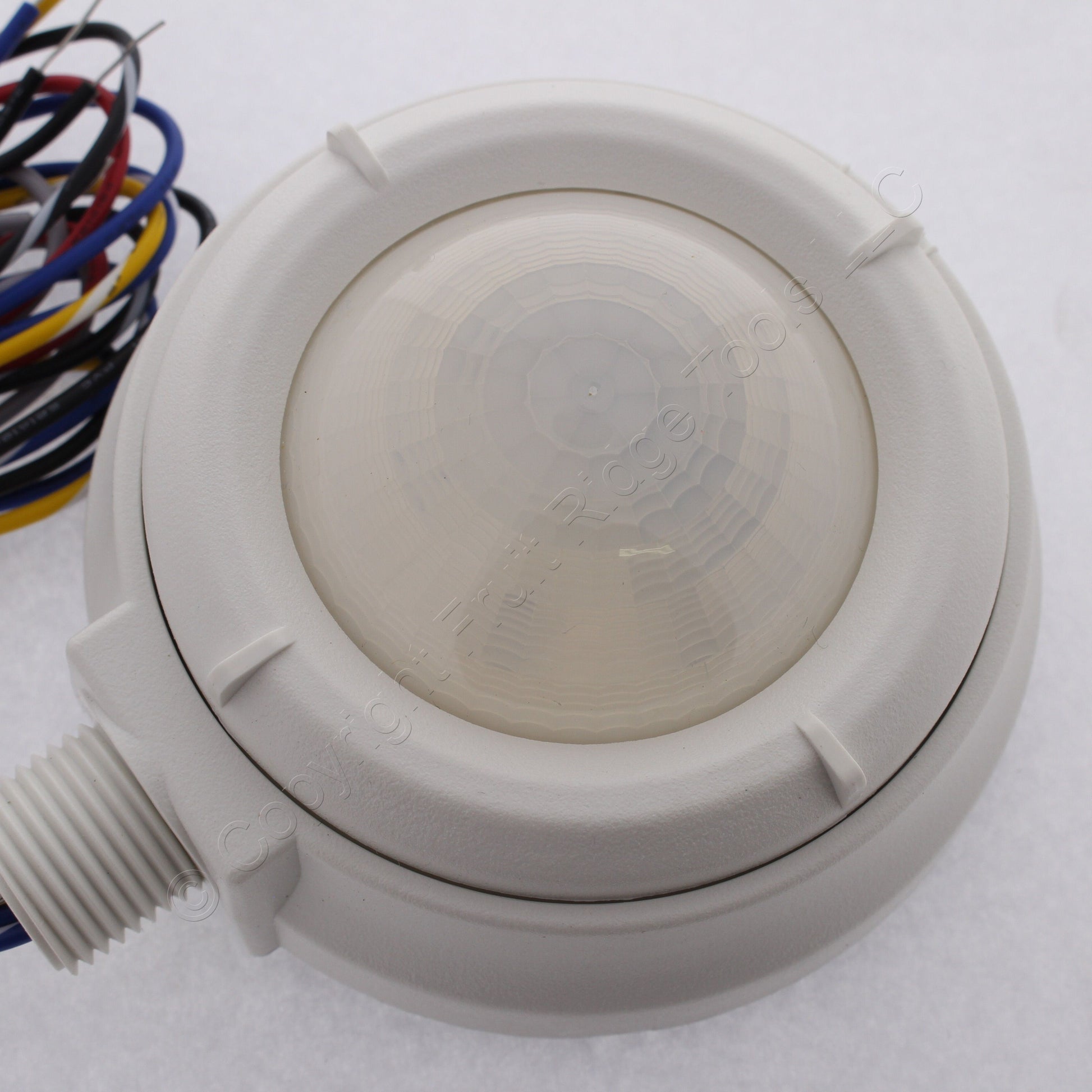

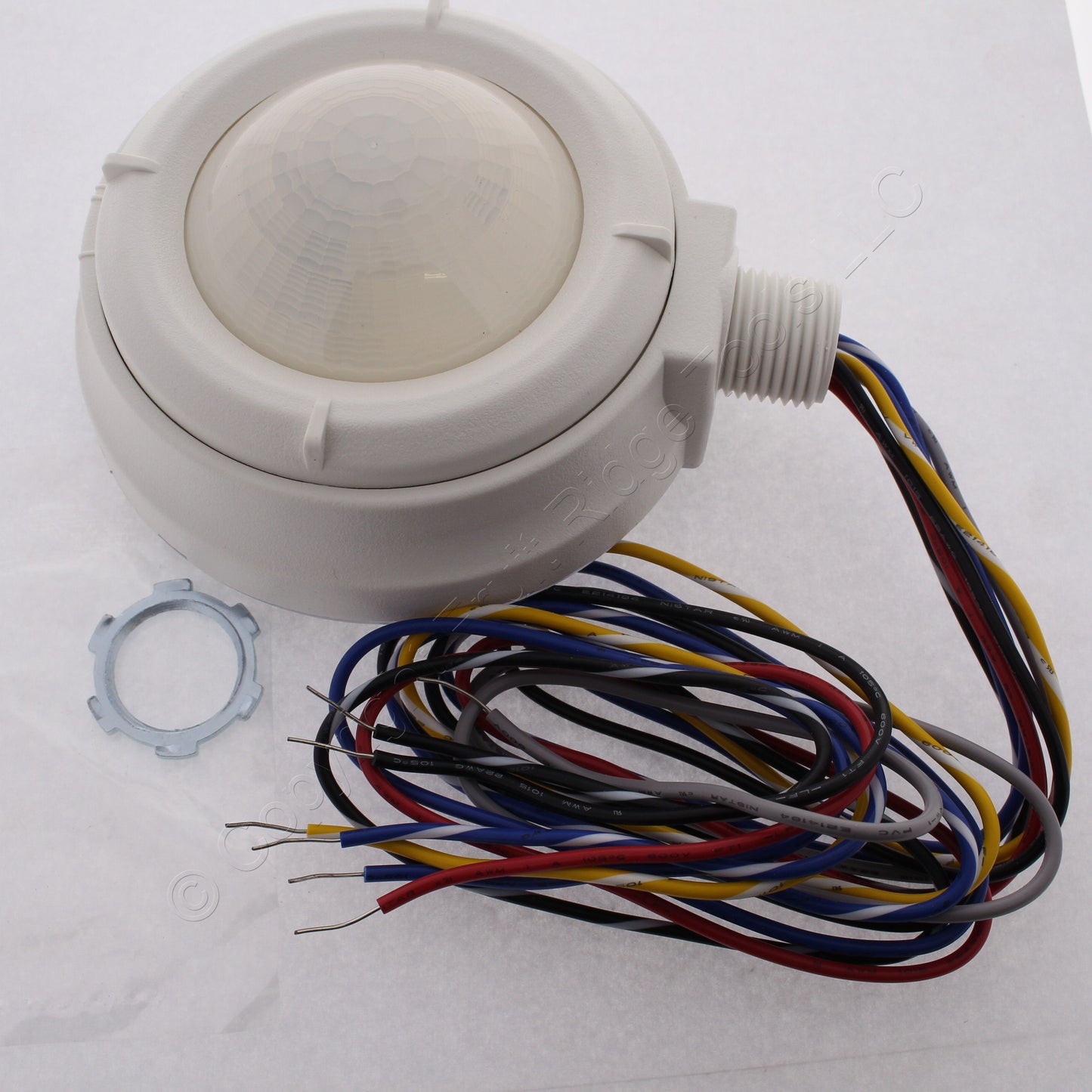

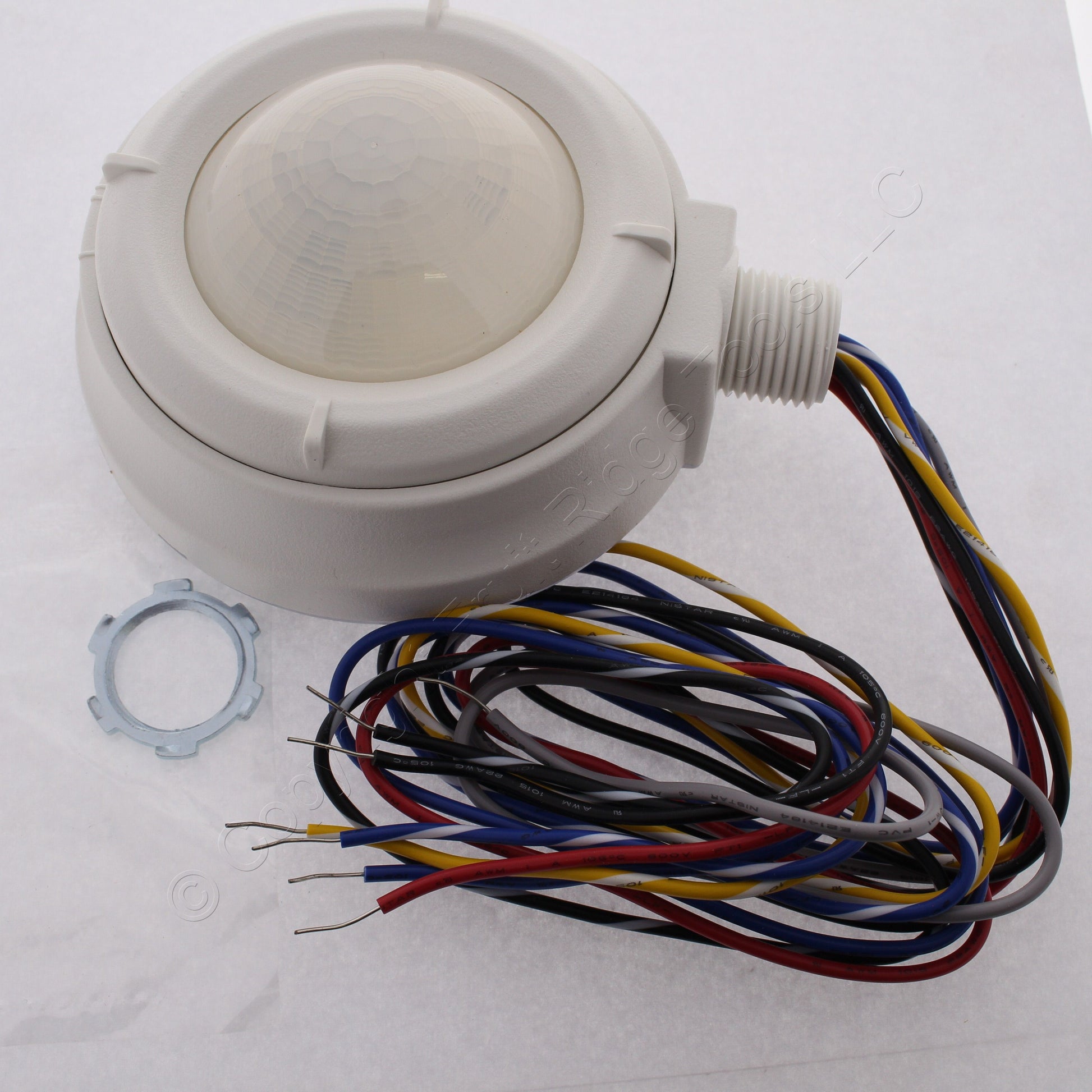

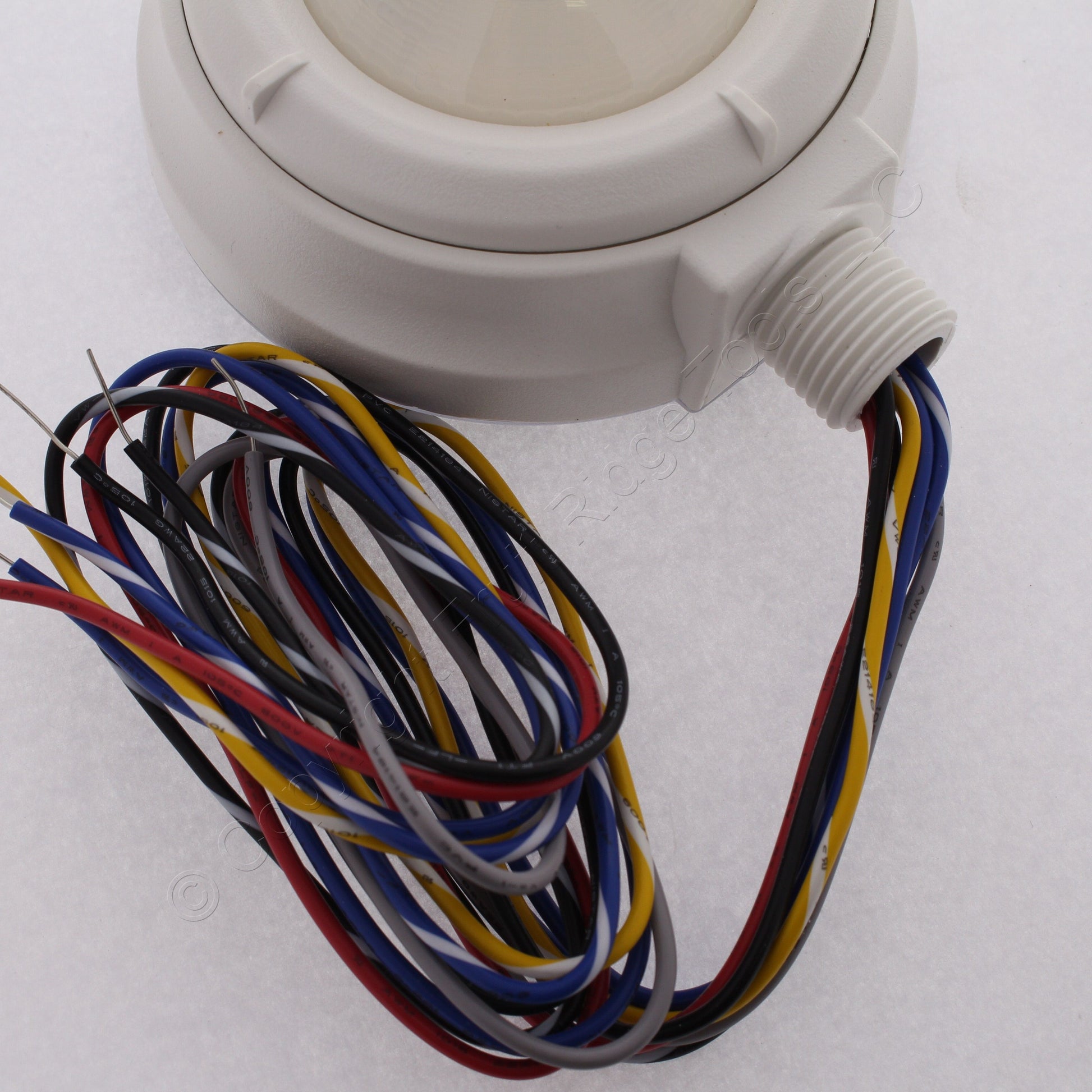

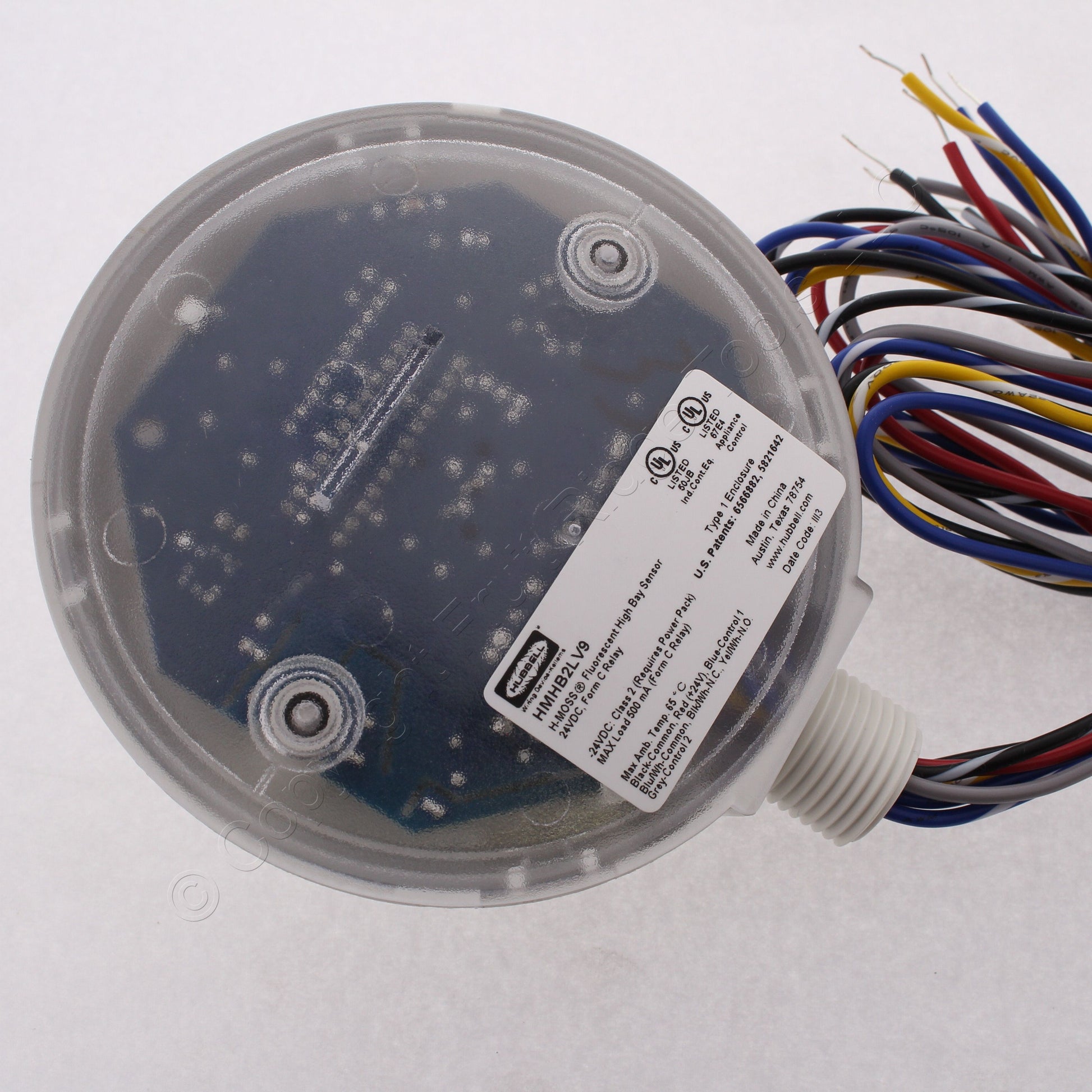

Bryant/Hubbell MSHB2LV9 white ceiling occupancy sensor (Bryant is a division of Hubbell). Designed to be secured in the knockout at the end of a fluorescent fixture. Features include:
High bay design for use in spaces 16-45 feet high
Rated 24V DC - requires compatible power supply (sold separately) - for use with MSCUHD (120/277V AC, 50/60Hz) control unit
360 degree field of view
Coverage radius: 1.1-1.4 x height, depending on height

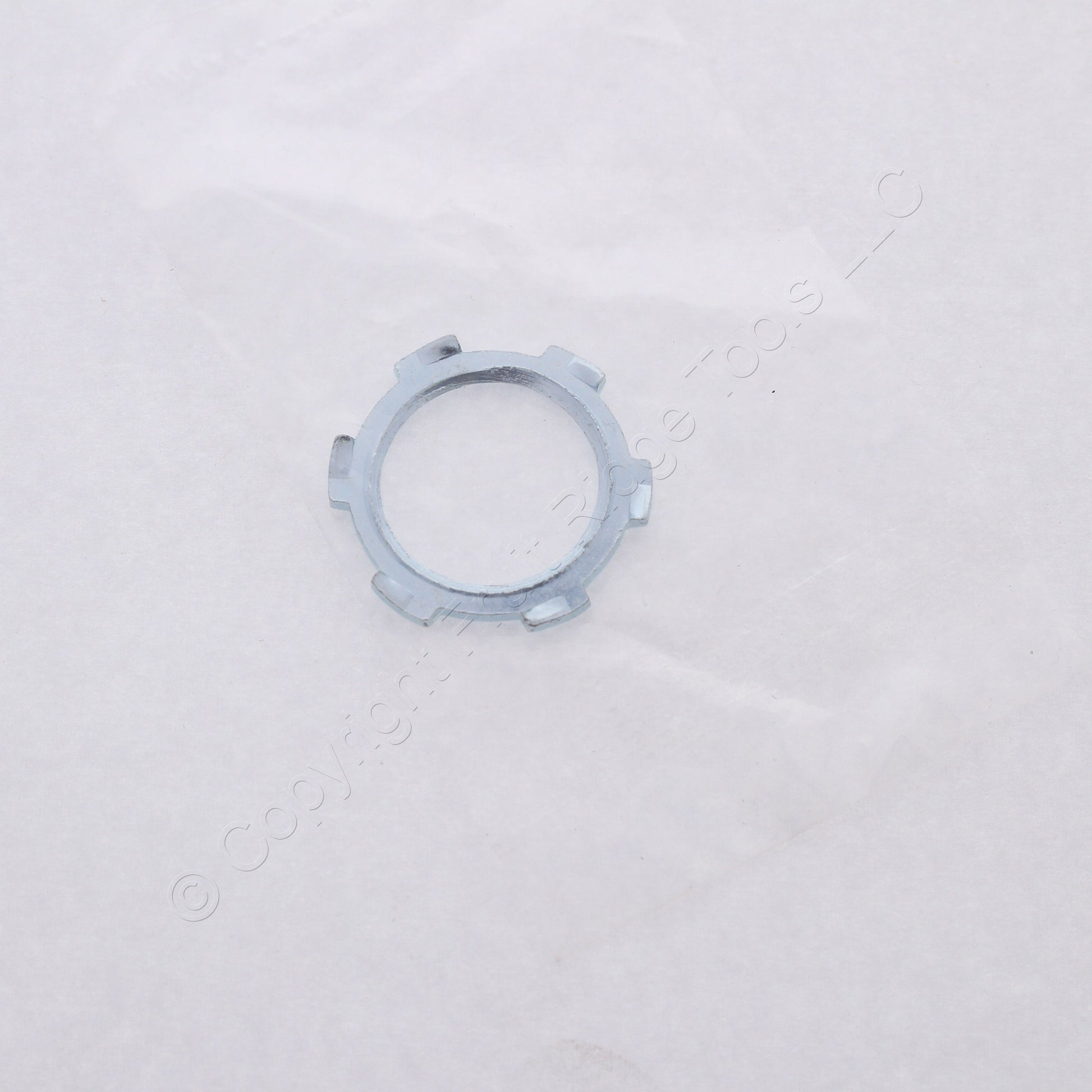

Mounts directly to end of a fixture through an extended 1/2 inch chase nipple for deeper body fixtures, an optional Extender Adapter (MSHBSA available separately) positions the sensor flush or below the bottom of the reflector for a full field of view
Integrated photocell to detect when light activation is not required because there is adeqaute ambient light
Size: 4.0" diameter x 1.5" high
Timer settings: 8-second test mode, 4, 8, 16 and 30 minute timeouts
