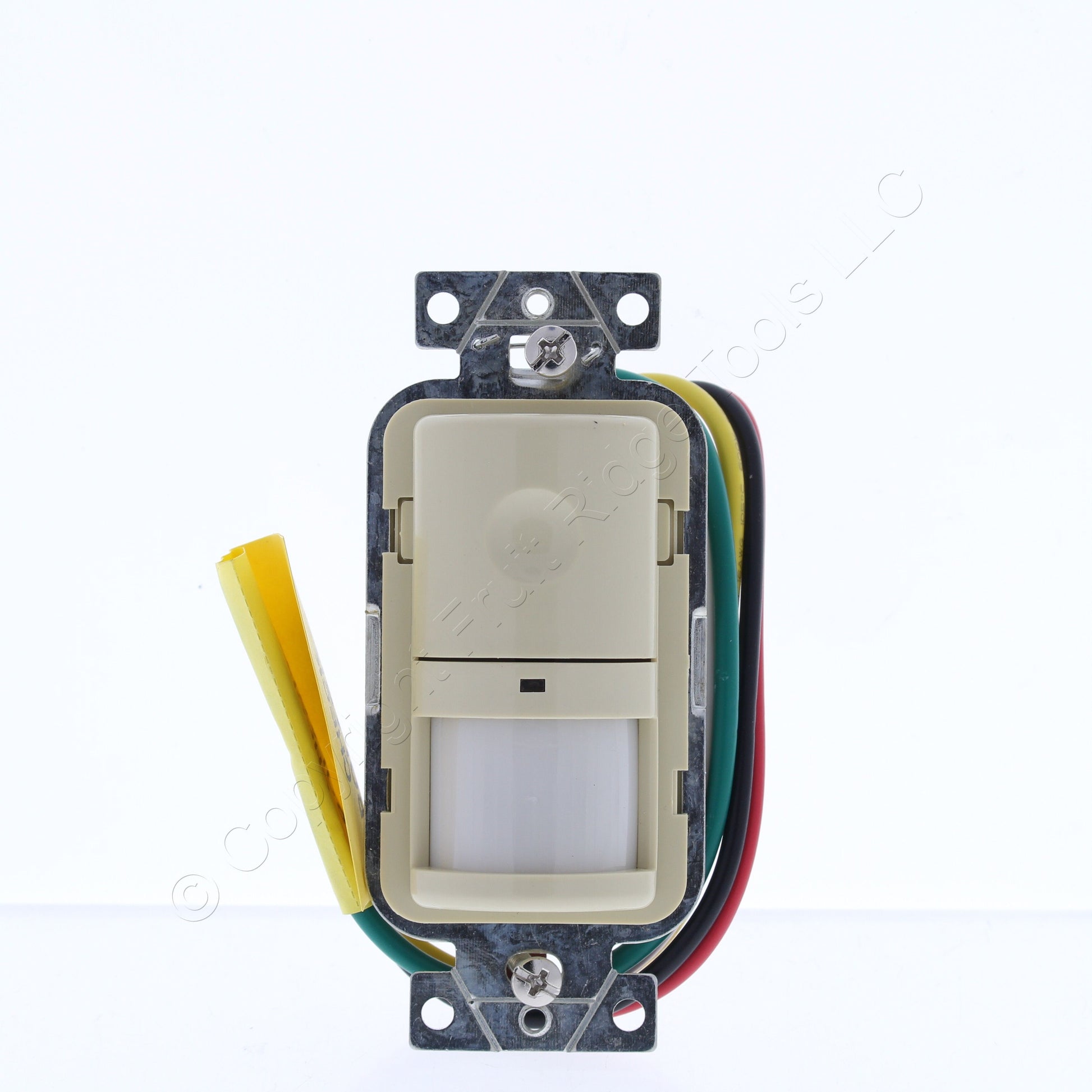

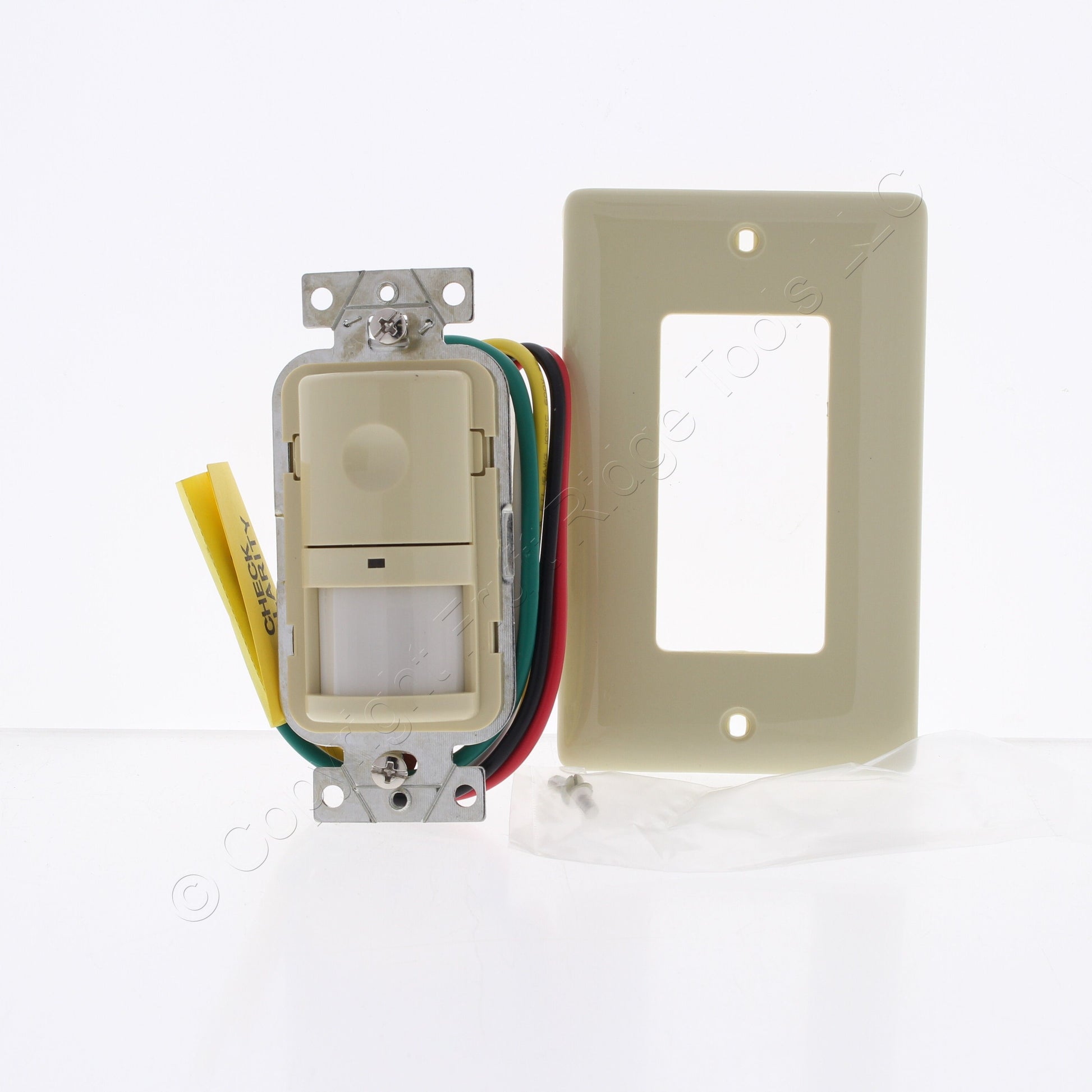

Bryant/Hubbell MS2004NI ivory passive infrared occupancy sensor switch (Bryant is a division of Hubbell). Requires a clear, unobstructed line of sight for detection because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones; movement across zones is interpreted as occupancy. Excellent for small room control. Features include:

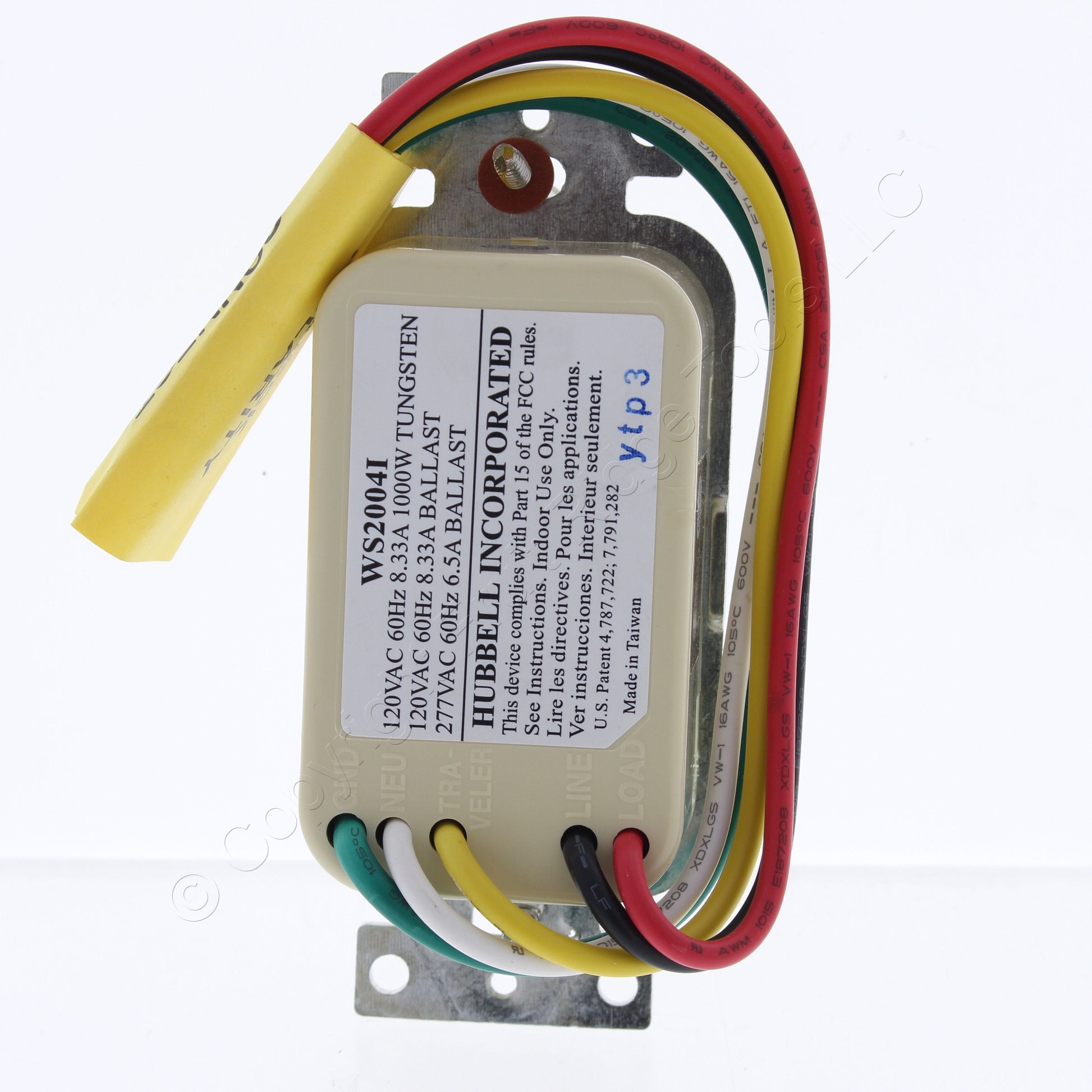

Neutral wire is required (this allows it to work with LED and CFL bulbs); check your electrical box before ordering
Works with LED and CFL bulbs
Automatically turns lights on when motion is sensed; can also be turned on manually with push button at front
3-way capable
Manual adjustment time delay (20 sec. to 30 min.)
Nightlight to provide minimum illumination when the lights are off
Designed for use on 120V AC or 277V AC circuits, no neutral needed for fast retrofits
Heavy duty relay controls up to 1000 watts at 120V AC or 1800 watts at 277V AC
Front press switch allows the occupant to switch the sensor from automatic operation to momentary OFF mode
Photocell can prevent lights from turning ON with sufficient natural light
High density 1200 square foot 180 degree coverage with tough tamper-resistant lens
Steel mounting strap
Tamper-resistant push button covers the time-out, service switch, vacancy and occupancy operation mode settings
