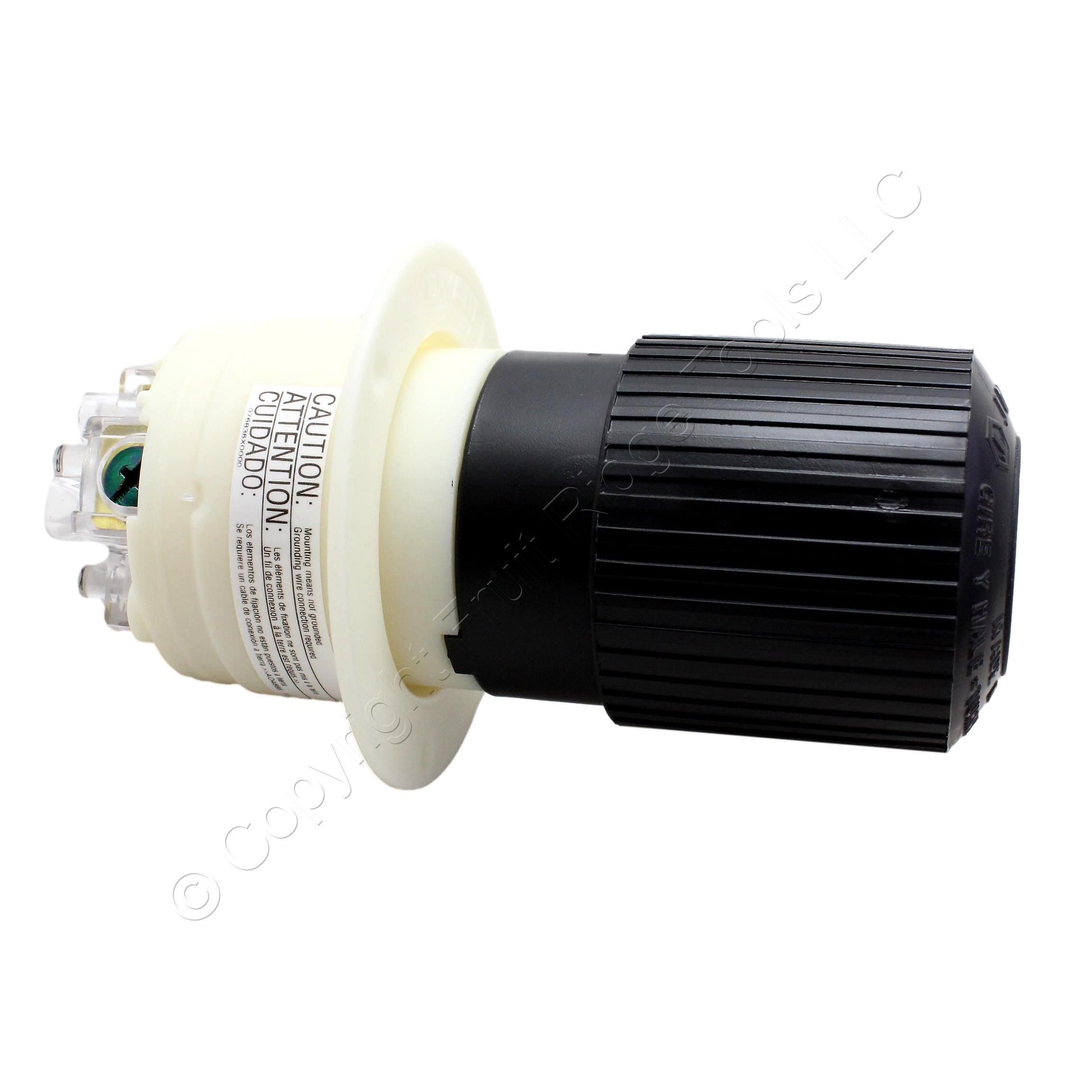

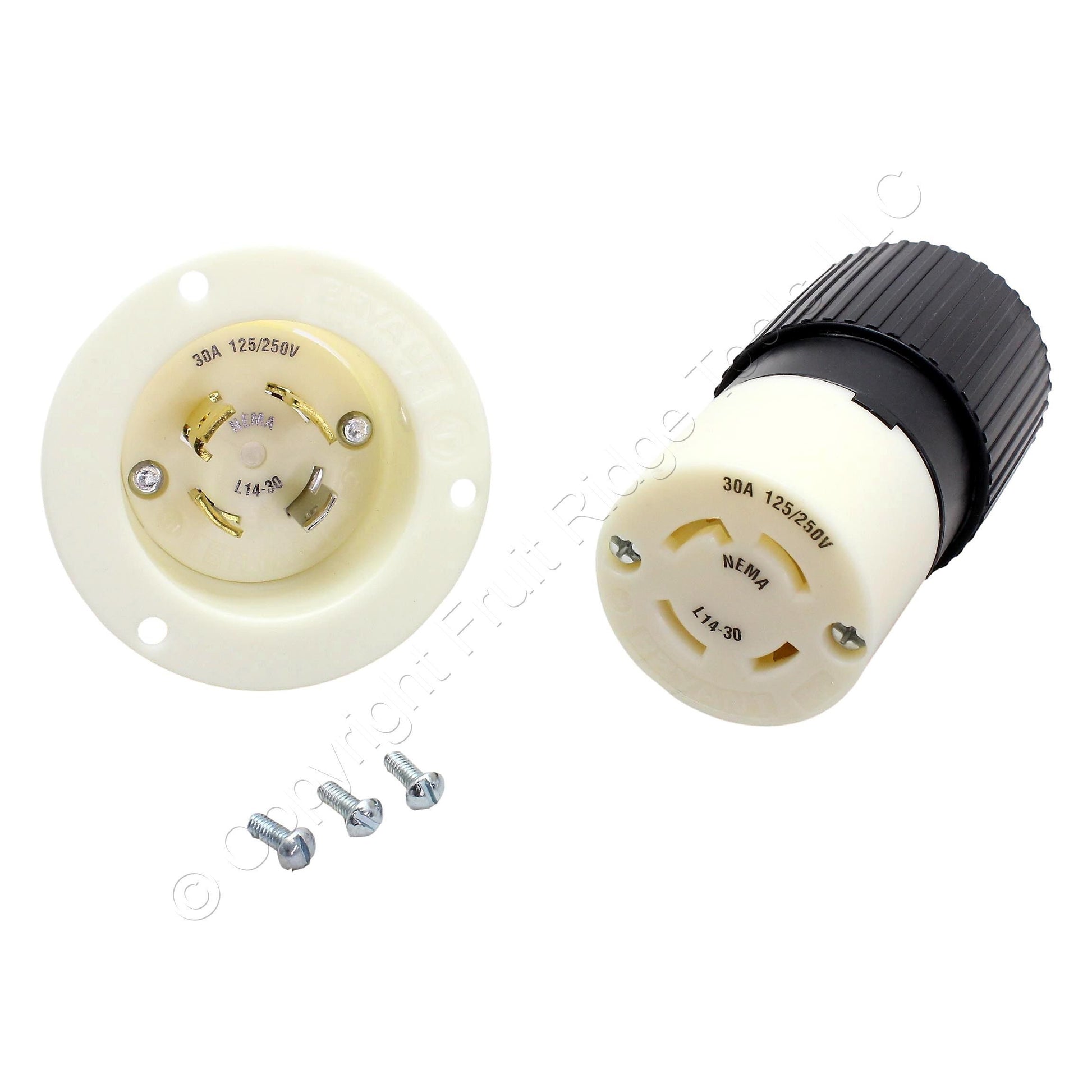

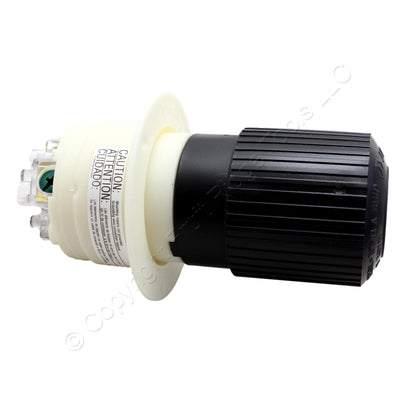

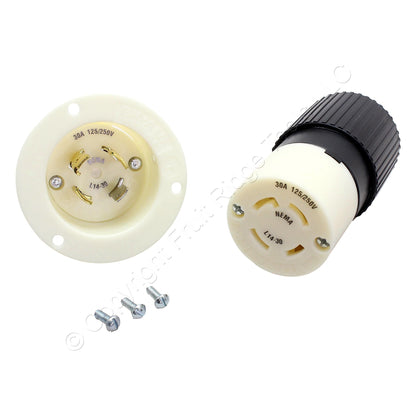

Bryant L14-30 71430MB Locking Flanged Inlet & 71430NC Twist Lock Connector Plugs

Bryant 71430NC locking connector and 71430MB flanged inlet - also known as a motor base or reverse feed receptacle (Bryant is a division of Hubbell). Tech-Spec Industrial Grade, NEMA L14-30, 3-pole, 4-wire, grounding, rated 30A 125/250V. Cord capacity: .465-1.150". Each is individually packaged; packaging may differ from photo. Features include:

• Heavy duty .062" copper alloy contact plate provides excellent conductivity. High performance copper-alloy contacts have excellent spring retention properties and provide superior contact pressure. Clamp-type terminals have .078" over-sized clamp nut with undercut for secure retention of conductor

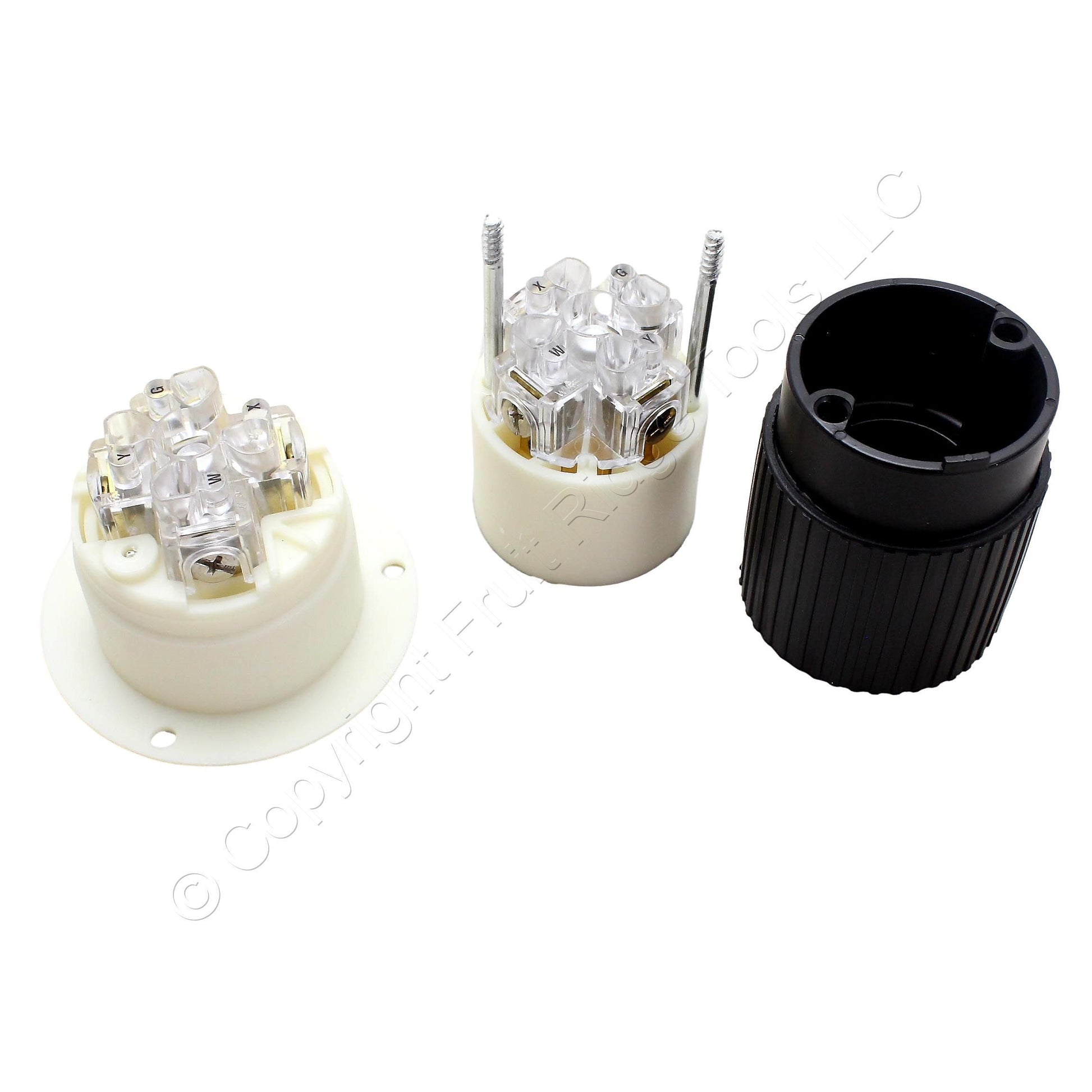

• Transparent terminal cover with extended "teardrop" wiring pockets - provides good visibility and proper wire separation in the assembled plug
• Internal self-centering Triple-Gripper cord grip with "radius teeth" design provides secure cord retention
• Amperage, voltage, and NEMA line number imprinted on face for easy identification
• Face and body have contrasting key for easy assembly
• Hand grip features wide-rib, non-slip design with industrial black matte finish
• Impact/chemical-resistant toughened nylon construction
• Double wall construction
• EDPM dust seal surrounds cord, helping to prevent moisture and contaminants from entering wiring chamber
• Tapered cover eliminates snagging
• Captive combination Phillips/slotted terminal and assembly screws come backed out for easy assembly
