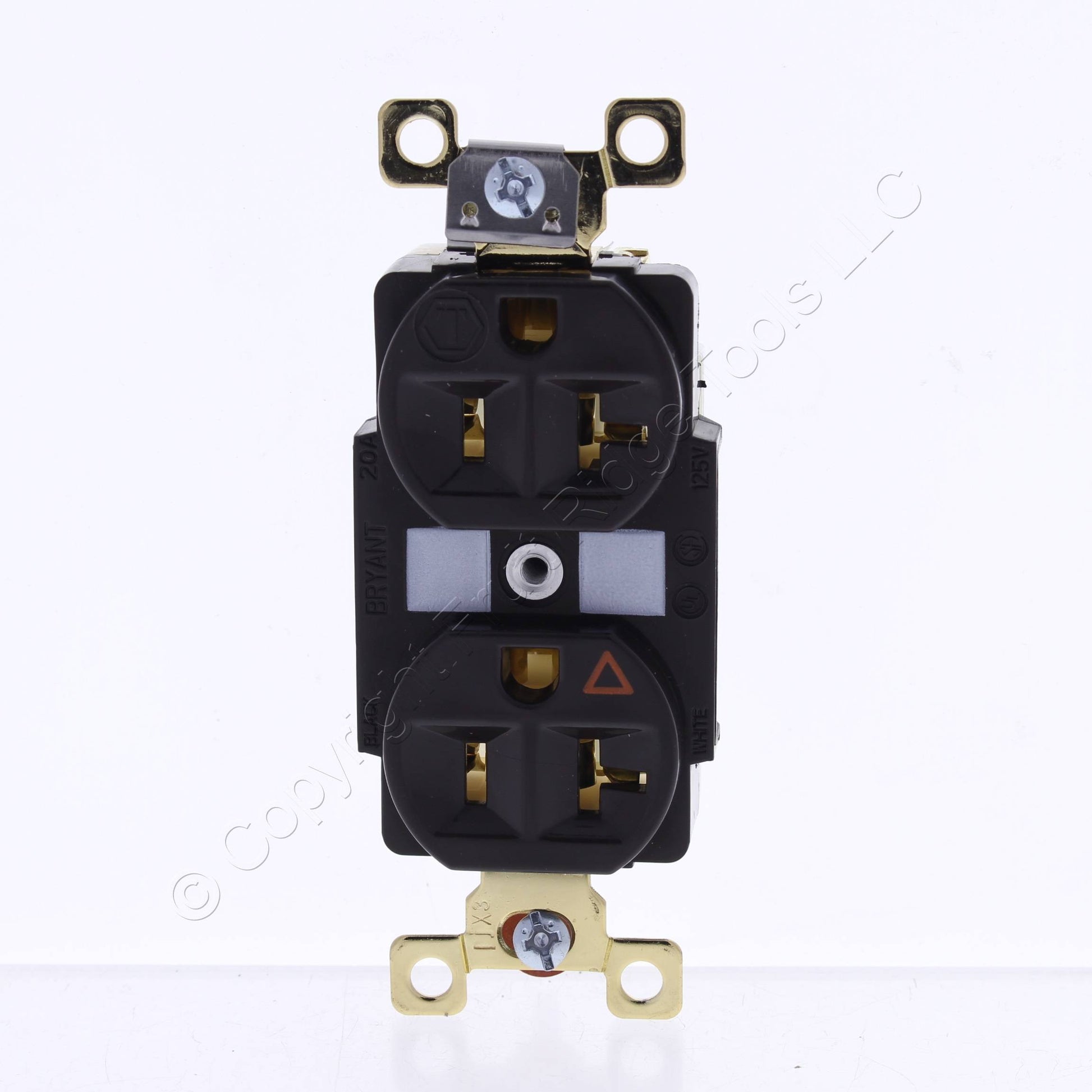

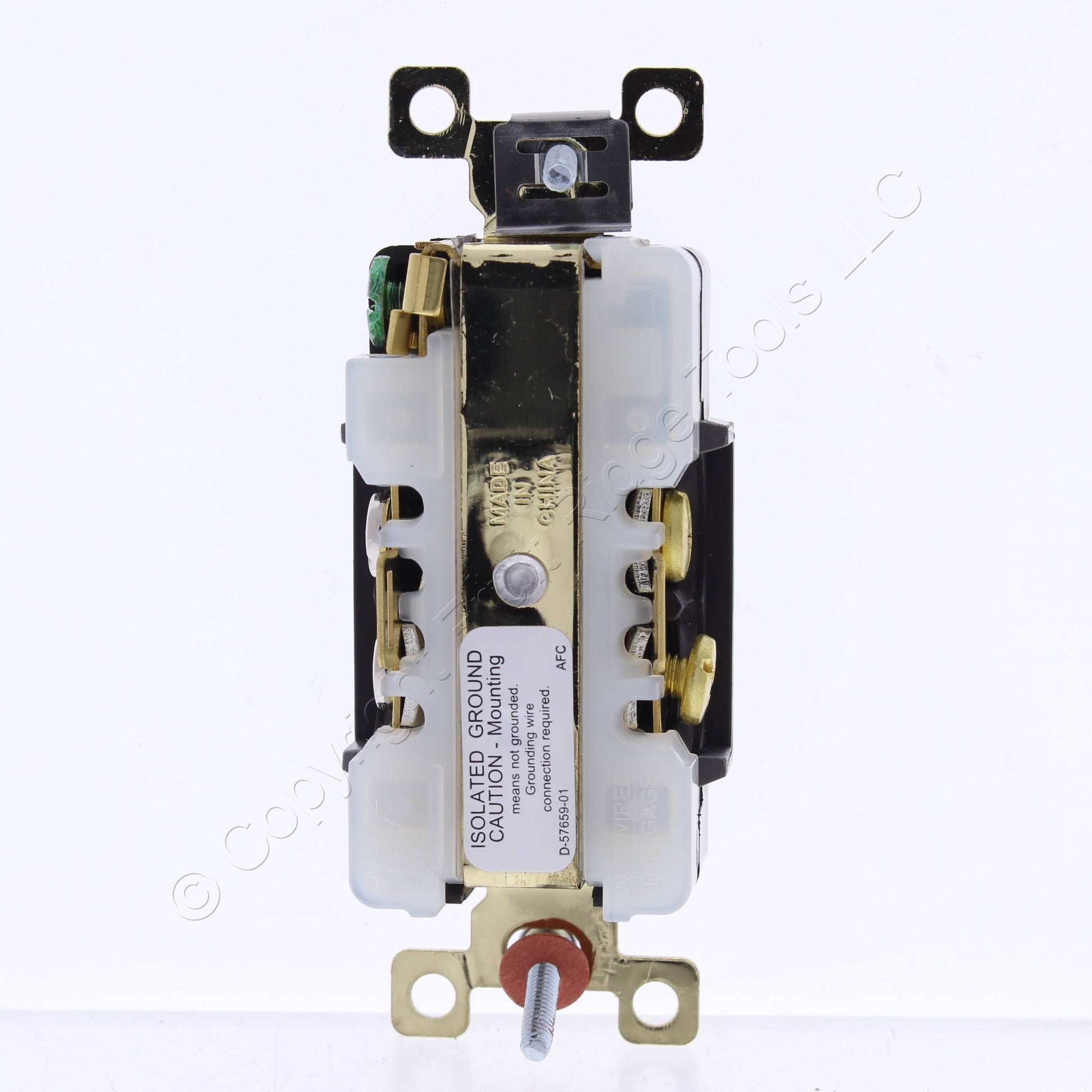

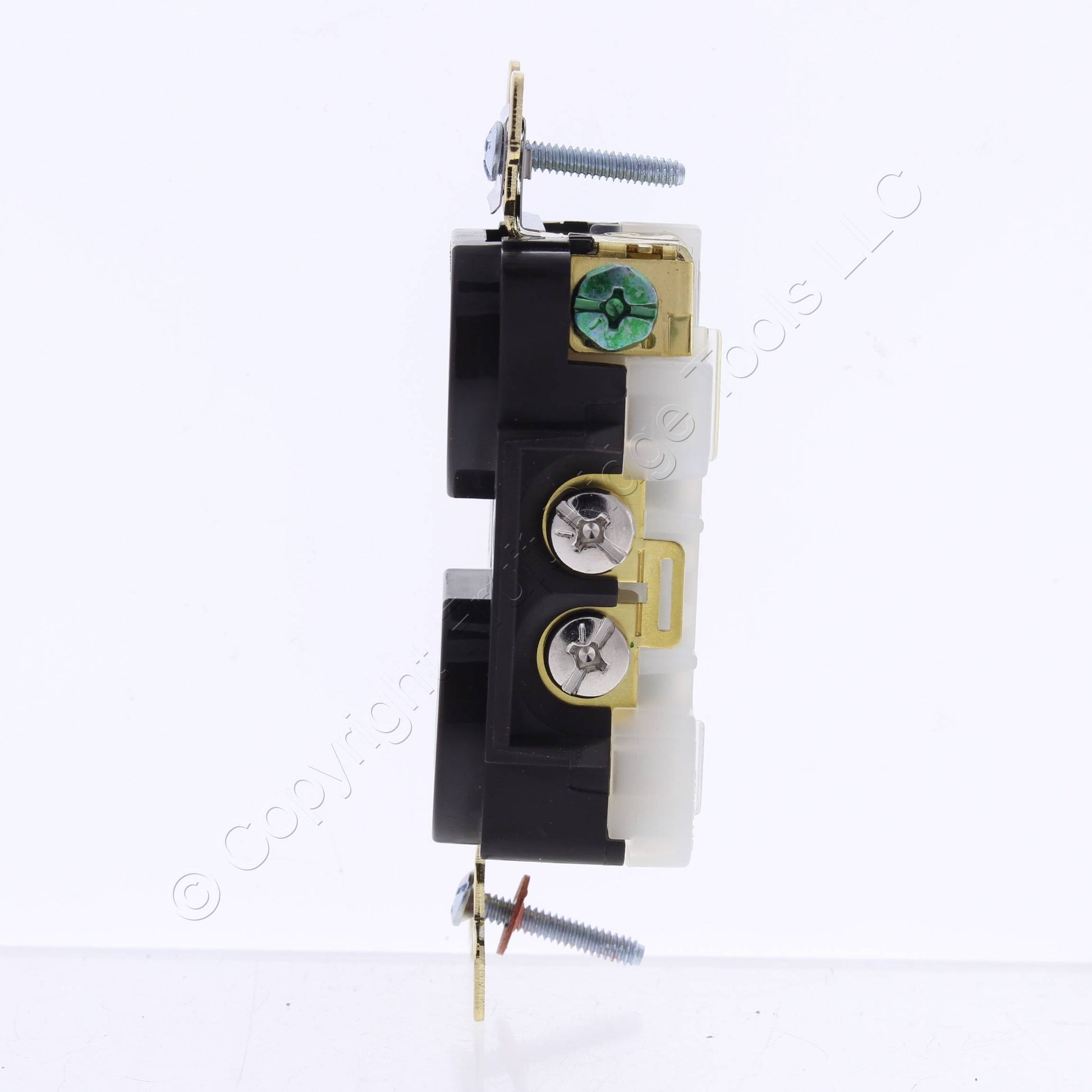

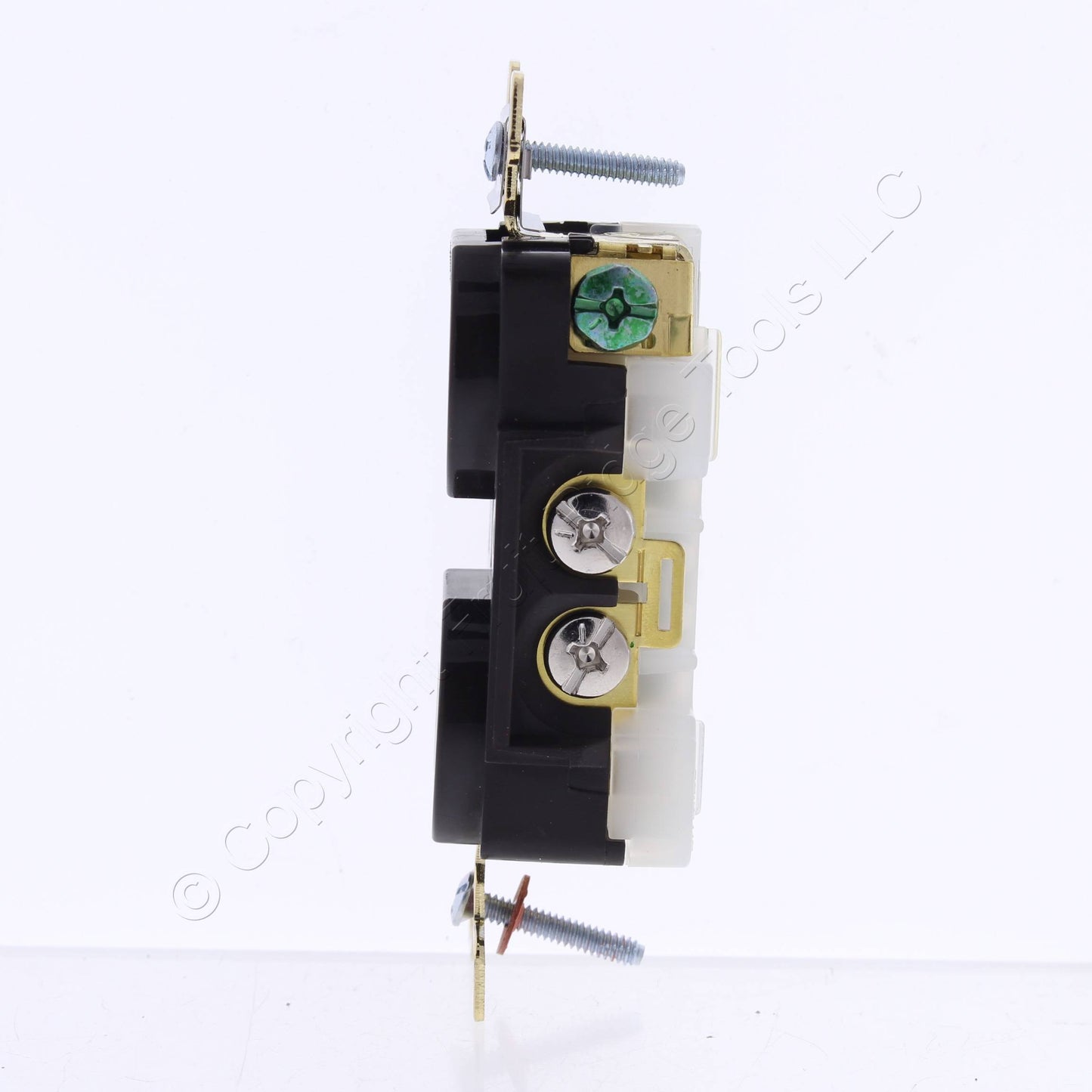

Bryant Hubbell Brown Isolated Ground Industrial Receptacle Outlet 20A BRY5362IGB

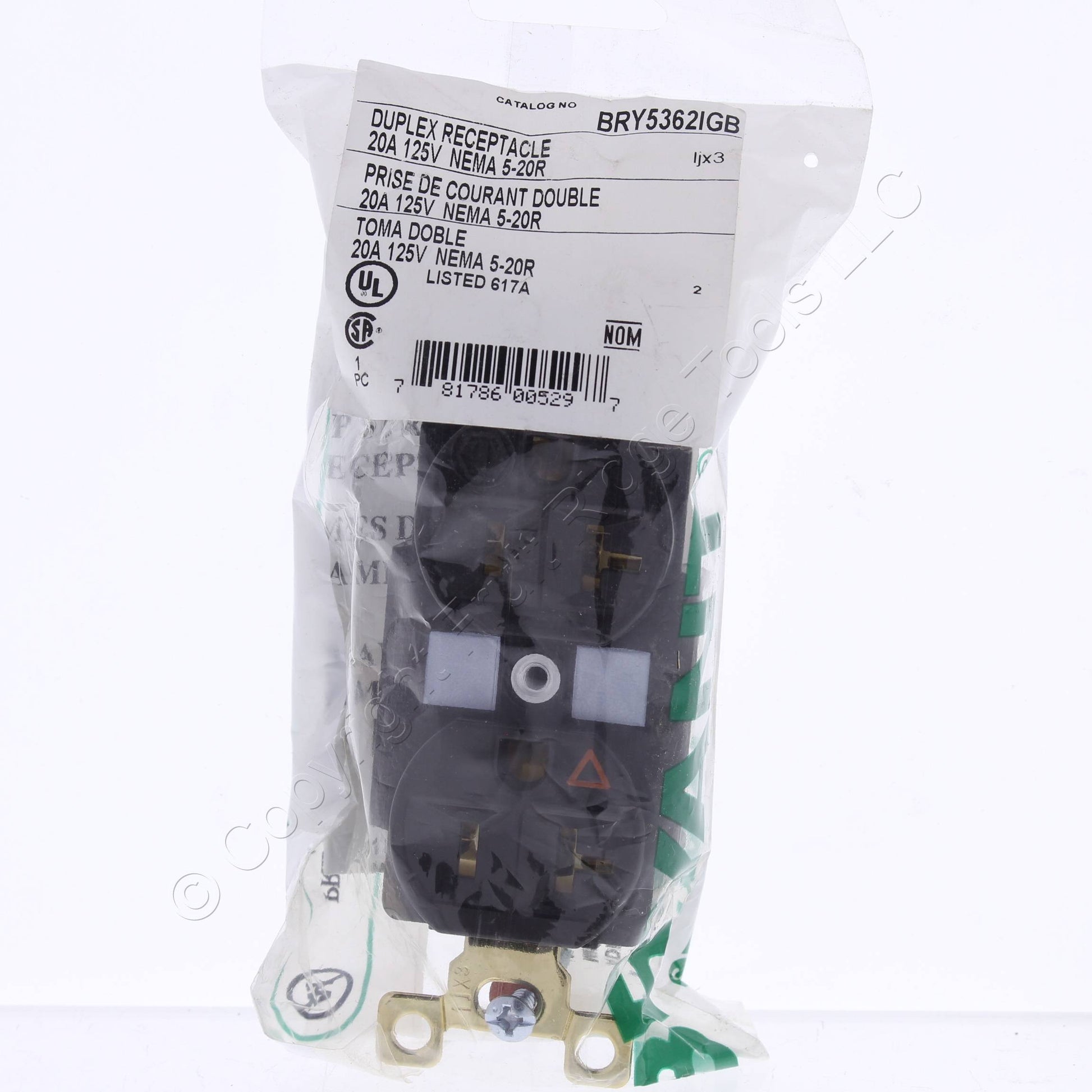

Bryant/Hubbell BRY5362IGB brown straight blade isolated ground receptacle (Bryant is a division of Hubbell). Tech-Spec Industrial Specification Grade, NEMA 5-20R, 2-pole, 3-wire, isolated ground, rated 20A 125V. Isolated ground devices have a grounding terminal that is electronically isolated from the strap to eliminate electrical interference (noise) in grounding networks that can cause problems in modern electronics. Each is individually packaged; packaging may differ from photo. Features include:

• Extended barrier (shroud) on sides of cover surround wire terminals for added insulation and isolation of conductors
• Heavy-duty 0.050" steel yoke is wrapped around receptacle and locked in place for maximum mechanical strength and security
• Back wiring: eight wiring pockets for convenient feed thru wiring, clamp-type terminals accept up to #10 wire
• Terminal screws: brass combination Phillips/slotted/Robertson binding head accepts up to #10 wire
• Approved for CU wire only
• Large green, combination Phillips/slotted/Robertson hex head grounding screw
• Back wire ground clamp for quick and convenient wiring
• Center splined bushing interlocks with receptacle body to prevent rotation when fastening wall plates
• Easily accessible break-off tab for two-circuit wiring
• High-performance brass line contacts deliver excellent conductivity for low resistance, low heat rise. Triple-wipe design assures contact at three points on the plug blades. Superior spring properties and the rivetless, one-piece construction provide reliable, long-life blade retention
• Double-wipe brass grounding contacts
• Strip gauge for accurate wiring
• Washer-type, break-off plaster ears
• Thread cleaning captive mounting screws
