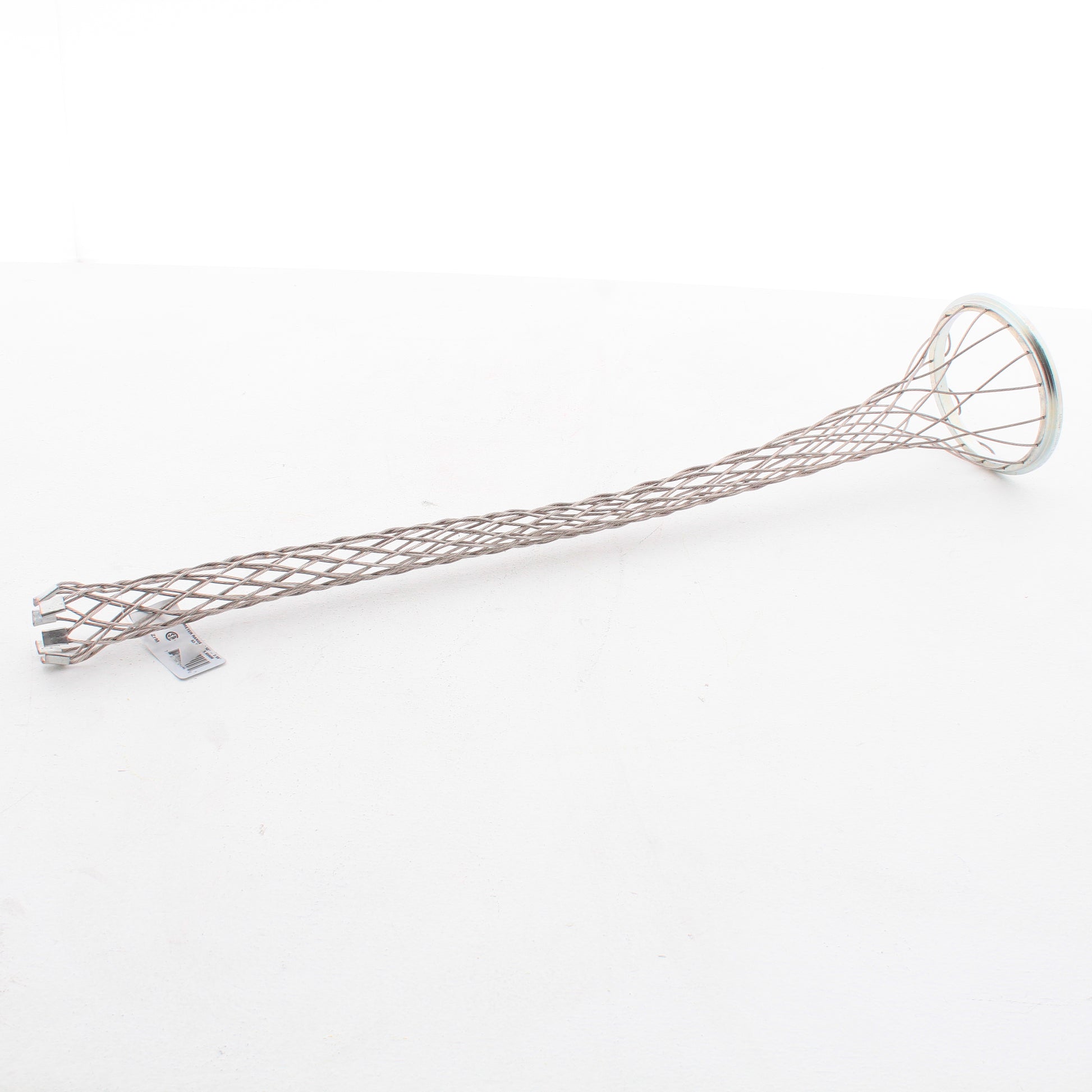

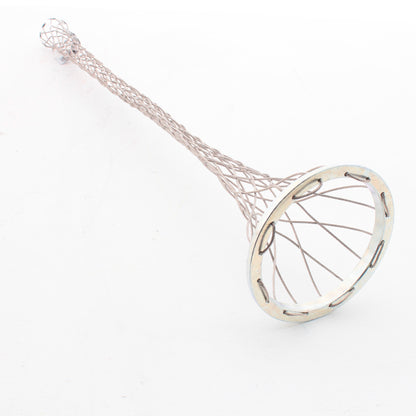

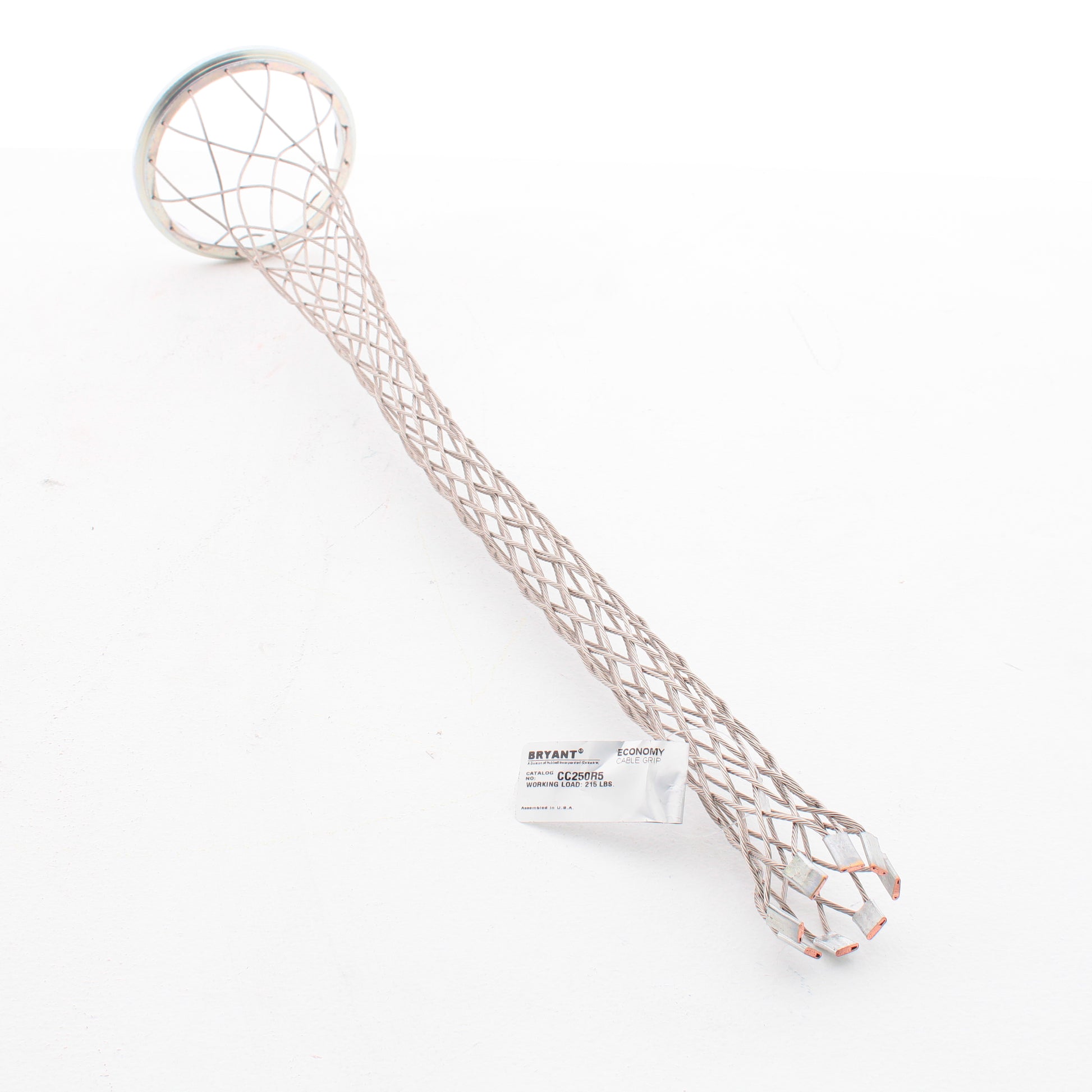

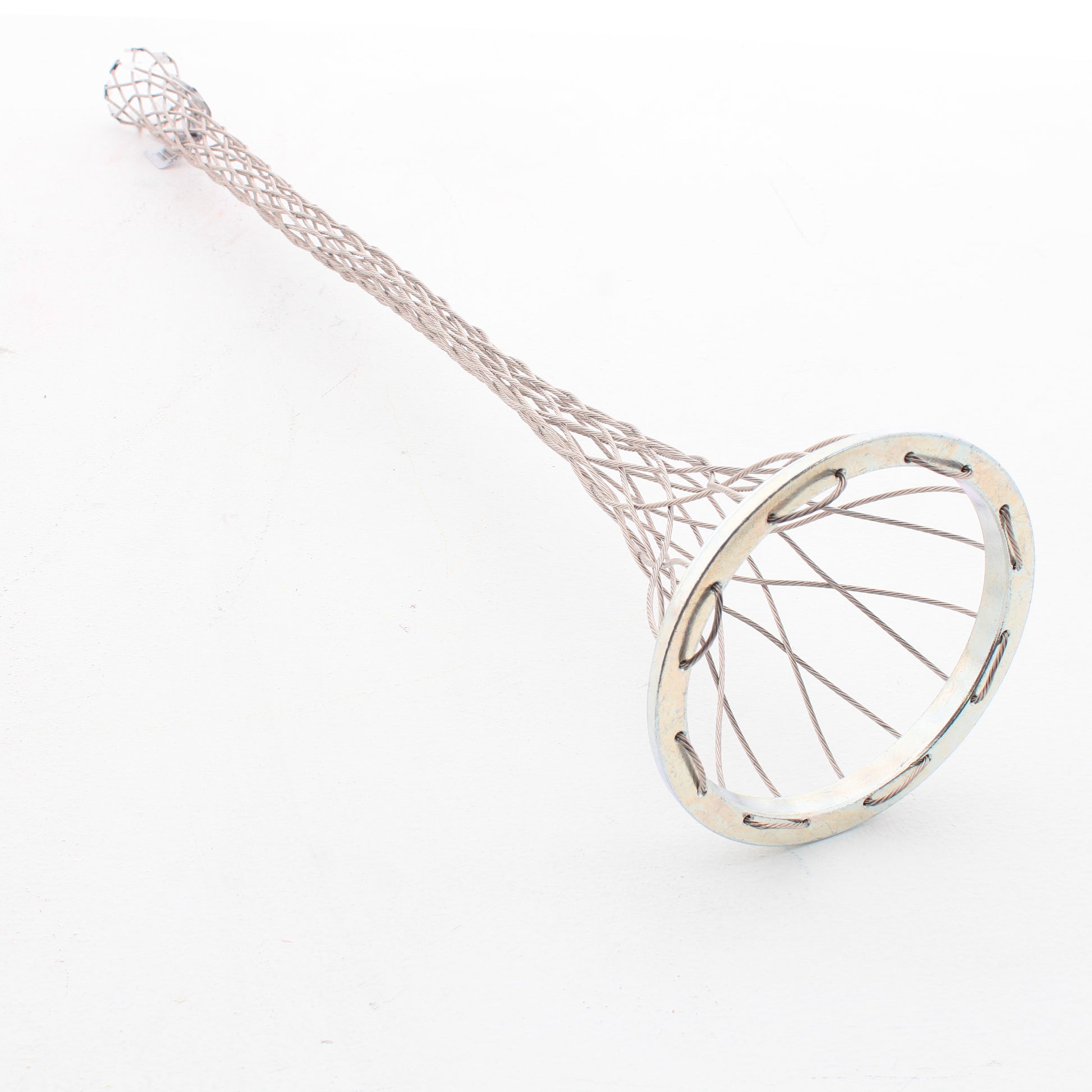

Bryant/Hubbell CC250R5 conduit riser grip. Used to support electrical wires inside rigid conduit via a supporting ring. Grip is permanently fastened to a support ring, resulting in a one piece unit which will allow air ventilation within the conduit. The ring will fit standard electrical rigid metal conduit and schedule 40 rigid PVC conduit only. Features include:
Conduit trade size: 5" nominal
Cable diameter range: 2.50"-2.99"
Approximate breaking strength: 2,160 pounds
Working load: unknown
Wire mesh length: 18"
Tin-coated bronze for added corrosion resistance
Fits standard electrical rigid metal conduit and schedule 40 rigid PVC conduit only; not suitable for EMT conduit
Prevents strain on terminals by transferring weight to support rim of the conduit
Closed grip fits over cable end
For permanent support when cable end is available to be installed through grip.
Positive action mesh grip
Strand equalizer positions wires for equal loading throughout the entire grip length
