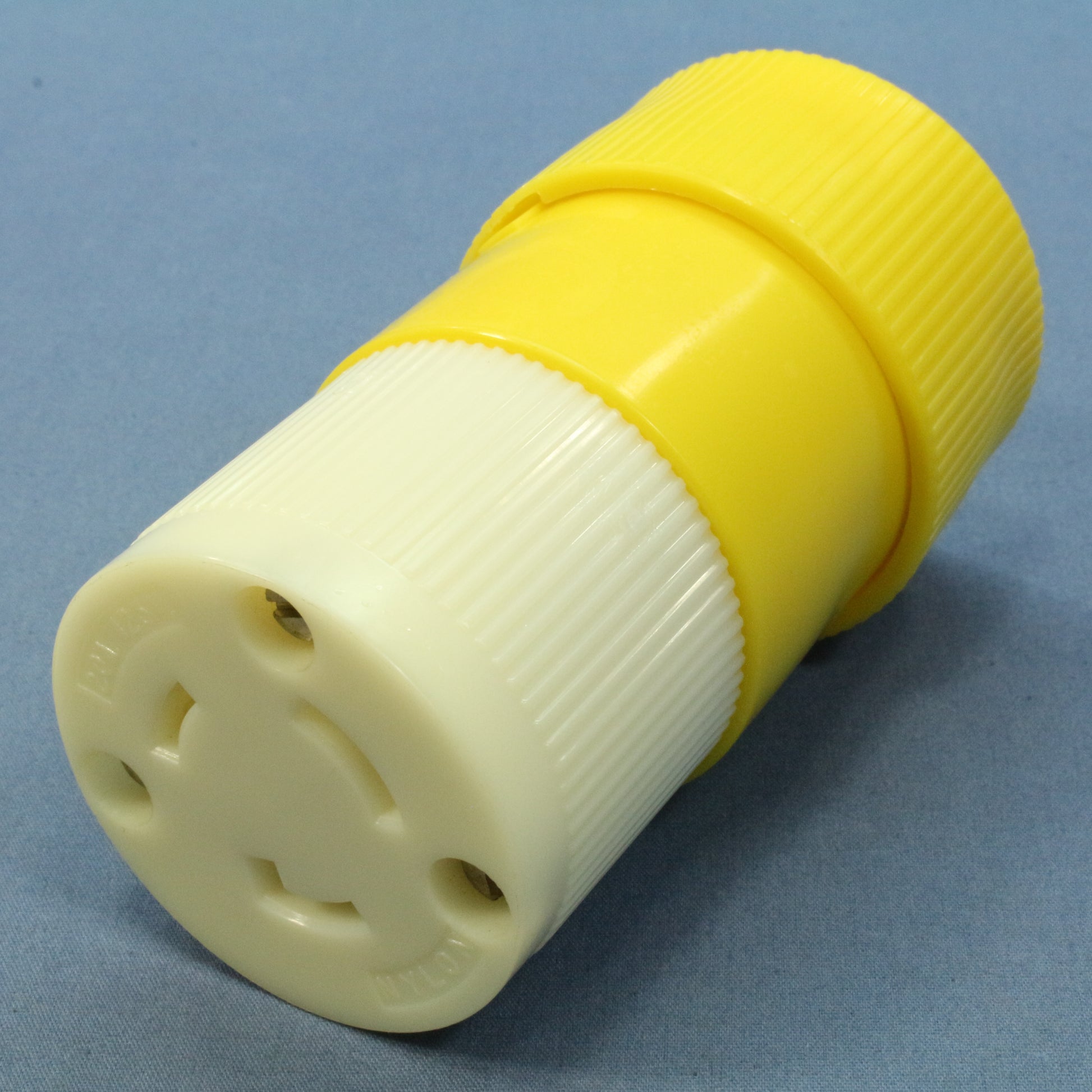

Bryant CORROSION RESISTANT Twist Turn Locking Connector L5-20R 20A 70520-NCCR

Bryant 70520-NCCR corrosion resistant locking connector. Industrial Specification Grade, NEMA L5-20R, 2-pole, 3-wire, grounding, rated 20A 125V. Cord grip range: .240"-.700". Terminals accommodate #18-#10 AWG. Bulk packed loose with no individual packaging or instructions. Features include:

• Heavy duty .062" copper alloy contact plate provides excellent conductivity. High performance copper-alloy contacts have excellent spring retention properties and provide superior contact pressure. Clamp-type terminals have .078" over-sized clamp nut with undercut for secure retention of conductor

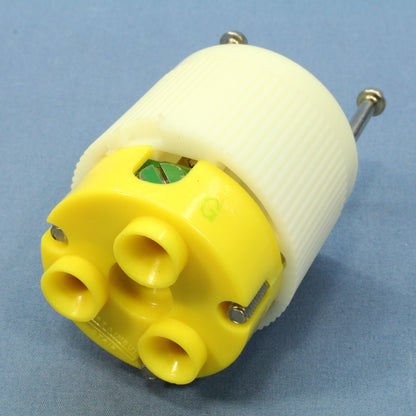

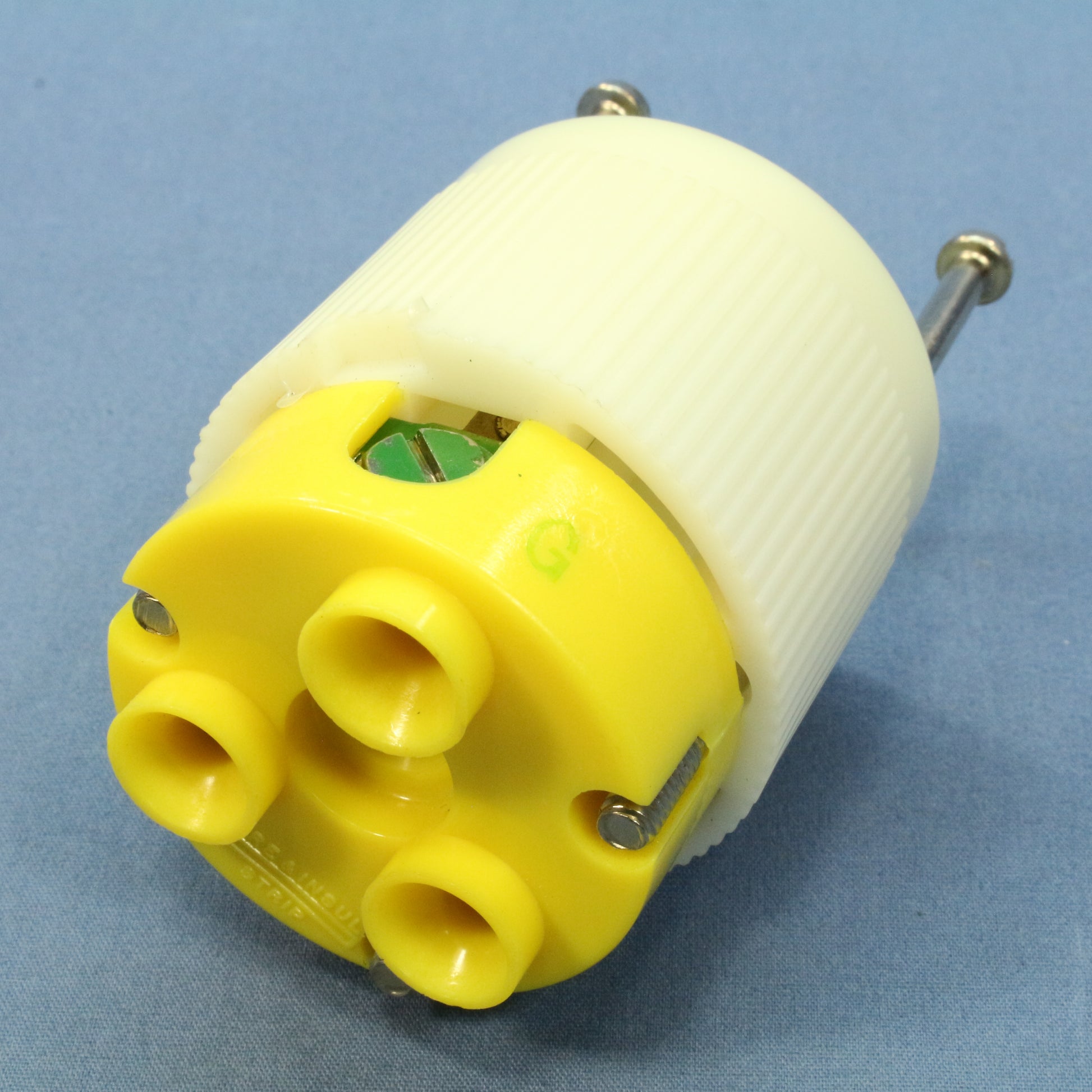

• Transparent terminal cover with extended "teardrop" wiring pockets - provides good visibility and proper wire separation in the assembled plug
• Internal self-centering Triple-Gripper cord grip with "radius teeth" design provides secure cord retention
• Amperage, voltage, and NEMA line number imprinted on face for easy identification
• Face and body have contrasting key for easy assembly
• Hand grip features wide-rib, non-slip design with industrial black matte finish
• Impact/chemical-resistant toughened nylon construction

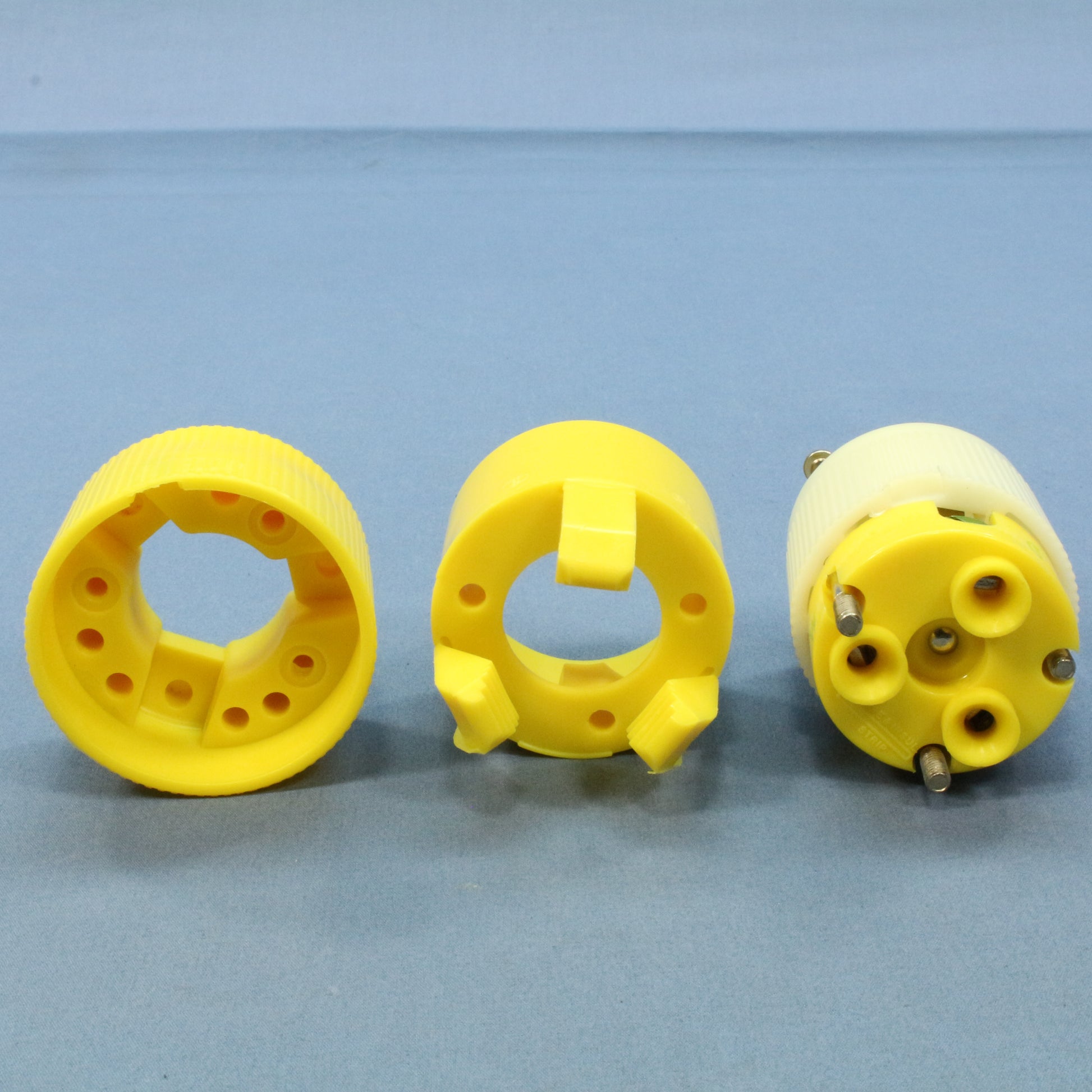

• Double wall construction
• EDPM dust seal surrounds cord, helping to prevent moisture and contaminants from entering wiring chamber
• Tapered cover eliminates snagging

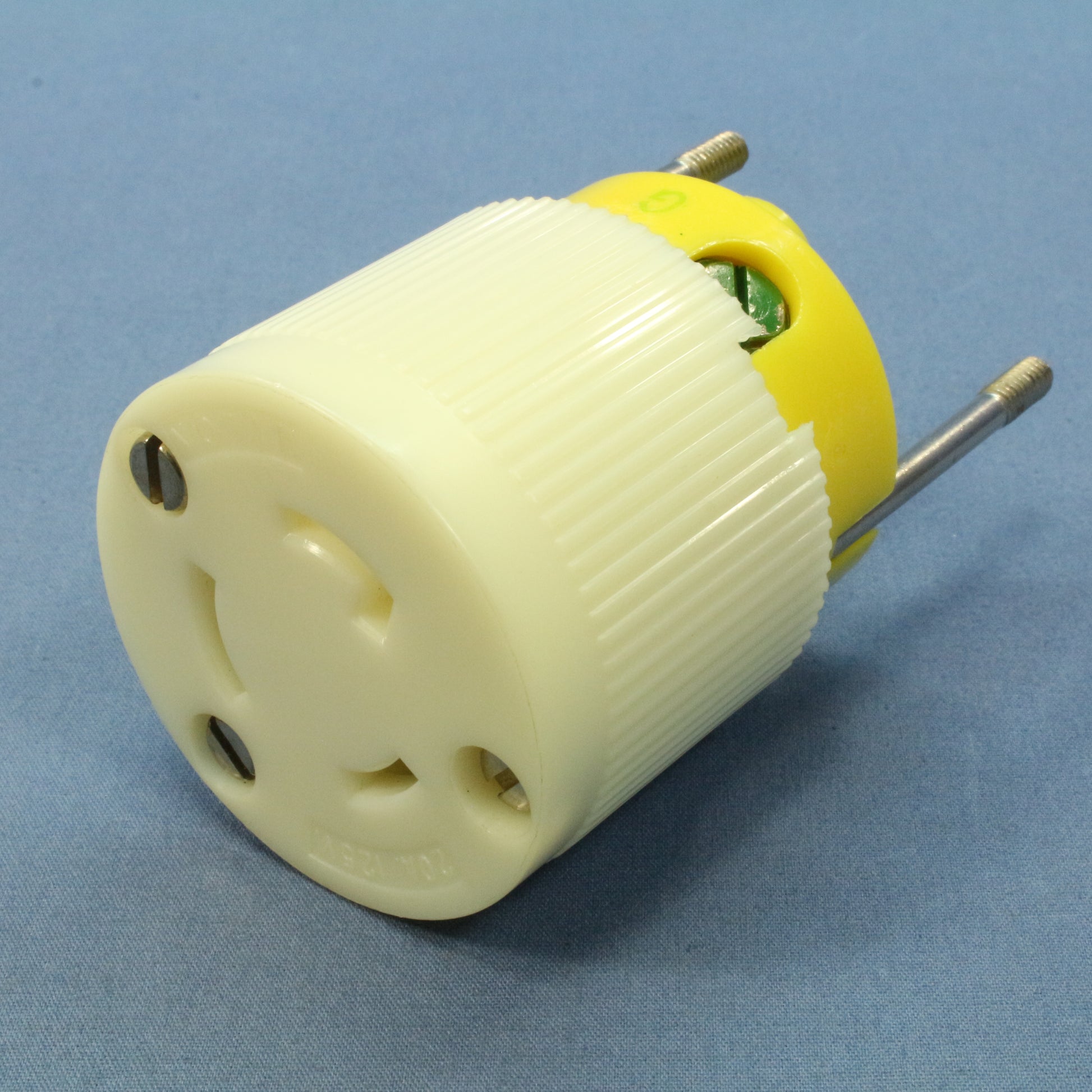

• Captive combination Phillips/slotted terminal and assembly screws come backed out for easy assembly
