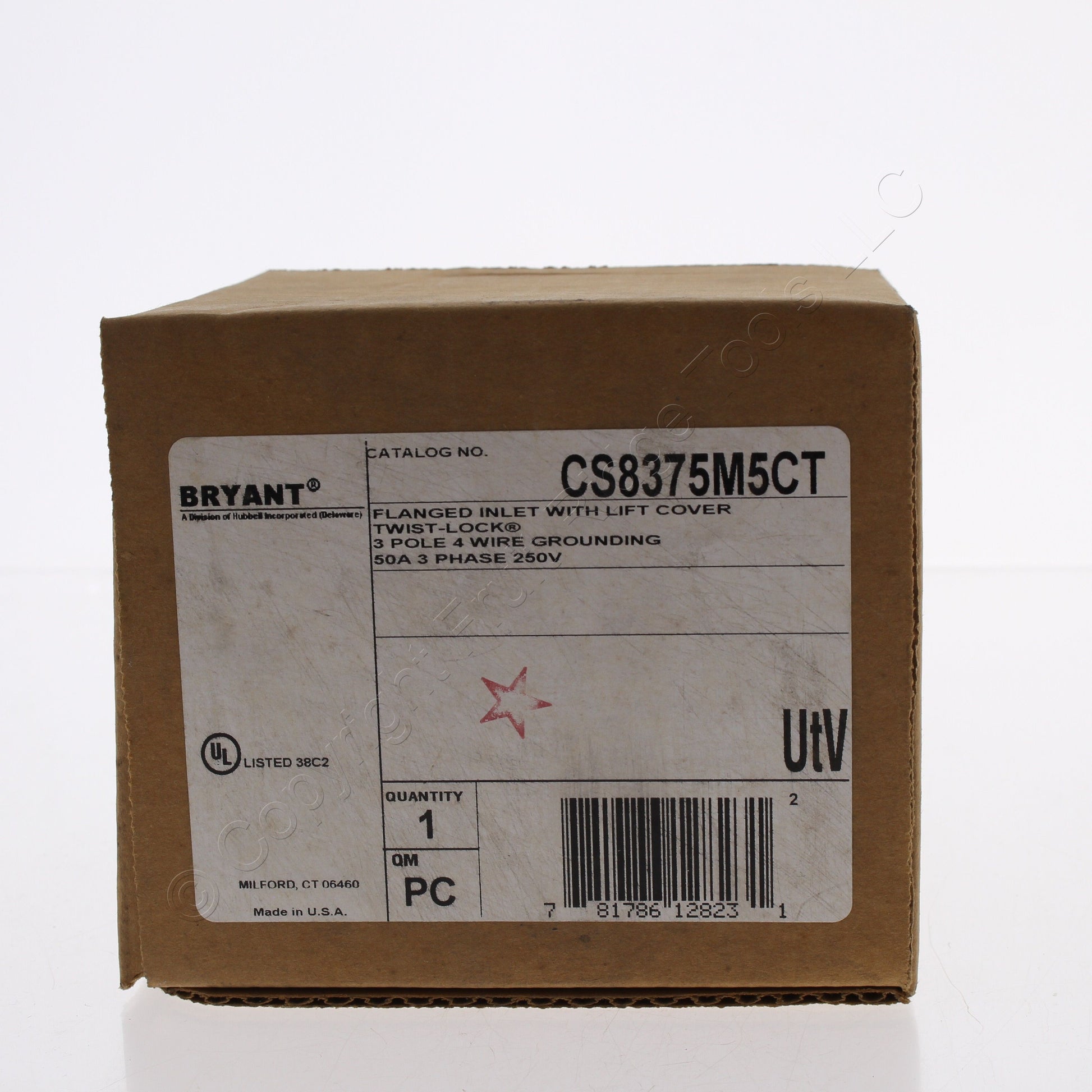

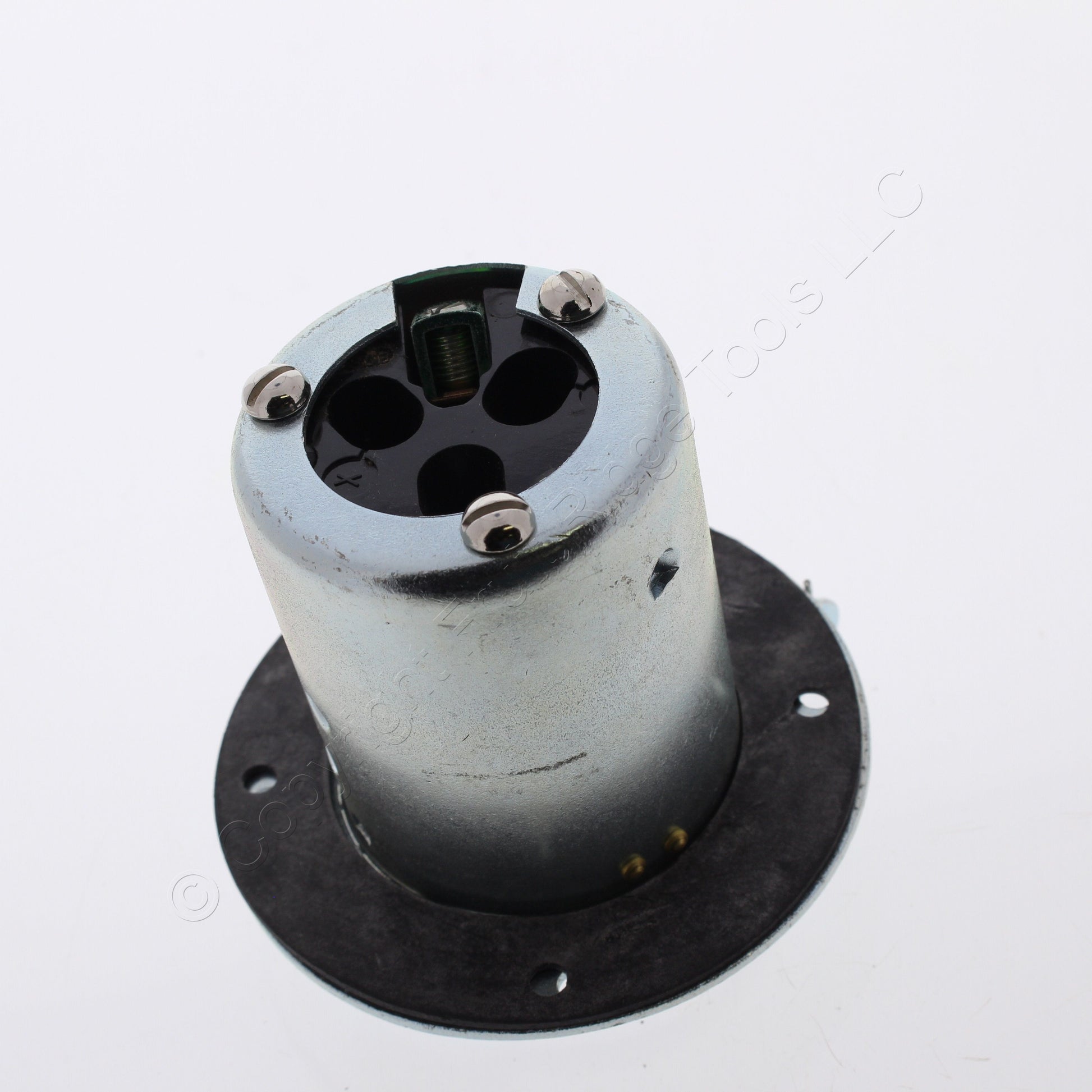

Bryant/Hubbell CS8375M5CT California Style ("CS") locking flanged inlet plug with hinged metal cover; also referred to as a male motor base or reverse service inlet (Bryant is a division of Hubbell). Industrial Grade, Non-NEMA (California Style), 3-pole, 4-wire, grounding, rated 50A 250VAC 3 phase. Each is individually packaged; packaging may differ from photo. Features include:

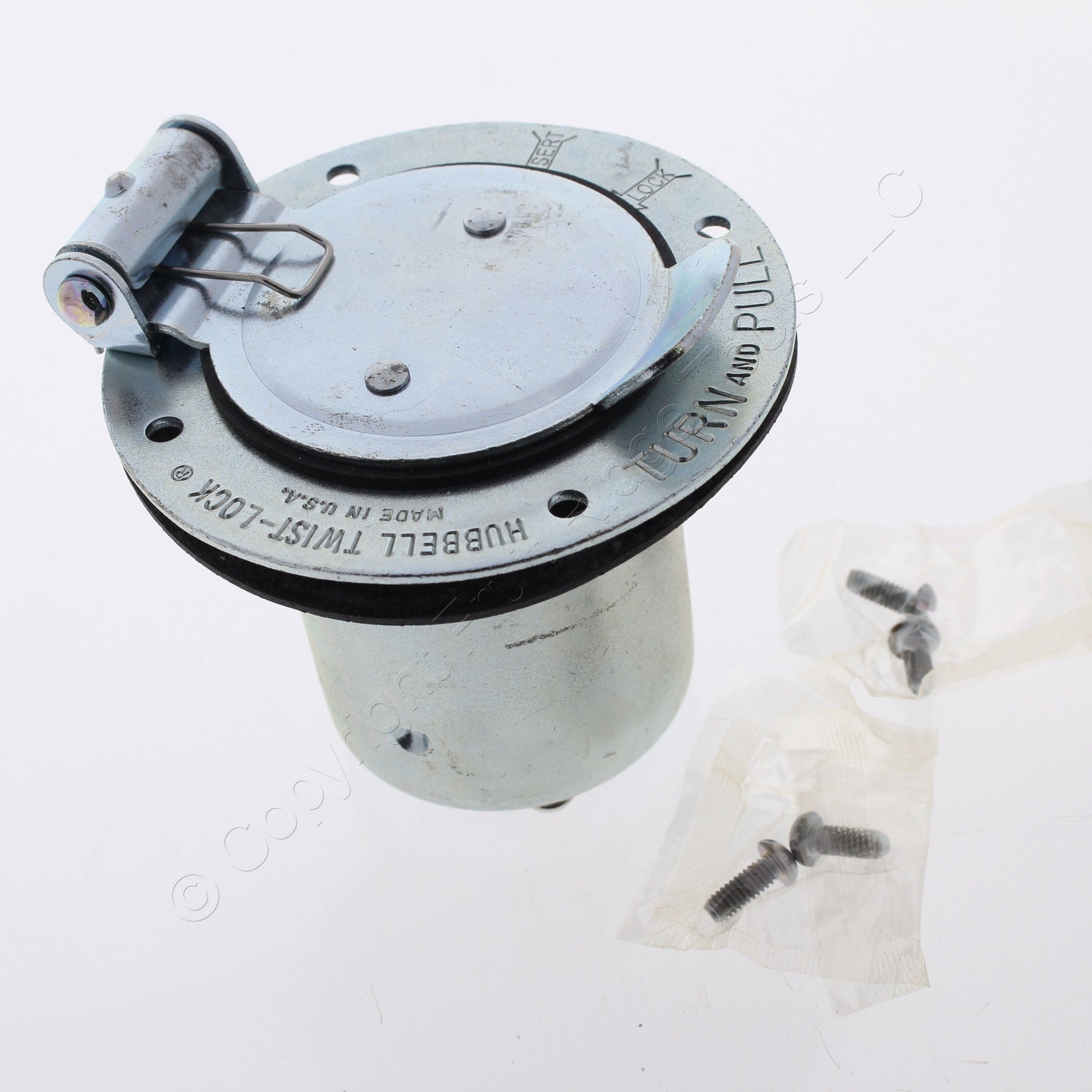

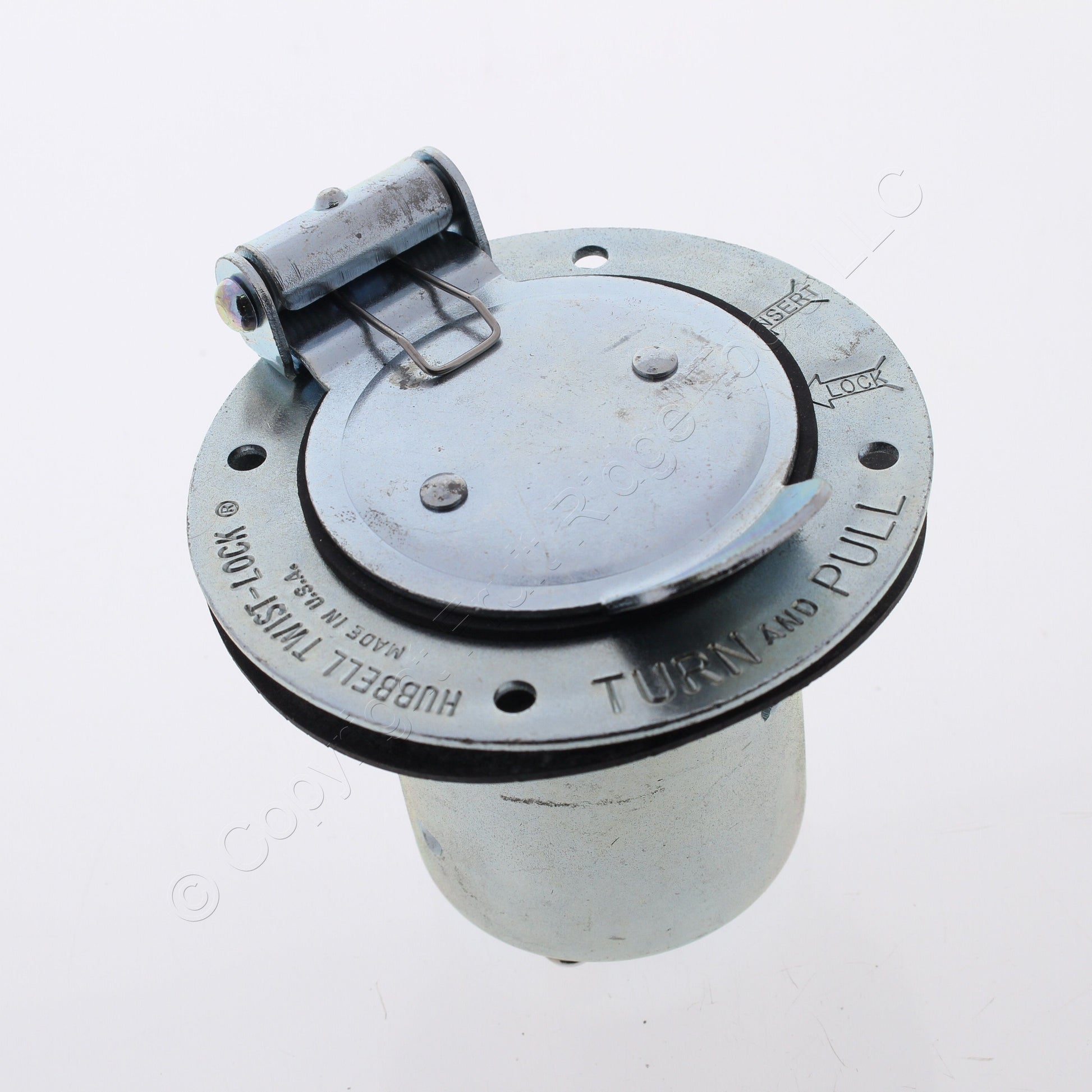

Spring loaded metal cover
Box terminal with Allen-head terminal screws permits a high clamping pressure on conductors without damaging strands accept #8 through #4 AWG
Thermoplastic polyester interior provides impact strength and heat resistance
Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire

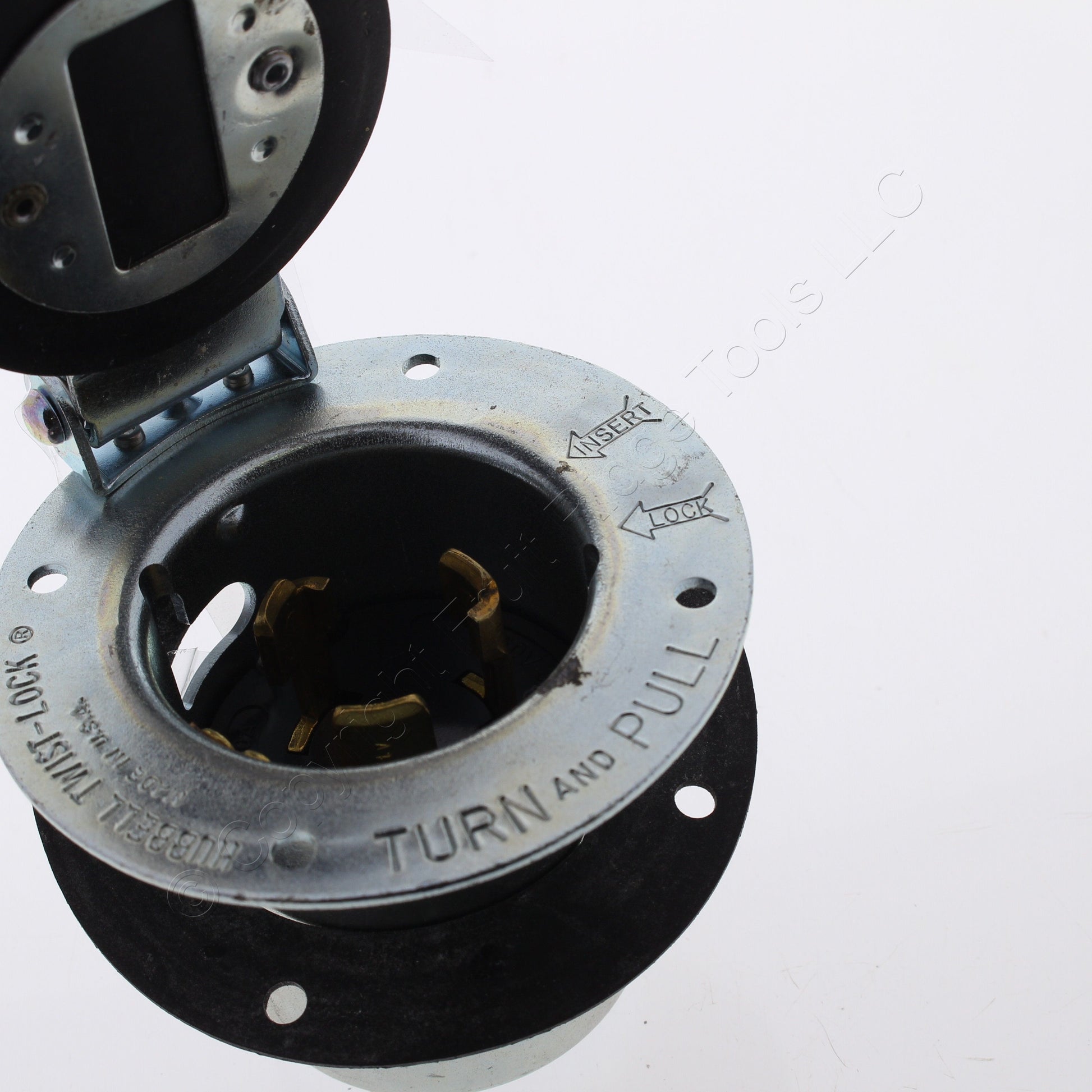

Solid brass blades are fitted and held tightly and securely in place
Dead front construction prevents accidental contact with internal parts
