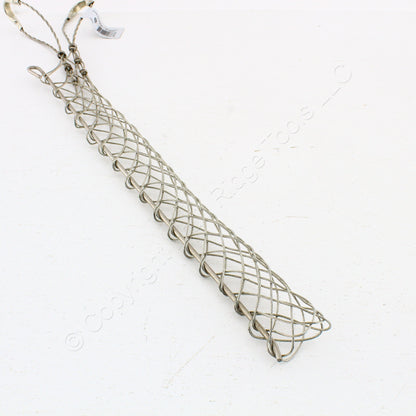

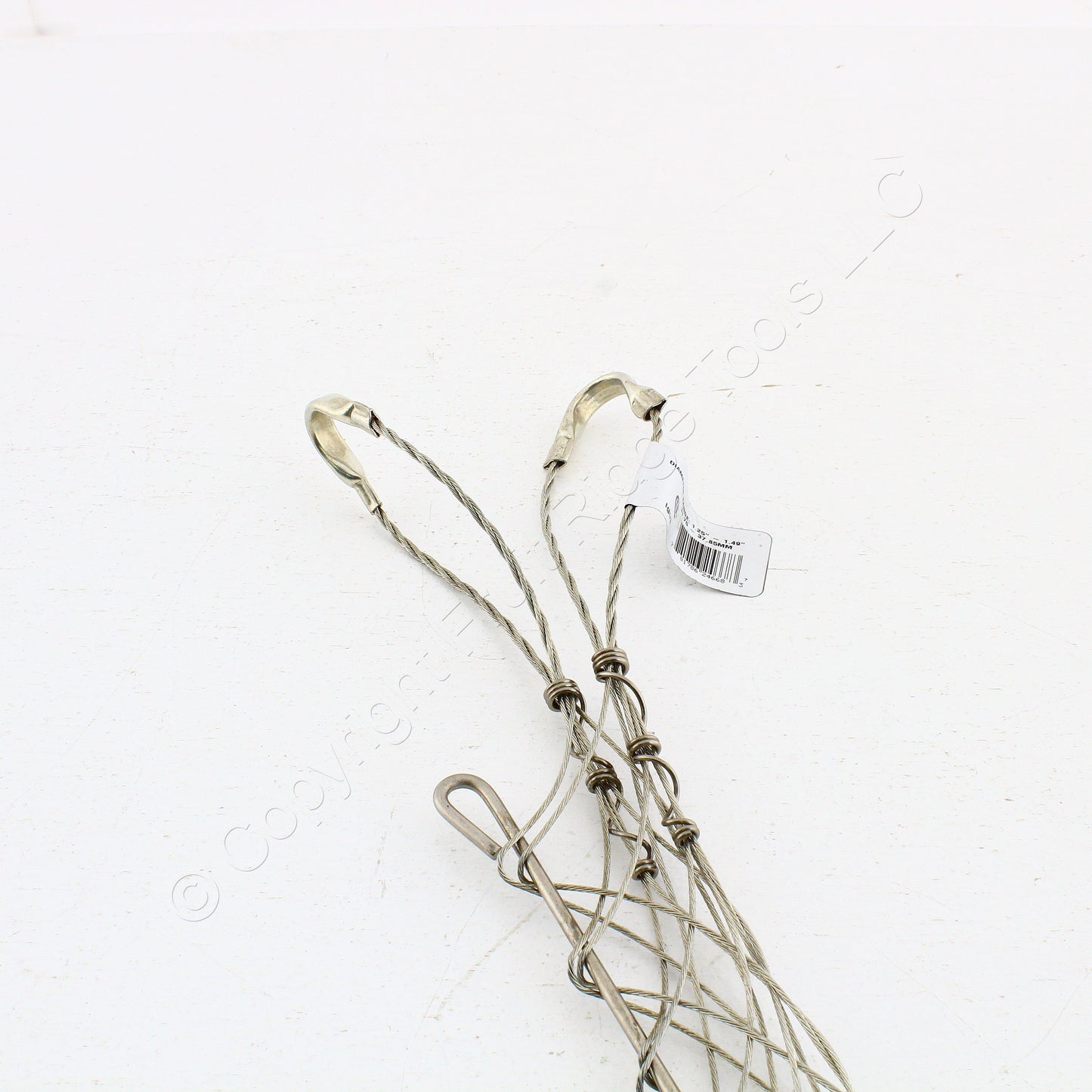

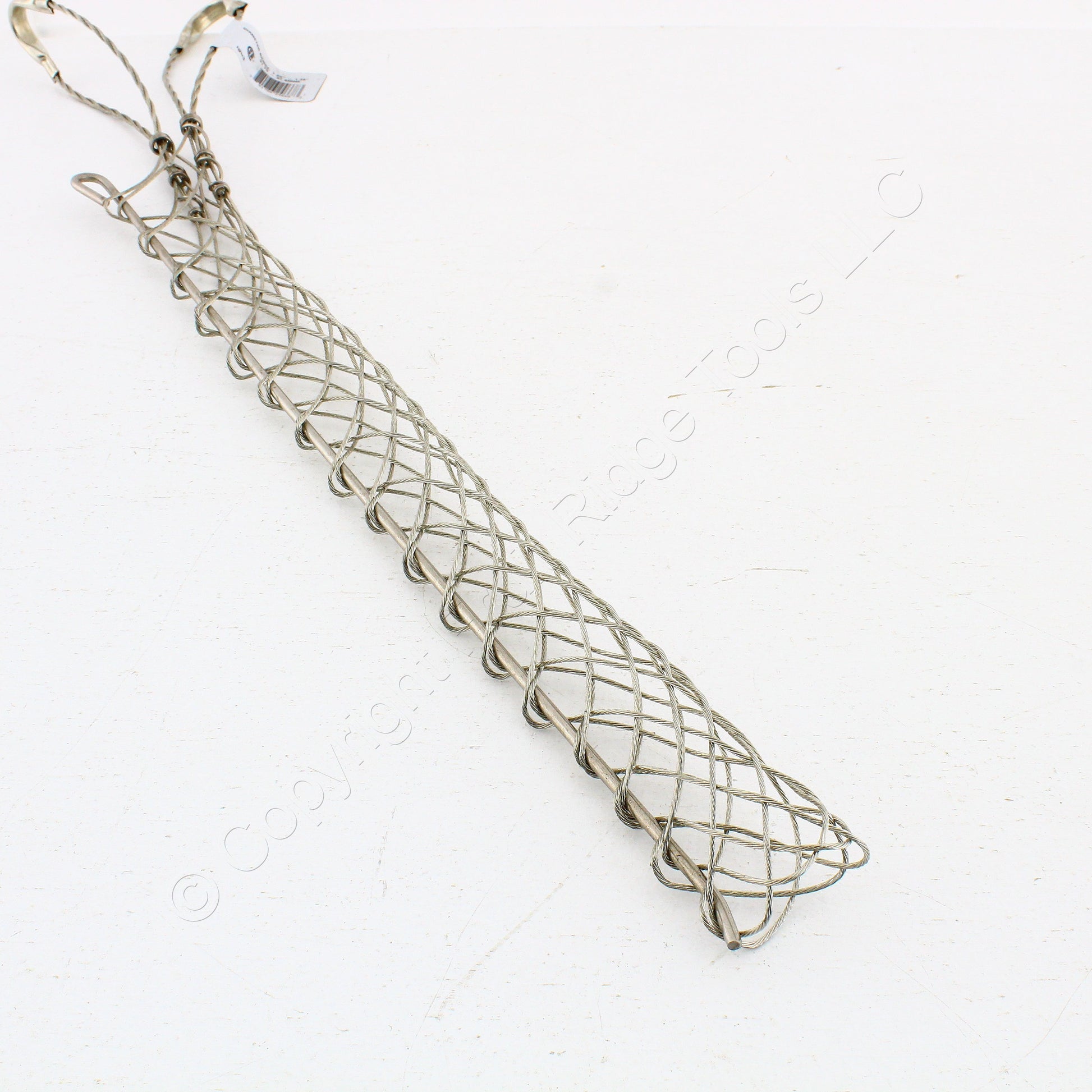

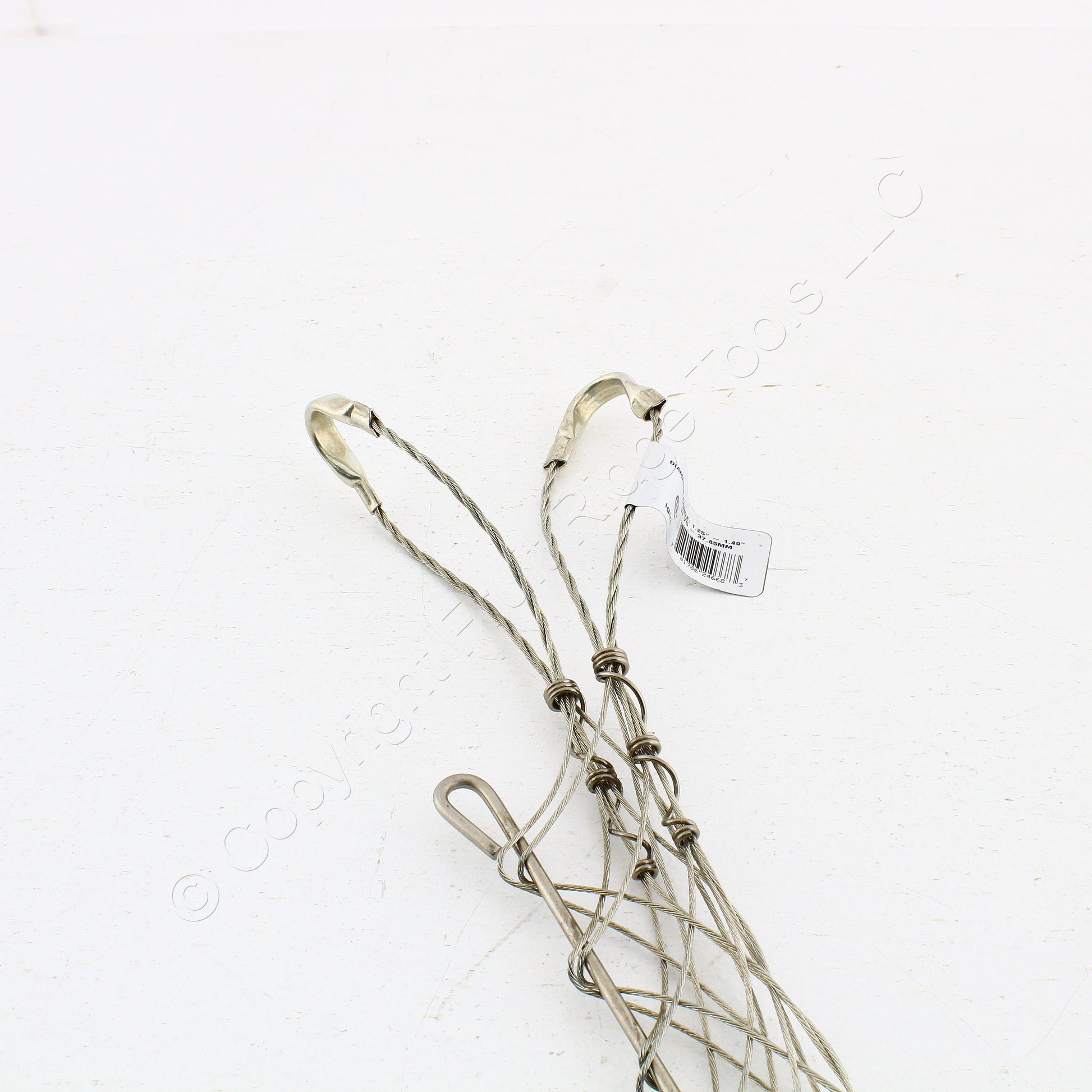

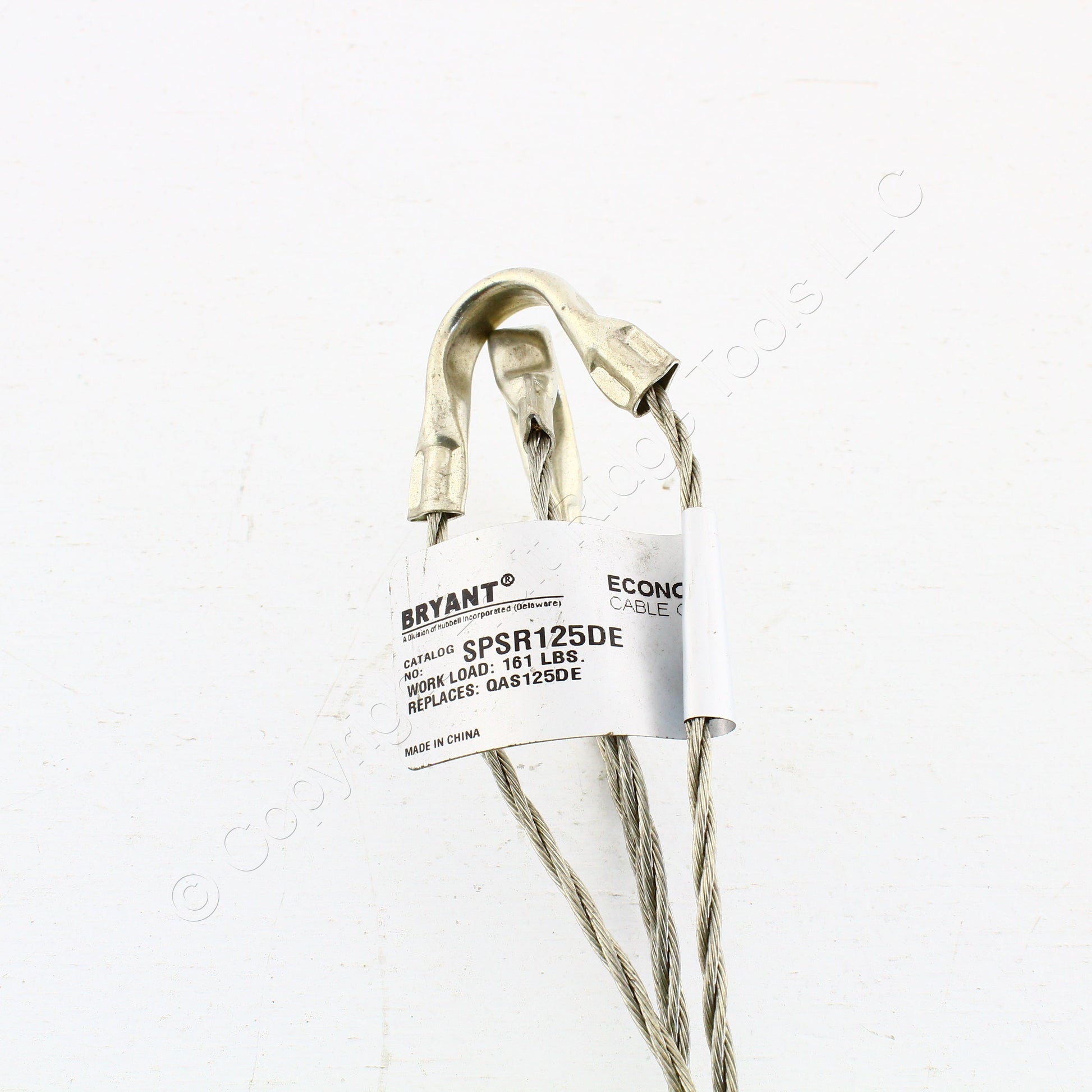

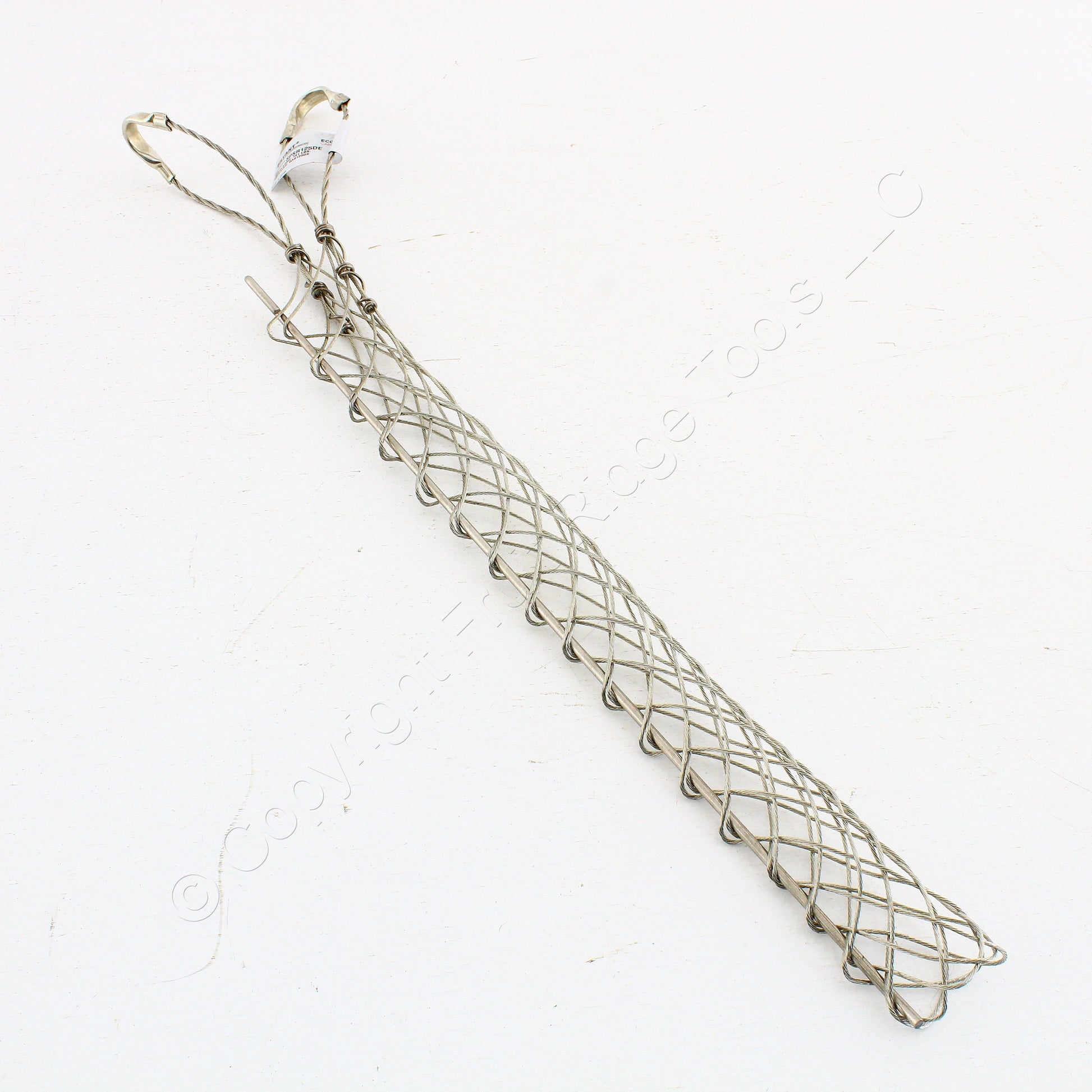

Bryant/Hubbell SPSR125DE standard duty, double U eye, split mesh, rod closing cable support grip (Bryant is a division of Hubbell). Used to hold the weight of electrical cable as it hangs in a vertical, sloping, or horizontal position. Electrical cable must be supported, or its dead weight can cause excessive strain or pullout at the connections resulting in power failure. Support grips also absorb additional strain from flexure, vibration, expansion, and contraction. Features include:
Cable diameter range: 1.25-1.49"
Approximate breaking strength: 1,610 lbs.
Working load: unknown.
Eye length: 5"
Wire mesh length: 14.5"
Tin-coated bronze for extra corrosion resistance
Split mesh design for use when the ends of cables are not available
Positive action mesh grip
Strand equalizer positions wires for equal loading throughout the entire grip length
Never use grip to approximate breaking strength. Refer to manufacturer specifications for safety and working load factors
