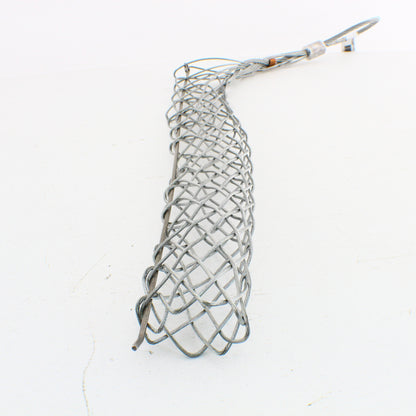

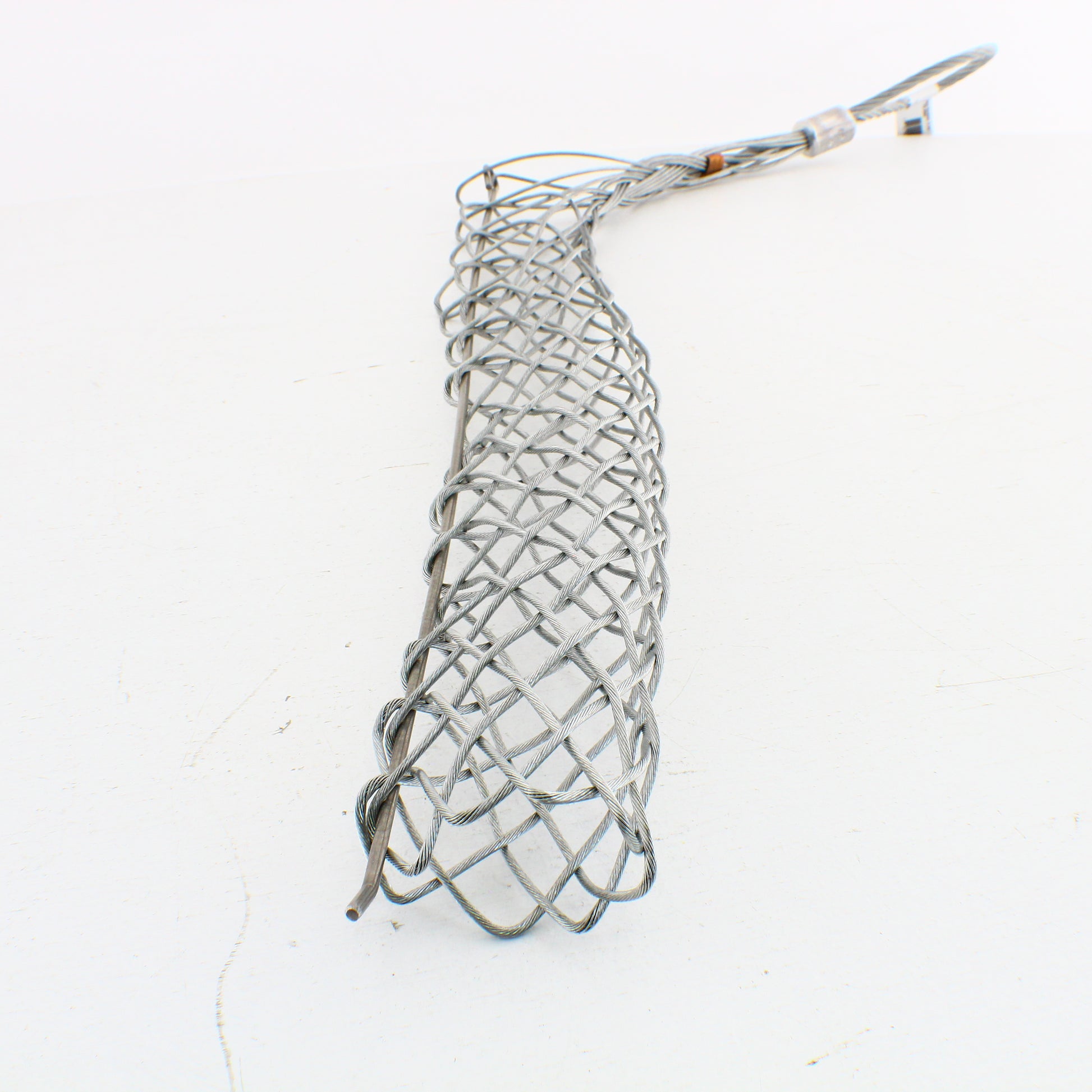

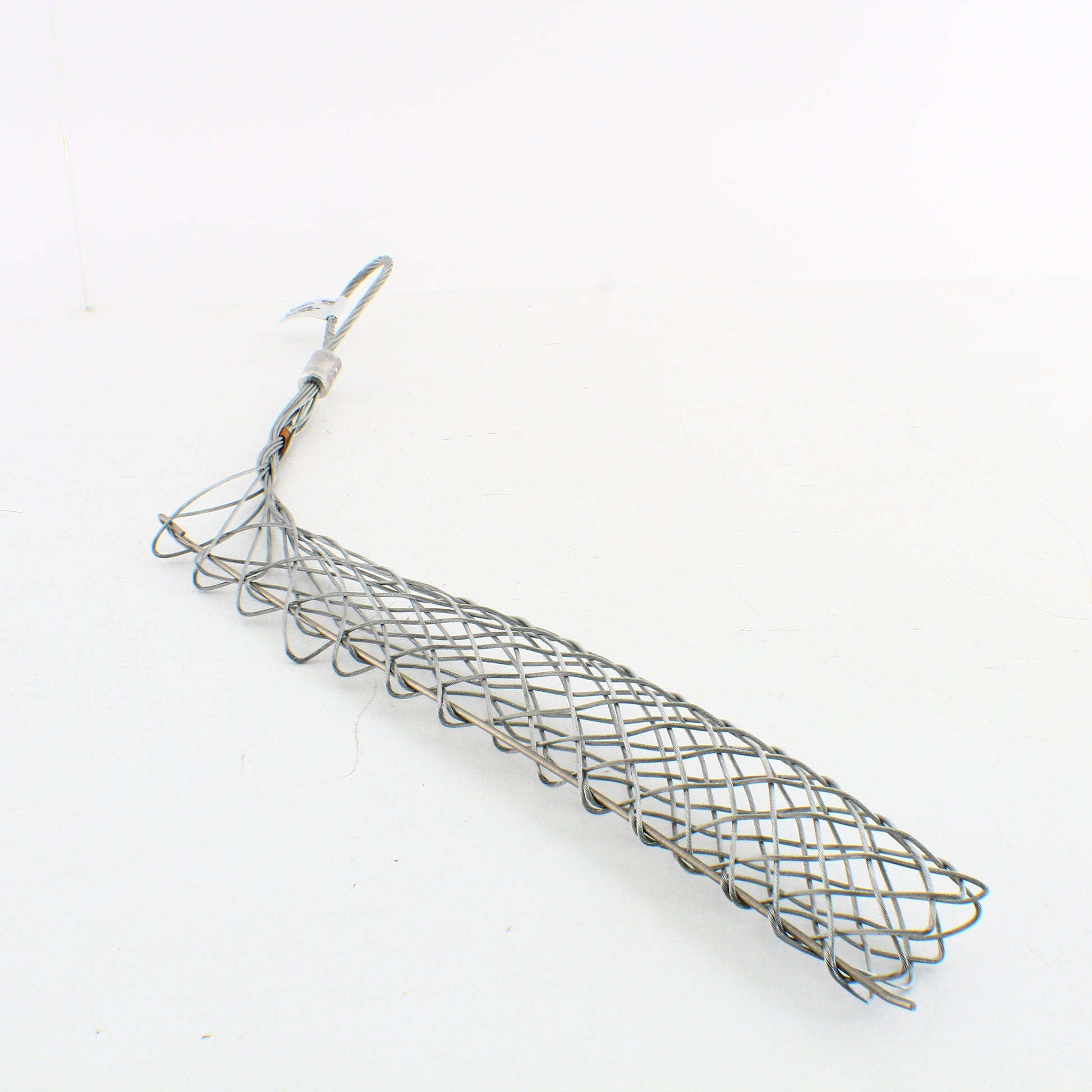

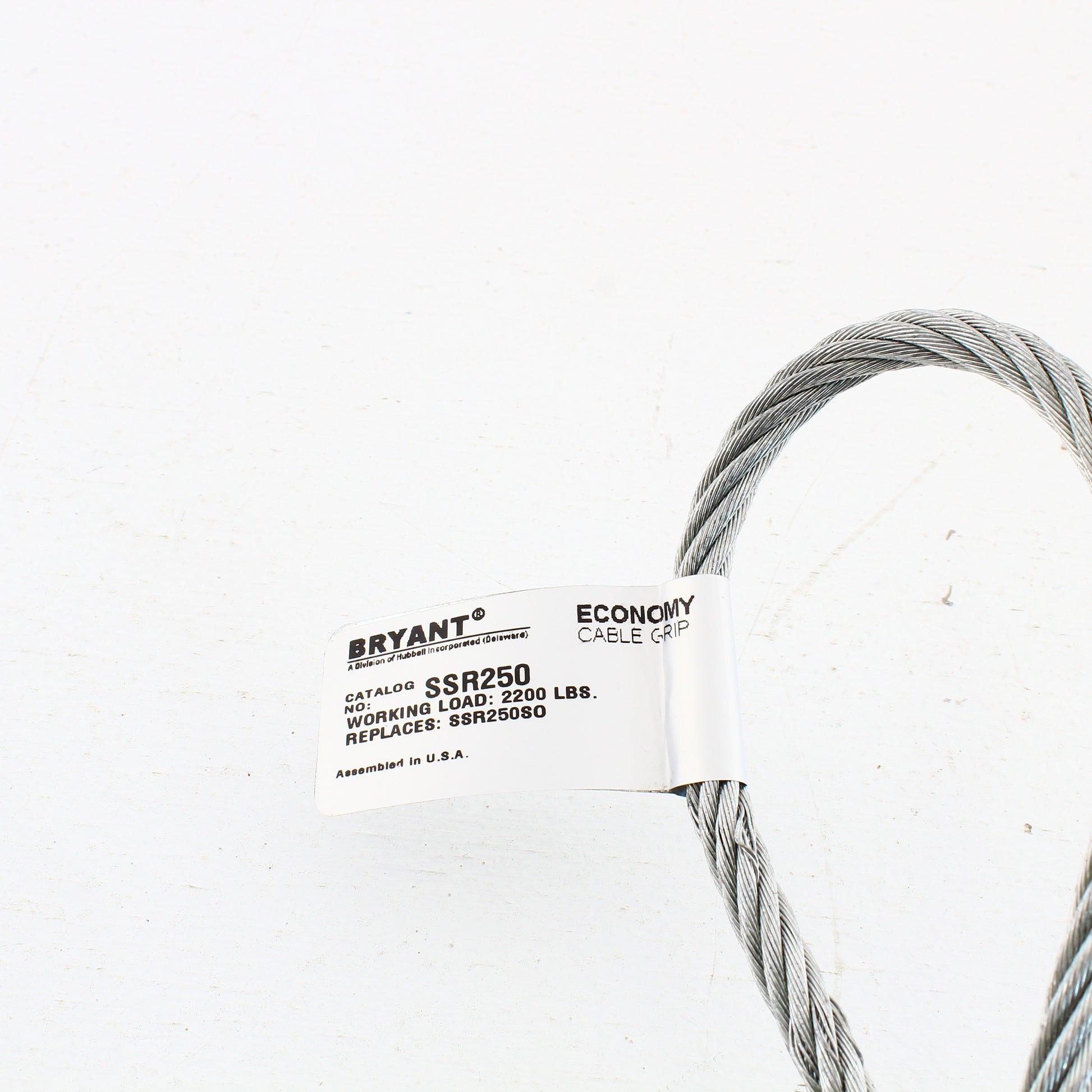

Bryant/Hubbell SSR250 single offset eye, split mesh, rod closing, slack cable pulling grip (Bryant is a division of Hubbell). For use in pulling up slack where cable is in service and when ends of cable are not available. Features include:
Cable diameter range: 2.50-2.99"
Approximate breaking strength: 11,000 lbs.
Working load: unknown.
Eye length: 10"
Wire mesh length: 20"
High strength galvanized steel
Single weave split mesh for use when cable end is not available
Positive action mesh grip
Strand equalizer positions wires for equal loading throughout the entire grip length

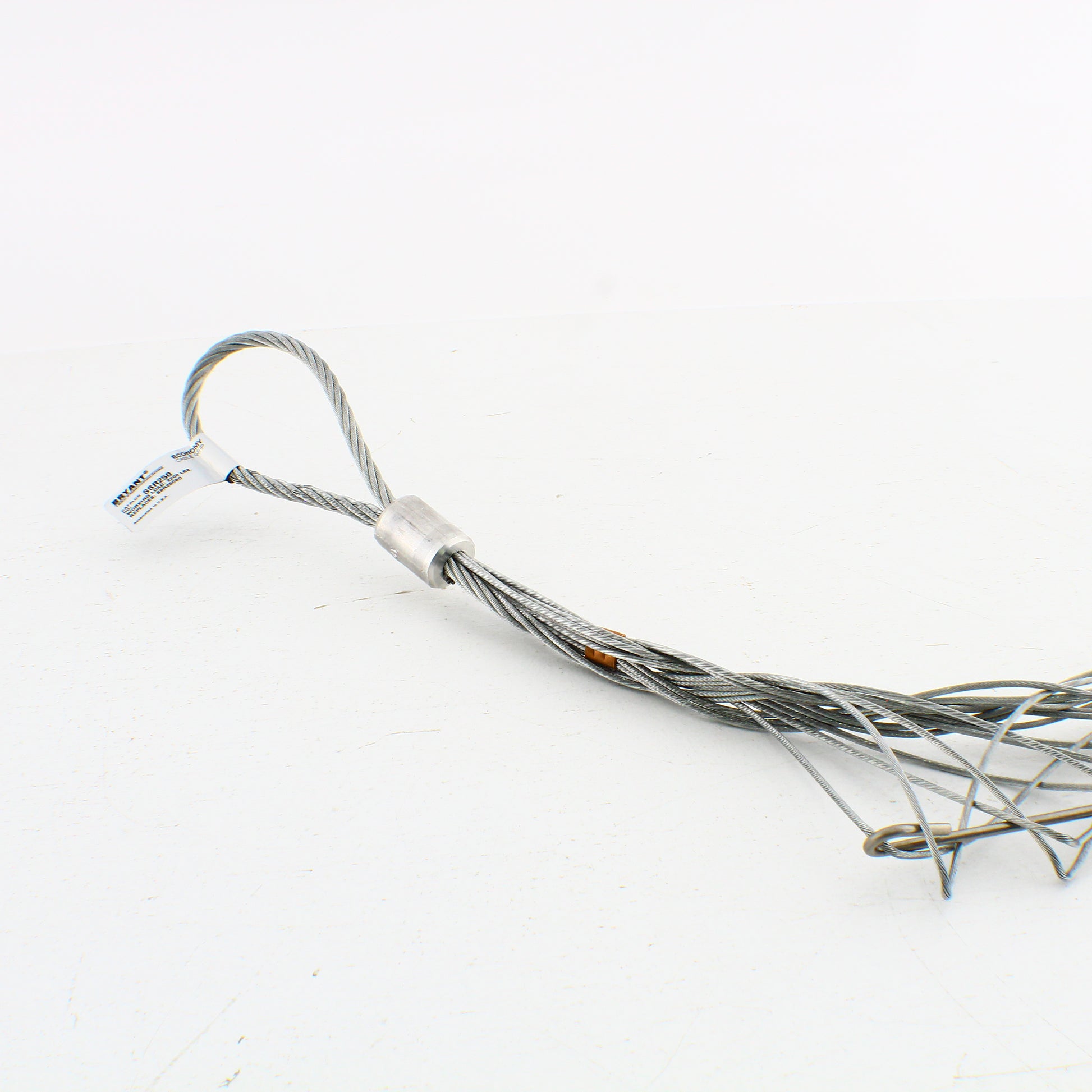

Single offset eye for easy attachment to pulling line
Mates with swivel or link type connectors
Never use grip to approximate breaking strength. Refer to manufacturer specifications for safety and working load factors. Banding is necessary to guard against accidental release of grip and provide maximum reliability.
