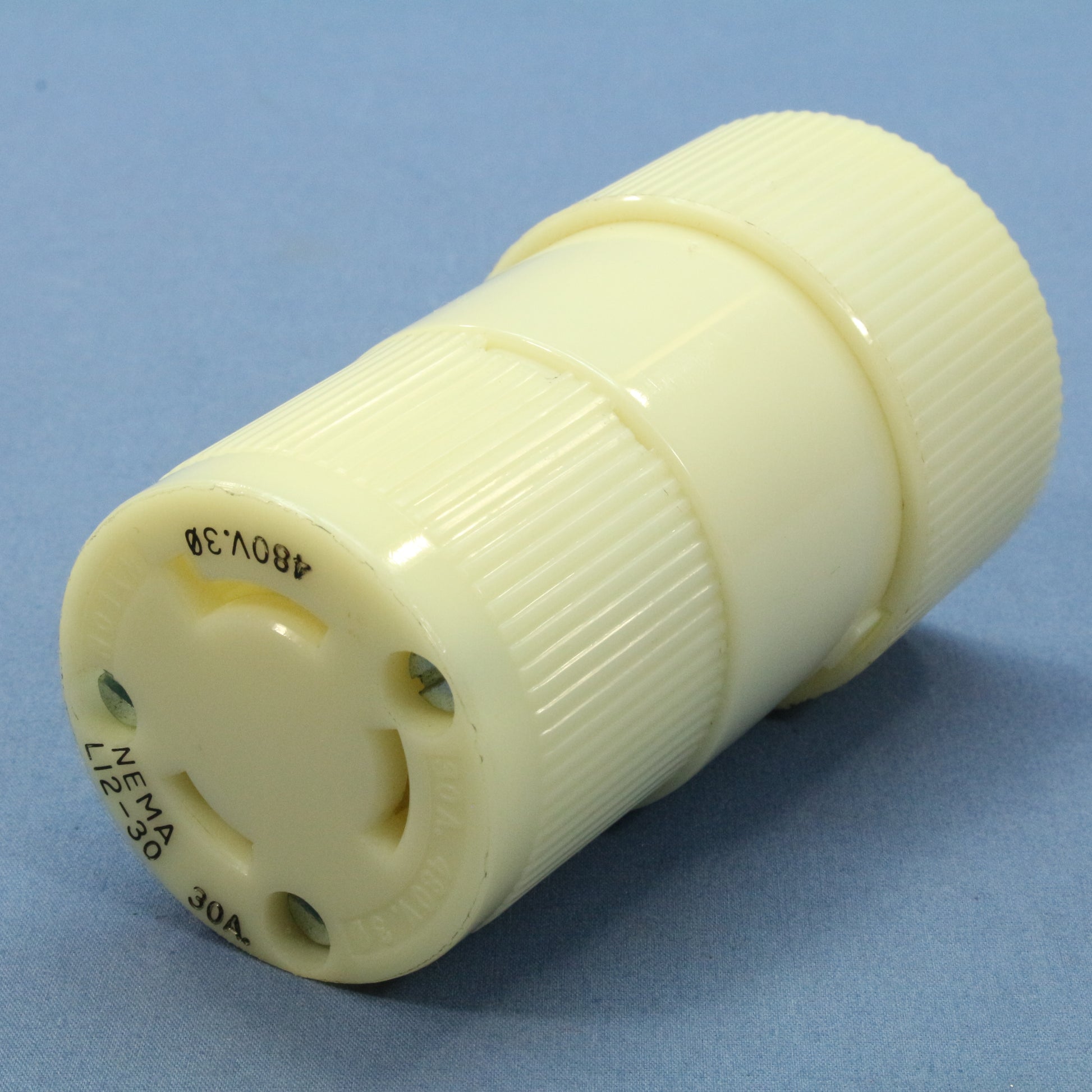

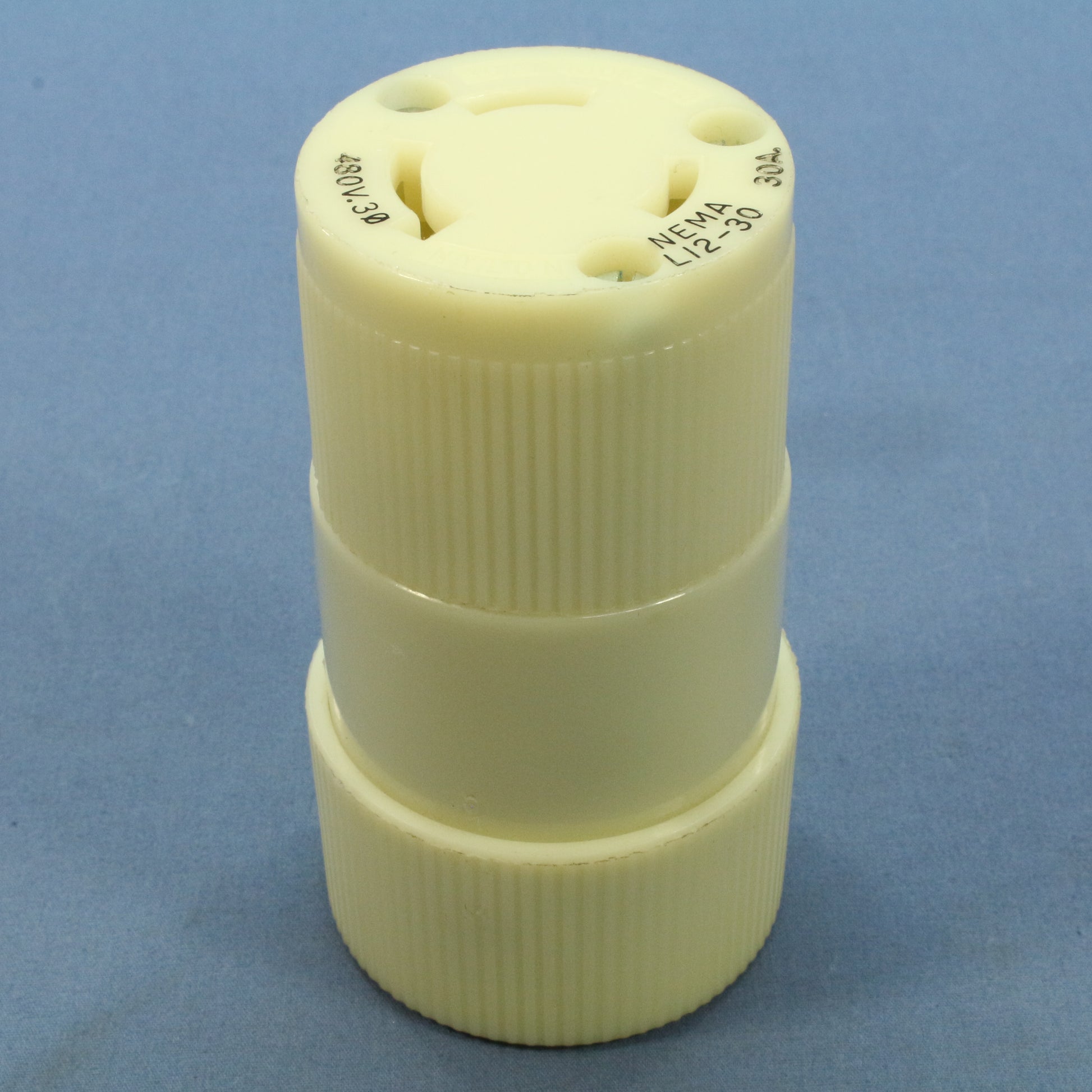

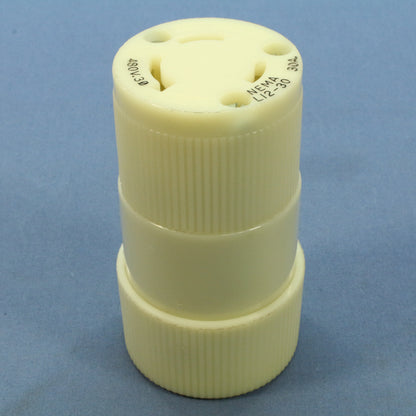

Bryant 71230-NC Nylon Turn Twist Locking Connector Nema L12-30R 30A 480V 3Ø

Bryant 71230-NC nylon twist turn locking connector. Industrial Grade, NEMA L12-30R, 3-pole, 3-wire, non-grounding, rated 30A 480V 3 phase. Each is individually packaged; packaging may differ from photo. Features include:

• Transparent terminal cover with extended "teardrop" wiring pockets - provides good visibility and proper wire separation in the assembled plug
• Dead-front construction surrounds blades to prevent infiltration of contaminants

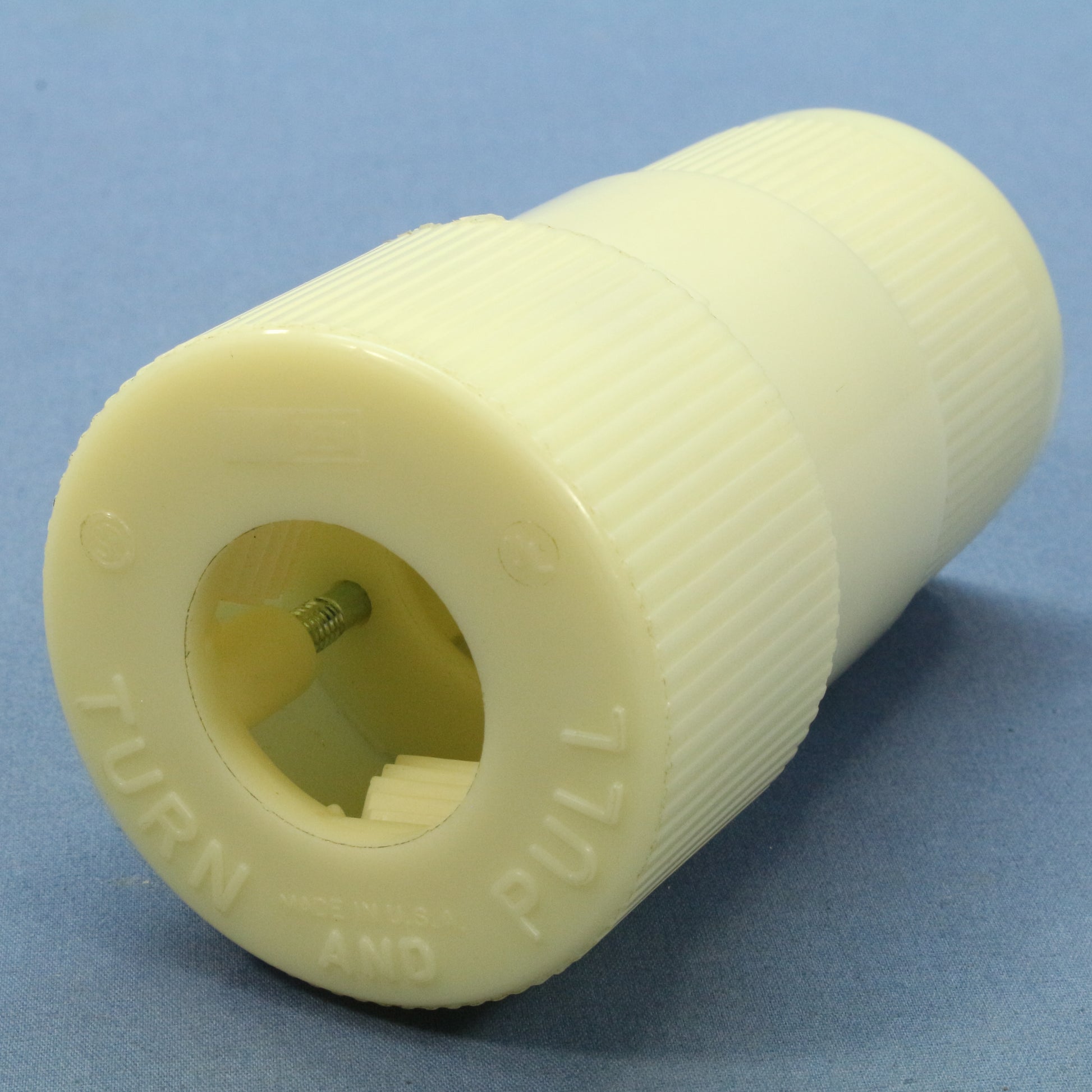

• Internal self-centering Quad-Gripper cord grip with radius teeth design provides secure cord retention

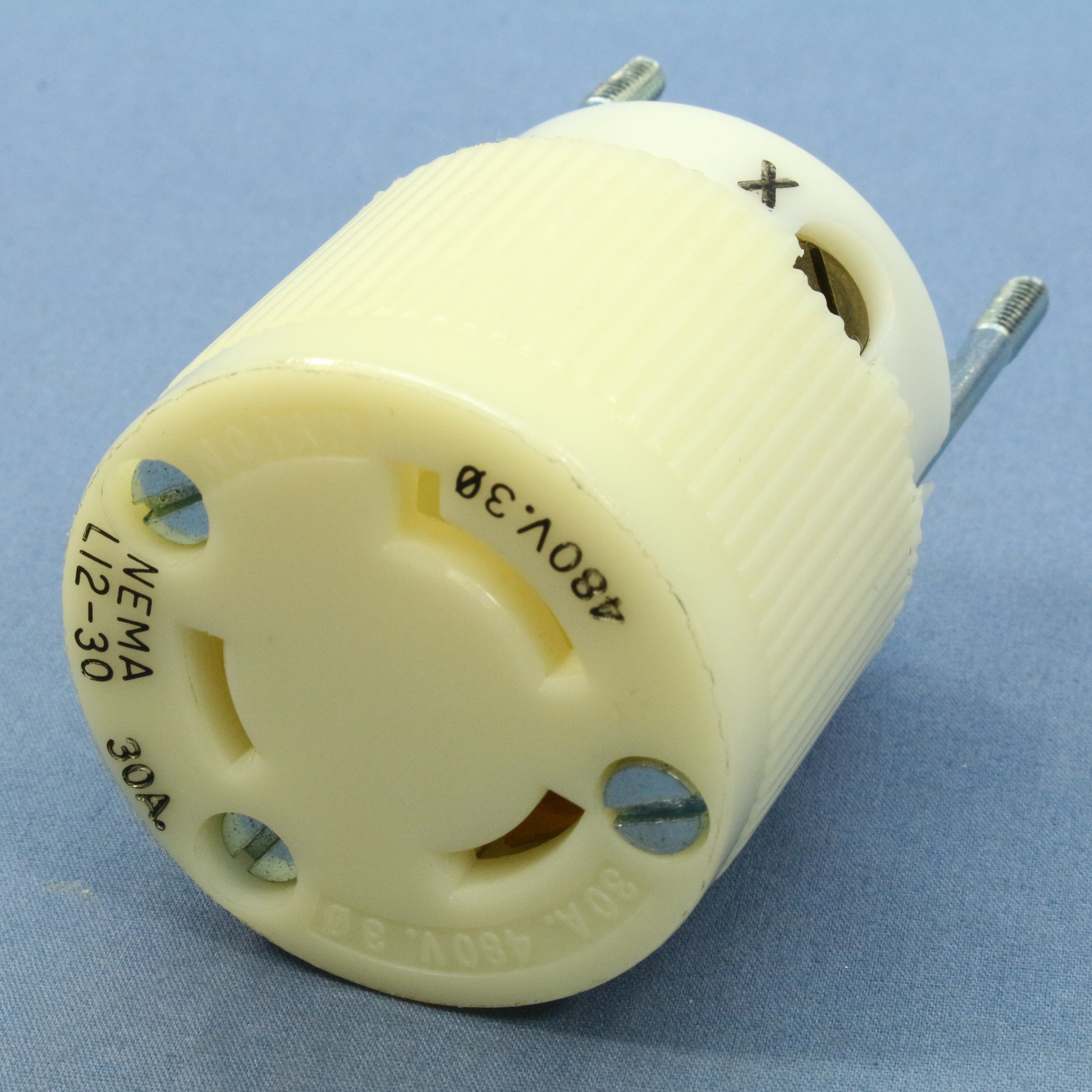

• Amperage, voltage, and NEMA line number imprinted on face for easy identification
• Neutral blade is nickel-plated for easy identification (applicable only to models with a neutral blade)

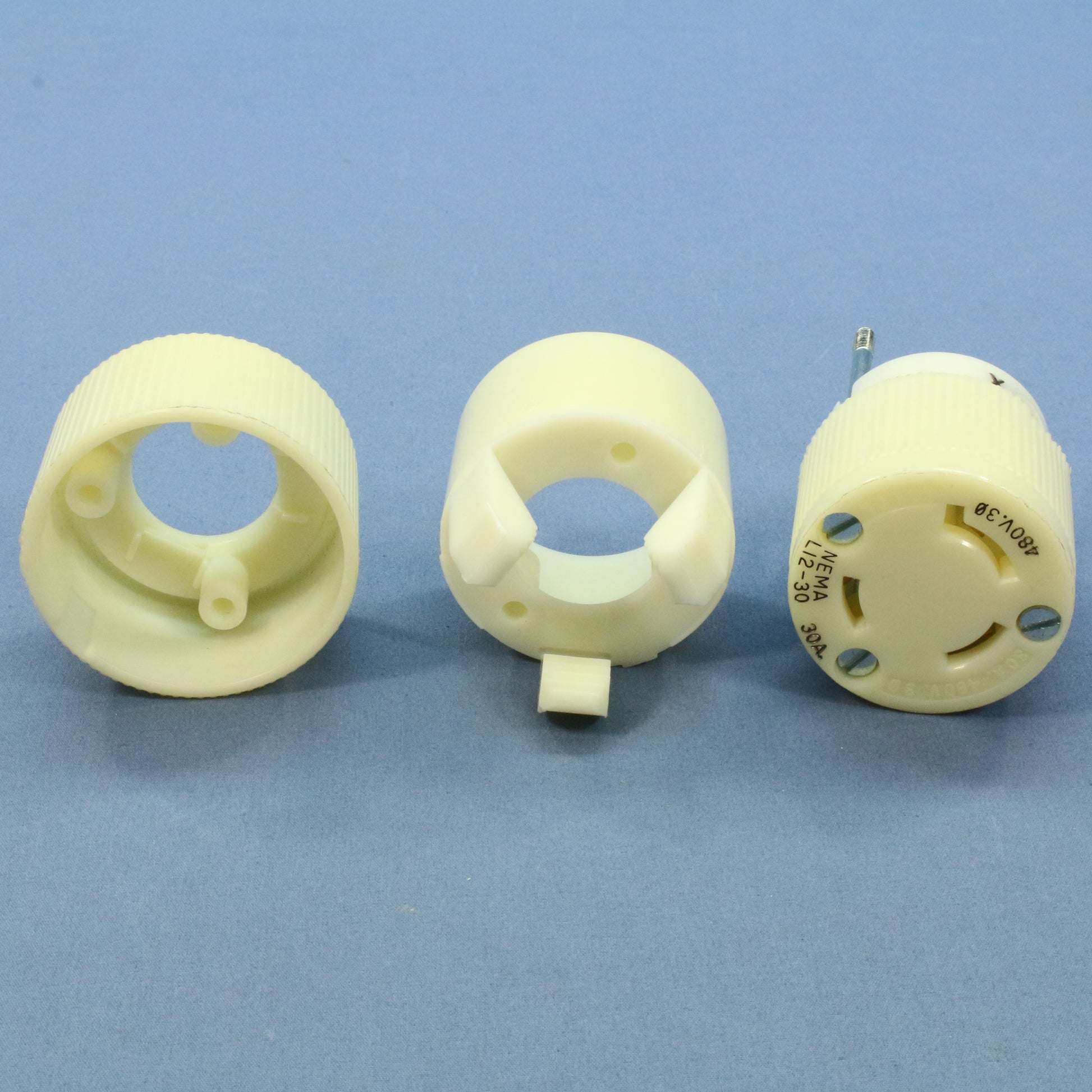

• Face and body have contrasting key for easy assembly
• Hand grip features wide-rib, non-slip design with industrial black matte finish
• Impact/chemical-resistant toughened nylon construction
• Double wall construction
• EPDM dust seal surrounds cord, helping to prevent moisture and contaminants from entering wiring chamber
• Tapered cover eliminates snagging

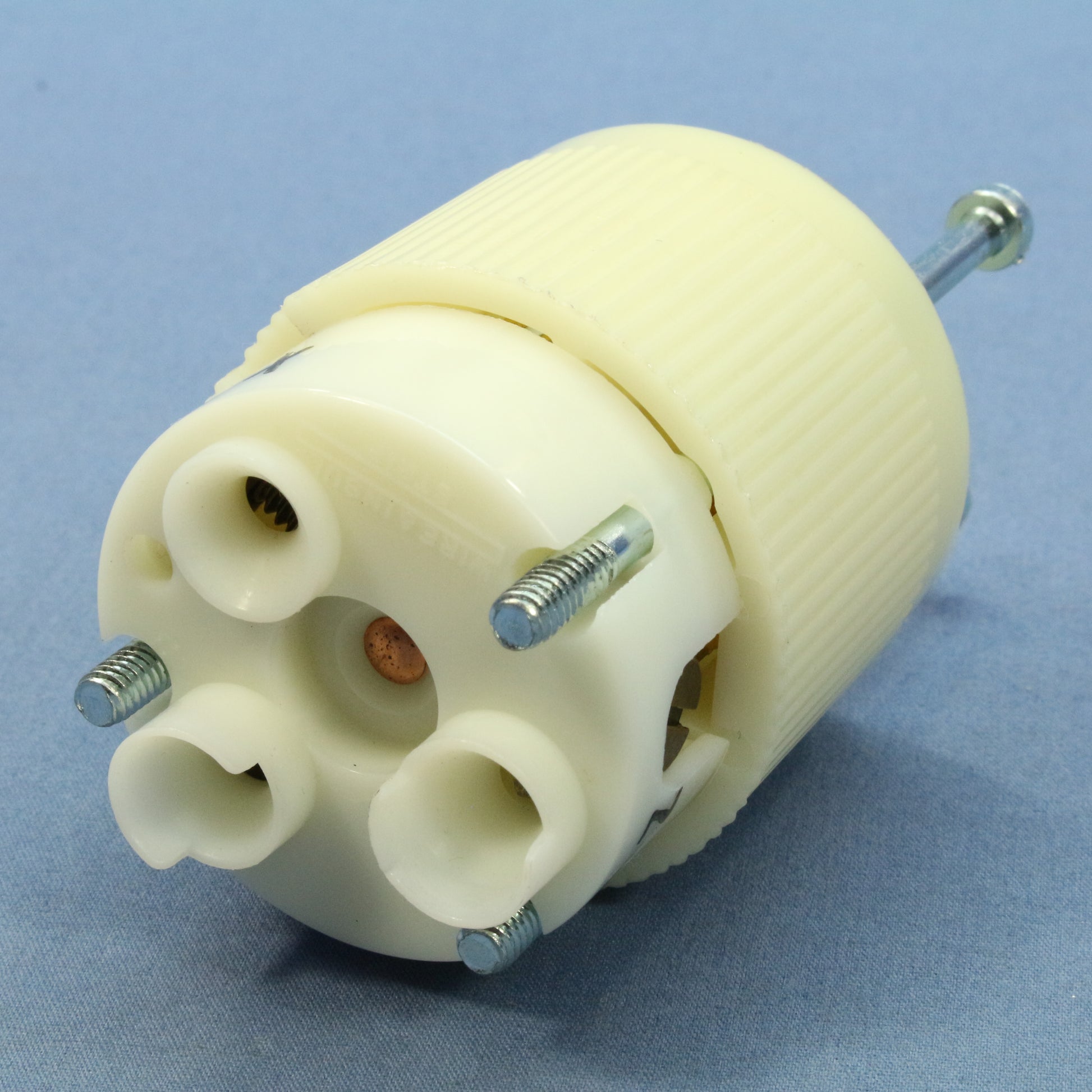

• Captive combination Phillips/slotted terminal and assembly screws come backed out for eas
