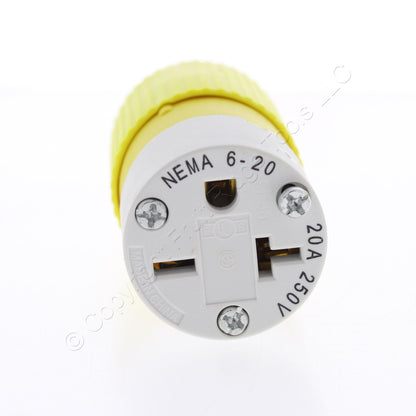

Bryant 5469NCSY Industrial Yellow Straight Blade 20A Connector 250V NEMA 6-20R

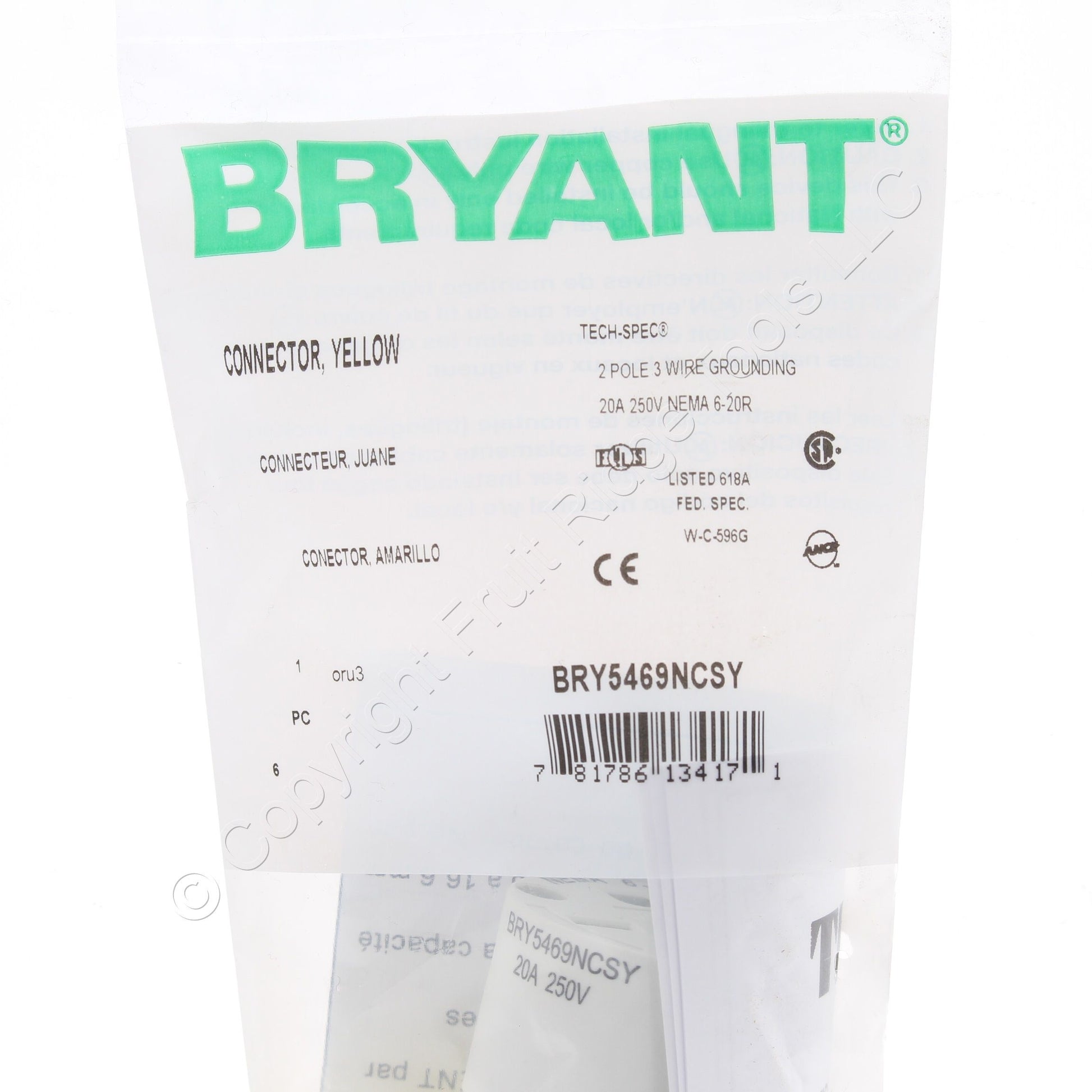

Bryant/Hubbell 5469NCSY straight blade connector in high visibility yellow (Bryant is a division of Hubbell). Tech-Spec Industrial Grade, NEMA 6-20R, 2-pole, 3-wire, grounding, rated 20A 250V. Each is individually packaged; packaging may differ from photo. Features include:

• One-piece, rivetless connector contact design reduces chances for resistance and heat buildup. High performance, triple-wipe copper-alloy contacts have excellent spring properties and provide superior contact pressure and conductivity
• Transparent terminal cover features a see-thru window to permit visual inspection for proper wiring. Individual wire pockets provide maximum conductor separation. "Tear- drop" design provides ease of entry for stranded copper conductors. Terminal designations are imprinted on terminal cover for easy identification
• TPE dust seal surrounds cord, helping to prevent conductive dust, moisture and contaminants from entering the wiring chamber, thus minimizing the possibility of internal shorts. Tapered cover eliminates snagging of cord when dragged along floors

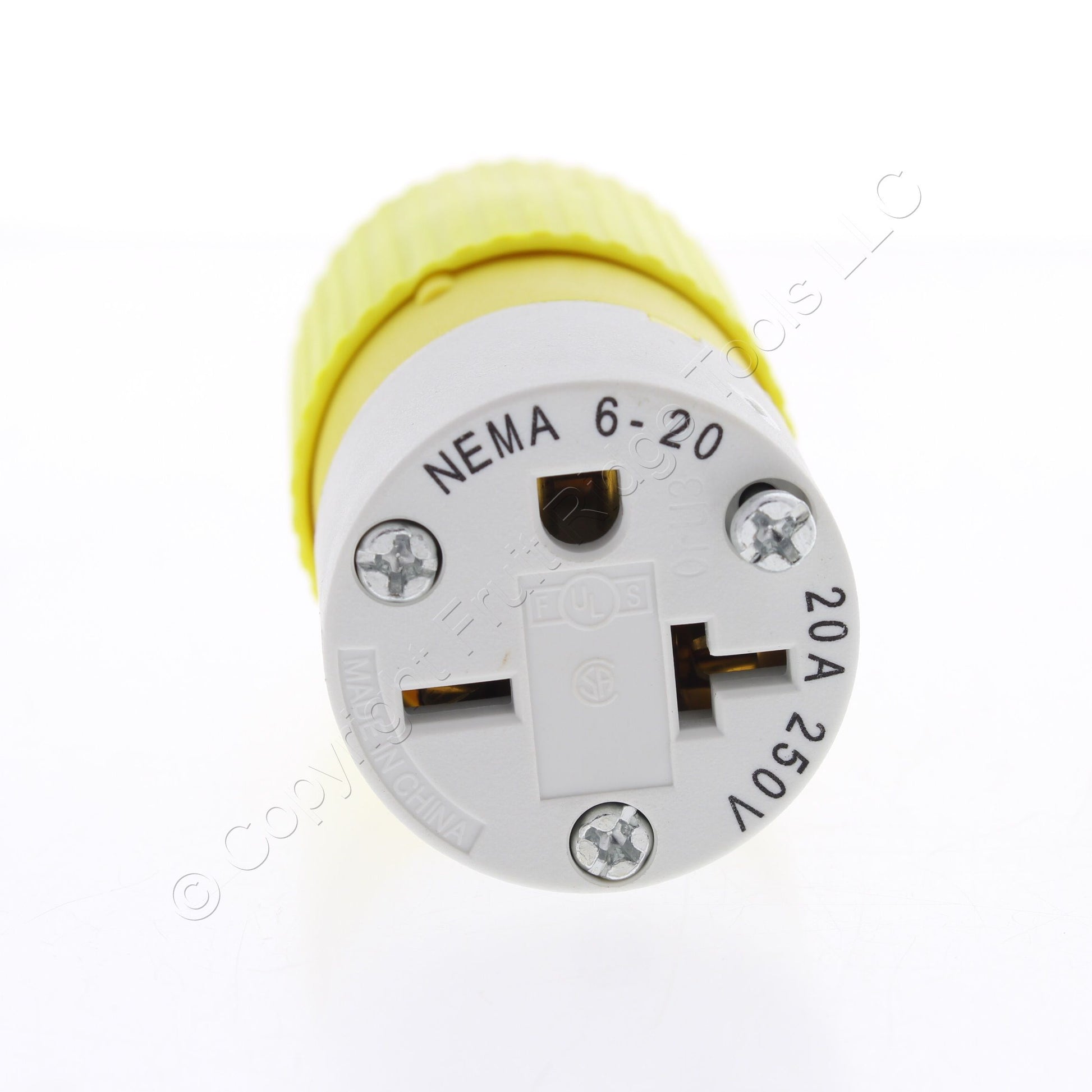

• Amperage, voltage and NEMA line number imprinted on face for easy identification. Catalog number and rating are also visible - while in use. Three combination Phillips/slotted quick-fasten assembly screws simultaneously secure Triple-Gripper cord grip as device is assembled
• Triple-Gripper Cord Grip with exclusive "Radius Teeth" design provides secure cord retention without damaging the cord jacket or electrical conductors. It automatically centers and secures cord as three assembly screws are tightened, eliminating the need for separate external cord grip screws
• Face and body feature contrasting key for easy assembly
• Industrial matte finish
• Impact/chemical resistant, toughened nylon construction
• Insulated design has no exposed metal parts on hand-held side
• Universal cord grip design accepts .300 - .655" cord without inserts or adapters
• Double wall construction provides extra protection for internal components
• Wide-rib, non-slip hand grip
• Combination Phillips/slotted captive terminal screws are backed out and ready for wiring
