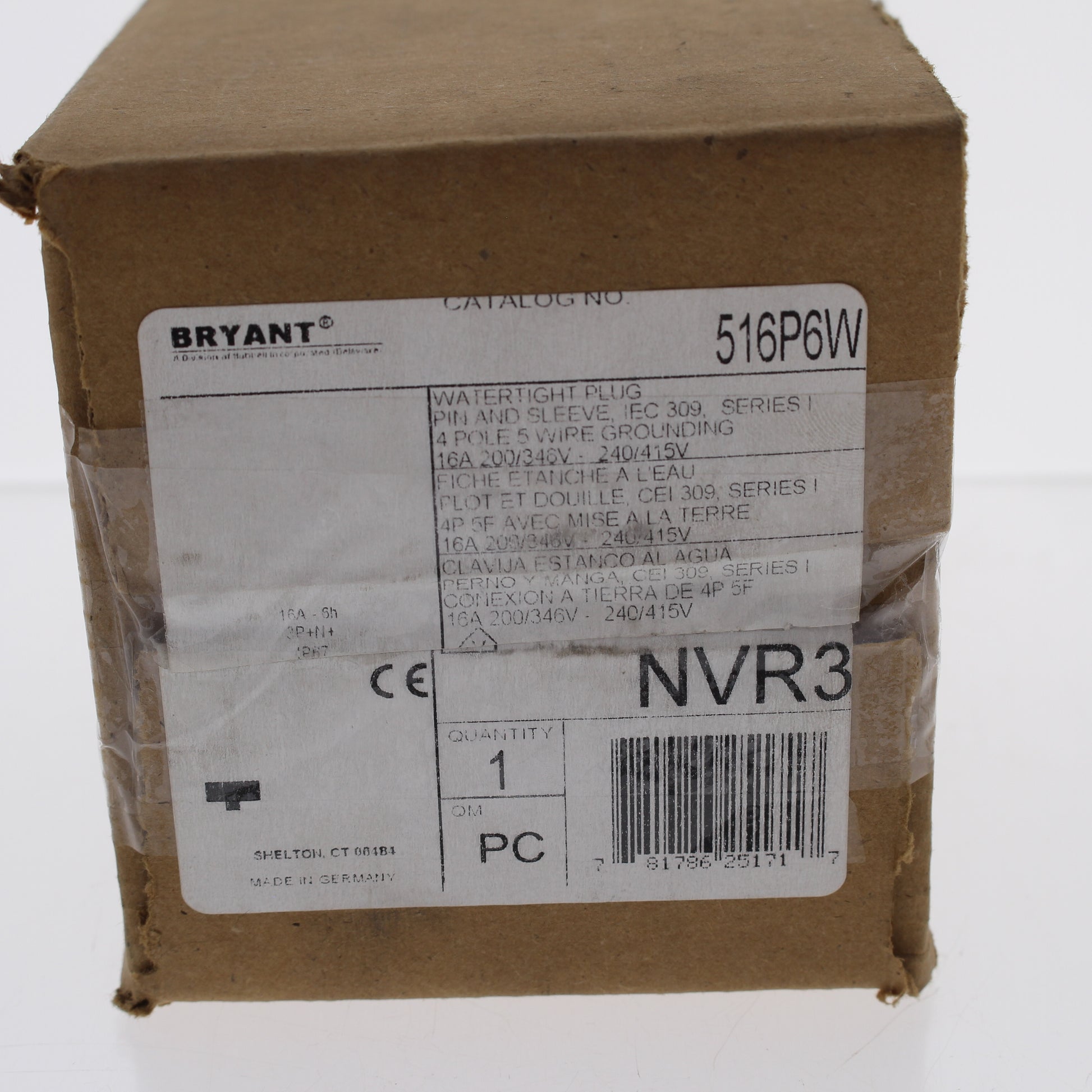

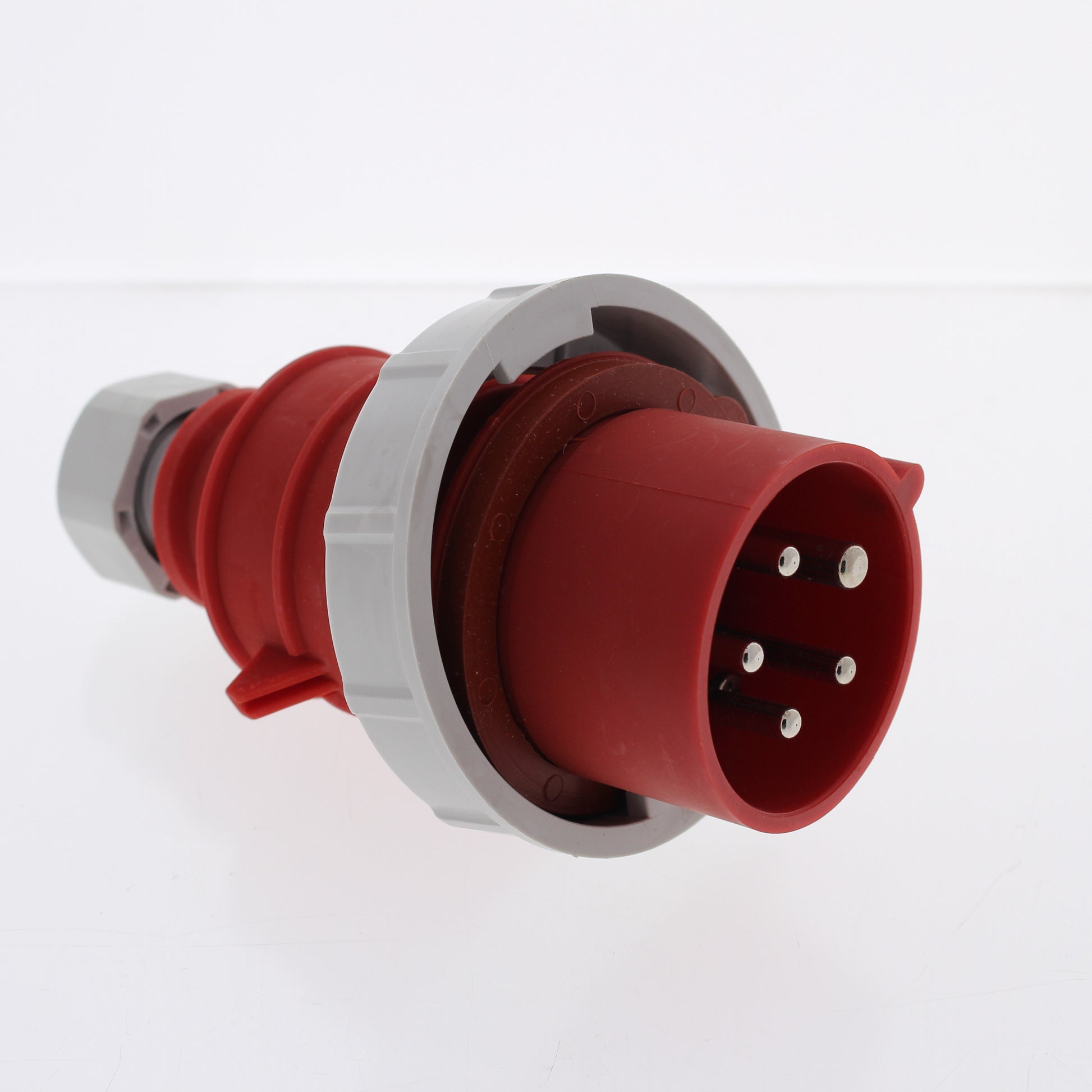

Bryant 516P6W watertight pin and sleeve plug (Bryant is a division of Hubbell). Manufactured for International electrical ratings; as a result, these are not UL Listed or CSA Certified. Industrial Grade, IEC 309, 4-pole, 5-wire, grounding, rated 16A 200/346V 240/415V. Each is individually packaged; packaging may differ from photo. Features include:
External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o�clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings
No exposed metal screws or clamps promotes safe handling and prevents snagging
Toughened nylon housing protects against cracking, warping, corrosion, and chemical abrasion
Neoprene sealing glands provide a watertight seal

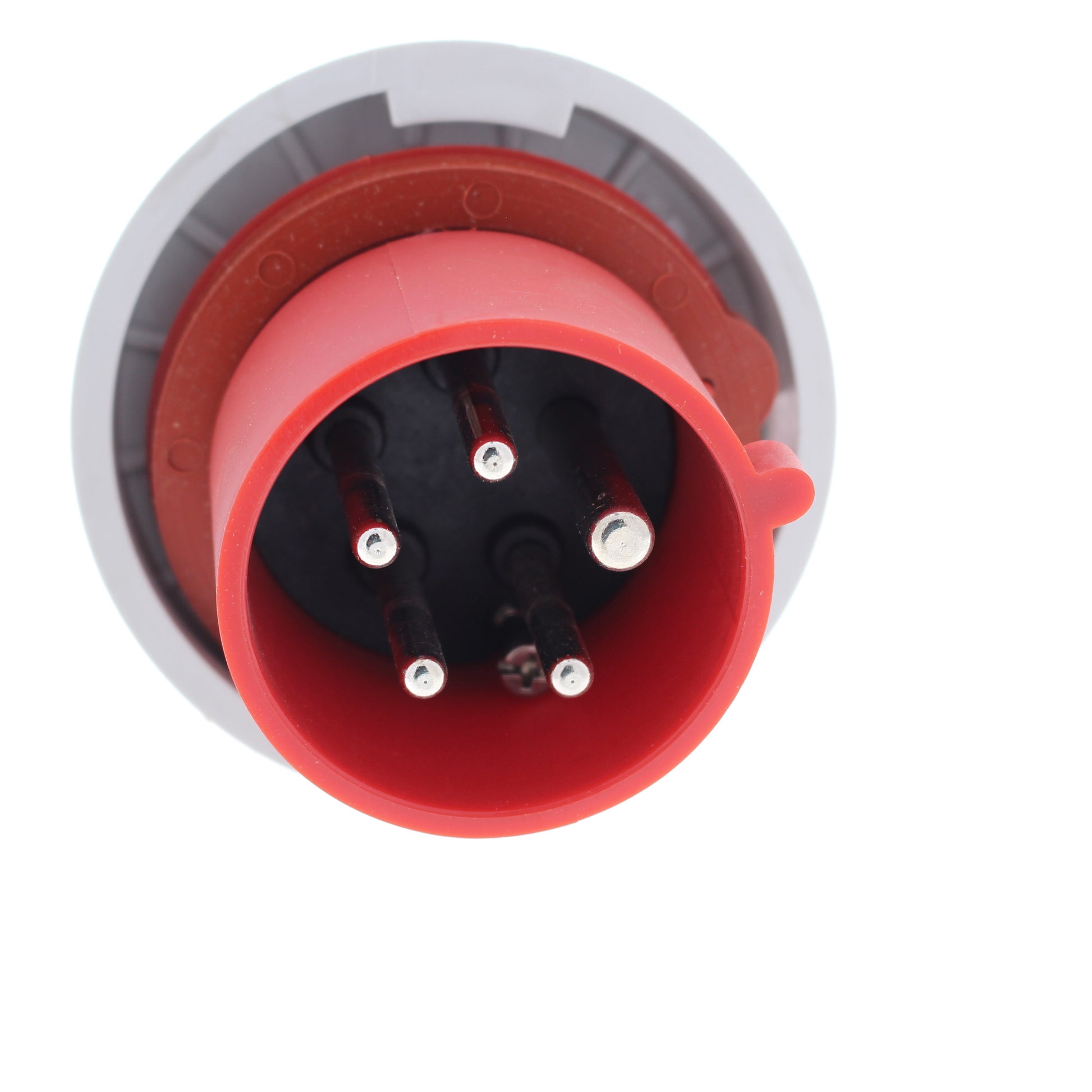

Solid brass pins provide contact reliability, and superior conductivity. Shrouded housing helps protect pins from contaminants and abuse
Cord clamp screws fasten into threaded steel nuts to prevent strip-out

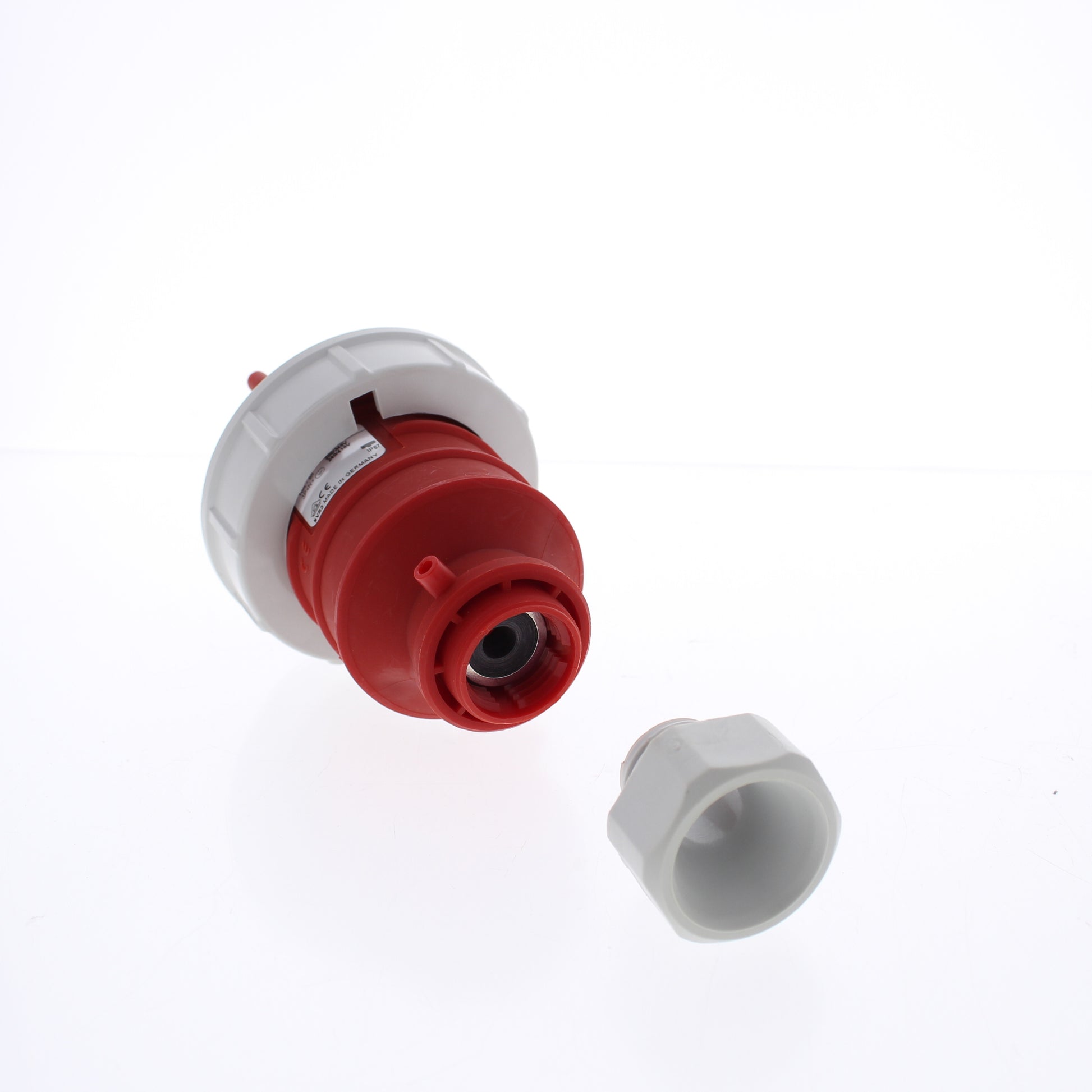

Wiring is simplified with swing-away cord clamp. Strain relief clamp assembly swings out for greater access when terminating individual conductors and securing cord clamp
