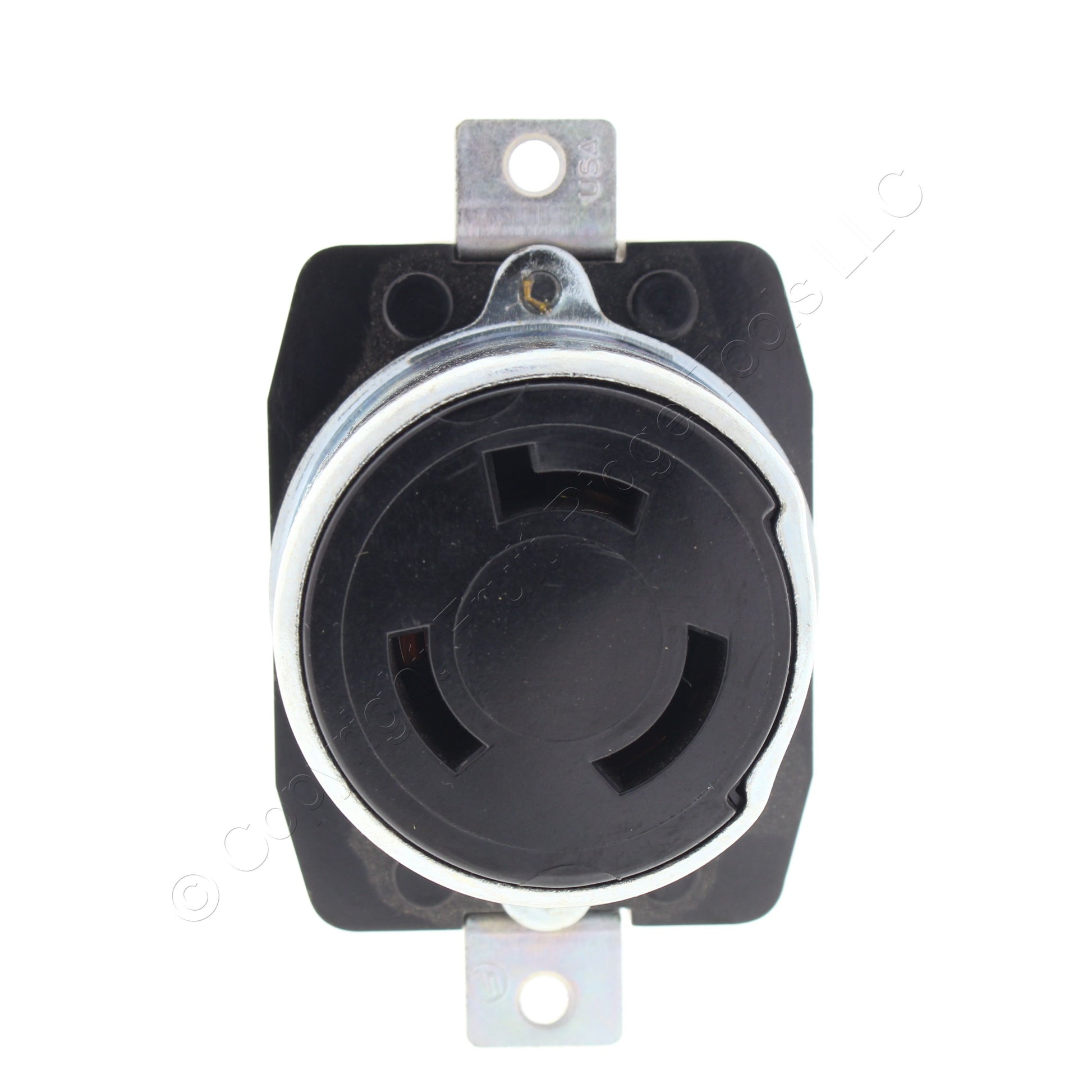

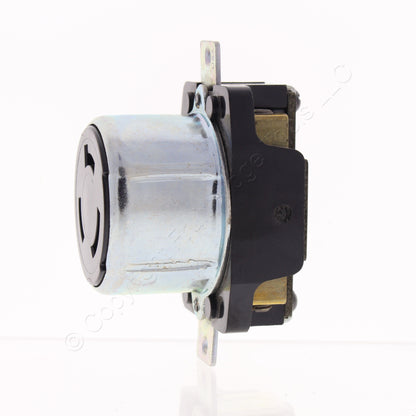

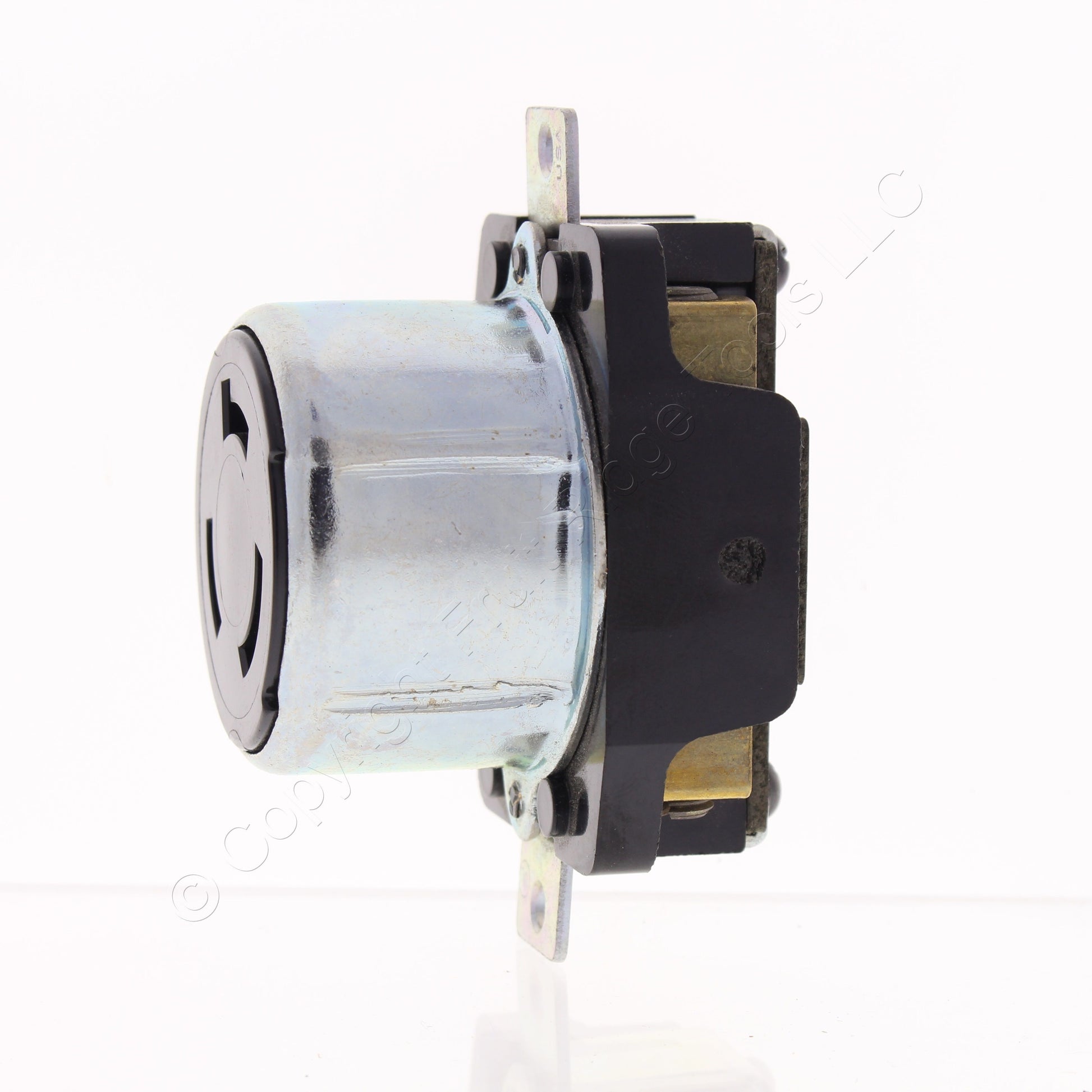

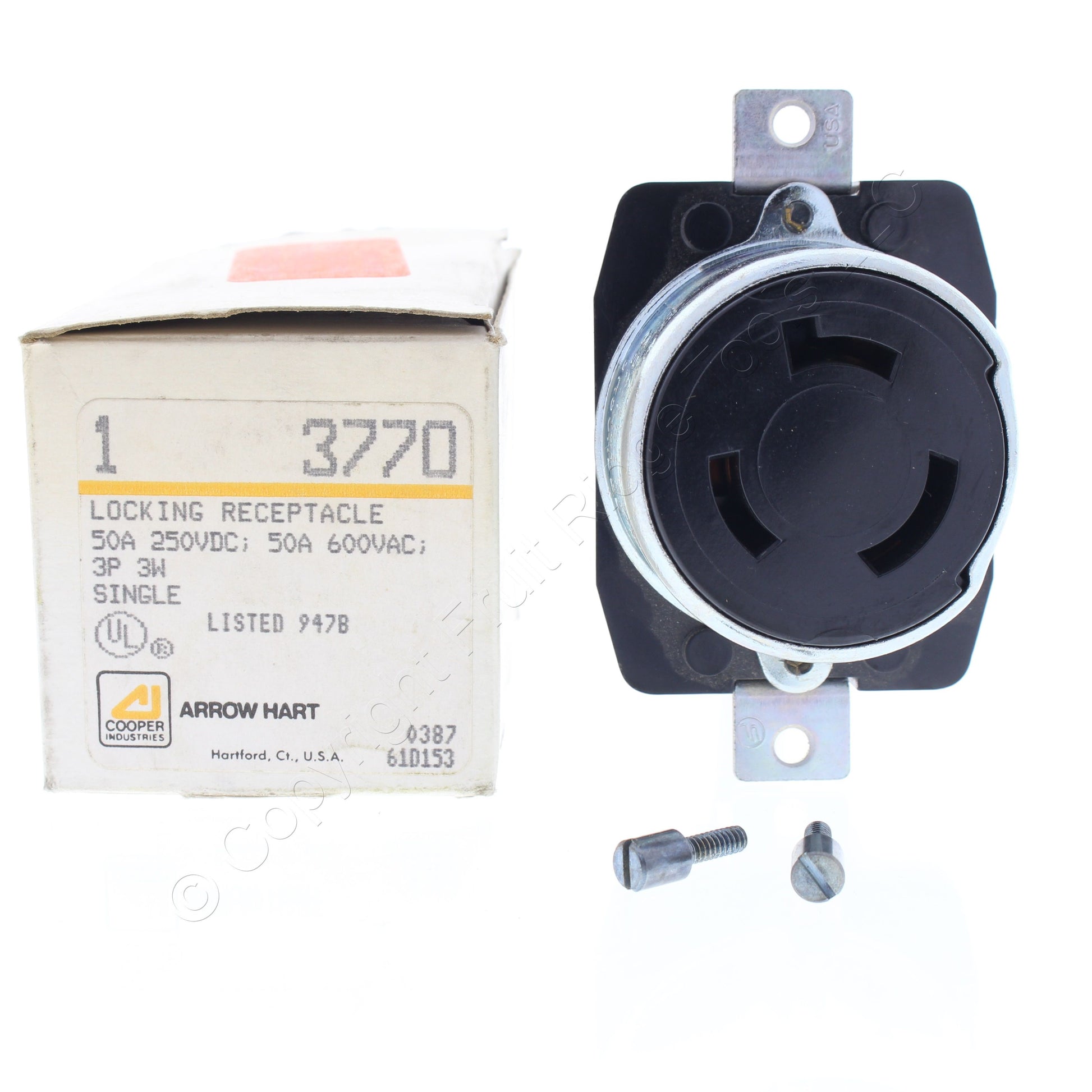

Arrow Hart 3770 locking receptacle. Industrial Specification Grade, Non-NEMA, 2-pole, 3-wire, grounding, rated 50A 250VDC 600VAC. Please note that there are several non-NEMA 50A 250VDC 600VAC blade pattern variations, so please check the plug diagram that we have provided before buying. Each is individually packaged. Features include:
Uncompromising industrial-grade quality for superior performance and long service life

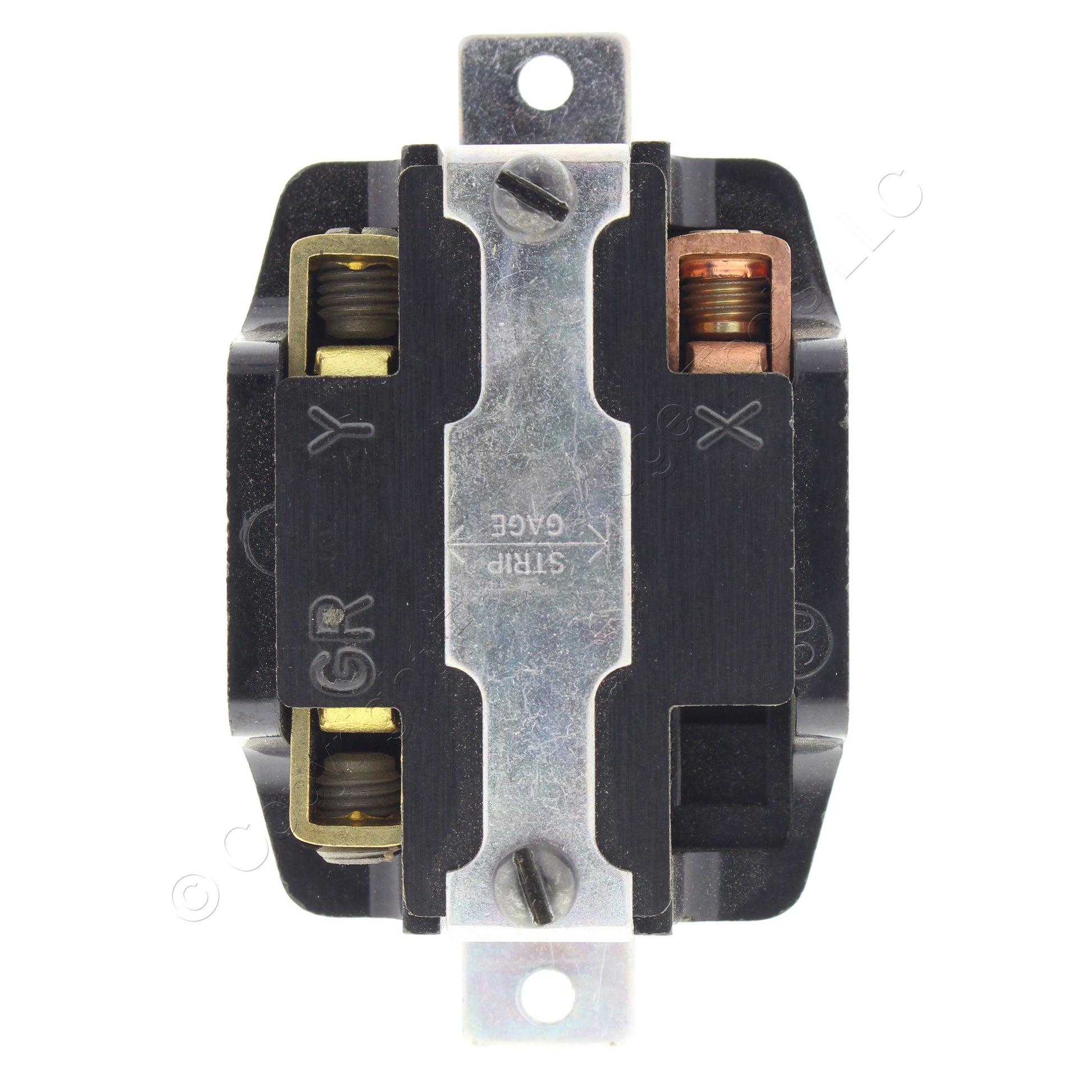

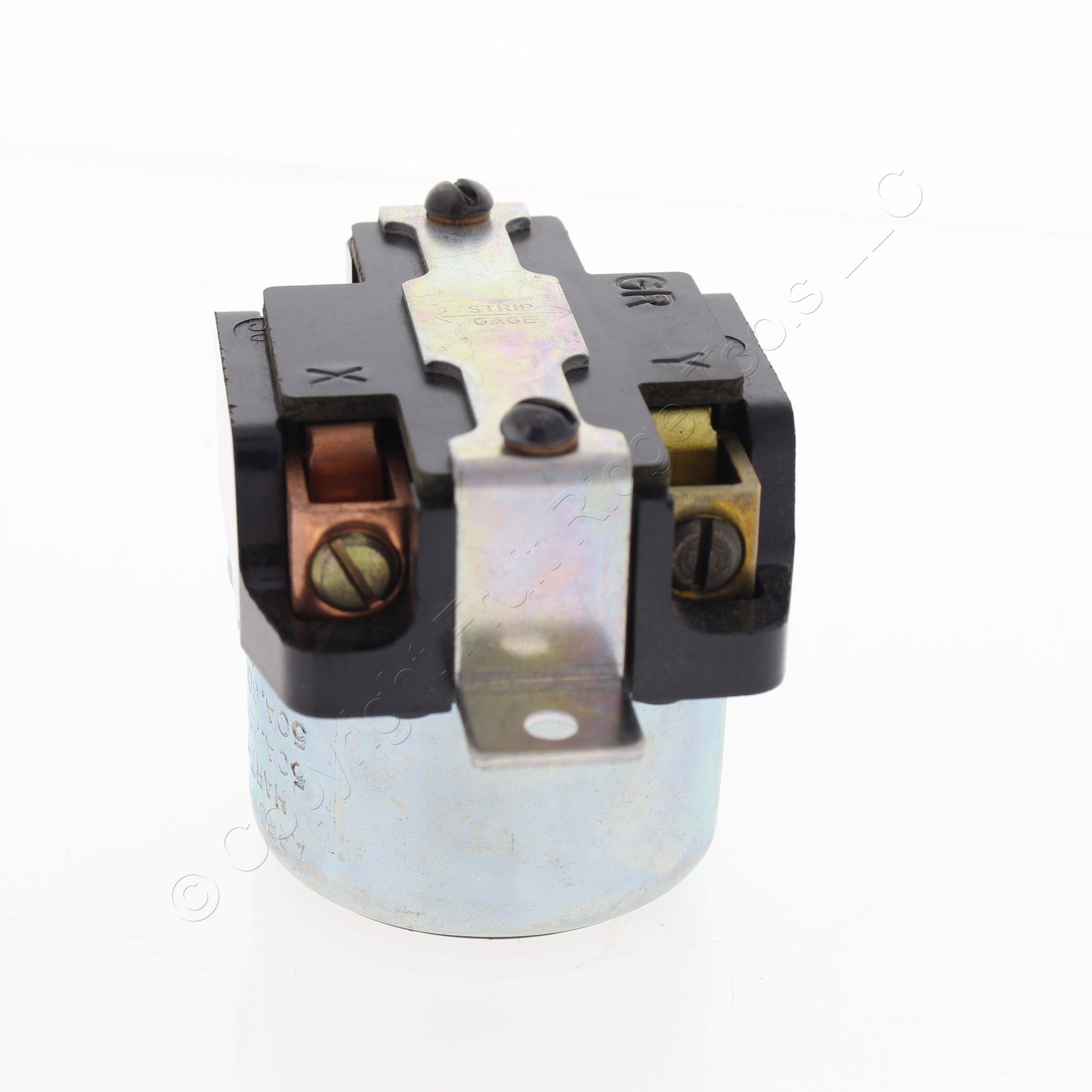

Terminals clearly identified to speed and simplify wiring
Heavy-duty, impact resistant construction for top performance in the environmental extremes of grueling industrial settings
One-piece .040" thick brass, high-copper content contacts with nickel-plated contact clamp type terminals
Contacts deeply seated in thick walled face
Extra-thick .050" mounting strap
Triple combo mounting and terminal screws (straight slot, Phillips, and Robertson)
