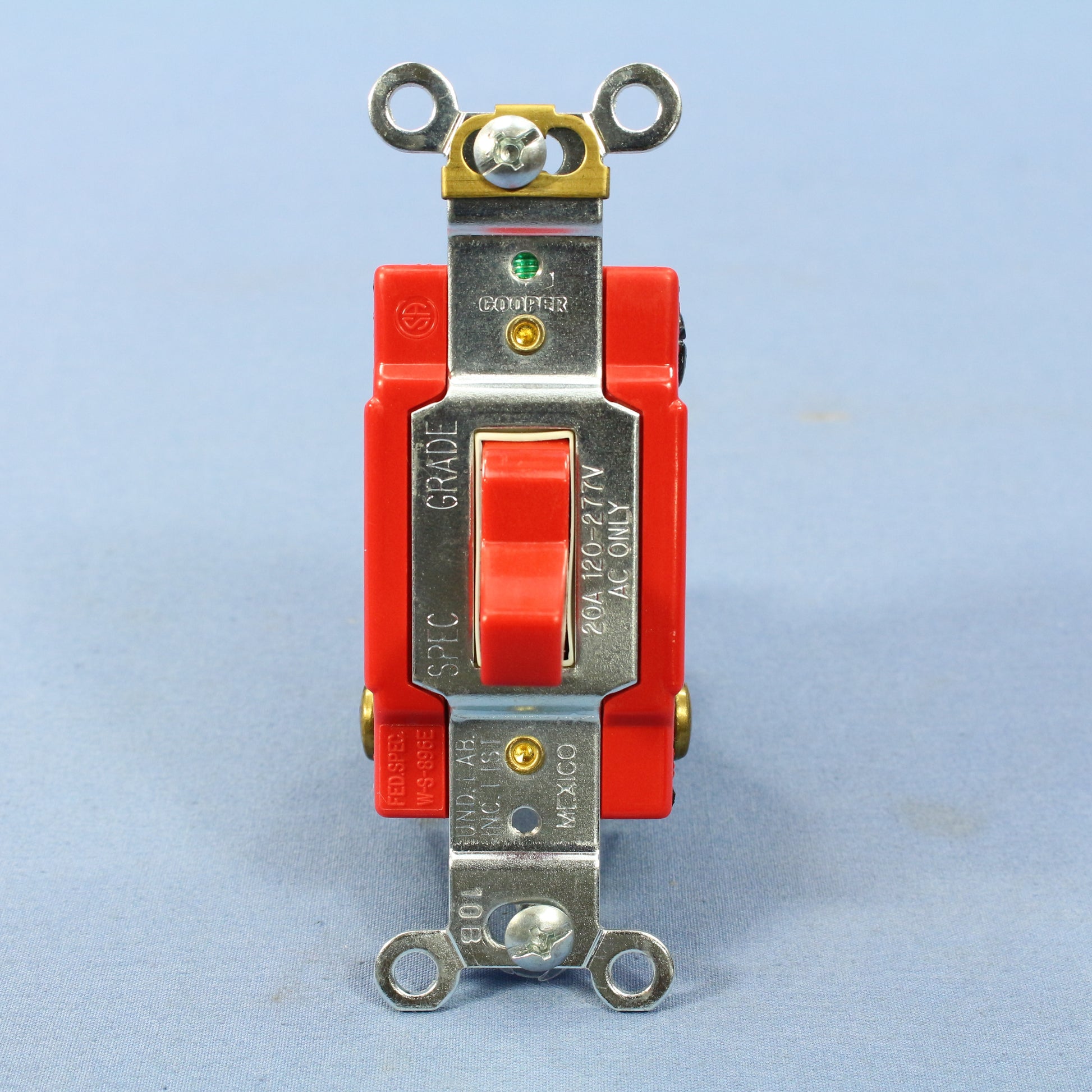

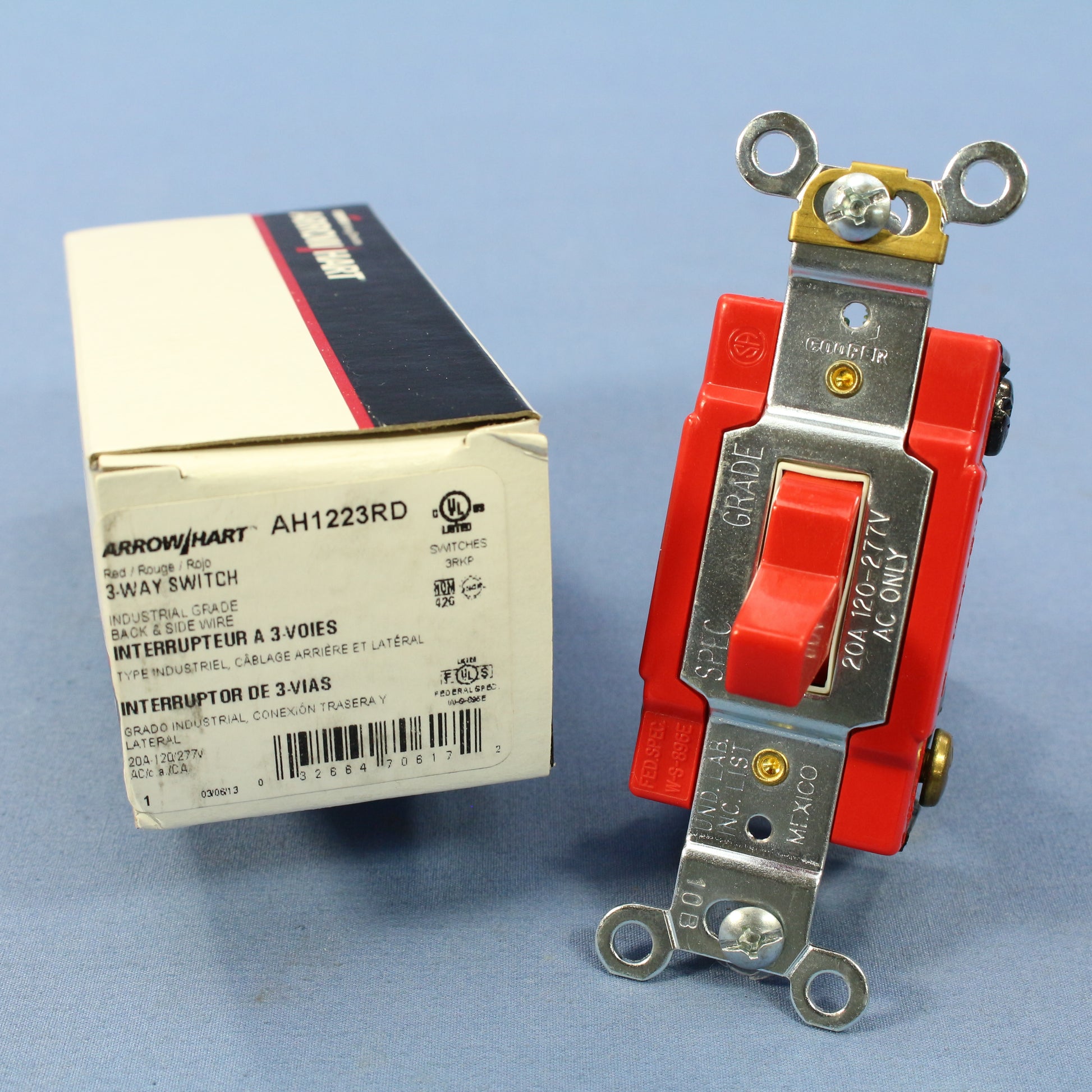

Cooper Arrow Hart AH1223RD red 3-way toggle switch. The bright red color is great for locations where you want to call attention to your switch: shops, garages, playrooms, etc. Industrial Specification Grade, back and side wired, rated 20A 120/277V AC. Each is individually packaged; packaging may differ from photo. Features include:
Thick steel actuating spring ensures fast make, slow break
Automatic grounding system eliminates the need for bonding jumper in properly grounded metal enclosures and provides redundant measure of ground continuity where a jumper is used

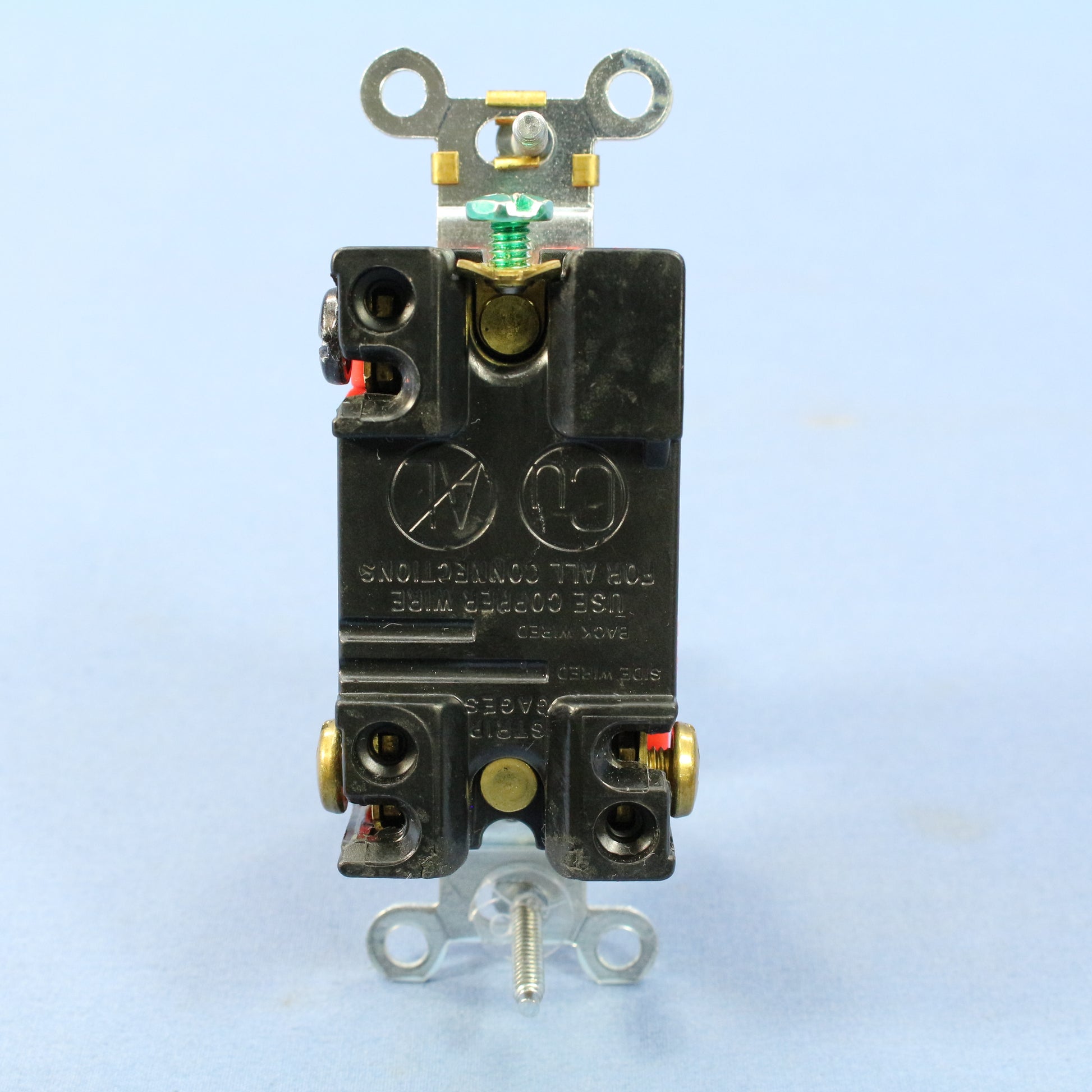

Taper lead-in slots on back wiring holes assist in gathering stranded wires for faster more secure connections
Back and side wire terminals accept up to #10 solid or stranded wire
Easy access ground screw terminal
0.050" thick steel mounting strap to withstand abuse; zinc plated for corrosion resistance
120/277VAC rating is ideal for fluorescent lighting fixtures typically used in commercial installations (also works fine with regular residential lighting)
Combination straight slot/Robertson head mounting and terminal screws for easy installation
