Appleton Reverse Service Powertite Pin Sleeve Connector 4-Wire 200A ARC20044E-RS

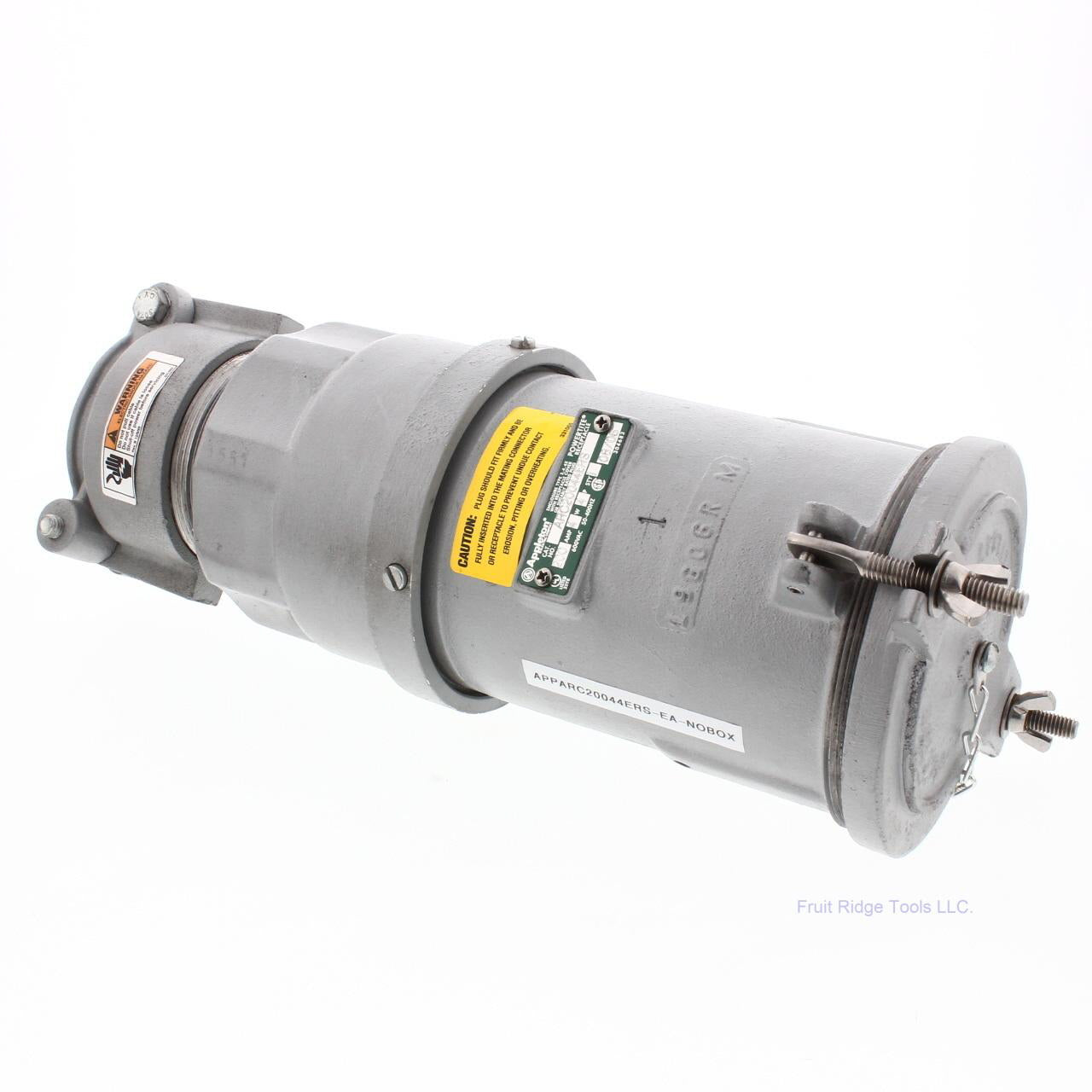

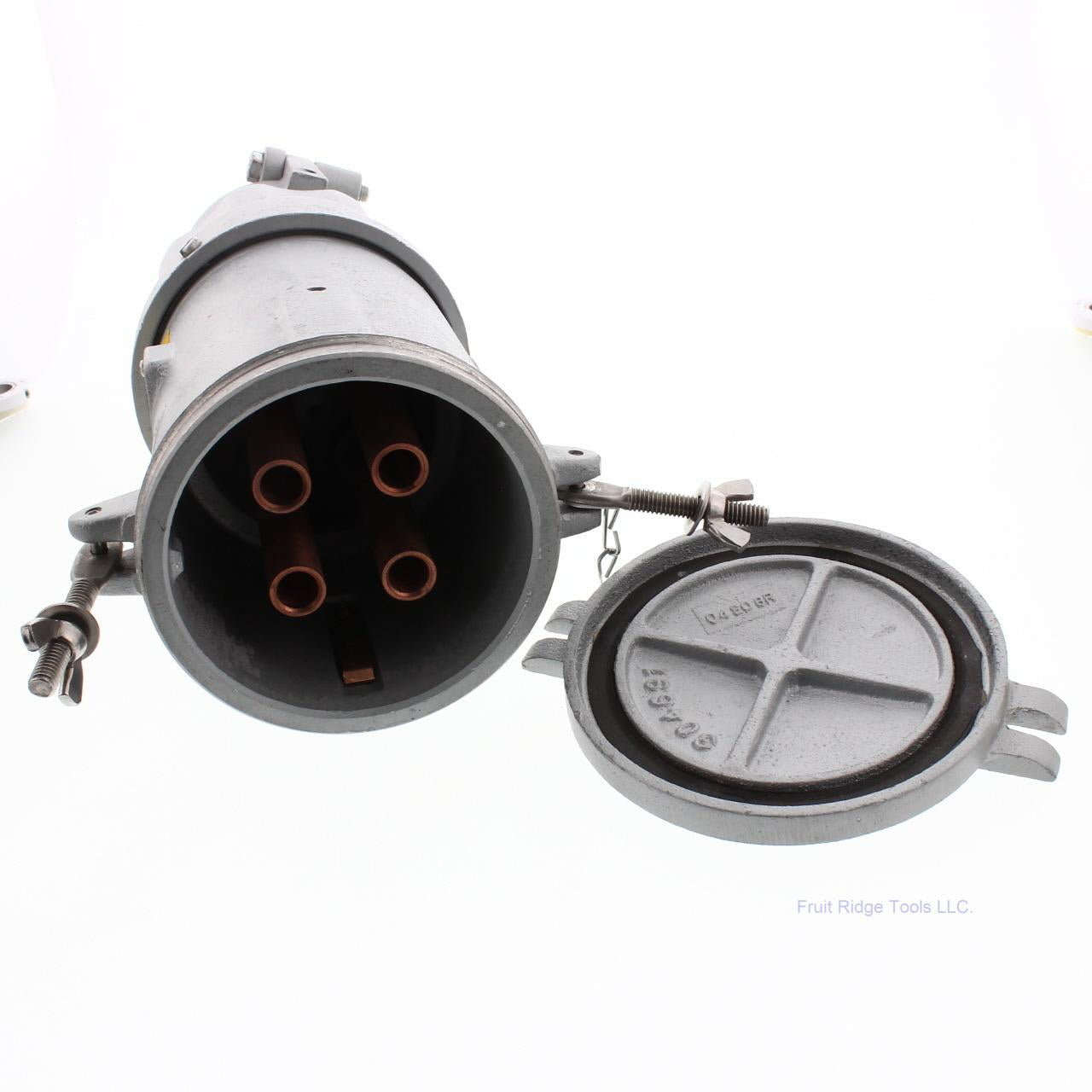

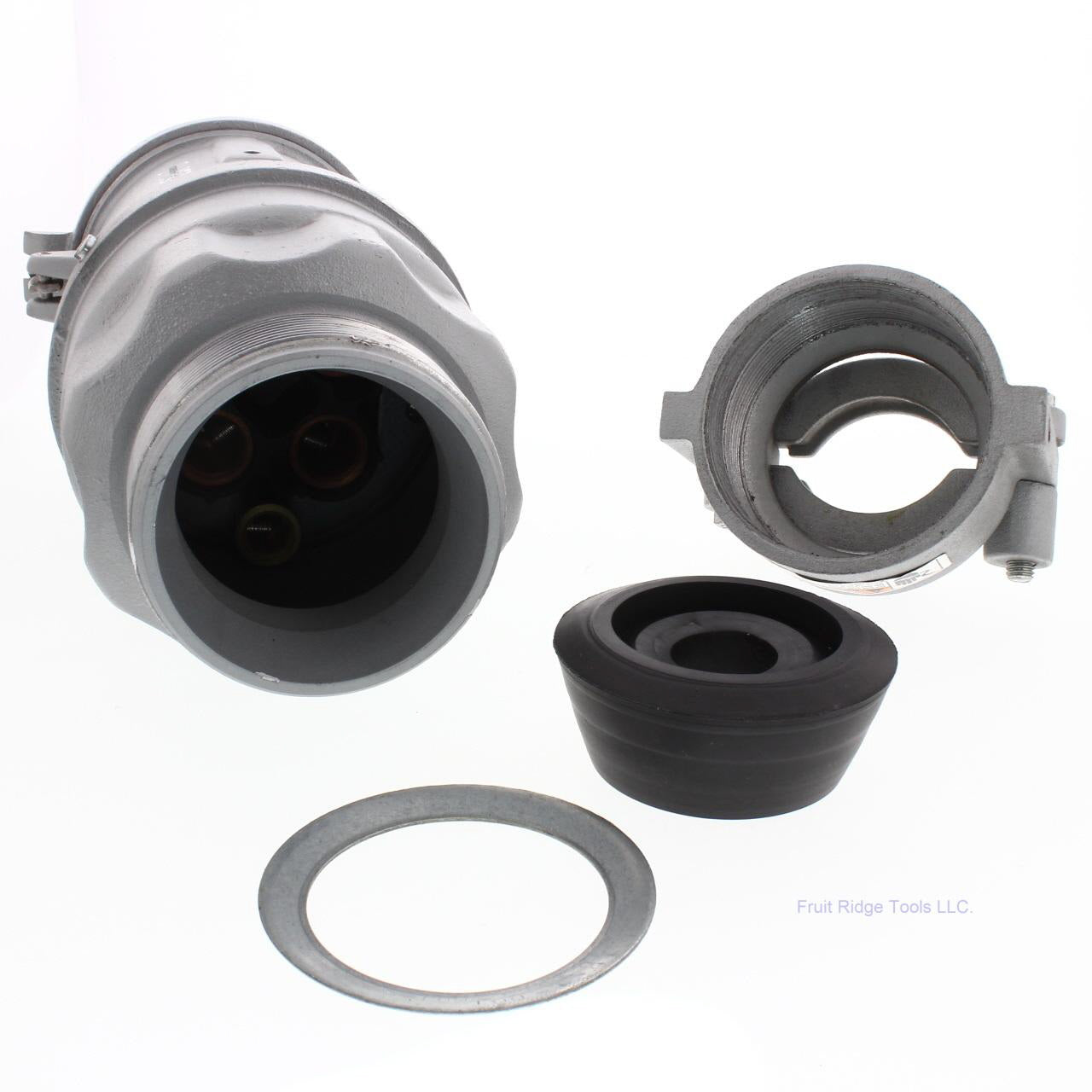

Appleton Powertite ARC20044E-RS metallic Reverse Service Pin and Sleeve connector. Reverse Service style: Useful where a �hot� plug feeds a dead receptacle. Reverse service is often used for generator applications where the receptacle houses a dead plug interior. Plug houses an energized receptacle interior, which has recessed male contacts to reduce danger of accidental touching. Made of epoxy powder-coated copper free aluminum for corrosion resistance. It supplies power to fixed electrical equipment such as motor generator units/welders/pumps/compressors and cellular relay stations. Connector comes with weatherproof enclosure for the rough usage. It is also used for raintight/shipping docks/ports and other ship to shore applications. Polarized plug has a clamping ring that is tightened on to receptacle. Connector has a current rating of 200 Amps. It has locking screw and slot to prevent connector of cable collar from backing off. Service Inlet plug has pressure wire terminal connection. It has single grounding shell with rain tight applications. Connector has a voltage rating of 600 Vac At 50 to 400 HZ/250 VDC. It has a cable outer diameter of 1.875 Inch to 2.5 Inch. Connector is UL/CSA/NEMA certified. Bulk packed loose with no individual packaging. Features include:

• Made of epoxy powder-coated copper free aluminum
• Corrosion resistance
• Weatherproof enclosure
• Polarized connector
• Locking screw and slot
• Circuit Breaking
• For use with a compressor, motor generator unit, pump or welder
• Reverse service
• Cable outer diameter of 1.875 Inch to 2.5 Inch
• 200A 600 VAC @ 50 to 400 HZ/250 VDC
• NEMA 3, 3R, 4, 4X
• 3-Phase, 4-Wire, 4-Pole
